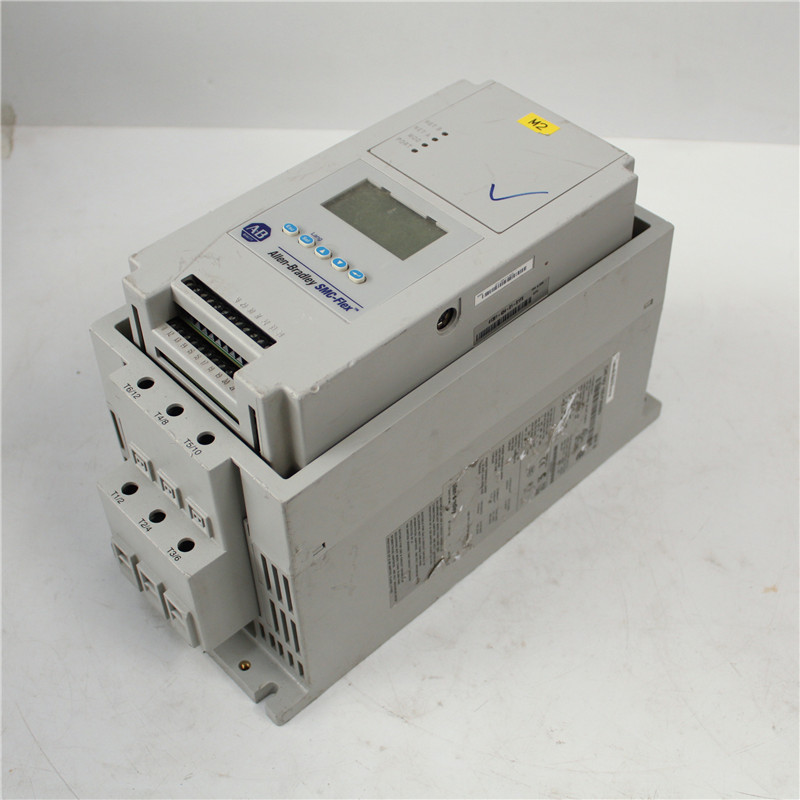

150-F25NBD Allen-Bradley Soft Starter

Module NO:150-F25NBD

Brand:Allen-Bradley

Color:Used

P/N:41391-454-01-S1FX

Other similar products:

150-C16NBD

150-C37NBD

150-C43NBD

150-C60NBD

150-C85NBD

150-C108NBD

150-C135NBD

150-C201NBD

Warranty:3 months

Regarding product price: Affected by market fluctuations, please contact us to confirm the price of the final transaction before placing an order









    150-F25NBD Technical Specifications

  • Electrical
  • With display Yes
  • Voltage type for actuating AC
  • Rated operating voltage Ue 200 V
  • Rated control supply voltage at AC 50 Hz 100 V
  • Rated control supply voltage at AC 60 Hz 100 V
  • Overload current for line connected devices 5 A
  • Overload current for delta connected devices 8.6 A
  • Controller type Soft starter
  • Control options None
  • Trip classes 10, 15, 20 and 30
  • Trip current rating 117% of motor FLC
  • Transformer control module 75VA @ 100...240V AC (-15%, +10%)
  • Heatsink fan rating 20VA @ 110/120V AC or 220/240V AC
  • DV/DT protection RC snubber network for power circuit
  • Repetitive peak inverse voltage rating 1400V per UL/CSA/NEMA for power circuit
  • Operating frequency 50/60 Hz for power circuit
  • 150-F25NBD Soft Starter
  • Line connected motor power, max 7.5 Hp @ 230V AC, 60 Hz, 3-phase
  • Delta connected motor power, max 40 Hp @ 575V AC, 60 Hz, 3-phase
  • Rated impulse voltage 6000V per IEC for power circuit
  • Dielectric withstand 2500V per IEC for power circuit
  • Line connected motor current 5...25 A @ 500/575V AC, 3-phase
  • Delta connected motor current 8.7...43 A @ 500/575V AC, 3-phase
  • Transient protection Metal oxide varistors: 220 Joules (optional) for power circuit
  • Insulation voltage Rated 500V per IEC for power circuit
  • Rated operational voltage 200...480V AC (-15%, +10%) per UL/CSA/NEMA for power circuit
  • Input OFF-state current <10 mA AC, <3 mA DC for control circuit @ input OFF-state voltage
  • Short-circuit protection device list Standard fuse, circuit breaker and high capacity time delay class CC/J/L
  • Number of contacts 1 for auxiliary contacts
  • High capacity available fault current, max 70 kA @ 600V, maximum current 90 A time delay Class J or Class L fuse for inside delta connected motors
  • Type of current AC for auxiliary contacts
  • Conventional thermal current (Ith) AC/DC: 5 A for auxiliary contacts
  • Type of control circuit Electromagnetic relay for auxiliary contacts
  • Type of contacts Programmable NO/NC for auxiliary contacts
  • Utilization category MG 1 per UL/CSA/NEMA for power circuit
  • Standard controller feature Status indication: stopped, starting, stopping, at speed, alarm and fault
  • Standard available fault current, max 5 kA @ 200...600V, maximum standard fuse 150 A for delta device operational current rating
  • Optional controller feature SMB smart motor braking control: provides motor braking without additional equipment for applications that require the motor to stop quickly, braking current is adjustable from 0...400% of the motors full-load current rating
  • Integrated motor overload protection Yes
  • Short circuit protection device performance (SCPD) type Type 1
  • Number of sensors, max 6 for PTC input ratings
  • Inrush current control module 5 A @ 24V DC (-15%, +10%)
  • Voltage at PTC terminals (RPTC = open), max 30V for PTC input ratings
  • Transient watts control module 60 W @ 24V DC (-15%, +10%)
  • Steady state watts control module 24 W @ 24V DC (-15%, +10%)
  • Voltage at PTC terminals (RPTC = 4 kΩ), max <7.5 for PTC input ratings
  • Response time 800 ms for PTC input ratings
  • Inrush time control module 250 ms @ 24V DC (-15%, +10%)
  • Transient time control module 500 ms @ 24V DC (-15%, +10%)
  • Cold resistance of PTC sensor chain, max 1500 Ohm for PTC input ratings
  • Tachometer input 0...5V DC, 4.5V DC = 100% Speed
  • Allen bradley power supply control module, min 1606-XLP50E @ 24V DC (-15%, +10%)
  • Short circuit trip resistance 25 Ohm ± 10 Ohm for PTC input ratings
  • Response resistance 3400 Ohm ± 150 Ohm for PTC input ratings
  • Reset resistance 1600 Ohm ± 100 Ohm for PTC input ratings
  • Input OFF-state voltage, max 50V AC, 10V DC/12V AC for control circuit
  • Input ON-state voltage, min 85V AC, 19.2V DC/20.4V AC for control circuit
  • Lower line side cable size 0.8...2.5 mm2 (18...14 AWG) for power terminals
  • Lower load side cable size 0.8...2.5 mm2 (18...14 AWG) for power terminals
  • Upper load side cable size 2.5...50 mm2 (14...1 AWG) for load power terminals
  • Upper line side cable size 2.5...95 mm2 (14...3/0 AWG) for line power terminals
  • Rated operational current 3 A @ 120V AC, 1.5 A @ 240V AC for auxiliary contacts
  • Input ON-state current 20 mA @ 120V AC/40mA @ 240V AC, 7.6 mA @ 24V AC/DC for control circuit
  • Contact type auxiliary contacts 19/20 (Aux #1), 29/30 (Aux #2), 31/32 (Aux #3) and 33/34 (Aux #4)
