Water spray truck Isuzu water transport tank trucks
Function:
Water bower truck ISUZU (also called water bower, water truck tank, water sprinkler tank truck, customer made water truck, water truck street sprinkler, truck mounted water tank, high pressure water tank truck , sprinkler truck) is produced for transportation and distrubition of industrial and drinking water, spraying and washing of streets and tunnels, dust and environmental control and fire-fighting purposes. In order to achieve those different operations , each water tanker truck is equipped with various features and it’s designed according to capacity of the carrier vehicle.
Areas of Application and Use
- Transportation and distrubition of drinking water
- Transportation and distrubition of industrial water
- Pressurized street and road cleaning
- Pressurized tunnel cleaning
- Dust and environmental control
- Fire fighting service
Features:
---- ISUZU chassis, perfect performance
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Water pump super powerful, efficient pump in and out
---- Strong, durable, perfect performance
---- Prolonged service life
Specification:

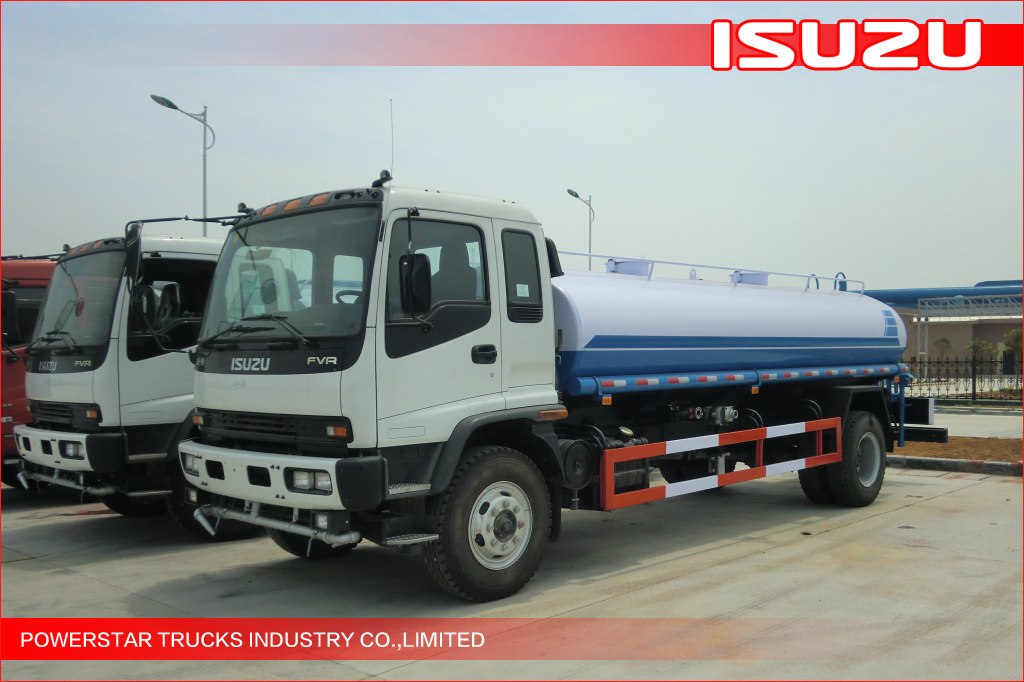

| Water bowser Truck ISUZU FVR (15,000 litres) |
| General |
Vehicle Brand |
POWERSTAR |
| Chassis Brand |
ISUZU |
| Overall Dimension |
8900 * 2500 * 3200 mm |
| GVW / Kerb Weight |
16,000kg / 6,800 kg |
| Cab |
Cab Capacity |
3 persons allowed |
| Air Conditioner |
W/ air conditioner |
| Engine |
Fuel Type |
Diesel |
| Engine Brand |
ISUZU engine, 6HK1 |
| Power |
240 Hp (178KW) |
| Displacement |
5193 ml |
| Emission Standard |
Euro IV |
| Chassis |
Drive Type |
4X2, left hand drive |
| Transmission |
ISUZU MLD gear box, 6-speed forward, 1 reverse |
| Wheelbase/No. of axle |
4700 mm / 2 |
| Tyre Specification |
10.00-20 |
| Tyre Number |
6 tyres and 1 spare tyre |
| Max Speed |
110 km/h |
| Paint |
Metallic paint |
| Superstructure |
Tank Capacity |
10,000 Litres ( About 2,640gallons) |
| Tank Material |
Carbon steel |
| Flow Speed |
1000 litres / min |
| Delivery Head |
90 m |
| Suction Head |
6 m |
| Hose |
High quality PVC hose, anti-aging |
| All other standard accessories: manhole, ladder, inlet, discharge……. |
| Optional |
** Tank material could be stainless steel or carbon steel with non-toxic treatment for potable water, safe for human body. |
Recently Built Water Tank Truck:
|
|
5,000 Liters
(Anti-corrosion treatment)
|
|
|
Carbon Steel
4mm
rollback truck rollback truck
|
|
|
|
|
|
|
|
|
|
Discharge Hose &
Hose Box
|
Standard
rollback truck rollback truck
|

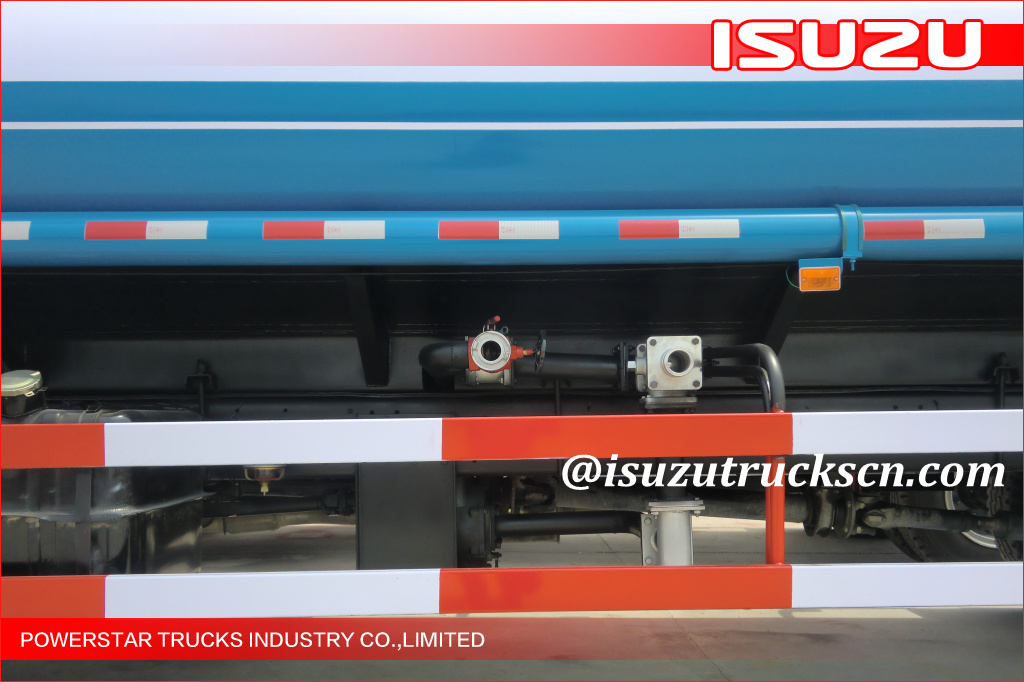

Valve Control Station
tow truck hydraulic tow truck hydraulic tow truck hydraulic
Float Ball Liquid Level Indicator
tow truck hydraulic tow truck hydraulic tow truck hydraulic
Hose & Hose box
tow truck hydraulic tow truck hydraulic tow truck hydraulic

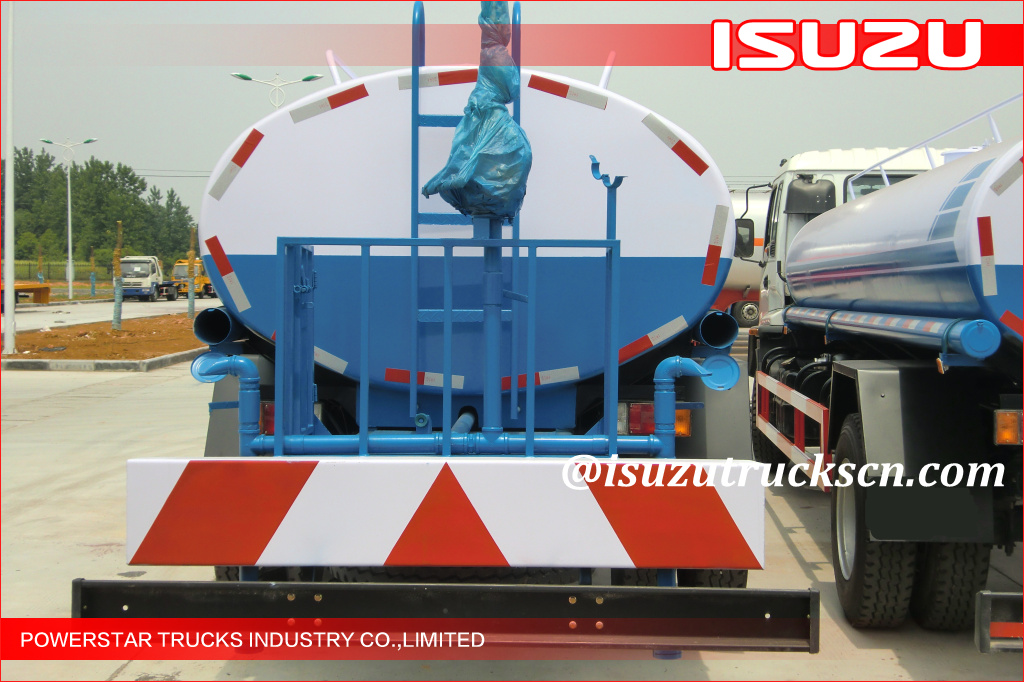

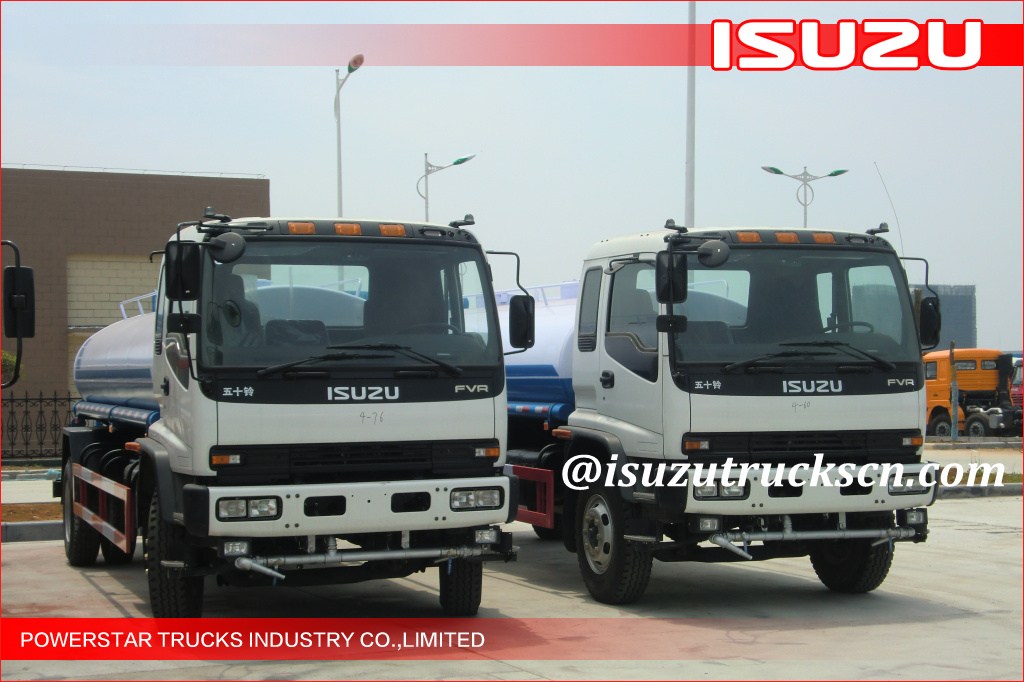

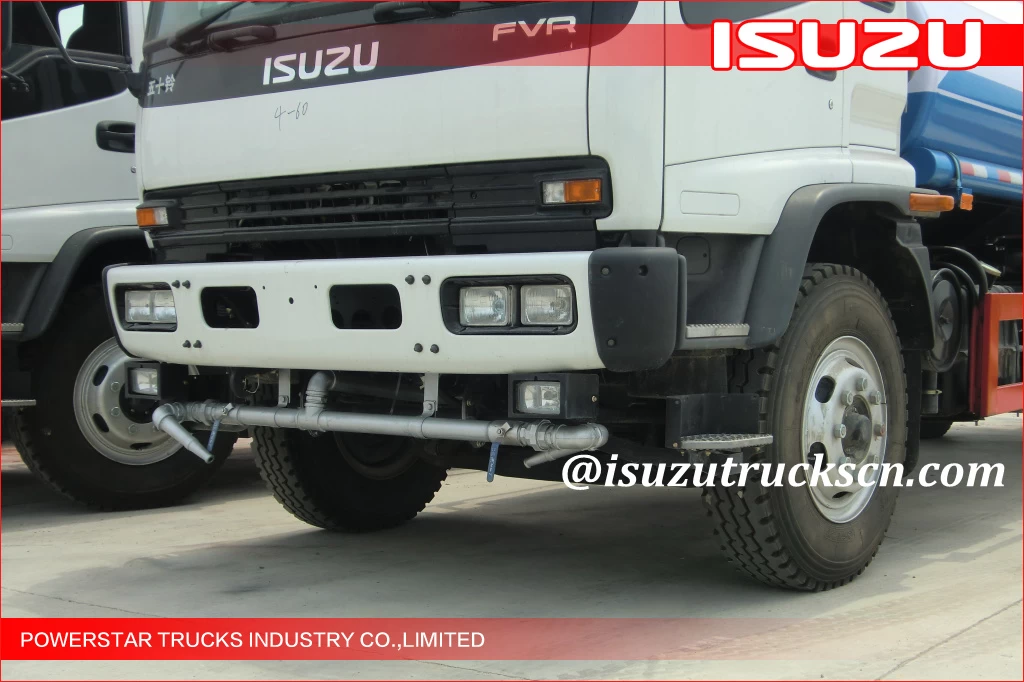

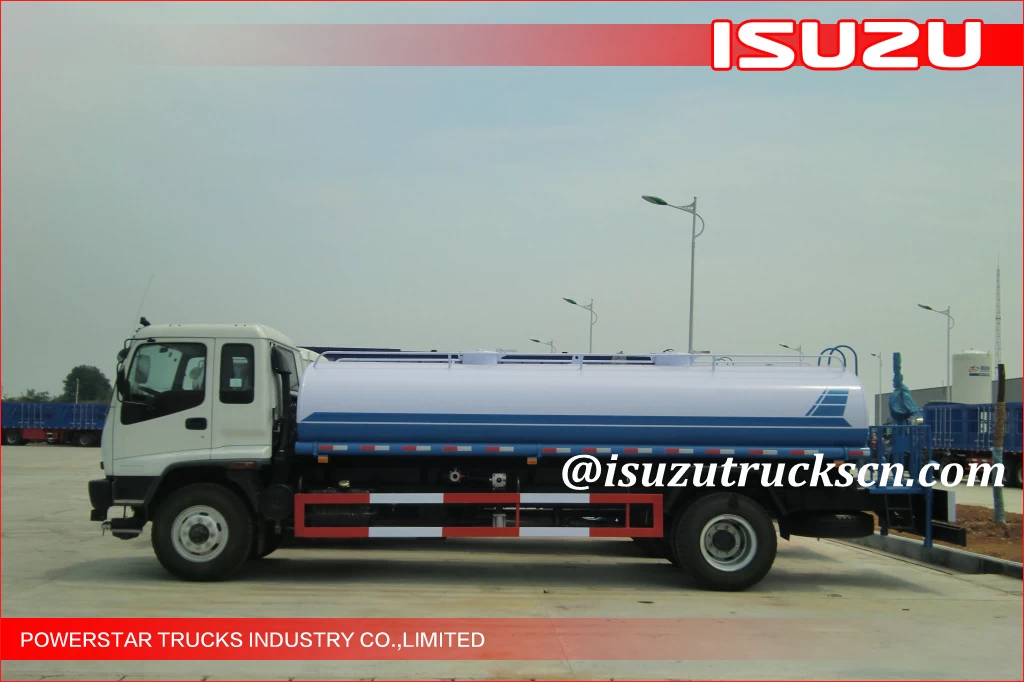

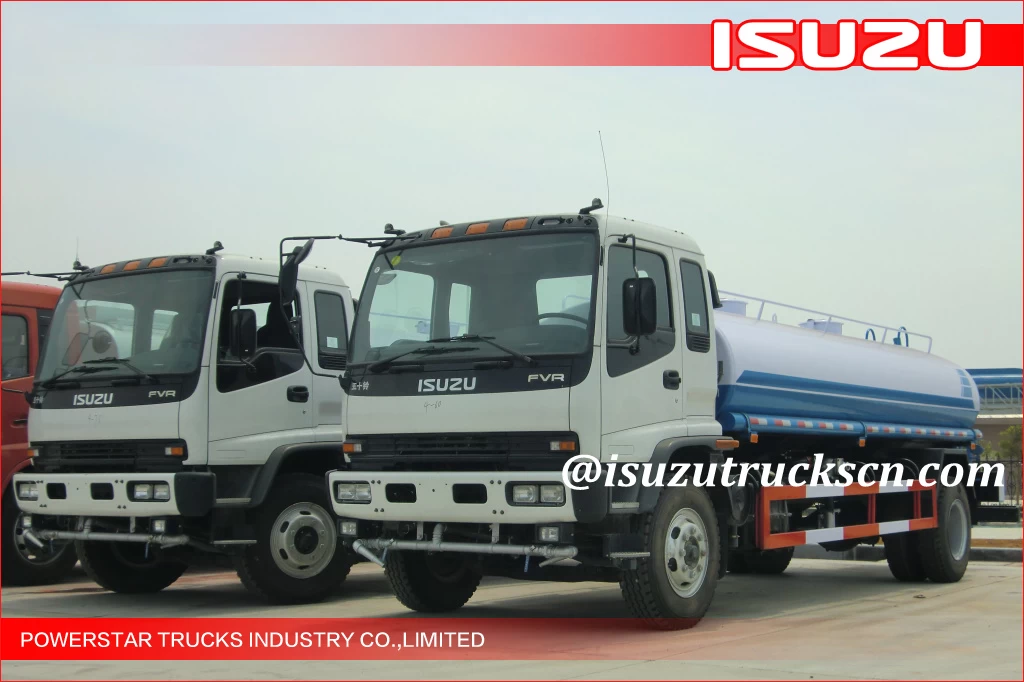

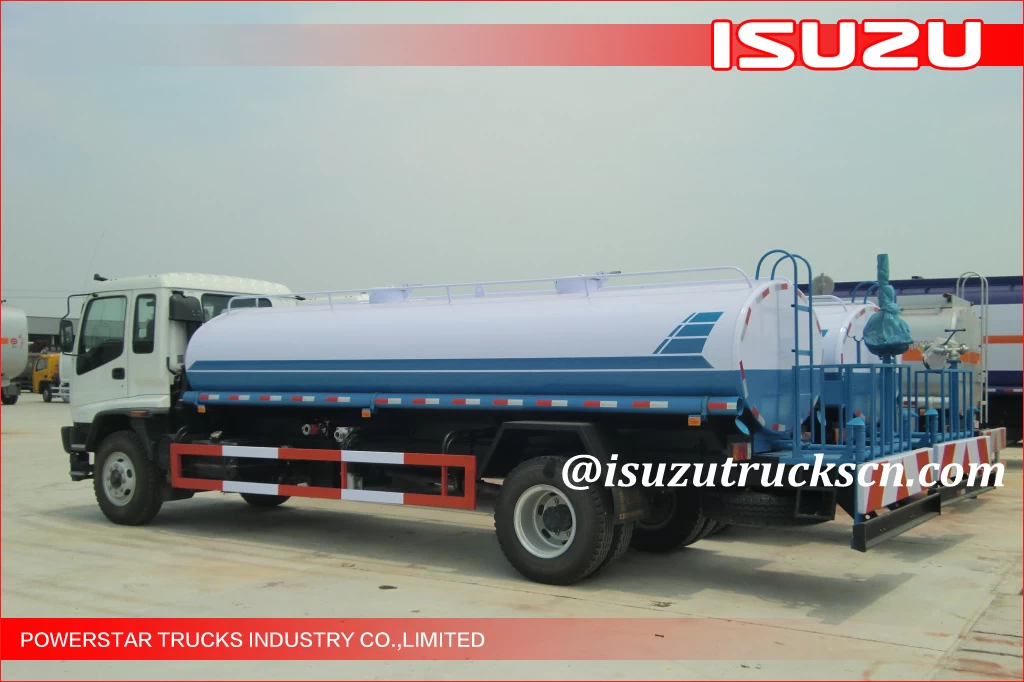

Powerstar Water Tank Trucks Isuzu Water Bowsers 5,000L detail pictures
