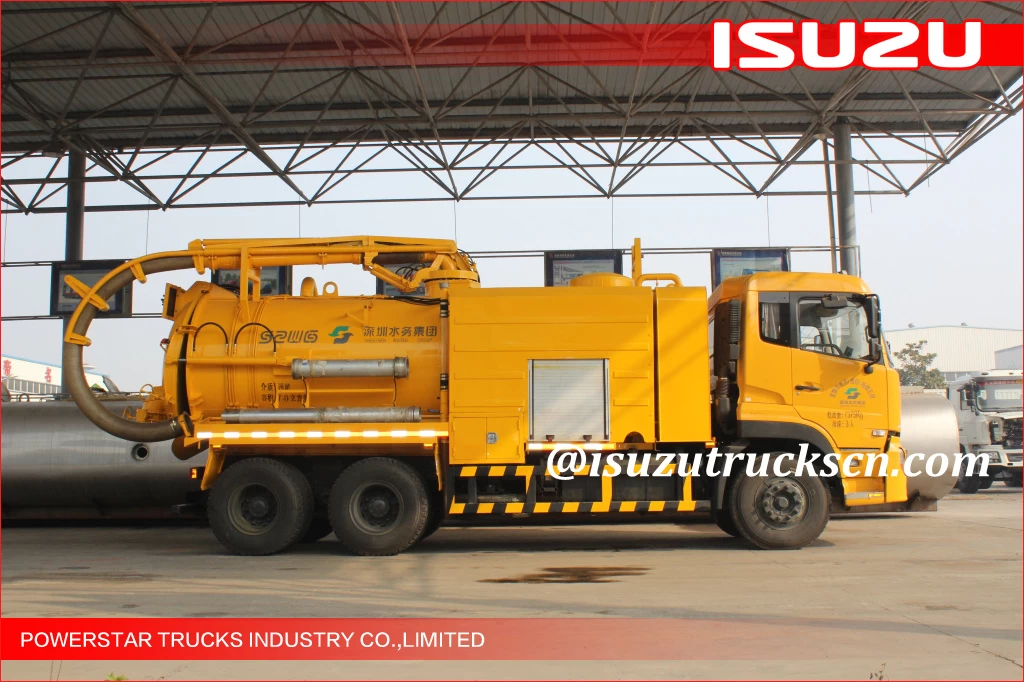

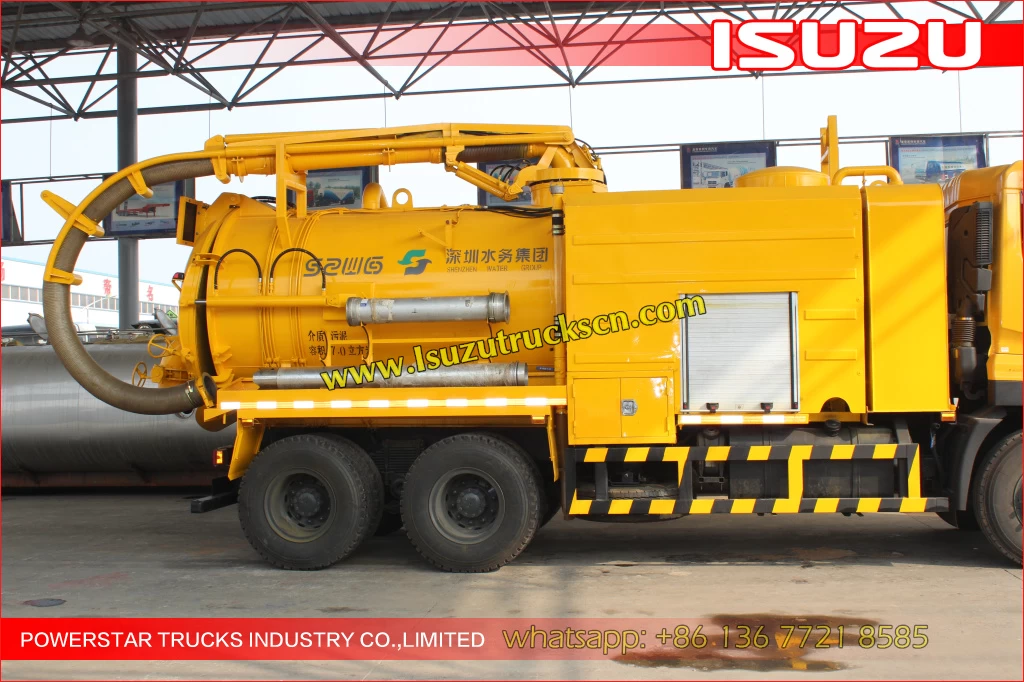

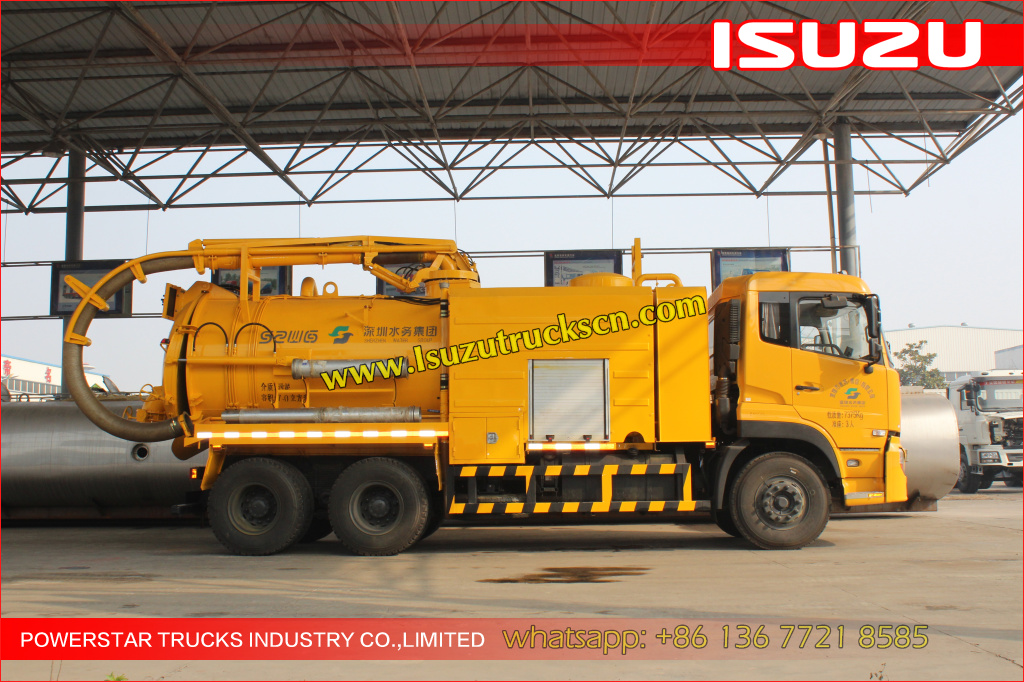

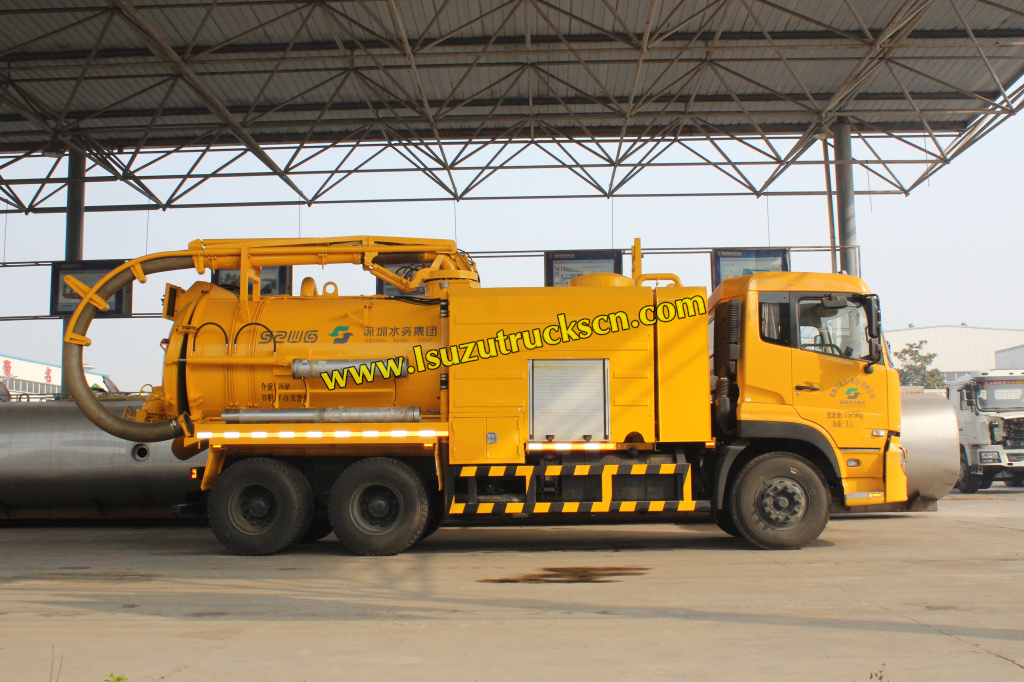

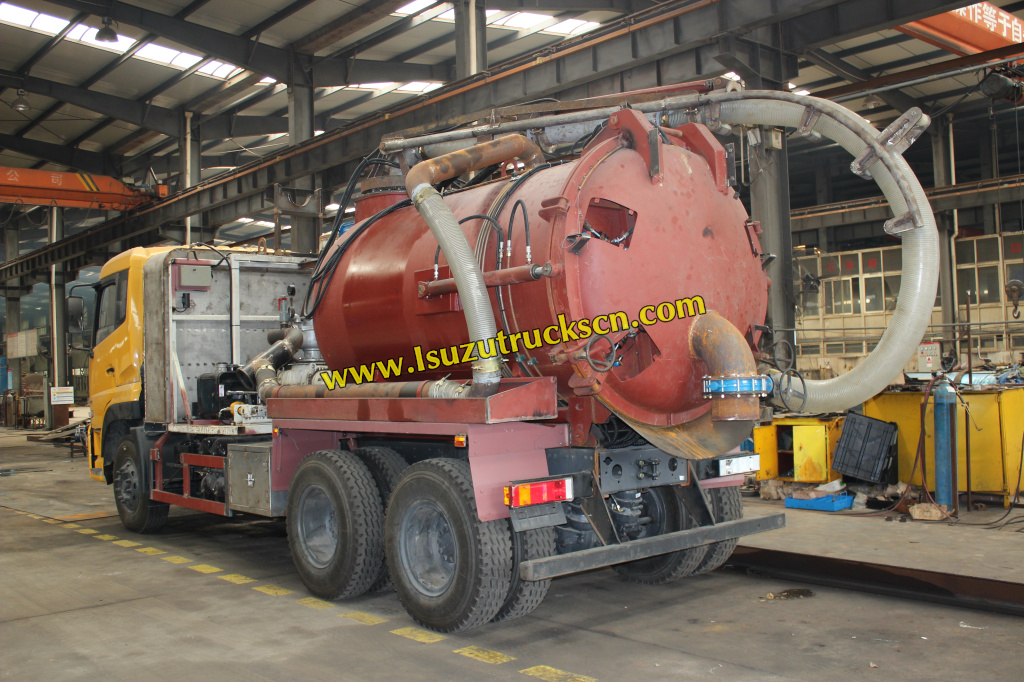

15000Liter Algeria Isuzu 6x4 Combined Sewer Jetting Vacuum Truck

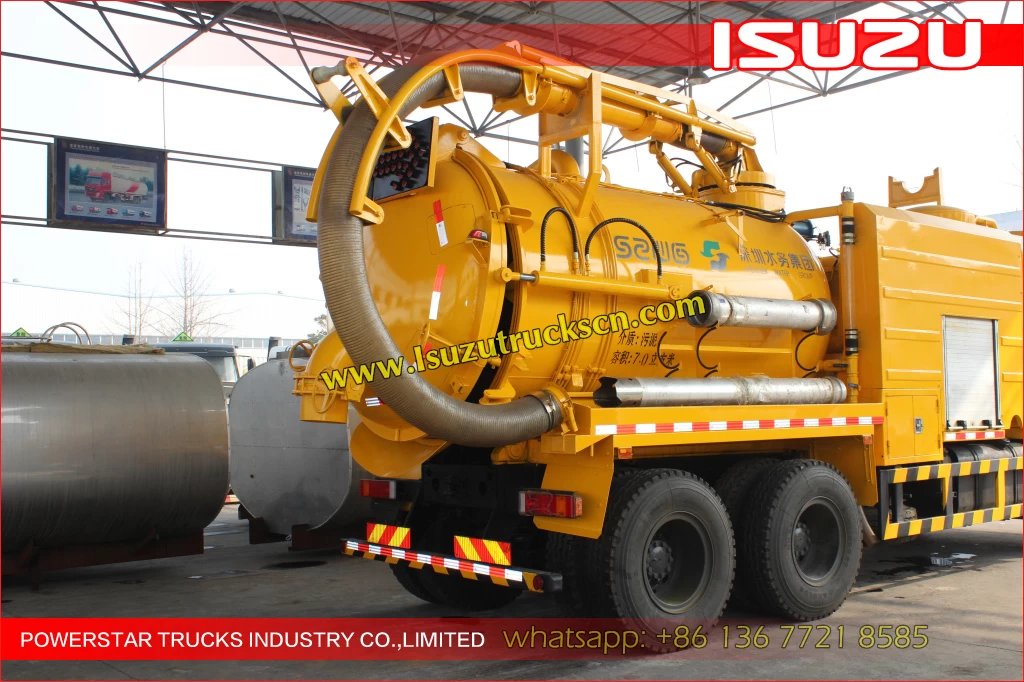

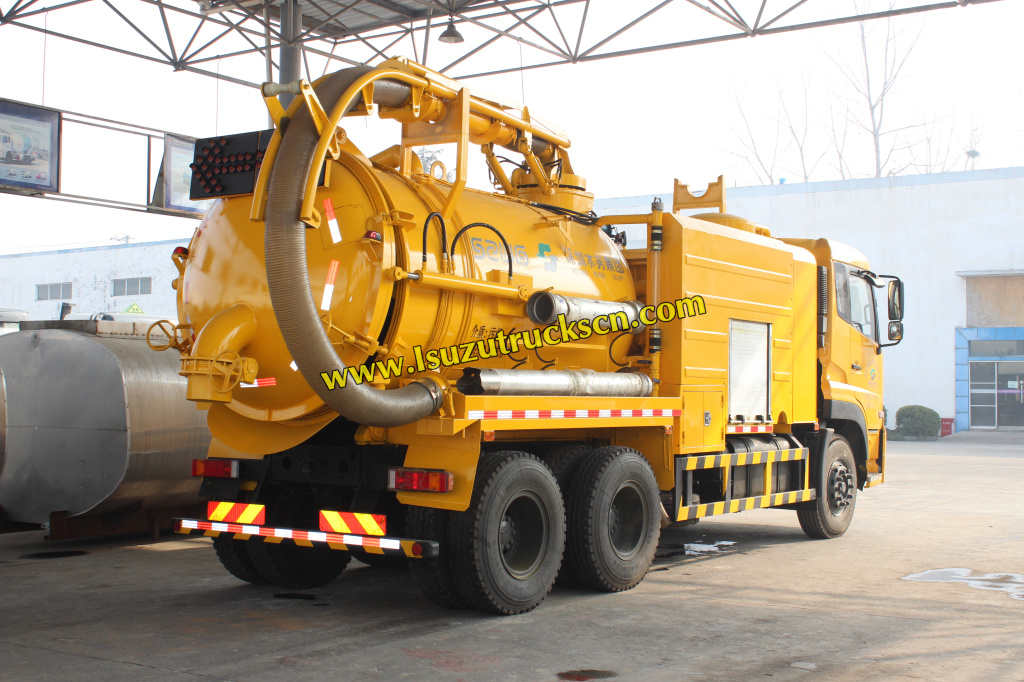

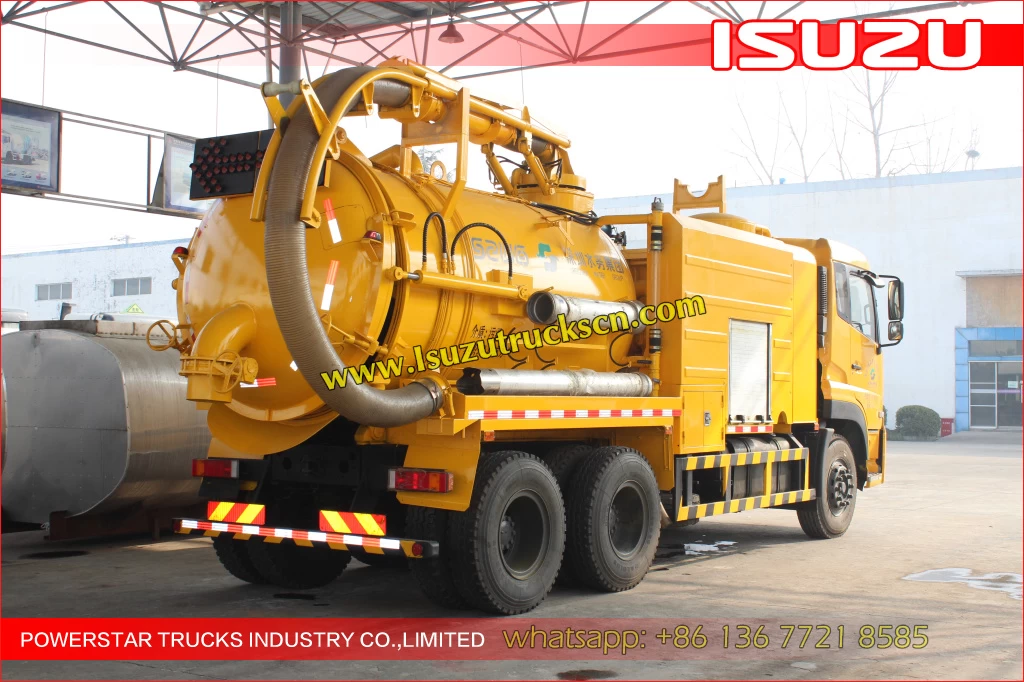

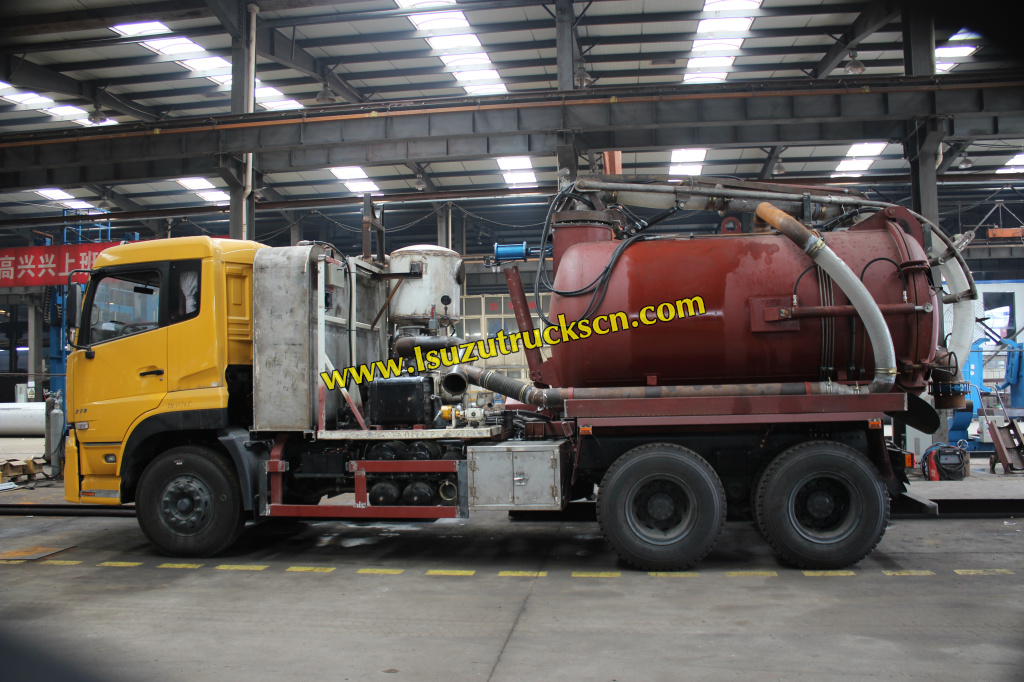

 15000Liter Isuzu 6x4 Combined Sewer Jetting Vacuum Truck

Basic Description

Combined sewer jetting and vacuum truck is used for removing sand, stones, bottles, cans, grease, sludge and other debris from sanitary sewer and/or drain lines by the flushing action of high pressure water. The unit includes a positive displacement vacuum pump and a high pressure water pump.


Combination jet/vac machine is equipped with self-contained water supply as the water source for the high-pressure pump and a cylindrical debris tank for collecting all materials coming from the sewer system . Combination unit is able to perform simultaneous high pressure flushing of sewer pipe and removal of liquids and solids from the sewer manhole.

Key Features

   ISUZU FVZ/FXZ/CXA Chassis, Durable & Performance.

   Widely used in environment and sanitation field

   Stainless steel sewage water tank and clear water tank

   High performance vacuum pump & high pressure pump

   POWERSTAR 20 years’ experience on Sanitation Trucks exporting.

Main specifications



ISUZU Vacuum Jetting Truck  (15,000 litres)
General Vehicle Brand Powerstar
Chassis Brand ISUZU
Overall Dimension 9600 * 2500 * 3700 mm
GVW / Kerb Weight 28,000 kg / 13,420 kg
Cab Cab Capacity 2 persons allowed
Air Conditioner Air conditioner is optinal
Engine Fuel Type Diesel
Engine Brand ISUZU 6HK1
Power 280 Hp (206 KW)
Displacement 7790 ml
Emission Standard Euro III
Chassis Drive Type 6X4, left hand drive
Transmission 9-speed front, 1 reverse
Wheelbase 4350+1300 mm
Number of axle 3
Tyre Specification 10.00-20
Tyre Number 10 tyres and 1 spare tyre
Max Speed 110 km/h
Paint Metallic paint
Superstructure Water Tank Tank Capacity 7,000 Litres (about 2,100 gals)
Tank Material Carbon steel

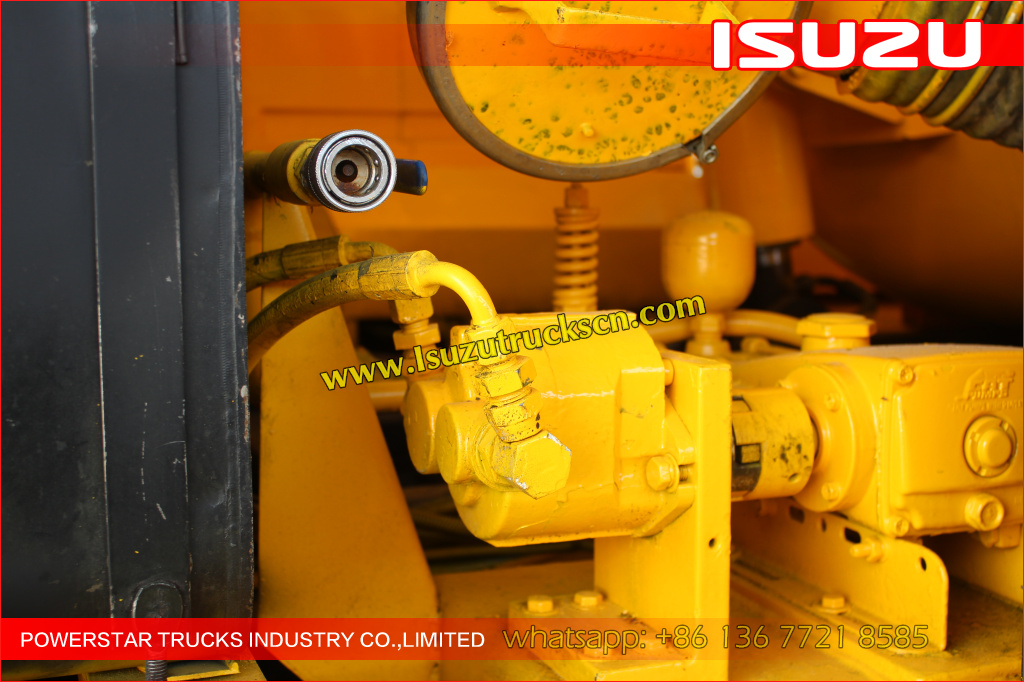

High Pressure Pump Italy Imported brand / 16Mpa
Flow Speed 125 L/min

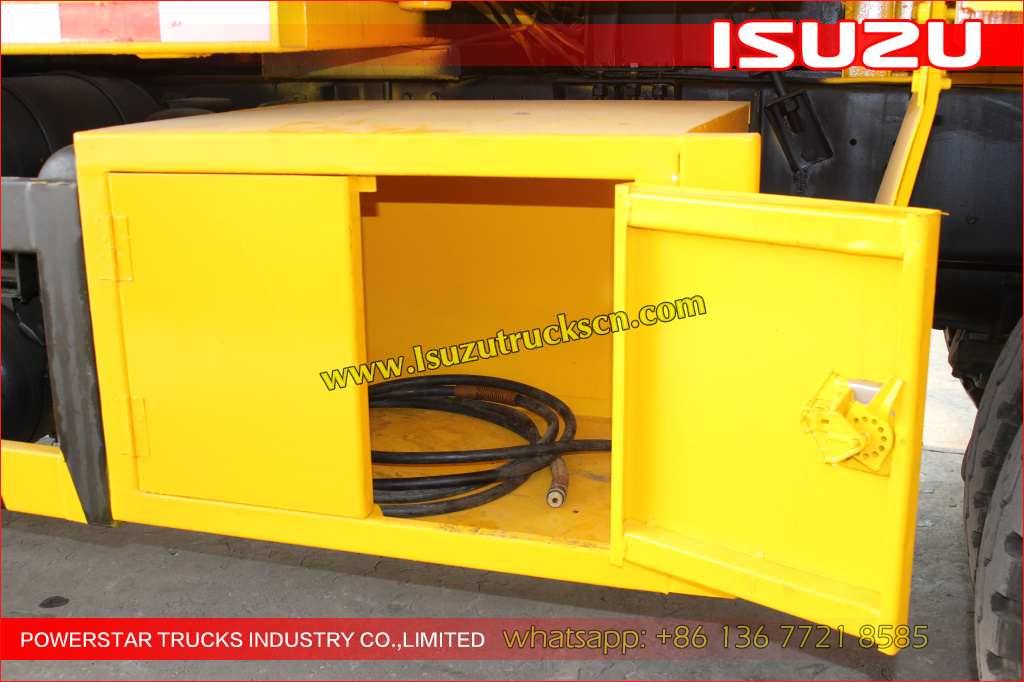

High Pressure Hose 60m
Suction Head 6 m
Nozzles A cluster of nozzles included

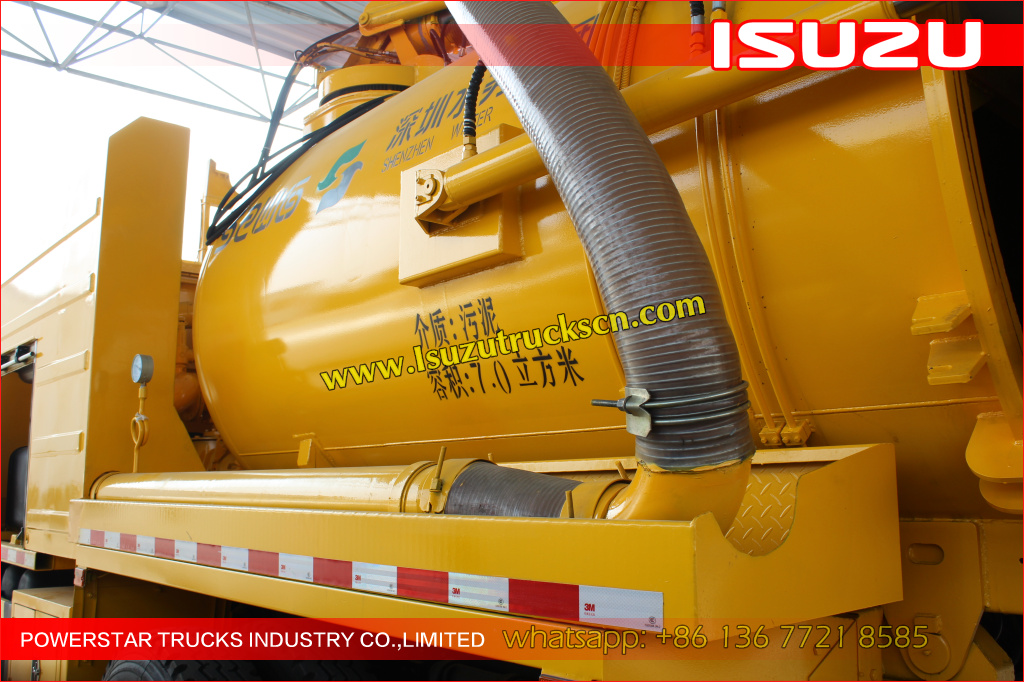

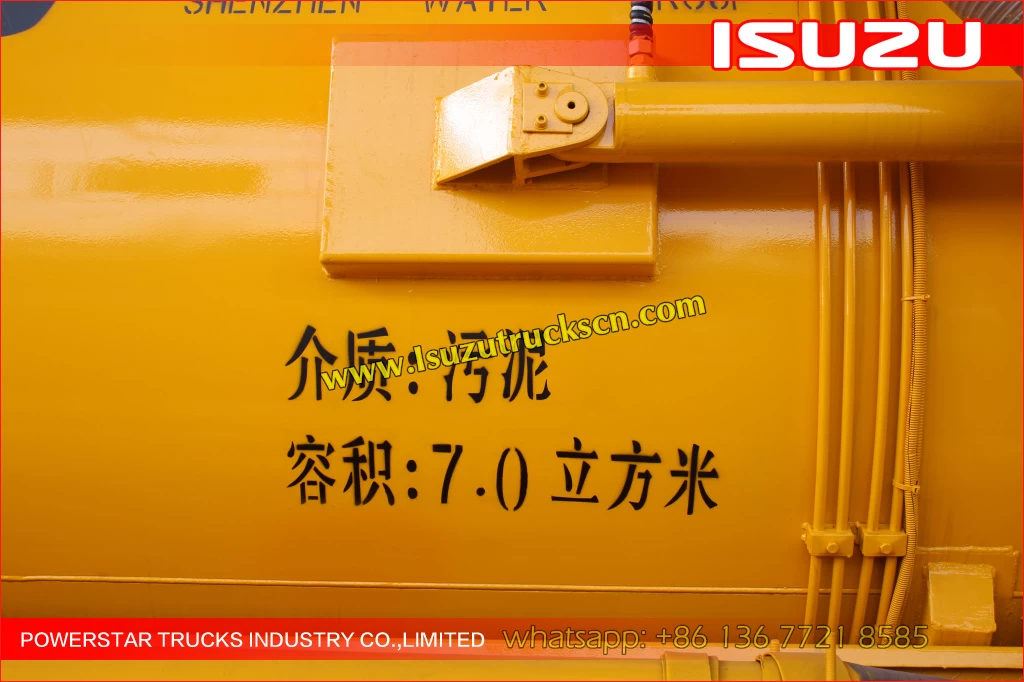

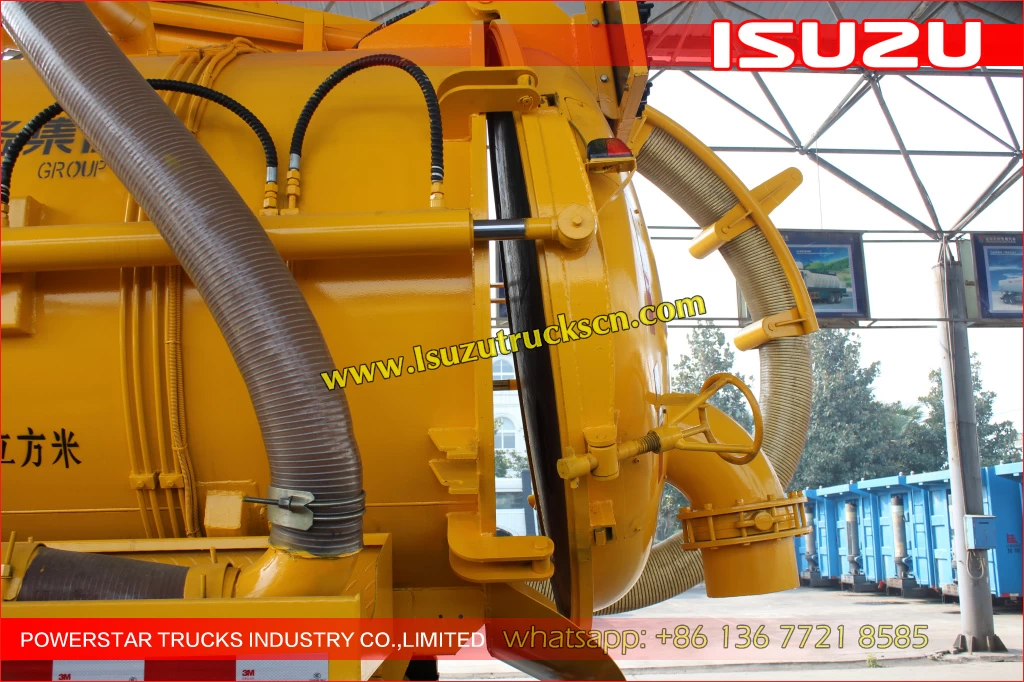

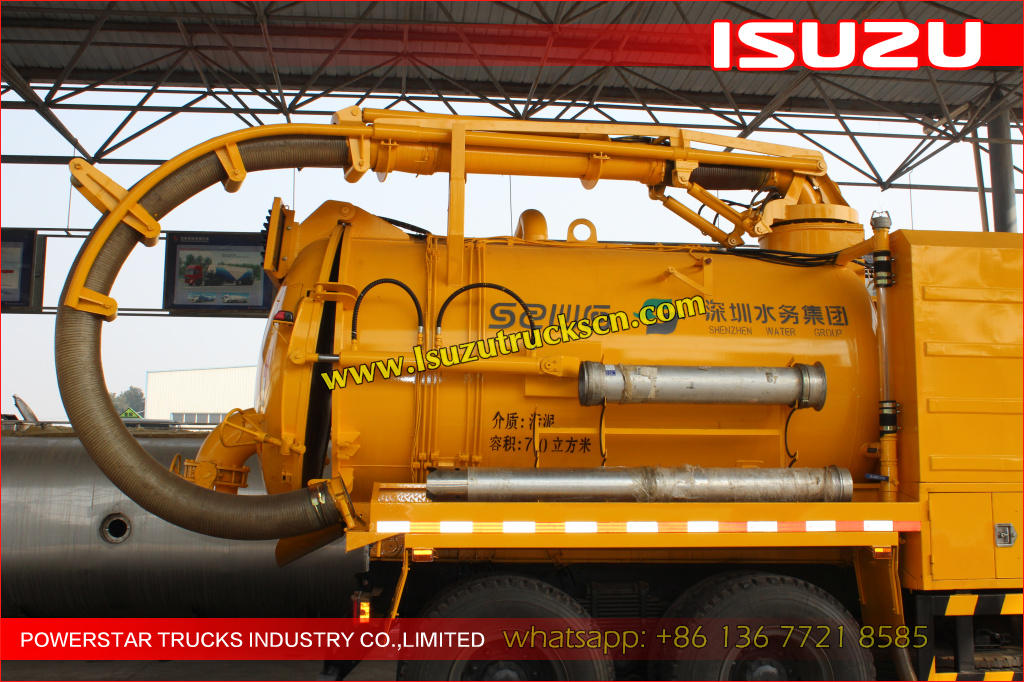

Sewer Tank Tank Capacity 8,000 Litres (about 2,100 gals)
Tank Material Carbon steel

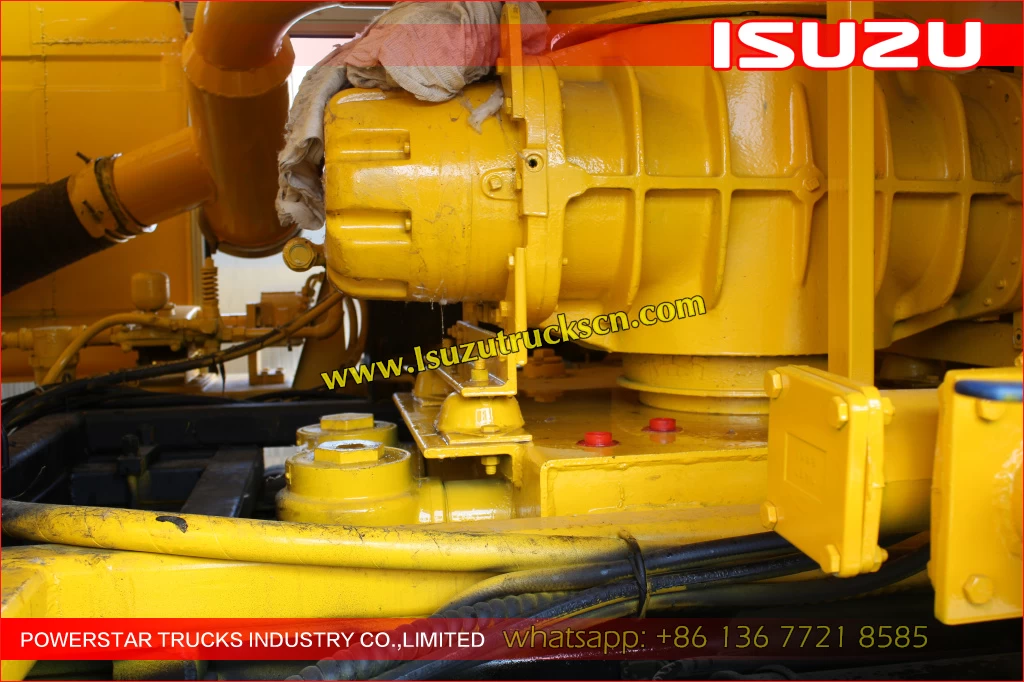

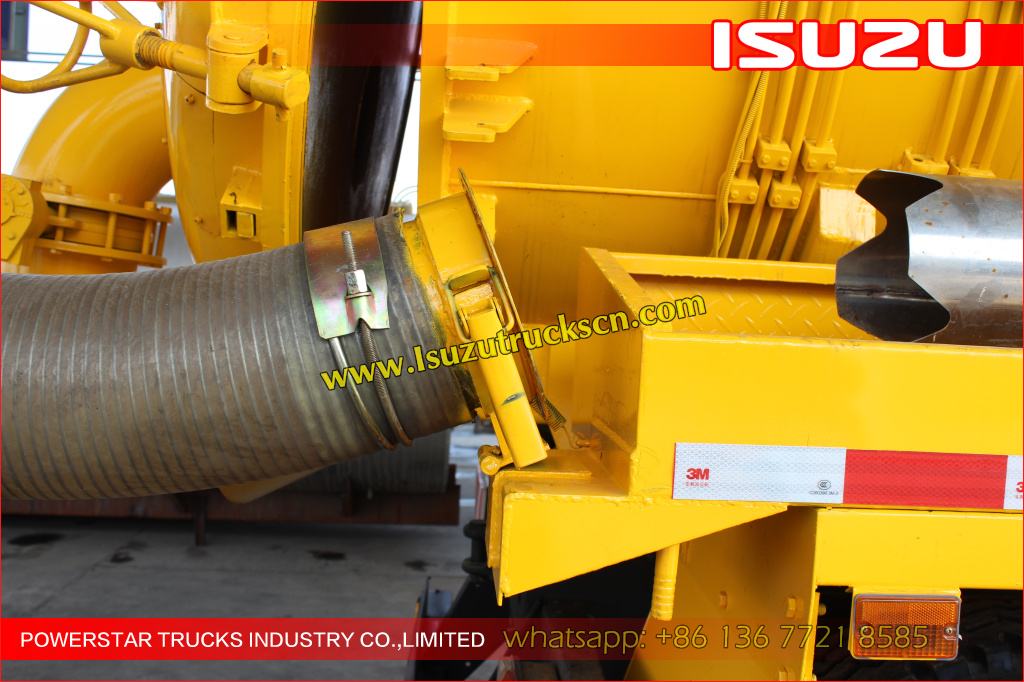

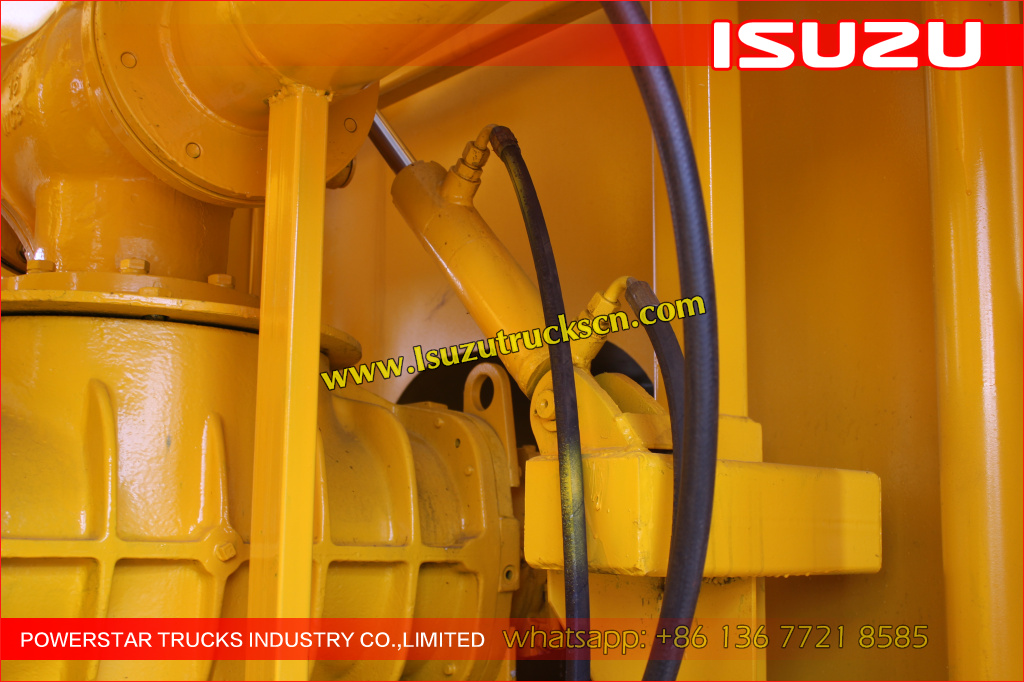

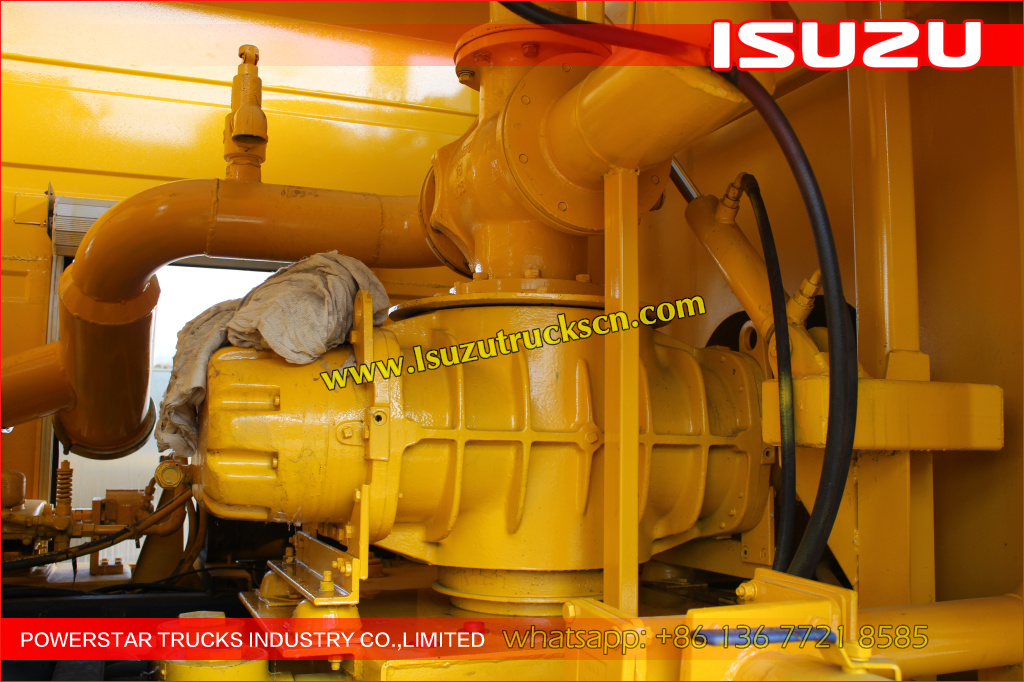

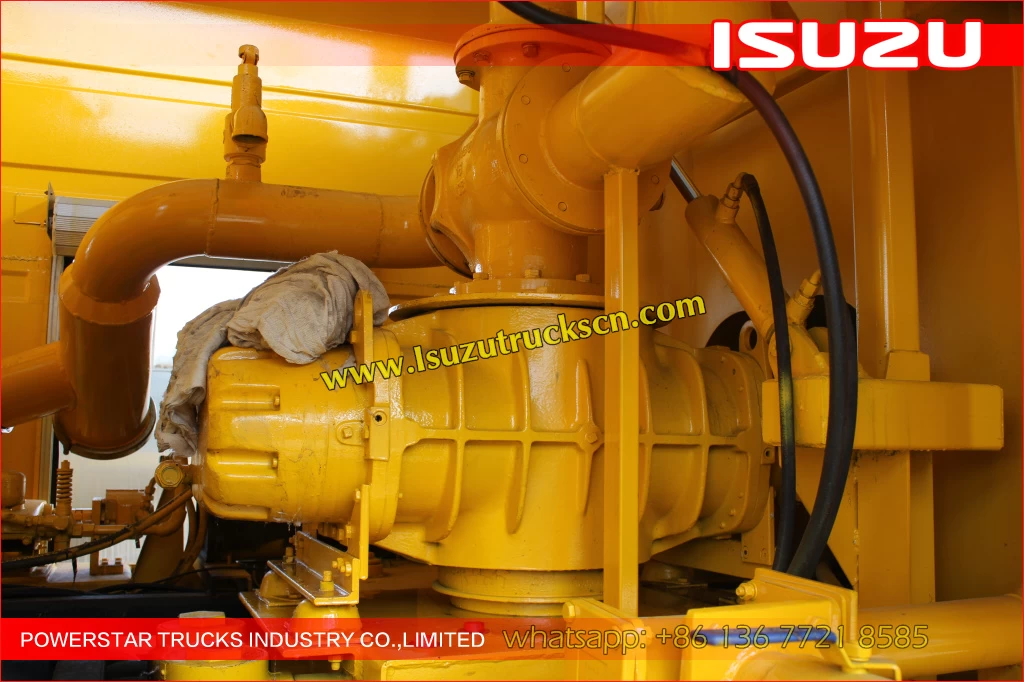

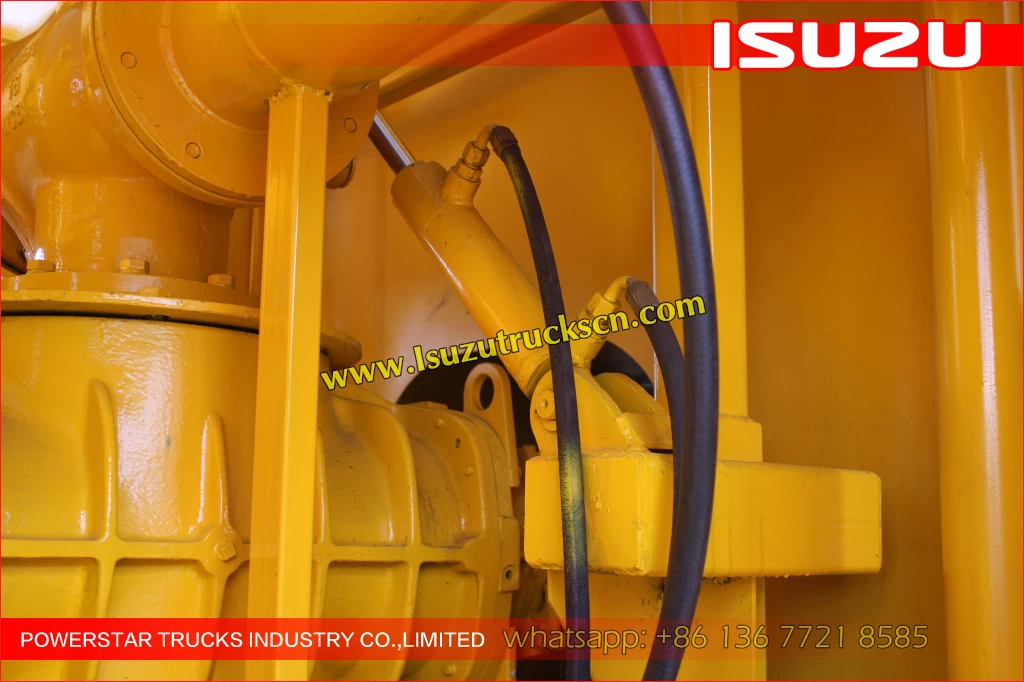

Vacuum Pump Highly efficient, vacuum rate 93%, quick suction and discharge, suction lift 6m.

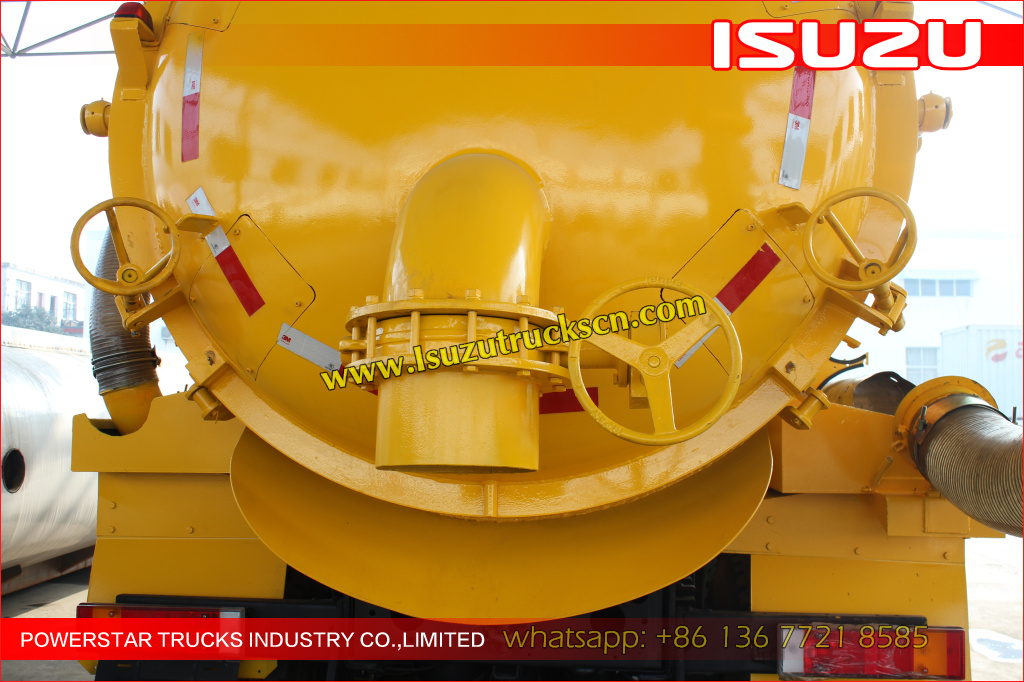

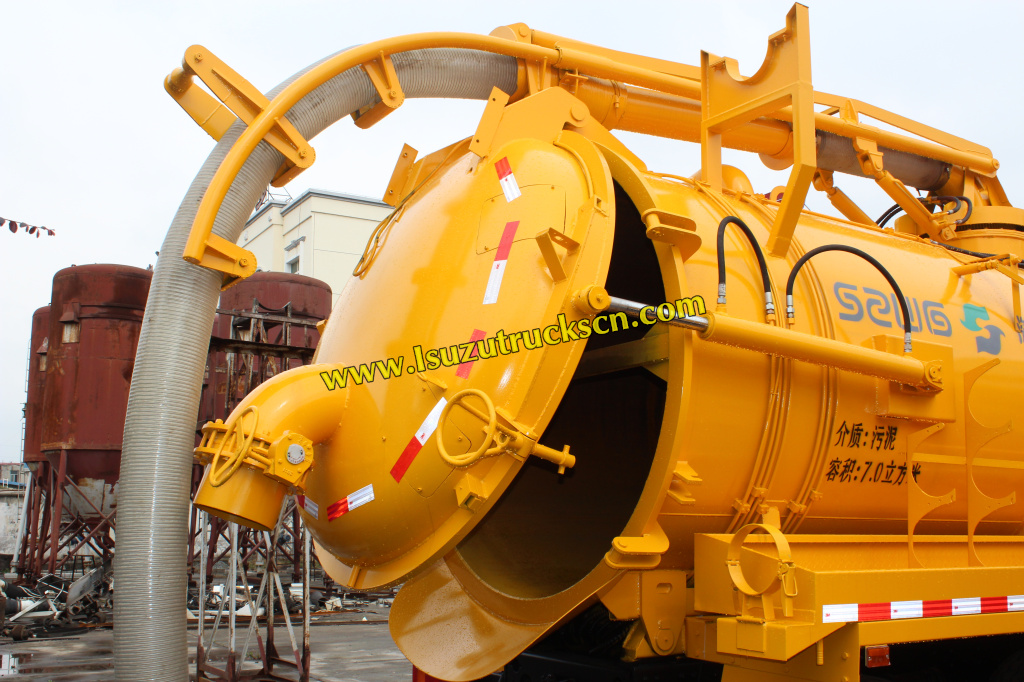

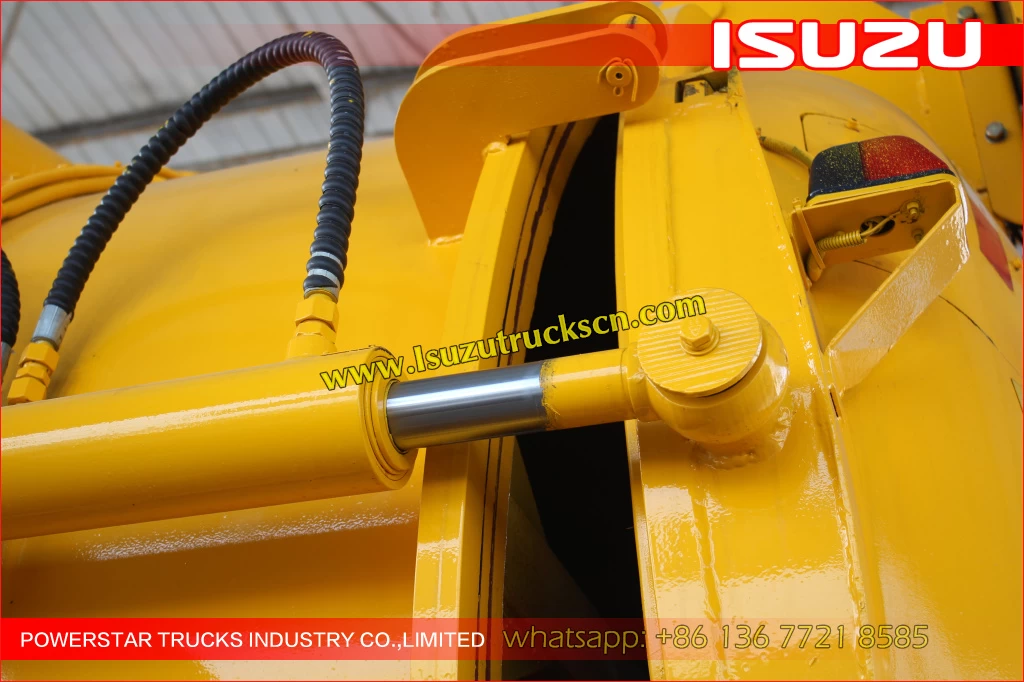

Rear door can be hydraulic opened for complete discharge of solid stuff.
All standard accessories: manhole, tool kit, English manual……..
Optional ** Tank material could be stainless steel.
** High pressure hose length could be customized.
