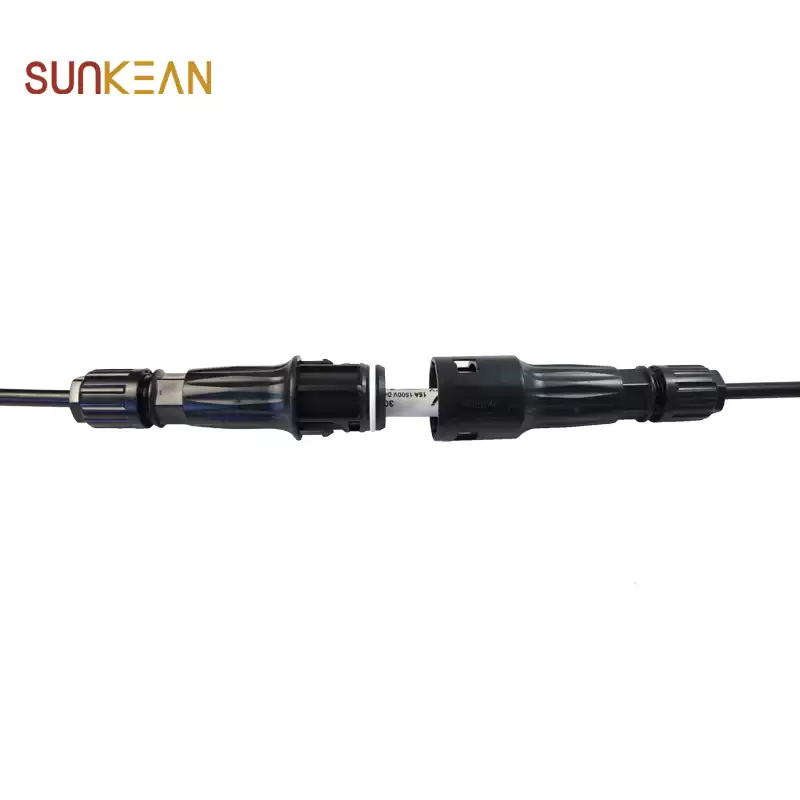

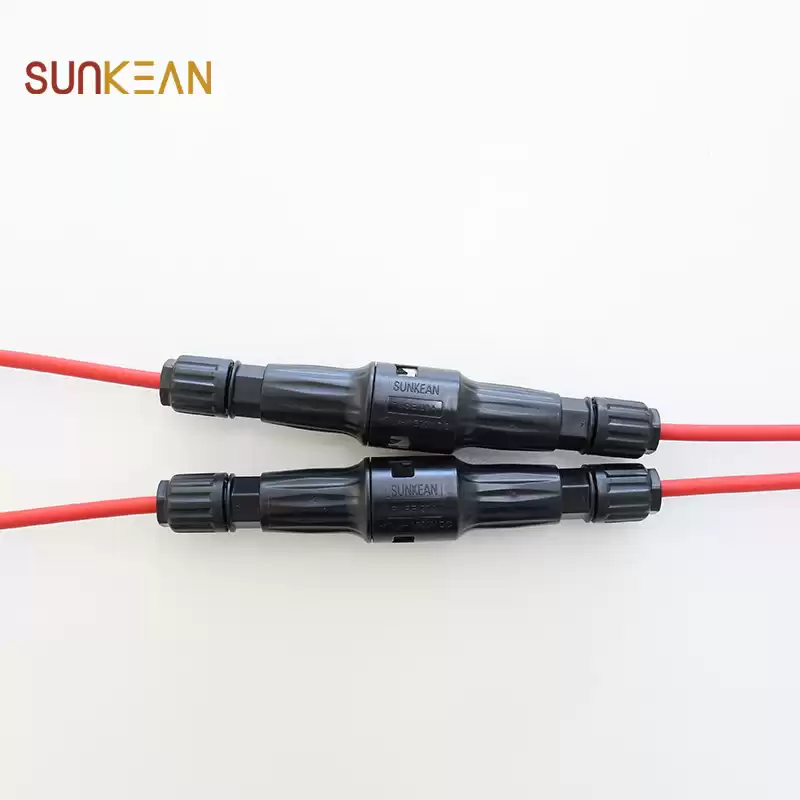

1500DC Solar PV wiring harnesses with fuse 20A

1500C DC inline fuse connector protect the over-load current from solar panel and Inverter. It is compatible with multic contact and other types connector.



1500DC Solar PV wiring harnesses with fuse 20A

The inline fuse can be replaced, quickly and reliable connection,UV resistance and IP68 waterproof, can be working outdoor for 25years.


Product Description:

  • Dual wall insulation.Electron beam cross-linked
  • Excellent resistance to UV, oil, greases, oxygen and ozone
  • Excellent resistance to abrasion ·Halogen free, flame retardant, low toxicity,ROHS
  • Excellent flexibility and stripping performance
  • High Voltage and Current carring capacity
  • TUV,CE,ISO approved

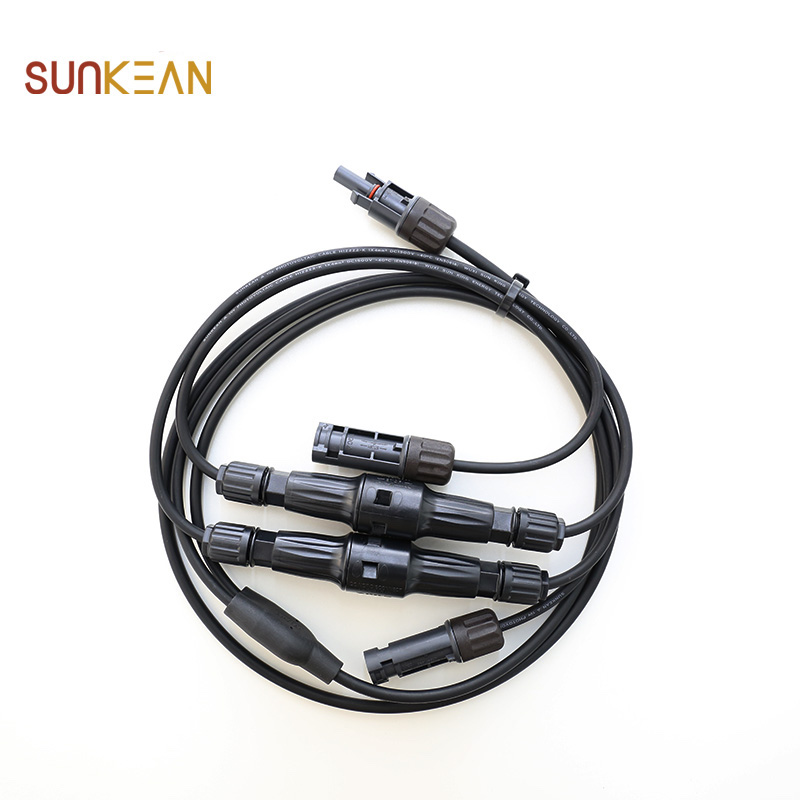

Solar Waterproof Y Branch Connector

*Can be customized according to customer requirements.

*Replaceable fuse.


Product Technical Date:

Insulation material

PA/PPE

Safety degree
II
Rated current

30A(without fuse)

Fuse Specification

20A

Rated voltage

1500V DC

Flame class

UL94-V0

Maximum voltage

8kV

Ambient temperature range

-40℃…+85℃(IEC)

Contact resistance

≤5 mΩ

Upper limiting temperature

110℃(IEC)

Contact material

Copper, Tin plated

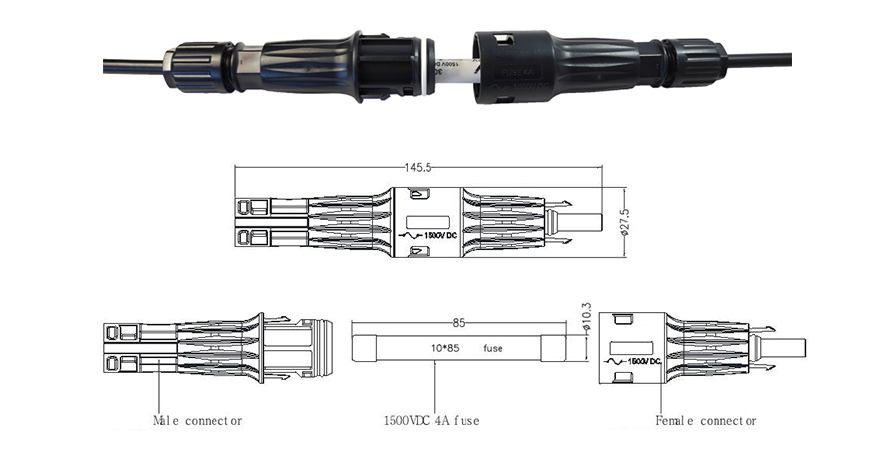

Suitable for fuse size(mm)

10*85

Degree of protection

IP68

Regulatory approval TUV / CE (IEC62852:2014)


Packing & Delivery:


Global Exhibitions:


Company Profile:

SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover solar cable connectors, solar cables, solar extension cables , solar energy off grid, lithium ion battery for solar storage, 3 phase off grid solar inverter etc solar products .

SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
