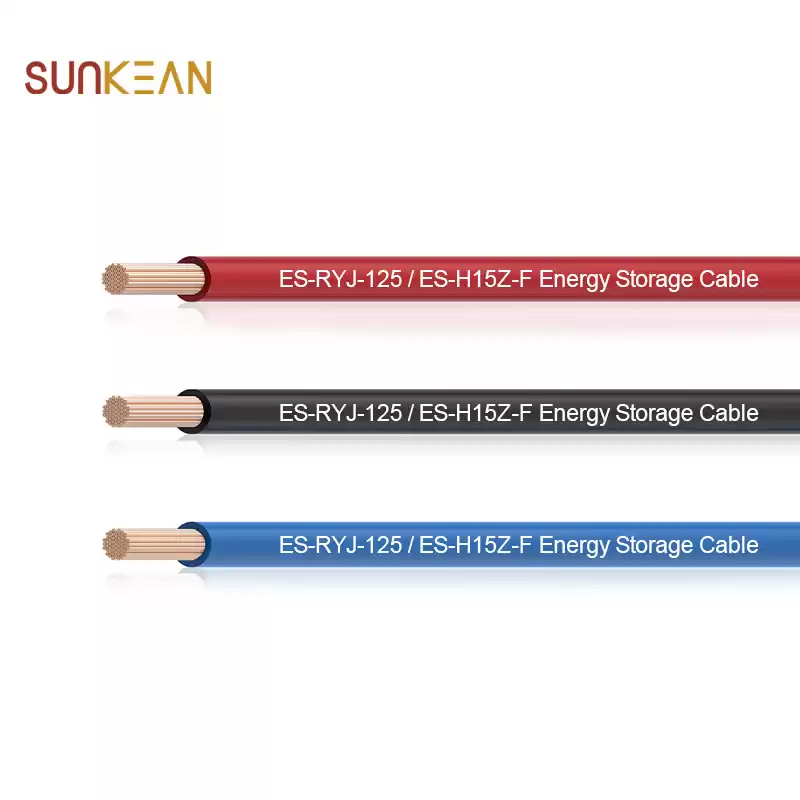

1500VDC ES-RYJ-125 4mm2 6mm2 Energy storage Cable
▲Easy stripping and cutting
▲Good flexibility
▲Good low temperature resistant
▲Good high temperature resistant
▲Acid and alkaline resistant
▲High flamen retardant
Product Information:
Name
|
High temperature ES-H15Z-F resistant cable
|

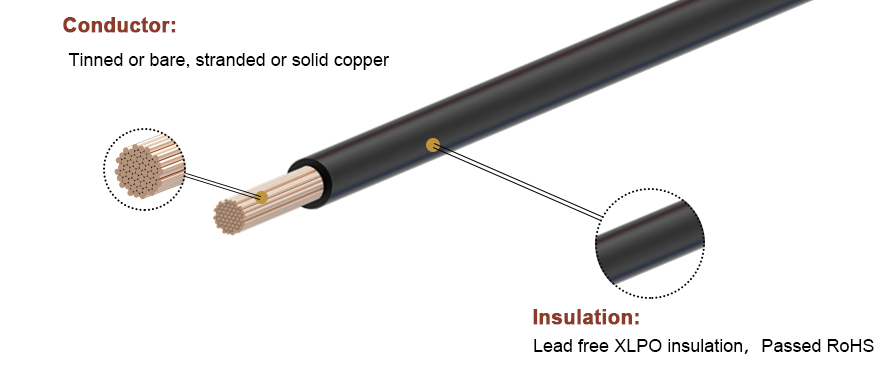

Conductor
|
Tinned or bare, stranded or solid copper
|
Insulation
|
Lead free XLPO, passed RoHS
|
|
Rated voltage
|
DC 1500V
|
Rated temperature
|
125°C
|
Reference Standard
|
CQC1143、PPP58049A
|
Flame test
|
IEC60332-1
|
|
Cable Name
|
Cross Section
(mm²)
|
Construction
(No./mm)
|
Conductor O.D.
(mm)
|
Insulation O.D.
(mm)
|
Conductor Resistance Max
(Ώ/km)
|
|
ES-RYJ-125/
ES-H09Z-F
|
4
|
56/0.30
|
2.59
|
4.25
|
5.09
|
|
6
|
84/0.30
|
3.17
|
4.85
|
3.39
|
|
10
|
78/0.40
|
4.08
|
5.90
|
1.95
|
|
16
|
126/0.40
|
5.59
|
7.90
|
1.24
|
|
25
|
196/0.40
|
6.95
|
9.70
|
0.795
|
|
35
|
276/0.40
|
8.30
|
11.00
|
0.565
|
|
50
|
396/0.40
|
9.90
|
13.00
|
0.393
|
|
70
|
553/0.40
|
11.70
|
14.80
|
0.277
|
|
95
|
760/0.40
|
13.87
|
17.00
|
0.210
|
|
120
|
950/0.50
|
15.50
|
18.60
|
0.164
|
|
150
|
1178/0.40
|
17.26
|
20.90
|
0.132
|
|
185
|
1463/0.40
|
19.24
|
23.20
|
0.108
|
|
240
|
1911/0.40
|
23.40
|
27.60
|
0.0187
|
Global Exhibitions:
Company Profile:
SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover PV modules, solar cables, half cut cell solar panel , solar pv mounting structure, fence, Mini inverter for home etc solar products .
SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
FAQ:
Q: How could i get the sample ?
A: We have different kinds of XLPE insulation pv solar cable,photovoltaic cable,xlpe solar cable in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
