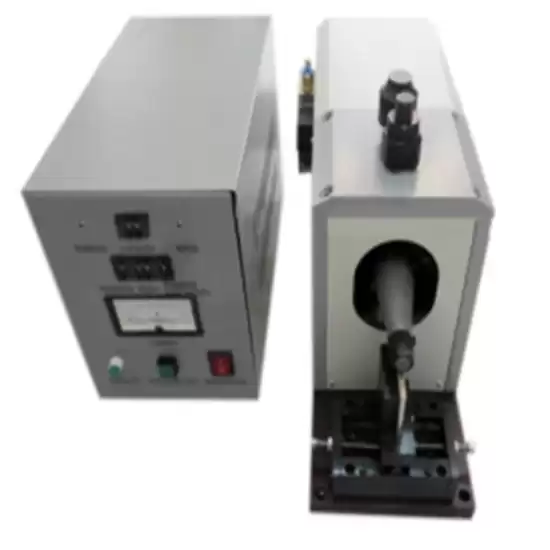

1500W Ultrasonic Spot Welding Machine for Al Battery and Al-Ni Tabs
1 The TMAX-USW-PC1500 ultrasonic metal welder machine is mainly used for Al can battery Al-Ni composite strip tab welding on Al shell for finished cell with New designed mould.
2 It can also weld Al can battery Al shell weld tab before battery finished with changing aluminum shell welding mould.
We will continue to provide better Ultrasonic Welding Machine for you.
SPECIFICATIONS:
|
Model
|
TMAX-USW-PC1500
|
|
Source voltage
|
110V AC or 240V AC 50/60Hz
|
|
Power
|
1500W
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Type
|
Ultrasonic spot welding machine
|
|
Product dimension
|
450*230*160mm
|
|
Control box dimension
|
330*190*250mm
|
|
Package size
|
600*420*500mm, About 55kg
|
|
Frequency
|
24KHZ
|
|
Welding head material
|
W6M5Cr4V2 high-speed steel, with six welding points in one head.
|
|
Working stroke
|
15mm
|
|
Welding time
|
0.5-2s
|
|
Control mode
|
CPU Control
|
|
Air supply
|
≥0.5MPa (≥72.5psi)
|
|
Welding ability
|
1 For copper : 0.15~2+0.15~2mm.
2 For aluminum : 0.2~3+0.2~3mm.
3 For Nickel : 0.1~1.2+0.1~1.2mm.
|
|
Main accessories
|
1 “Welding head”-6pcs, 2 “Connect line”-2pcs, 3”Foot pedal”-1pcs
4 “Power line with customized plug”-1pcs,
5 “Gas-pressure meter”-1pcs
|
