150ml Laboratory Vacuum Mixer Machine
Product Specification
1.This vacuum mixer is vacuum mixing, dispersion efficient equipment, it is suitable for battery electrode paste and various ceramic materials mixing, due to complete the process in vacuum station, fully implemented without air bubbles, improve the filling material and density.
2.Mainly feature:
2.1.Use soft sealing process, good sealing effect.
2.2.Mixing motor adopts gearbox frequency adjustment, can adjust vacuum speed according to materials feature.
2.3 Double blade design, make rapid mixing paste.
2.4.Small overall dimensions, to save space, delicate appearance, simple.
|
Model
|
Vacuum mixer machine TOB-ZKJB-150
|
|
Voltage Input
|
AC220V / AC110V
|
|
Power
|
150W
|
|
Stirring speed
|
0 ~ 320 RPM; the inverter speed control
|
|
Vacuum
|
≤-90～-95Kpa
|
|
Accessories volume
|
150 ml stainless steel vacuum drum, can be customized
|
|
Mixing time
|
0 ~ 9999 minutes (can be set)
|
|
Oscillation mode
|
Infinitely adjustable-speed
|
|
Dimensions(L*W*H)
|
About 330*310*510mm
|
|
Weight
|
About 20kg
|

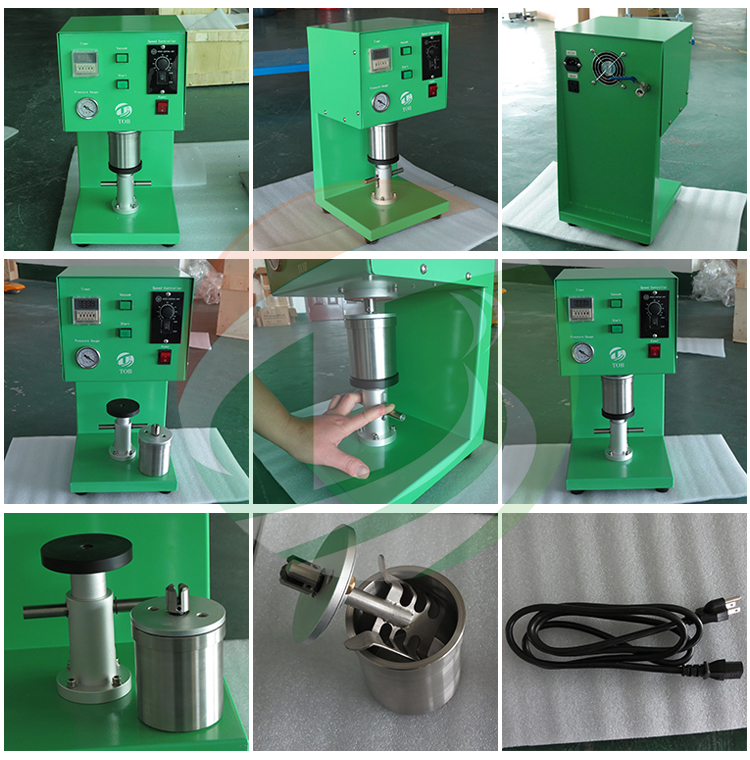

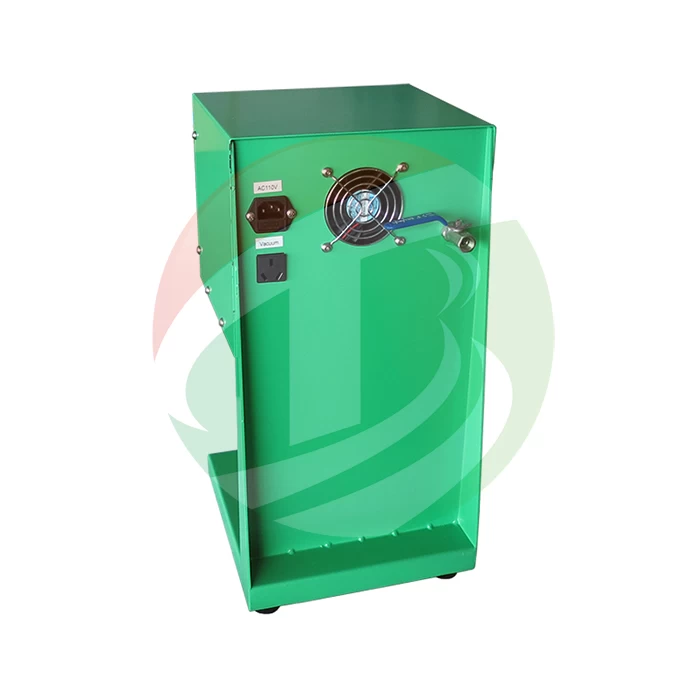

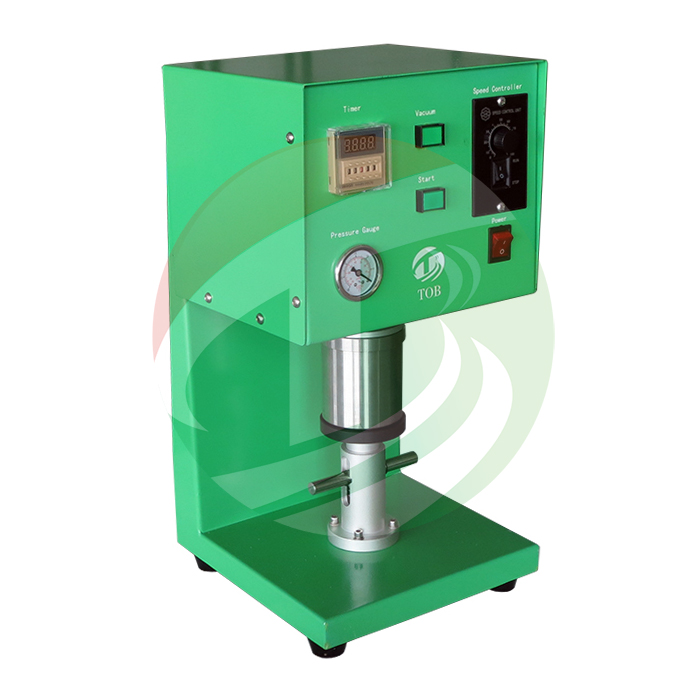

Product Images
Product Packing
