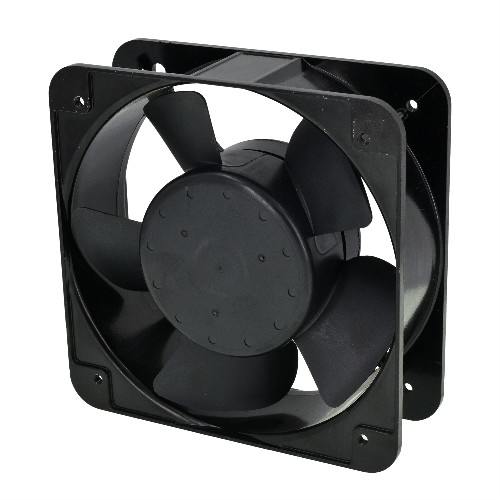

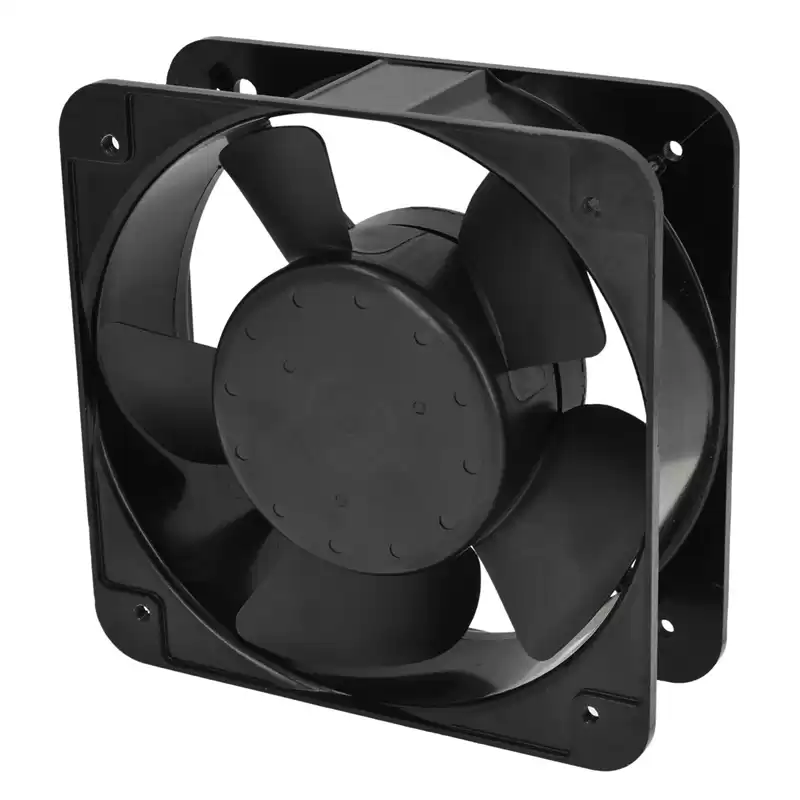

Low Noise 150mm Exhaust Ventilator Fan with AC Motor. High-precision double ball bearings, 2500 RPM, life expectancy at up to 50,000hrs at 25℃. It is the best choice for equipment cooling and ventilation, and can also be used as a replacement fan.
About this item
-
Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.
-

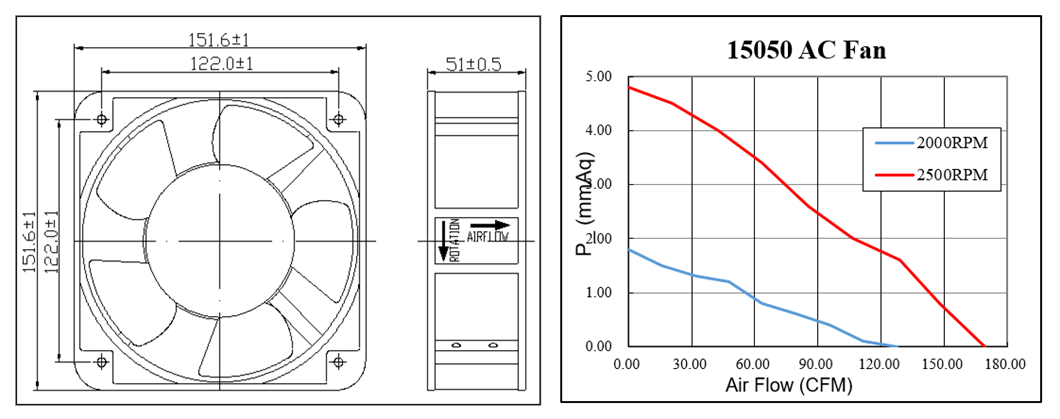

Dimension of outer the frame is 150 mm(L) x 150 mm(W) x 50 mm(H) / The size of fan in inch is 5.90 in(L) x 5.90 in(W) x 1.97 in(H); The center to center distance beween the mountiong holes is 122.0 ± 1.0 mm / 4.80 in.
-

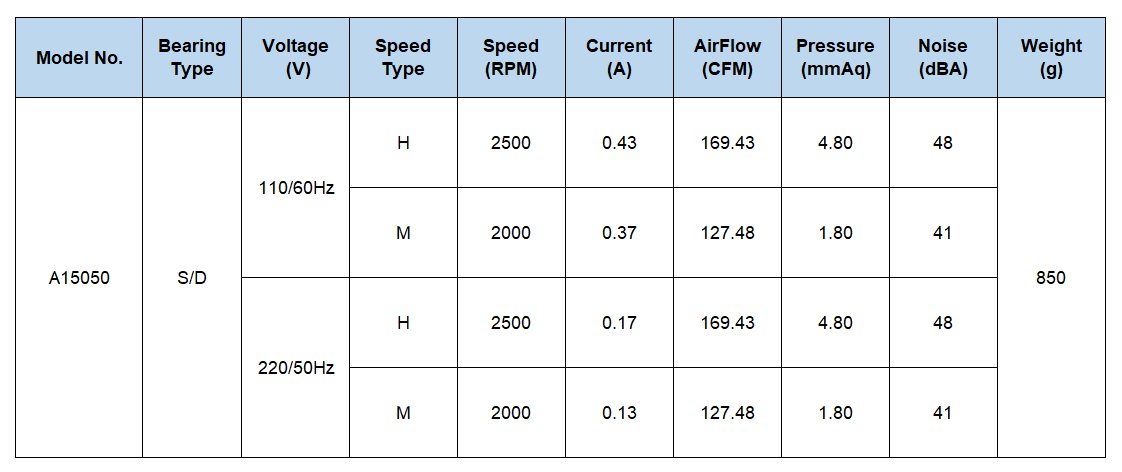

Operating Voltage Range: AC 110/60Hz; 220/50Hz | Current: 0.13 ~ 0.43 Amp | Speed: 2000 ~ 2500 RPM | Airflow: 127.48 ~ 169.43 CFM | Noise: 41 ~ 48 dBA | Pressure: 1.80 ~ 4.80 mmAq.
-
High Speed: This model is designed to maximize airflow and can be too loud for some applications.
-
Lead wire: (+): Red wire ; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing ; Life: working up to 50,000h at 25 degrees.
-
Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

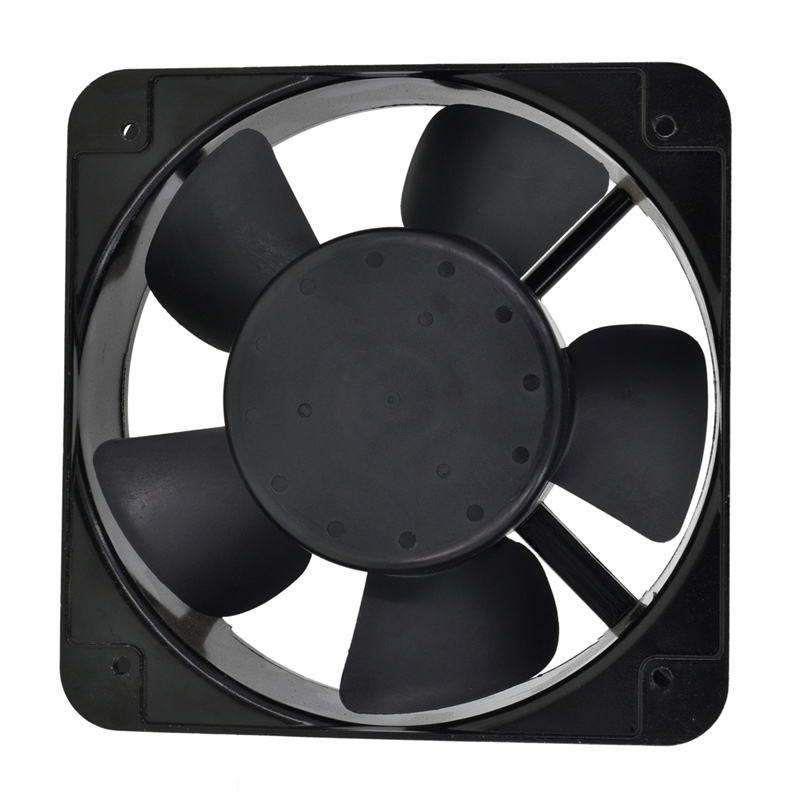

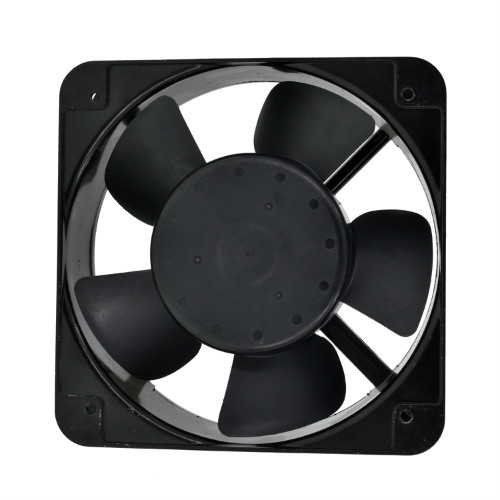

AC AXIAL FAN 150x150x50mm(5.90"x5.90"x1.97")
General Specification:
Frame: Aluminum Alloy
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing
·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.
Feature
-
The fan can operate stably at -40 ℃- 70 ℃;
-
Features sleeve/ball bearing , the fan can be work very quiet and silent;
-
square fan frame and 5 blades provide highly efficient ventilation for the fan;
-
High performance compact axial fans are often used for cooling equipments;
-
Injection molding technology is used, the blade is injection molded from PBT material.
More Models
These fans are available in several sizes to accommodate diverse applications—such as those found in tight spaces or difficult to reach areas.
Application
DC/ AC axial fans have many models, which can meet the needs of different customers and provide cooling and ventilation for household appliances, refrigeration equipment, mechanical switches, welding machines, etc., so as to maintain the high performance of equipment in operation.
-
Custom projects related to Refrigerator, Freezer, Beverage coolers, Oven, Outdoor telecom cabinet cooling systems, and more.
-
Creates cooling systems to keep home entertainment systems, computers, and other electronics running at their ideal temperature and optimal speed.
Quality Control
CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.
Customers
Over the years, we have been with many well-known brands to achieve friendly cooperation.
Sincerely thank our customers for their trust and support.
Certifications
All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
