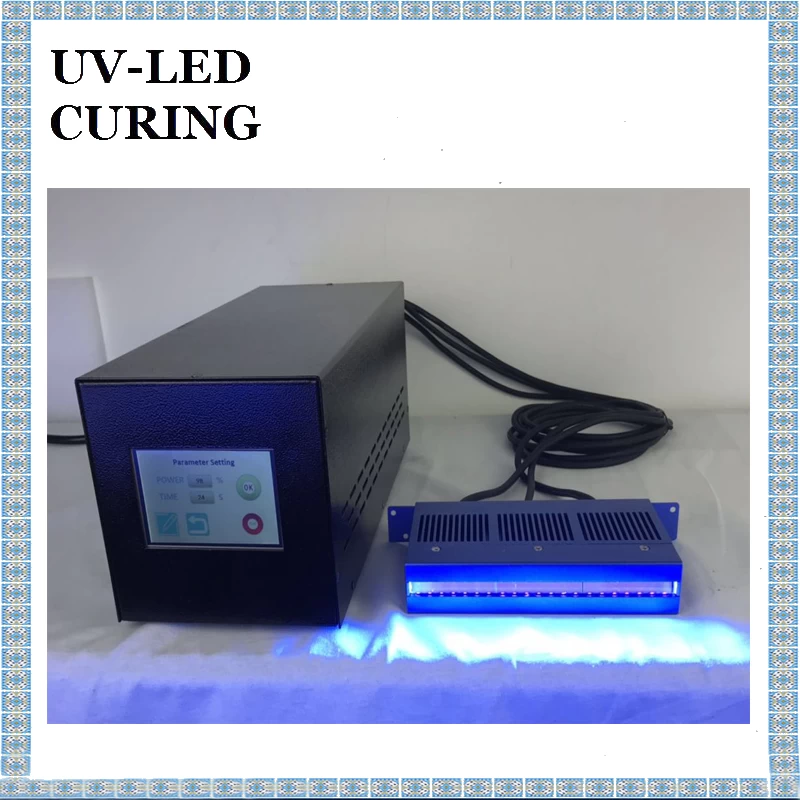

150mm Linear UV Light Curing Equipment for Screen Printing illuminating, with 365nm 395nm, curing UV glue and UV ink, can set time and illumination, external pedal RS232 and other multi-function.
Parameter of Linear UV LED Ink Printing Curing Machine for Silk Screen :
Controller specification
|
shape
|
L320*W130*H130mm
|
weight
|
2.7kg
|
|
cool down
|
Air cooled
|
Input power
|
100-240V AC 50-60 HZ
|
|
material
|
Black, gold
|
Number of driving heads
|
One
|
|
RS232 serial communication
|
Can query and adjust intensity, time, mode
|

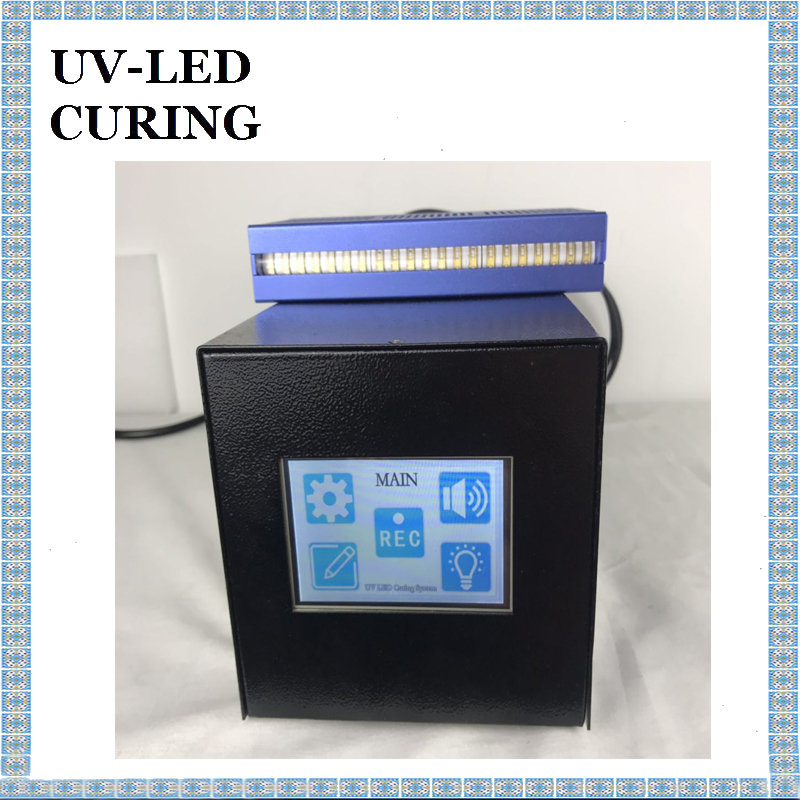

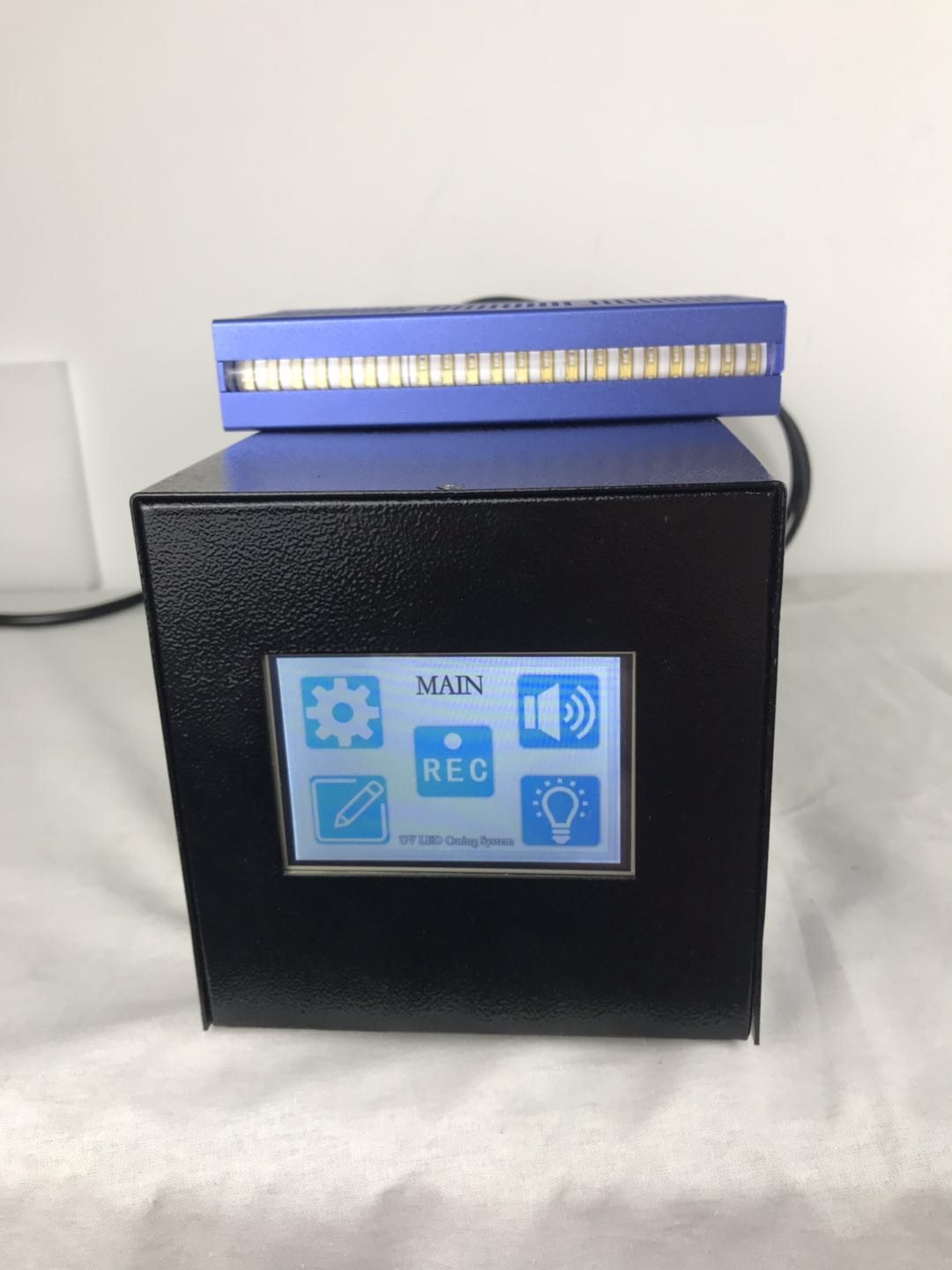

Display and operation
|
Touch screen for adjustable time and intensity
|
|
LED time accumulation
|
Active record cumulative usage time
|
External terminal block
|
Can be connected with single-chip, PLC and other equipment for control and working status feedback
|

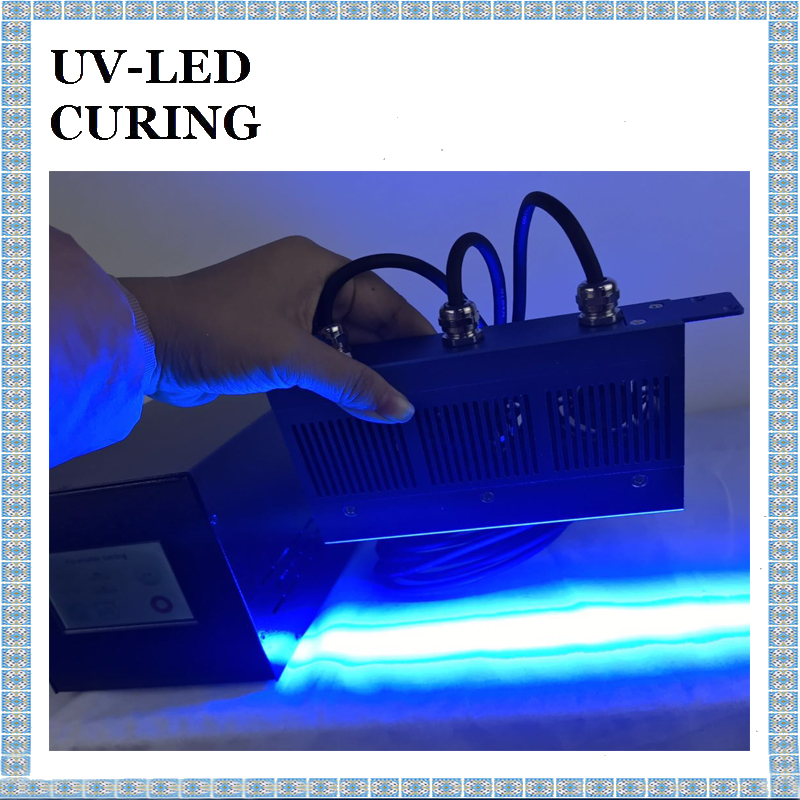

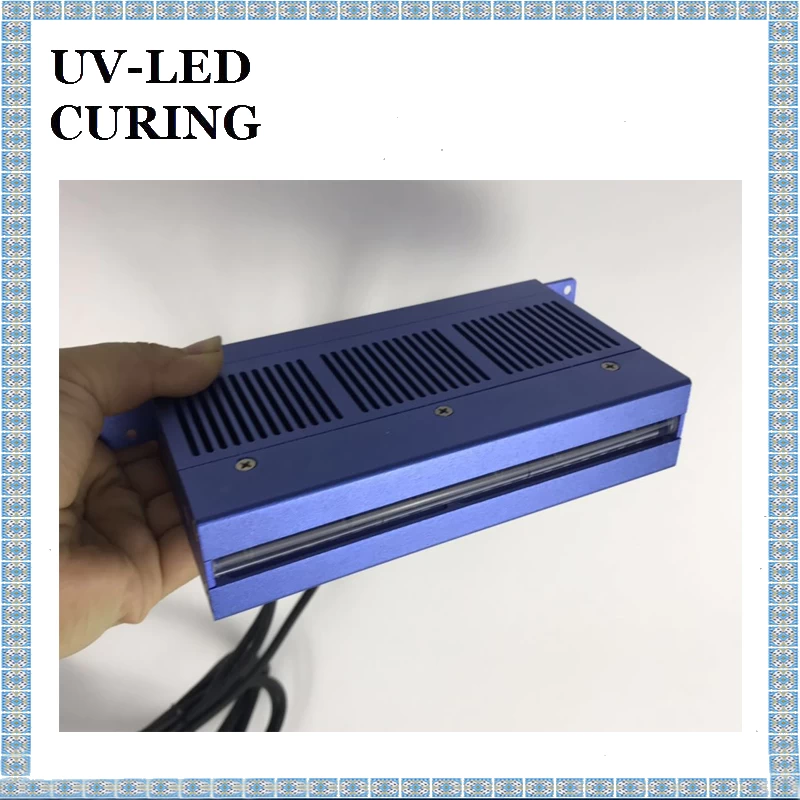

Glow head specifications
|
Light size
|
150 * 8mm
|
power
|
110W
|
|
Dimensions
|
L 192*W105*H30 mm
|
Recommended height
|
1-20 mm
|
|
cool down
|
Air cooled
|
wavelength
|
365 / 385 / 395 / 405
|
|
Material / weight
|
Sheet metal, blue paint / 0.25kg
|
Luminous power (mW/cm 2 )
|
365nm
|
2800mW/cm2 @ EIT
|
|
Prediction of service life
|
20000 H
|

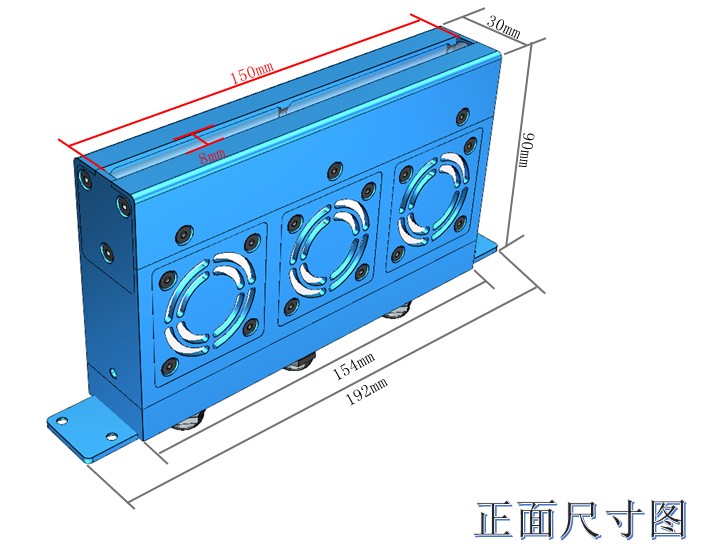

Installation size of High Performance UV Offset Printing Curing Equipment :
Application field of Small Area 365nm LED UV Curing Light Source for UV Glue :
The UV LED line source is one type of UV LED source, and the line source is a mode that only emits light. It is a long-range UV belt that is output through a specially designed optical lens set to meet the production needs of the edge banding, printing and other fields. Line light source has long life, cold light source, no heat radiation, long life without being affected by opening and closing times, high energy, uniform illumination to improve production efficiency, and no toxic substances are safer and more environmentally friendly than traditional light sources.
1. UV analyzer, biological genetic engineering, molecular genetics, medical hygiene, biological products, pharmaceutical research, health and epidemic prevention, dye chemical, petrochemical, textile industry, public security and political law department, cultural relics and archaeological department, where fluorescence analysis is required. The department can use it.
2 , biochemistry , microbiology , genetics , genetics , medicine , catalysis, each channel uses different wavelengths of ultraviolet LED ,from 240nm to 410nm , every 5nm step, for detailed analysis
3 , ultraviolet light therapy, medical applications, such as: dental curing, vitiligo treatment, wound complex promotion.
4 , standard light source, because LED light spectrum is relatively single, energy is consistent, can be used as an effective standard light source
5 , criminal investigation light source, with high-power LED , can emit a uniform intensity of light from 365nm to 780nm , from ultraviolet, purple, blue, green, blue, yellow, orange, red, to the infrared band, can provide 12 bands The light and includes a white light.
More specifications please contact us or click : Linear Curing UV LED Light
