150w 5v 12v dual output smps switch power supply from China factory

KAIHUI enclosed model dual output 5V 12V universial 150W ac-dc switching power supply products,also can be customized with 5v 24v and etc.



From China Factory Dual Output Power Supply 5V 12V/5v 24V dc switching power supply PSU for industry

Description:

K08-S150D dual output series 150W 5V 12V / 5V 24V switching power supply is wide range of AC input voltage, with high efficiency and low operating temperature, having full load burn-in test.


Features:

1, 150W dual power supply wide input voltage range;

2, 5v 12v dual power supply high efficiency and low operating temperature;

3, 150w dual power supply short circuit, overload protection;

4, This model also have full load burn-in test.


Parameter
            Item NO

K08-S150D5+12



 K08-S150D5+24

CH1
CH2 CH1
CH2
Output

Output Voltage

+5V

+12V

+5V

+24V

Rated Current

6A

10A

15A

3A

Current Range

0.5-10A

0.2-10A

1-15A

0.3-6A

Rated Power

150W

150W

Ripple

50mVp-p

100mVp-p

50mVp-p

200mVp-p

Adjustable Output Range

CH1:4.75~5.5V

Output Accuracy


±1%; ±5%; ±1%; ±5%

Line Regulation

±0.5%; ±1%; ±0.5%; ±1%

Load Regulation

±0.5%; ±4%; ±0.5%; ±4%

Set up,Rise,Keep up time

250ms, 30ms, 20ms/220VAC

Input

Input Voltage Range

176~264V AC

Input Current

1.8A/220V

Input Frequency

47~63Hz

Efficiency

80%

82%

Inrush Current

COLD START  40A/230V

Leakage Current

<0.5mA/240VAC

Protection

Over Load Protection

105~150%Rated power,automatic recovery

Short Circuit Protection

----

Environment


Working Temp.,Humidity

-10℃~+50℃@100% LOAD,+60℃@60% LOAD; 20%-90% RH

Storage Temp.,Humidity

-20℃ - +85℃, 10%-95% RH

Temp.,Drift

±0.03% /℃(0-50℃)

Vibration

10-500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES

Safety&EMC Standards


Safety Standards

MEET GB4943

Withstand Voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Insulation Resistance

I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms

EMC Standards

MEET GB9254 CLASS A

Others Dimension

199*98*38mm

Weight

0.7Kg

Notes

1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;

2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;

3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;

4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;

5. Load regulation: the measured output load from 0 to 100% load change measured,

other load fixed at 60% load.

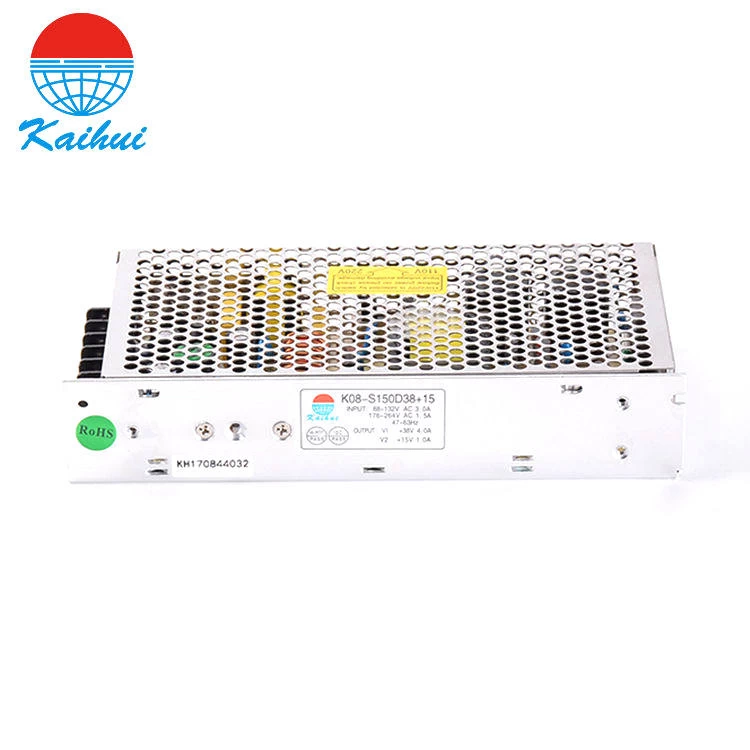

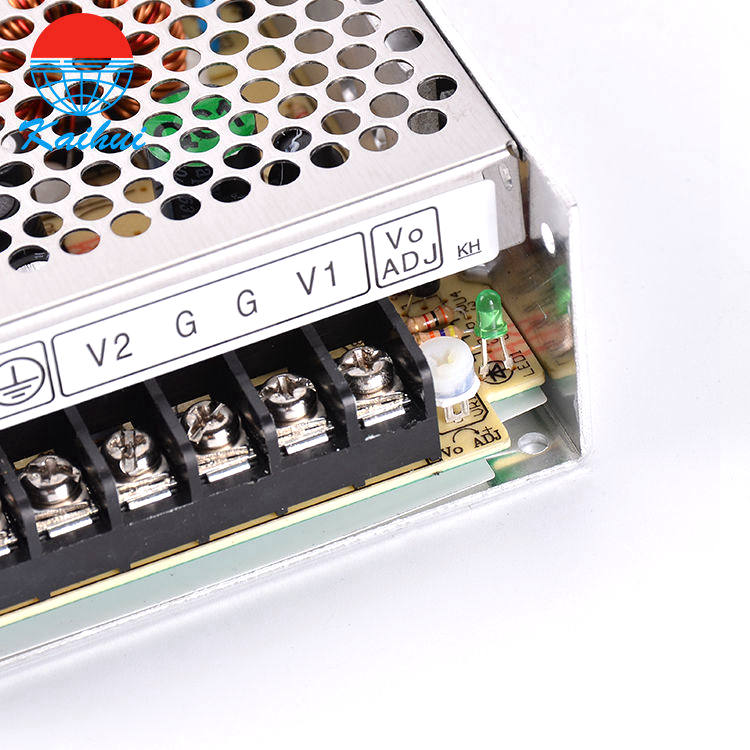

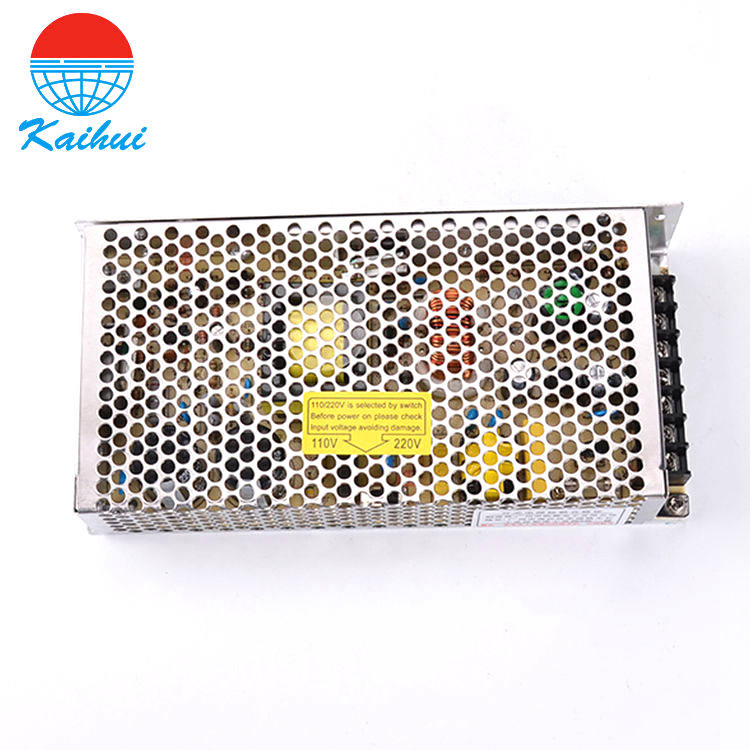

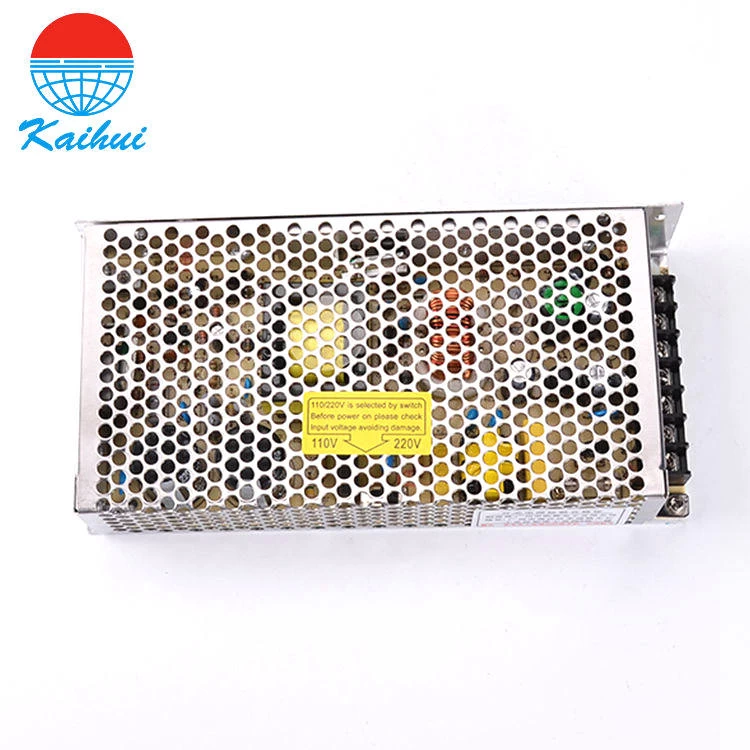

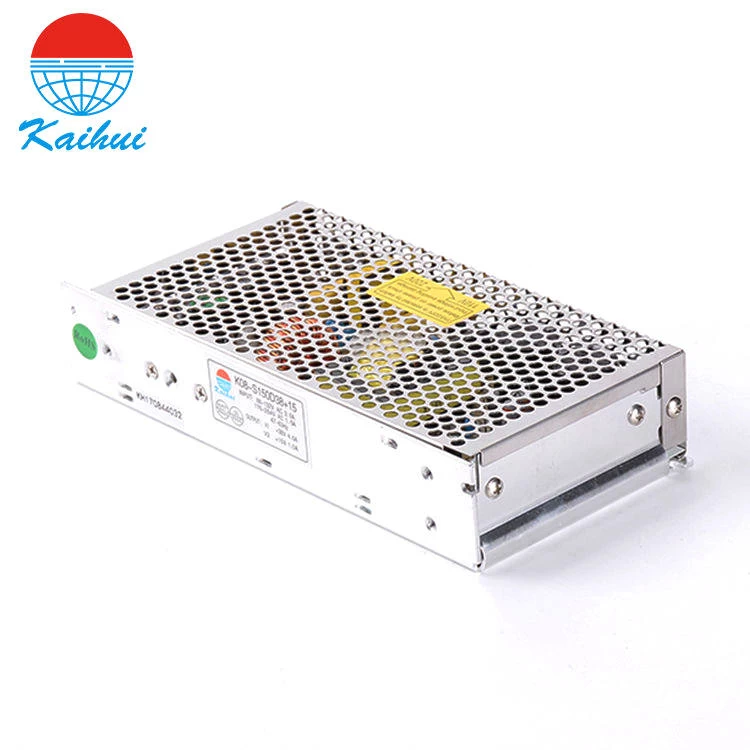

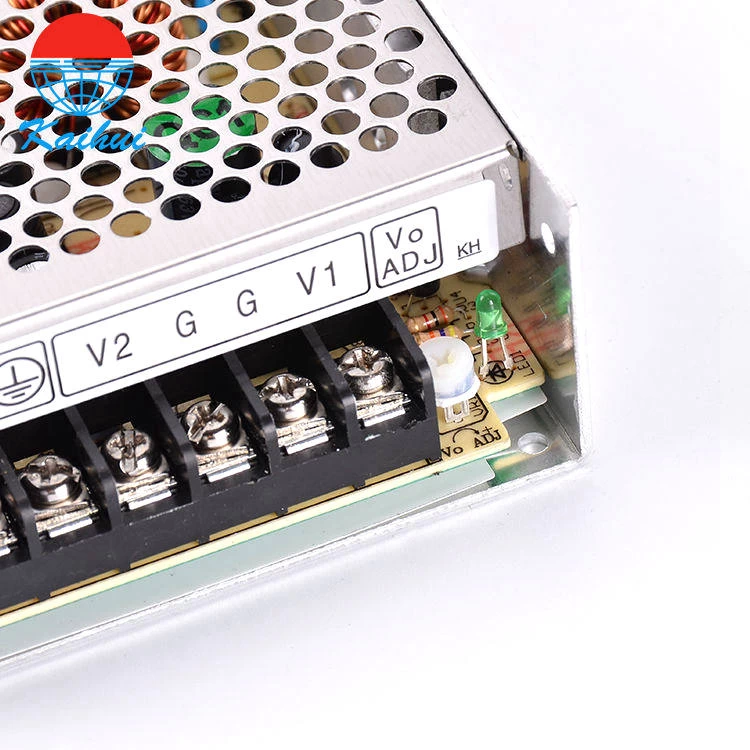

Product picture:

5v 12v dual output power supply 150w
