150w Dual head webbing label laser cutter is for cutting whole roll webbing trademark woven label. The camera is optional. If the webbing has printed pattern, can choose the camera model. There are two kinds of feeding table, one is simple with roller to feed the webbing, another is feeding chain, suitable for thick webbings.

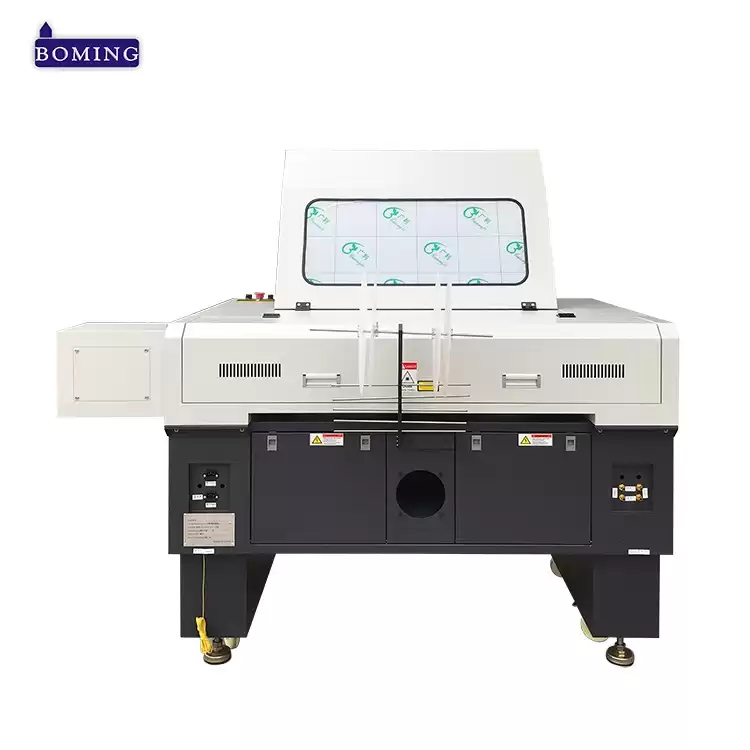

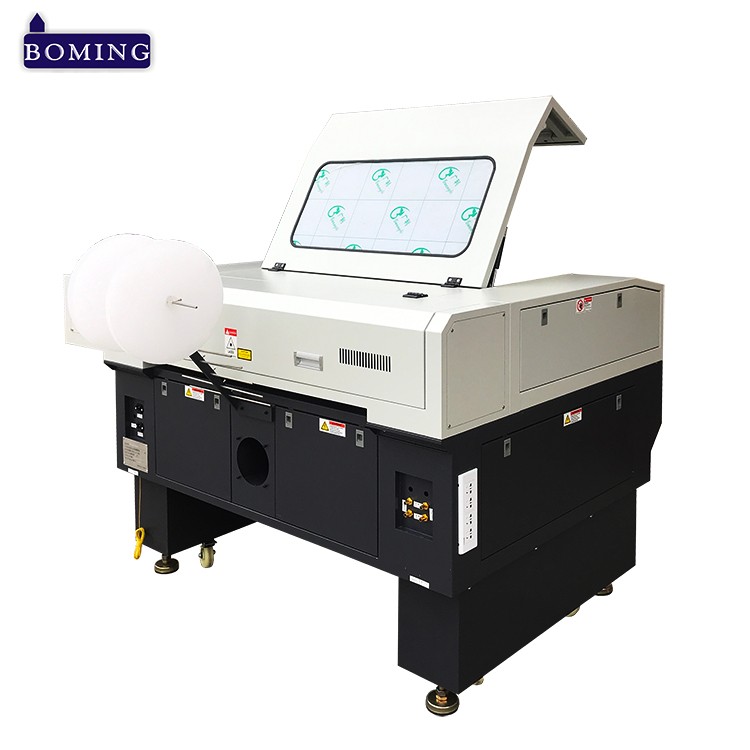

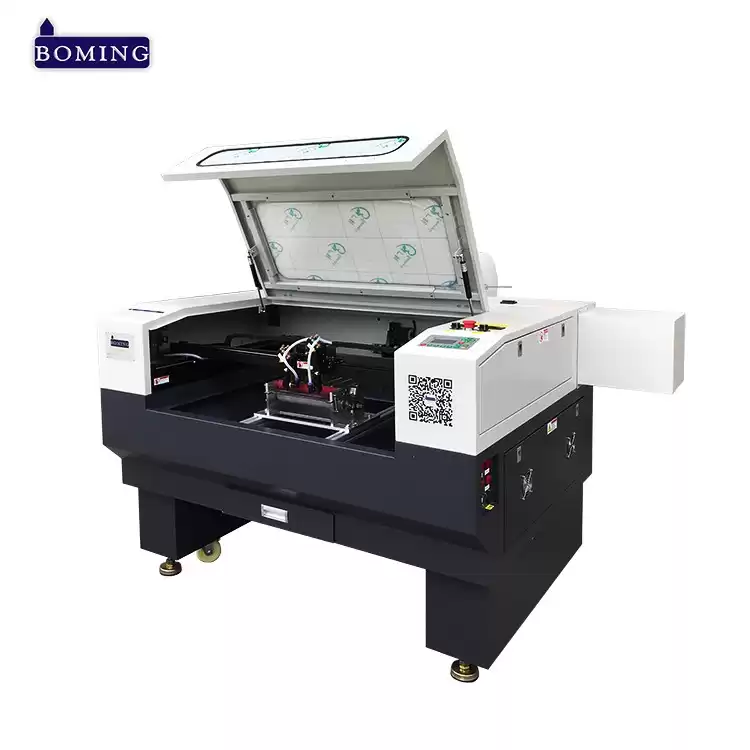

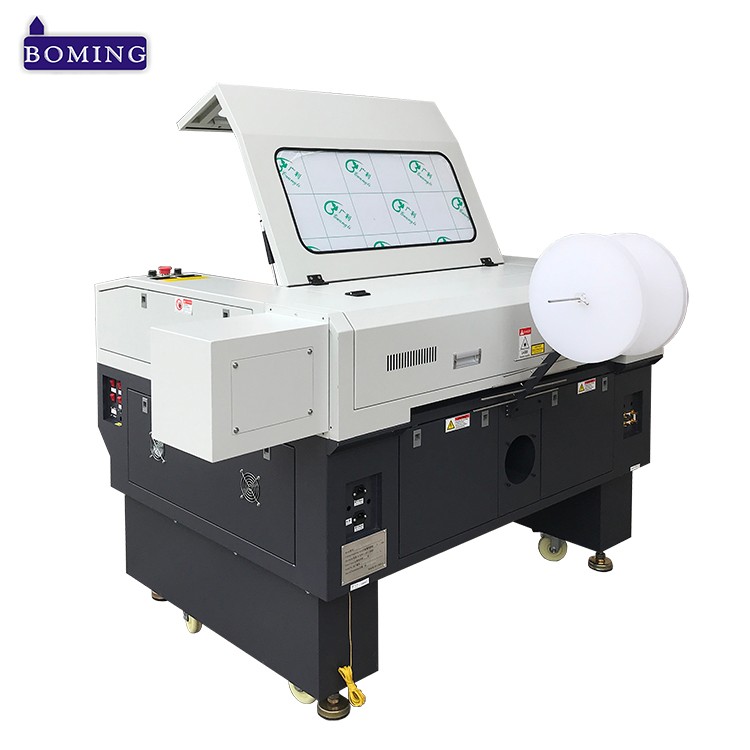

Machine pictues:
Features:of 80W plastic single head co2 laser cutting machine
1、It adopts the top grade advanced CO2 laser tube, with the quality of delivering 24 hours consistent laser power output and it also has high ability of anti-interference.
2、Adopting the three-dimensional reflection system and six-balanced out ward or in ward sliding guiderail makes the laser beam moves consistently and ensures the high speed and precision of cutting and engraving.
3、Fast curve cutting function: any curves can be cut fast and continuously. The movement of laser head draws a perfect arc just like the top grade racing cars run.
4、It is integrated with LCD and DSP intelligent motherboard; offline work and USB data transmitting are available, no extra computer needed.
5、The customized maehines with different size are available.
Configuration: of laser cutting machine prices
1）Motor: Three phase subdivision step motor and driving system from LEADSHINE.
2）LCD, DSP intelligent main board; work offline, can transfer the data by USB cable, U-disk, Net cable, without extra computer.
3）Optional: 60-80-100-130-150W-180W laser tube.
4）Honeycomb plate/ Square bottom plate/blade strip plate
5）Outward sliding guide rail, inward sliding guide rail, integrated frame structure
6）Original laser mirror from II-VI INFRARED, USA, adjustable laser head
7）Imported type original transmission belt(Tank chain).
8）Centrifugal fan.
9）Three protection function: safety protection, filter protection, water protection.
10）Optional: Automatic circulation cooling water tank.
11）Give freely compressed magnetic pump.
12）Give freely Boming copyrighted software 1set, free upgrade
Applicable Industries:of cnc laser cutting machine
Outdoor products, pet products, military security, luggage, clothing, shoes and hats, gifts and other industries.
Applicable Materials: of foam Laser Cutting Machine
Polyester webbing, nylon webbing, polyamide, blended fabrics, leather belt, seat belt, woven label,strap and other knitting materials.
Technical Parameters:of co2 laser cutting machine
Laser Capacity | 60W 80W 100W 130W 150W 300W 450W 600W CO2 glass tube |
Processing Area(mm) | 900*600 1000*800 1200*800 1300*900 1400*800 1600*800 mm |
Positional Accuracy | ±0.05mm |
Working table | Special webbing cutting platform |
Cutting Speed | 0-36m/min |
Max Traverse Speed | 0-64m/min |
Type of belt drive | X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt |
Air exhaust | Big capacity lower air exhaust |
Graphic Format Supported | CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc. |
Optical system | Φ25mm Molybdenum reflector; Φ25mm Silicon reflector; Φ20mm, focal length50.8 focusing mirror |
Laser
cutting is fast becoming the new way to sample materials such as metal,
wood and fabric due to reduced contamination and workpiece retention.
Precision has reached new levels in all walks of life, and the waste of
raw materials has dropped significantly. Here you can find a woven label laser cutter machine that matches your space, job and budget.
Sample show:
When buying
laser cutting woven label machine, you should evaluate the workstation
and make sure there are no safety hazards. Combined with the background
information on the material you want to use, and the cutting techniques
you are familiar with, you can find the perfect match in the selection
of high-quality laser cutting woven label machine.
FAQ:
Q: Are you a factory or a trading company?
A: We are a factory manufacturing laser machine and we provide perfect after-sale service.
Q: How can I know your machine work well?
A: Before delivery, we do test the machine working condition for you.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
Q:This is the first time I use this kind of machine, is it easy to operate?
A: We will equip English manual or video that show you how to operate machine. The engineer is available for overseas service.
Our Service:
1) Guarantee for whole machine for 1 year.
2) Lifetime maintenance is free of charge.
3) We will provide the consumable parts at an agency price when you need replacement.
4) We offer English manual and CD for installing, operation and maintaining.
5) Our technician can be sent to your company to install the machine and train your workers if necessary.
In the footwear industry, laser technology is the most representative element. The laser processing beam has high energy density and high speed. The shoes laser cutting machine can accurately cut the works that the designer wants, and give the shoes light with laser technology, making ordinary shoes dazzling and colorful.
Packaging & Shipping:
1) Standard seaworthy plywood case, without fumigation, can be exported directly.
2) Forklift-lift loading, much safer for machine.
3) We will arrange telex release for you or send original BL to you for customs clearance.
