Product Item: 150W Graphene UFO LED High Bay Lights For Industrial Plants Lighting
Overview:

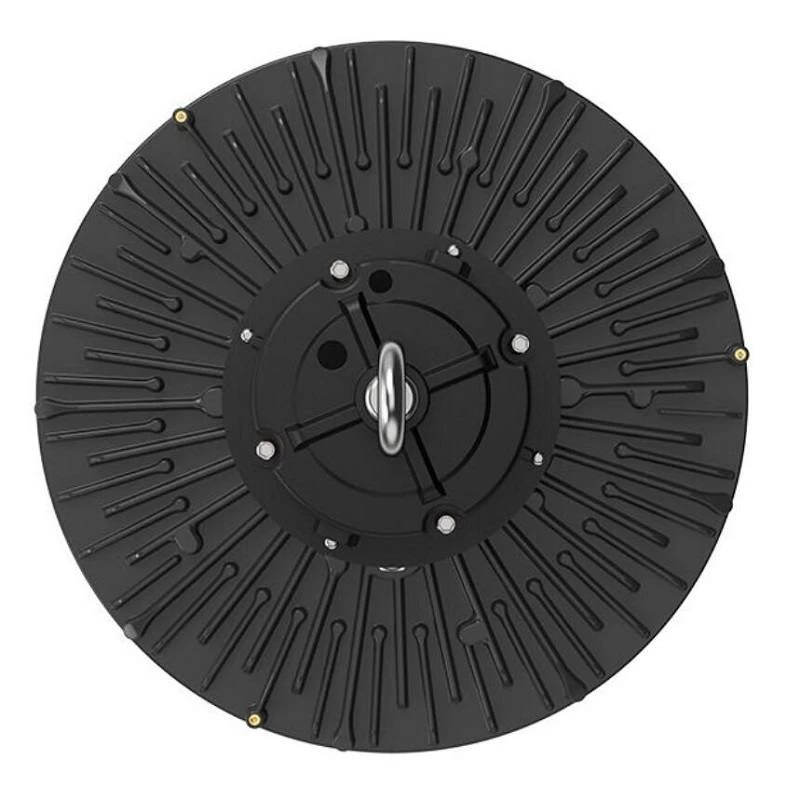

This range of slim Graphene UFO LED high bay lights adopts high thermal conductivity Graphene, 80-110W/m•k, and 60601 Aluminum as heat sink. Compared with 30-90W/m•k of traditional die-casting Aluminum heat sink. The new heat dissipation technology brings light weight and significant cooling to the luminaire. With weight at least 30% lighter, package size and freight cost are reduced. The UFO Graphene technology lamp also has high lumen output as high as 150-160 lumen per watt. The highbay lighting UFO lamps are a perfect LED replacement of metal halide, HPS, mercury vapor lamps for lighting projects in workshop, bus station, repair center, underground car park, metro, etc.
Specifications:
|
Model
|
SR-HBUG-150W
|
Power
|
150W
|
Lumen Output
|
24,000lm
|
Light Source
|
LUMILEDS/OSRAM/NICHIA/CREE, etc.
|
Beam Angle
|
60°/90°/120°
|
Driver
|
MEAN WELL/PHILIPS/DRIVERLESS, etc.
|
Input Voltage
|
AC 90-305V, 50/60Hz
|
Power Factor
|
>0.95
|
CRI
|
Ra>80
|
CCT
|
3000K/4000K/5000K/5700K/6500K
|
IP Rating
|
IP65
|
Dimming
|
Dimmable/Non-dimmable
|
Material
|
Die-cast Aluminium, PC
|
Dimension
|
φ320x155.6mm
|
Weight
|
2.5KG
|
Warranty
|
5 years warranty
|
Features:
-
Latest LED Graphene lighting heat dissipation technology, effectively reduces the junction temperature by fast conducting the heat from light source to heat sink, so as to reduce the UFO light and PC lens internal temperature and thus the lights are well-protected.
-
Wattage: 80 watt, 100 watt, 150 watt, replace metal halide lamp/HID lamps from 150W, 200W, 250w, 300W. Beam angle 90° or 120°(60° customized upon request).
-
Light weight: more than 30% weight saved by Graphene technology adopted, smaller size and weight means less package size, less freight cost, and also installation time and labour cost can be saved.
-
150-160LM/W super high luminous efficiency, and superior lighting uniformity.
-
Ultra slim UFO design, lamp fixture heat sinks’ maximum 38mm to 51mm thickness from 80W to 150W, with aesthetics.
-
High colour rendering index(CRI), and high power factor(PF>0.95) for more energy savings.
-
IP65&IK08 protection rating, anti-corrosion lamp surface, better durability under strong acid or seaside salt tough environment.
-
1-10V dimming, DALI dimming, Zigbee wireless control, microwave sensor available.
-
Widely applied in manufacturing workshops, garages, underground parking lot, gymnasiums, sports centers, etc.
Graphene VS Die-casting Aluminum:
|
Feature
|
Graphene High Thermal
Conductivity
|
Die-casting
Aluminum
|
Remark
|
|
Thermal Conductivity(w/m•k)
|
80-110
|
30-90
|
Able to replace die-casting Aluminum
|
|
Density(g/cm3)
|
1.7-1.8
|
2.7
|
38% weight reduced for same design
|
|
Radiant Coefficient(w/m2•K4)
|
0.94
|
0.46
|
Heat dissipation 20% better for same area
(taking 70℃ for example).
|
|
Anti-corrosion
|
Acid-resistant
|
Non-acid-resistant
|
Better environment adaptability, higher
stability in harsh acid or marine salt environment.
|
|
Energy Consumed for Heat Sink Manufacturing(KWH/Ton)
|
2,000
|
16,000
|
Carbon Oxide discharged in the process from Beauxite mineral to
Aluminum and then to Aluminum lamp fixture body is 8 times as
much as from Graphite ore to Graphene and then to Graphene
lamp fixture body.
|
|
CO2 Emission for 1KG Heat Sink Manufacturing(KG)
|
1.57
|
12.56
|
Graphene UFO Heat Sink Specifications:
Properties
|
Standard
|
Unit
|
Value
|
|
Bulk Density
|
ASTM D1985
|
--
|
0.77
|
|
Specific Gravity
|
ASTM D792-13
|
g/cm3
|
1.7-1.8
|
|
Horizontal Thermal Conductivity
|
EFD Thermal Simulation
|
W/m・K
|
80
|
|
Vertical Thermal Conductivity
|
EFD Thermal Simulation
|
W/m・K
|
110
|
|
Radiant Coefficient
|
---
|
---
|
0.94
|
|
Flexural Strength
|
ASTM D790-17
|
MPa
|
32.7
|
|
Rockwell Hardness
|
ASTM D785-08(2015)
|
L
|
106
|
|
Shore Hardness
|
ISO 868:2003
|
Shore A
|
100
|
ISO 868:2003
|
Shore D
|
79
|
Compressive Strength
|
ASTM D695-15
|
MPa
|
53.0
|
|
Differential Coefficient of
Linear Thermal Expansion
|
ASTM E831-14-40℃
|
μm/(m・℃)
|
22.2
|
ASTM E831-14+120℃
|
μm/(m・℃)
|
52.8
|
|
Deflection Temperature under Load
|
ASTM D648-16
|
℃
|
280
|
|
Molded Shrinkage
|
ASTM D955
|
%
|
0.4
|
Surface Resistance
|
ASTM D257-14
|
Rs(Ω)
PSΡs(Ω/sq)
|
≤10 4
≤10 5
|
|
Chemical Resistance
|
ASTM D543-14
10%(m/m)HCI
|
Change rate of mass%
|
≤0.2
|
|
ASTM D543-14
10%(m/m)NaOH
|
Change rate of mass%
|
≤0.19
|
UL Flammability
|
UL94-2013 Rev.7-2017
|
|
V-0
|
|
RoHS
|
RoHS
|
---
|
All N.D
|

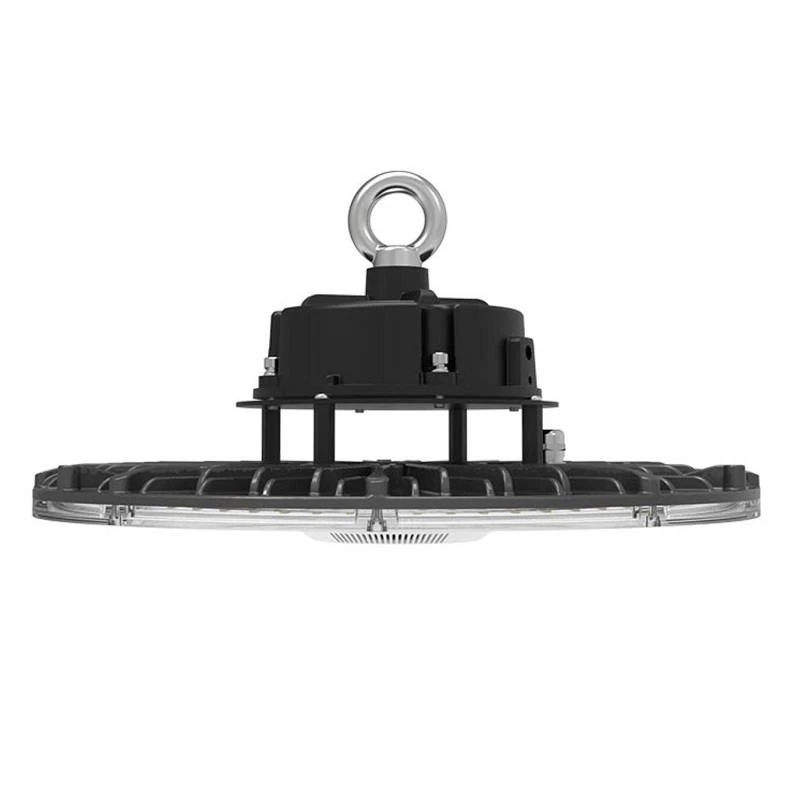

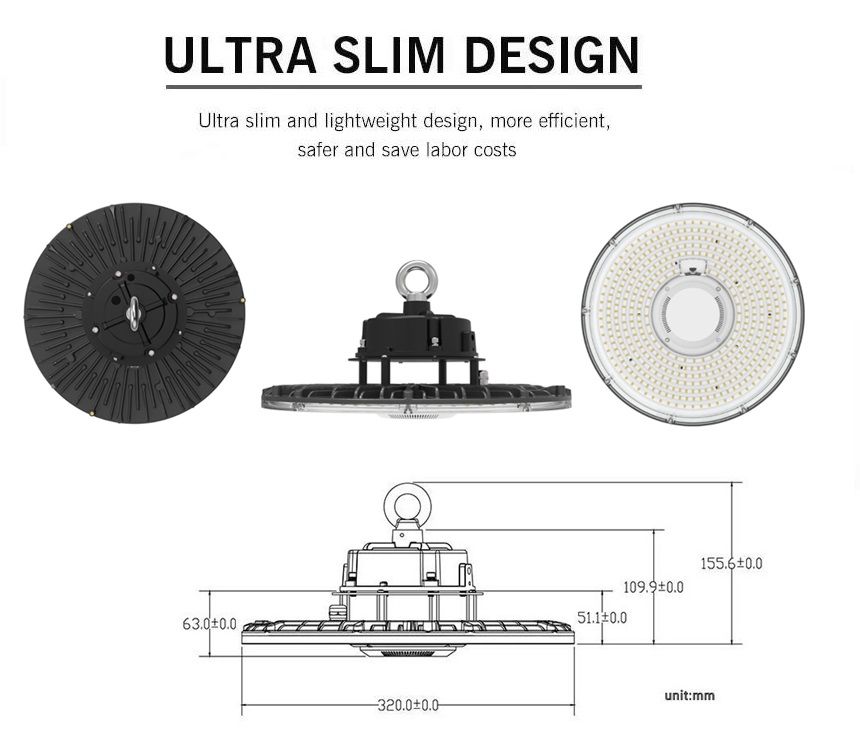

Ultra-thin lamp body:
For this 150 Watt UFO High Bay Light, the height from the fixture bottom to the top of the driver fixation pillars is only 51.1mm. With small size, you can have better appearance, and saving space means less freight cost in shipment.
High Performance of Lighting Distribution:

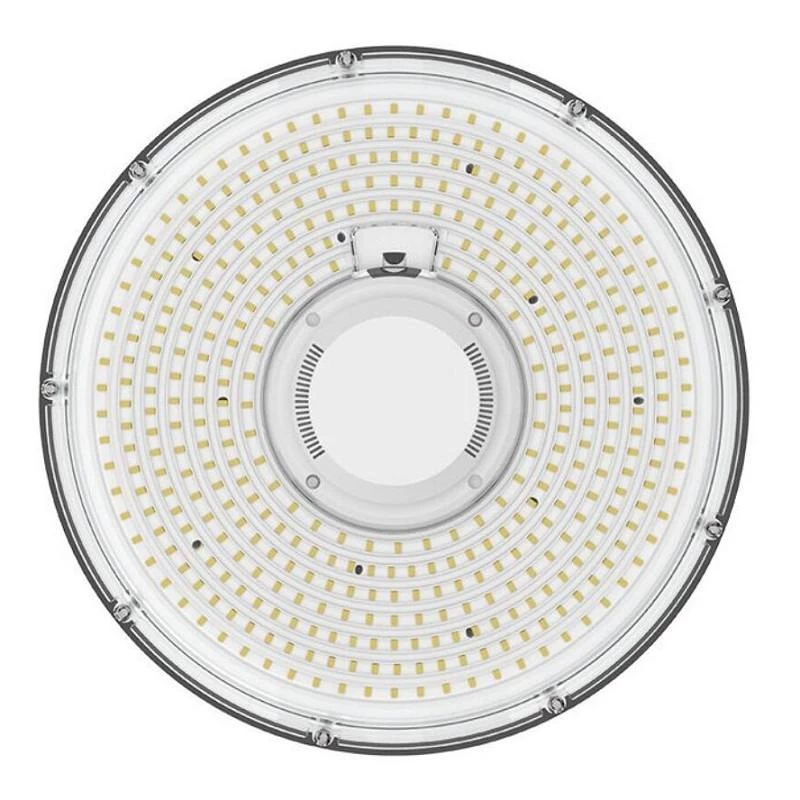

Super bright LED chip and high grade polycarbonate lens for high intensity and uniformity lighting, with beam angles 90°, 120°, and 60° customizable.

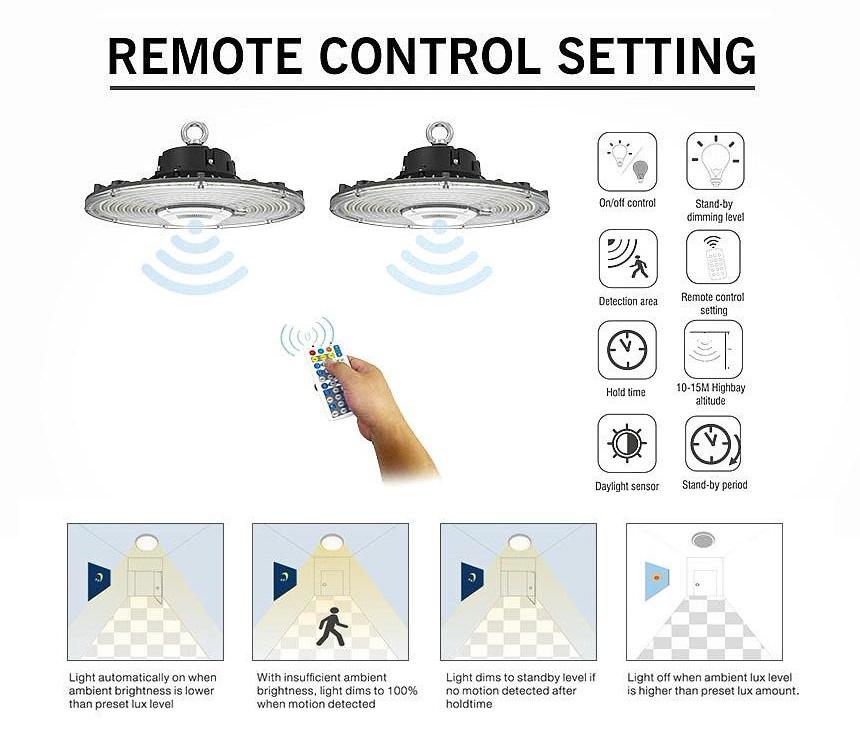

Microwave Sensor Graphene UFO High Bay:
Built-in microwave induction sensor to make this UFO Graphene fixture a sensor light which saves space, and also better appearance.
User can preset a certain triggering lux level, when the surrounding natural light is lower than it, the light working will be turned on automatically.
With a dimmable driver, the light can work at certain level of brightness with lux it detects and adjust accordingly.
User can set the holdtime and sensitivity freely with a remote controller.
The embedded sensor has two colors, black and white available.
IP65 for harsh environment application:
