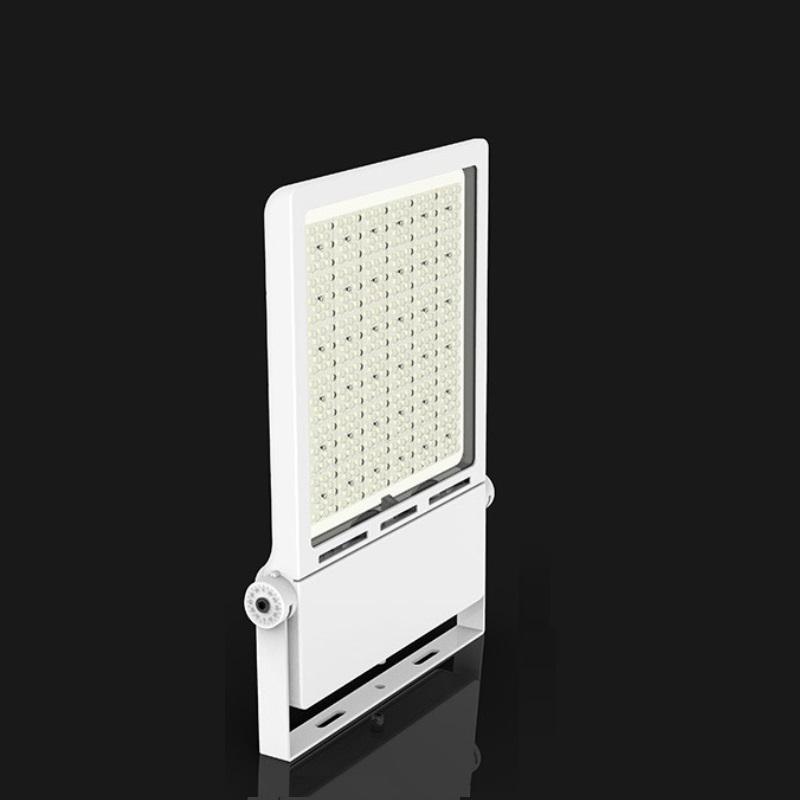

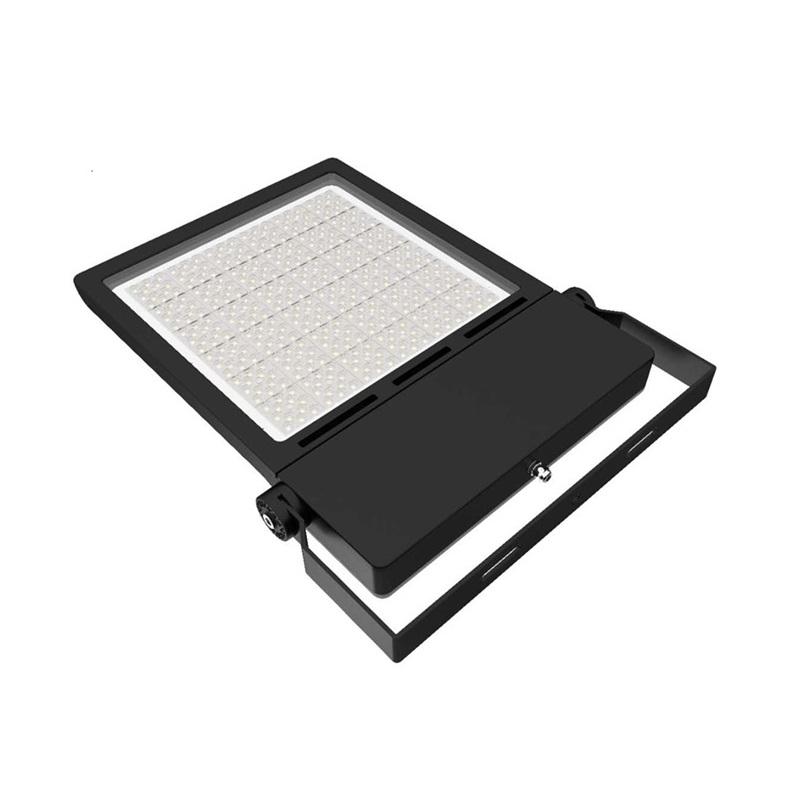

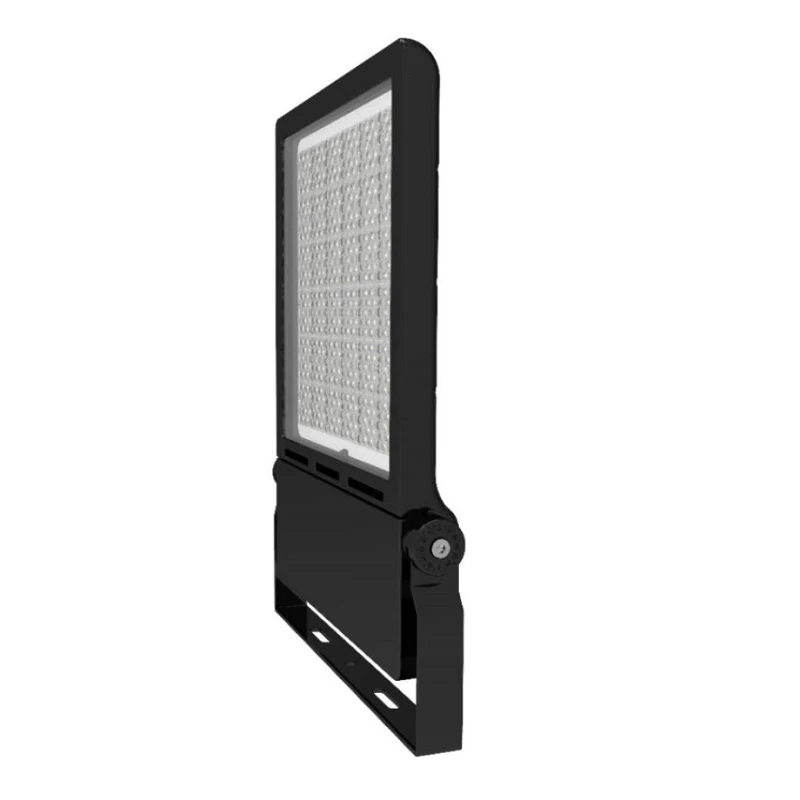

Product Item: 150W Slim LED Floodlights With Asymmetric And Symmetric Lighting Distribution
Overview:
This slim range floodlight is fitted with the high luminous efficacy Lumileds Luxeon LED Chip enabling it to deliver 130 lumens per Watt. To ensure high quality, this range comes with Meanwell driver for a solid 5-year warranty.

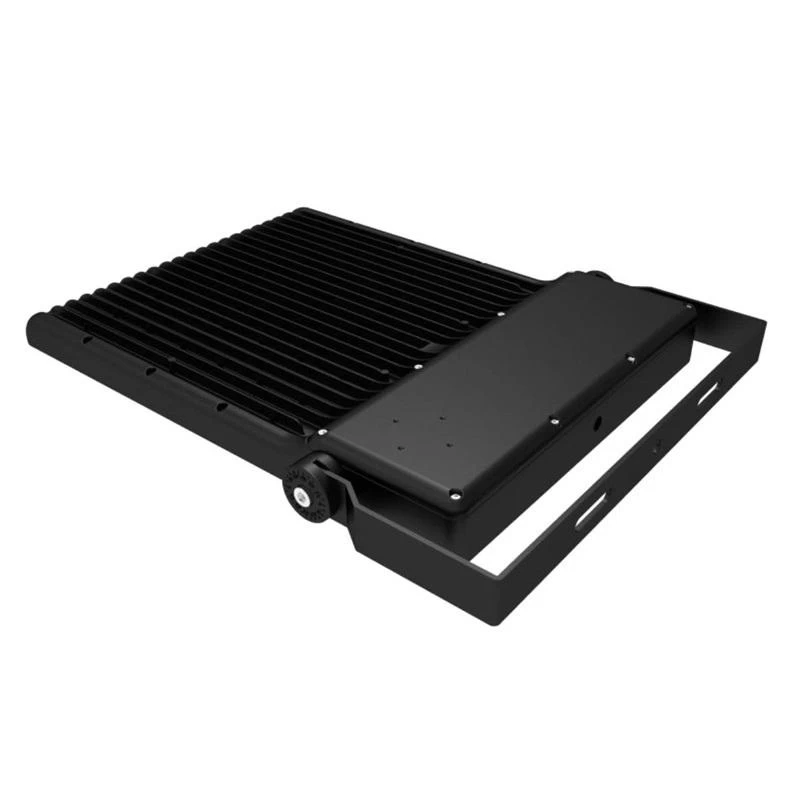

Slim design as it is, the housing structured is precisely designed for satisfying heat management, back fin structure and ventilation holes greatly accelerate the air-flow heat dissipation. The casing comes in a clean black or white finish with powder coating for corrosion resistance, with IP65 and IK08 rating. It can also come with a full dimming option if required, either in 1-10V, or DALI, or Zigbee control.
This high lumen output slim flood LED light has great lighting uniformity and widely used in industrial and commercial lighting applications for factory lighting, public area lighting, security lighting, architectural lighting, and plaza lighting, etc.
Specifications:
|
Model
|
SR-FLS-A150W
|
Power
|
150W
|
Lumen Output
|
18,000lm
|
Light Source
|
LUMILEDS/OSRAM/NICHIA/CREE, etc.
|
Beam Angle
|
30°/60°/90°/TYPE Ⅱ/TYPE Ⅲ/TYPE Ⅳ
|
Driver
|
MEAN WELL/SOSEN, etc.
|
Input Voltage
|
AC 100-305V, 50/60Hz
|
Power Factor
|
>0.95
|
CRI
|
Ra>80
|
CCT
|
3000K/4000K/5000K/5700K/6500K
|
IP Rating
|
IP65
|
Dimming
|
Dimmable/Non-dimmable
|
Material
|
Die-cast Aluminium, Glass
|

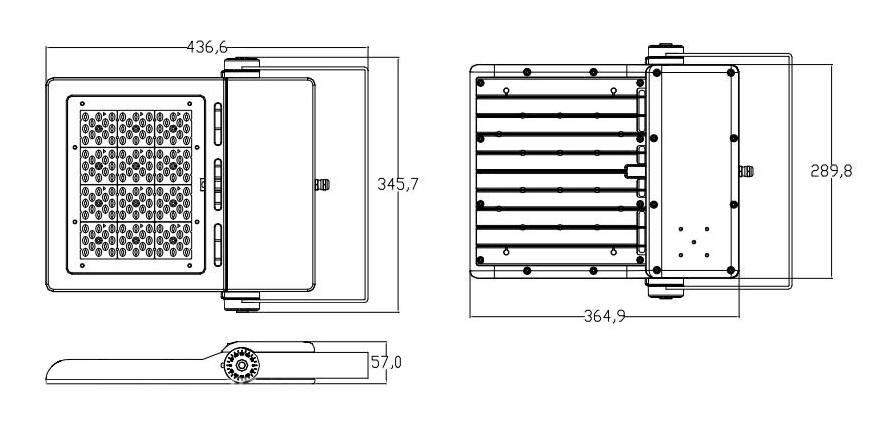

Dimension
|
436.6 x345.7 x57.0mm
|
Weight
|
5.5KG
|
Warranty
|
5 years
|
Features:
-
Luminous efficacy up to 100-130lm/W for different wattage and LED chip used.
-
Warranty 5 years with high standard Mean Well LED driver.
-
Both symmetrical and asymmetrical lighting distribution optional.
-
IK08 with tempered glass for anti-corrosion. IP65 waterproof, dust-proof, and explosion-proof. High stability of working under harsh environment.
-
Optional microwave motion sensor and daylight sensor available.
-
This high-power slim design floodlight is suitable for outdoor use in damp area, stable working under both warm and cold climates, working temperature from -40 to up to +50°C.
-
Die-cast aluminum housing with powder coating, tempered glass, stainless steel external screw.
-
Energy savings of up to 70% compared to fixtures with HPI or HQI lamps.
-

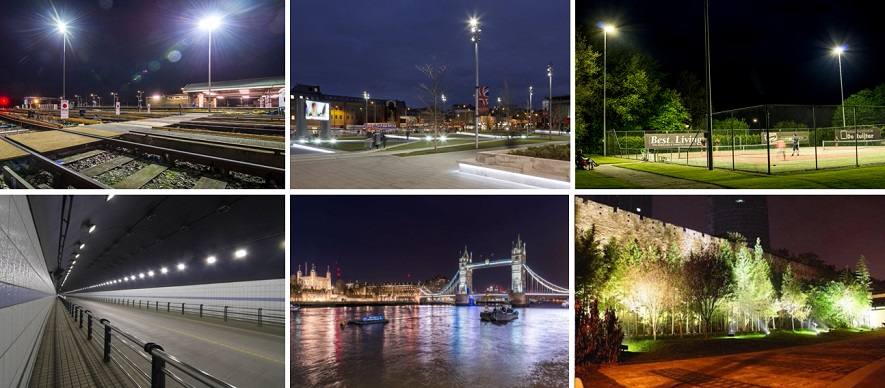

Applications: Footpaths, facades, architecture, towers, pagodas, monuments, signage, parking lots, parks, amenity areas, sports arenas, etc.
