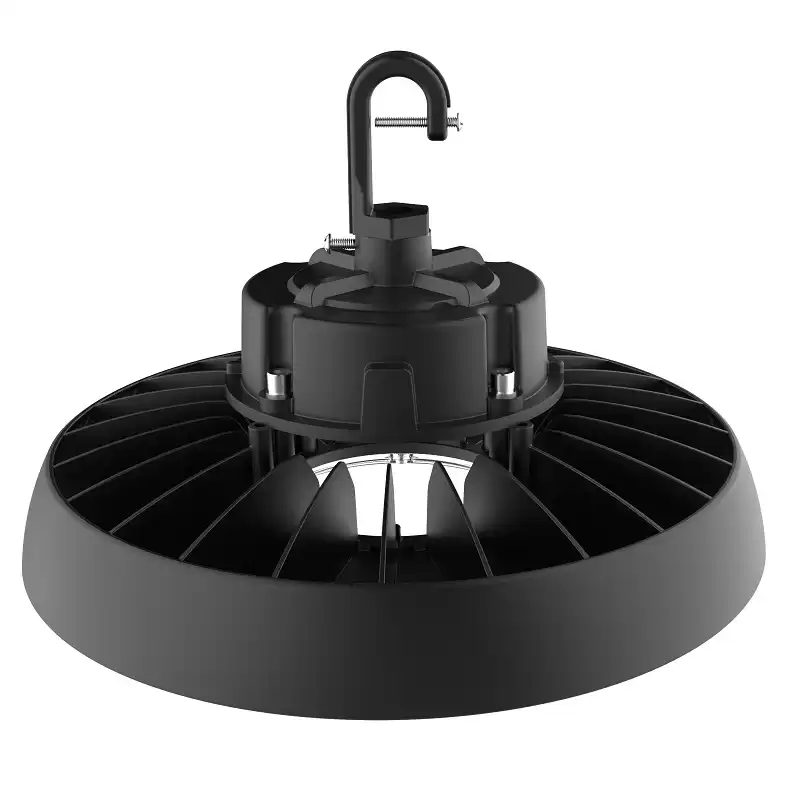

PRODUCT DESCRIPTION:

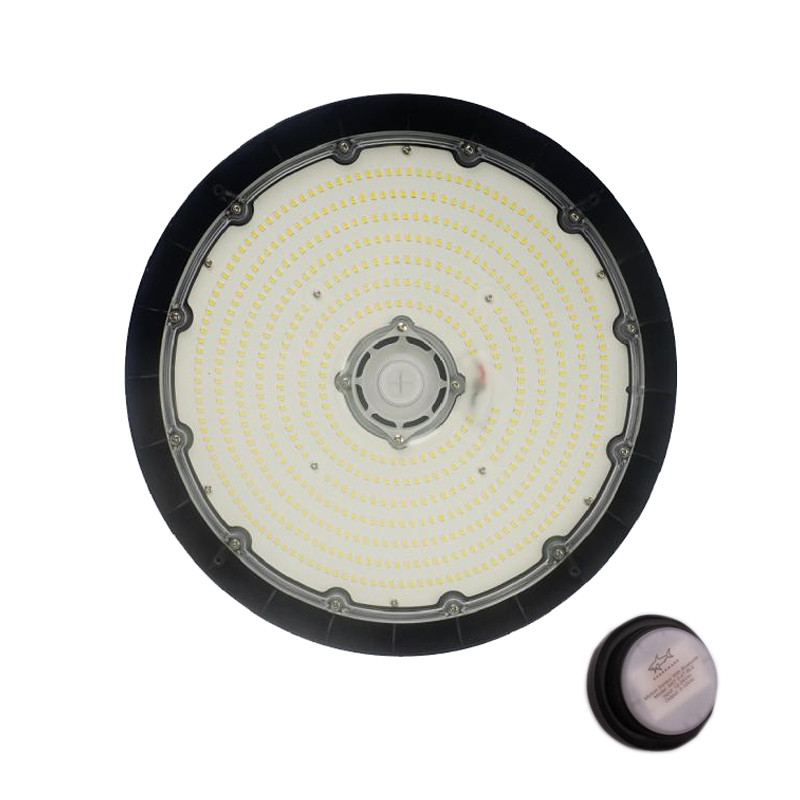

These wireless dimmable UFO high bay provide bright white light instantly, which are easy to install. A variety of installation interfaces can meet various application requirements. Bluetooth microwave motion sensor can be installed for human body and daylight sensing. Combined with Morlink wireless lighting control system, real-time remote control, timing, dimming and other functions can be realized.
FEATURES:
1.Fins design,advective holes and grooves in each fin,good for heat dissipation;
2.The wide input voltage range AC100-277V(1-10V dimming);Sosen driver,
2835 LUMILEDS LED as light source;
3.Professioal light distribution technique,high light reflectivity reflectors,85°/110°beam
angle available;The lens pass rate is over 90%
4. Light weight and small size,save about half shipping costs.
CONSTRUCTION:
• The lens pass rate is over 90%
• Light weight and small size
• Radiator adopts ADC12 aluminum integrated die-casting
RECOMMENDED USE:
• Warehouses, Factory
• Exhibition Room, Gas Station
• Supermarket
• Working temp:-40ºF~113ºF. Storage temp.:-40ºF~158ºF
WARRANTY:
7-year standard warranty with labor allowance* (further details
available at www.morstar.com/warranties)
*Warranty Limitations: Product must be rated for the application
per the Product Data Sheet (PDS); operated <16 hrs; in ambient of
-40°F to 113°F.
Sample Order: MA-HHB501E-100W-50K

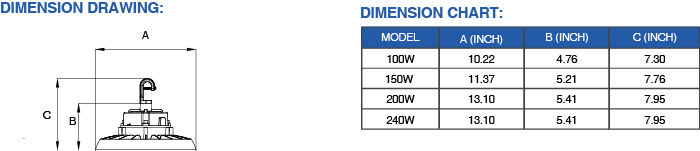

DIMENSION:
SPECIFACTION:
ITEM
|
SPECIFICATION
|
Details
|
GENERAL PERFORMANCE
|
Power Consumption
|
150W
|
Equivalent Wattage
|
400W HID
|
Lumens Delivered
|
21000LM
|
Efficacy
|
140LM/W
|
CRI
|
80
|
Color Temperature
|
4000K/5000K/5700K/6500K
|
L70 Lumen maintenance
|
≥50000H
|
ELECTRICAL
|
Power Factor
|
>0.9
|
Input Voltage
|
100-277V
|
Dimming
|
1-10v Dimming Range:10%-100%
|
Surge protection
|
Surge protection: 4KV line-line, 6KV line-earth
|
PHYSICAL
|
Mounting
|
Suspending (Rings type, Hook type)
|
Operating Temperature
|
-40°F to 113°F
|
Humidity
|
20% to 80% RH non-condensing
|
QUALIFICATION
|
Qualifications
|
UL Listed,DLC Premium
|
Material Usage
|
RoHS compliant; no mercury
|
Environment
|
Indoor / Wet
|
Warranty
|
5 Years
|

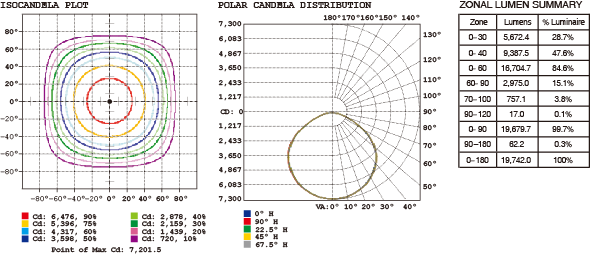

LUMINOUS INTENSITY DISTRIBUTION CURVE:

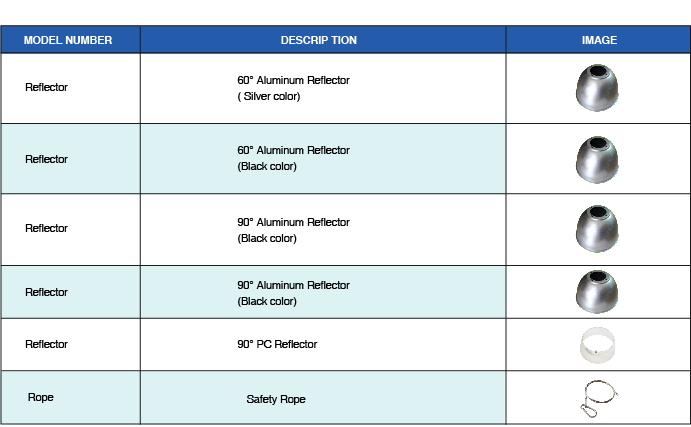

ACCESSORIES:

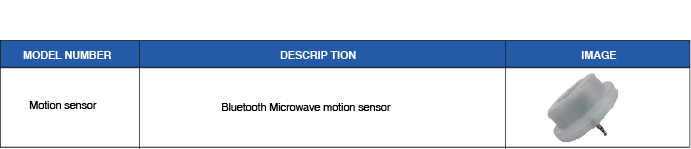

ACCESSORIES (For APP Smart Fixture):
MORLINK CONTROLS:
Morlink® Wireless Controls:
Although wireless control has been developed by leaps and bounds, there are still various problems in actual use. Some networks want simple solutions that reduce energy consumption and meet code compliance while others are more ambitious, looking to capitalize on the LED and controls savings to fund a scalable, enterprise-grade, internet of things solution. The advantage of the Morlink® wireless platform is that it can be integrated into indoor, outdoor, and high-bay environments. Morlink® wireless control provides the infrastructure to make your building face the future, easily upgrade to a networked solution, and provide the ability to integrate into an IoT solution suitable for your business.
• Morlink® Lite: Local area wireless controls
• Morlink® Home: Wireless lighting controls based on smart home
• Morlink® Pro: Networked Lighting Controls for Smart Building & IoT Enablement.
Note:
For intelligent control products, Moshida provides two solutions:
1. Purchase a Morlink controller to transform your existing product
2. You can also directly purchase the whole lamp integrated with Morlink® wireless controller. Since the sensor has been embedded in the lamp, the labor cost for installation can be greatly reduced.
Main Functions of Morlink Commercial Lighting Solution:
|
Energy Management
• Create actions and scenes that can be automatically
executed to implement energy-saving strategies.
• Link single devices or group actions with sensors,
schedules, sunrise and sunset times, weather condi
tions, etc.
• View, compare and analyze the power consumption
of devices and groups by day, month or year.
Device Control
• View and control devices from a map of the lighting
layout.
• Monitor device conditions including, status, operation
time, energy consumption and life expectancy.
• Automatic alarms when devices change to “abnormal
status” and notification to maintenance team.
|
|
Human Centric Lighting
• Easily configure groups of light fixtures to sync with circadian rhythm protocols. The system will automatically adjust the CCT and brightness of the fixtures throughout the day.
FAQ:
1. How can smart lamps save money?
A:*. Smart bulbs are usually LED lamps, which are approximately 75% more efficient than incandescent lamps. If you haven’t upgraded to LED lights, just screw in the new bulb and you will see the savings.
*. When there is no one in the room, use the motion sensor to turn off the smart light switch and bulb.
*. When people are away or not, you can use the geolocation on the phone to turn off the lights. The lights are turned on and off according to the schedule.
2.Can smart lamps provide security in usage scenarios?
A: The answer is no doubt. Use motion sensors and contraction sensors to automate your lights, so you don’t need to look around for switches in the dark.
3.What are the options for smart bulbs?
A: Smart bulbs are available in a variety of sizes and colors. Whether it is your home or other commercial places, almost all types of light bulbs can be replaced with smart light bulbs.
4.Can smart lamps be dimmed?
A: You can set different lighting scenes according to your different usage needs. For example, you can adjust the color of the light according to the morning and evening of the time or the change of the season.
