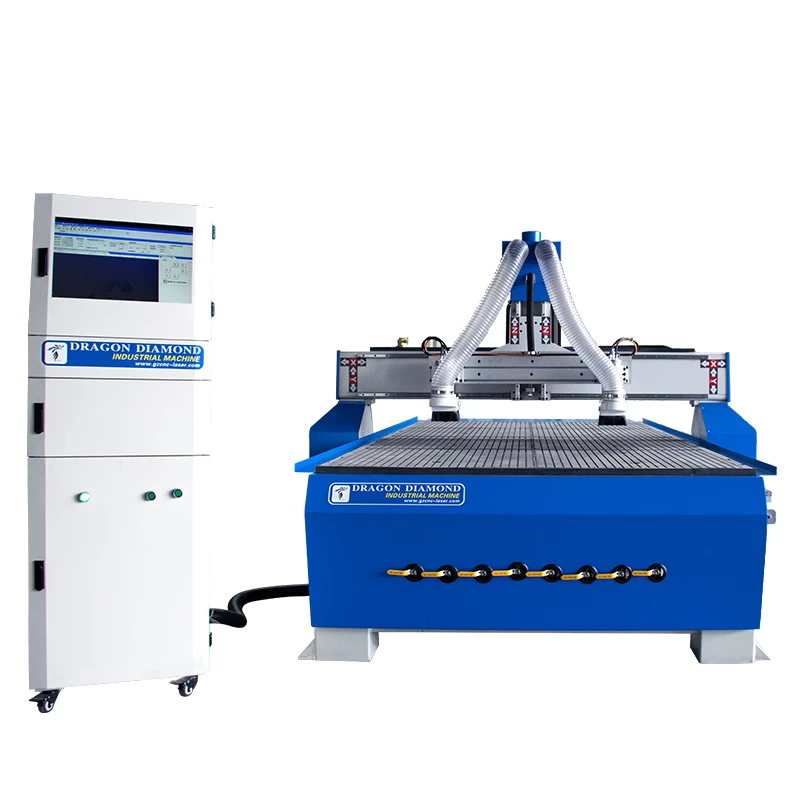

1530 Big Size Cnc Router Wood Engraving Cutting Machine
PRODUCT PARAMETER
|
NO.
|
Model
|
Lz-1530B
|
|
1
|
Working Area
|
1500x3000x200mm
|
|
2
|
Packing Size
|
3680x2330x1880mm
|
|
3
|
Working Table
|
Vacuum Table
|
|
4
|
Spindle
|
Double 3KW Water cooling Spindle
|
|
5
|
Cooling System
|
Water cooling
|
|
6
|
Control System
|
NC Studio
|
|
7
|
Inverter
|
Sunfar
|
|
8
|
Transmission
|
X,Y axis rack drive,Z axis screw drive
|
|
9
|
Guide Rail
|
Taiwan Square rail
|
|
10
|
Ball Screw
|
TBI ball screw from Taiwan
|
|
11
|
Drive System
|
Leadshine driving system and stepper motor
|
|
12
|
Body
|
Welded steel T type structure as a whole
|
|
13
|
Spindle Speed
|
24000RPM
|
|
14
|
Control Software
|
Artcam/Type3,other CAD/CAM
|
|
15
|
Traveling Speed
|
10m/min
|
|
16
|
Working Speed
|
8m/min
|
|
17
|
Reposition Accuracy
|
0.03mm
|
|
18
|
Command Code
|
G Code*.u00*.mmg*.plt
|
|
19
|
Voltage
|
AC220V/380V,50HZ/60HZ
|

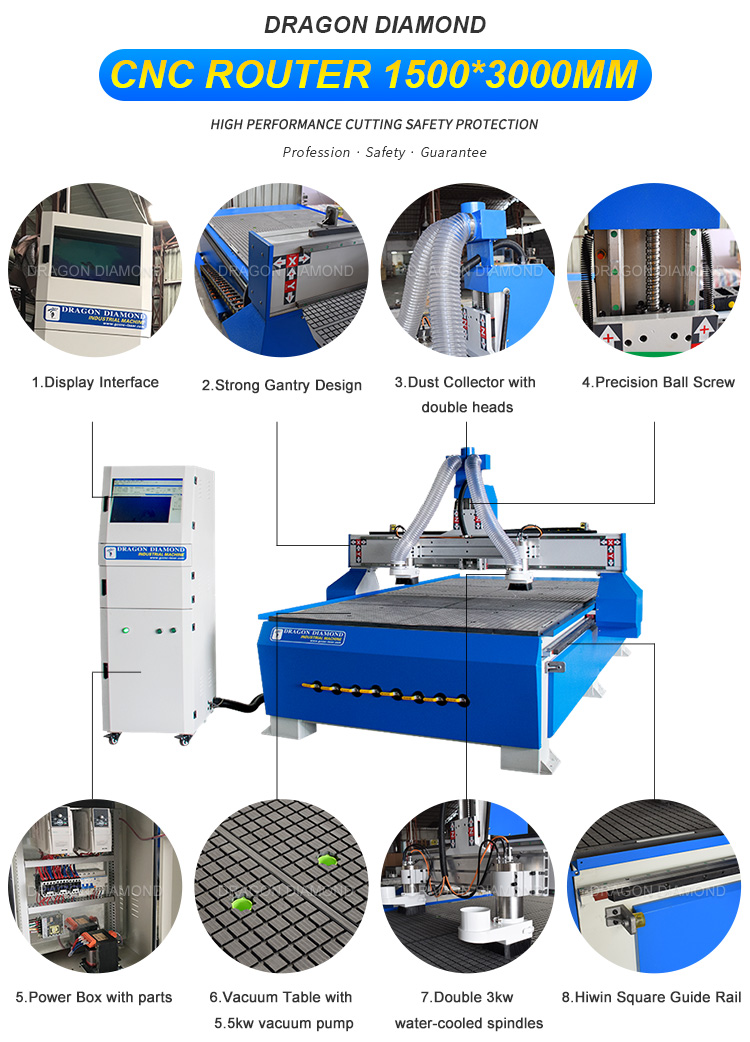

PRODUCT DESCRIPTION

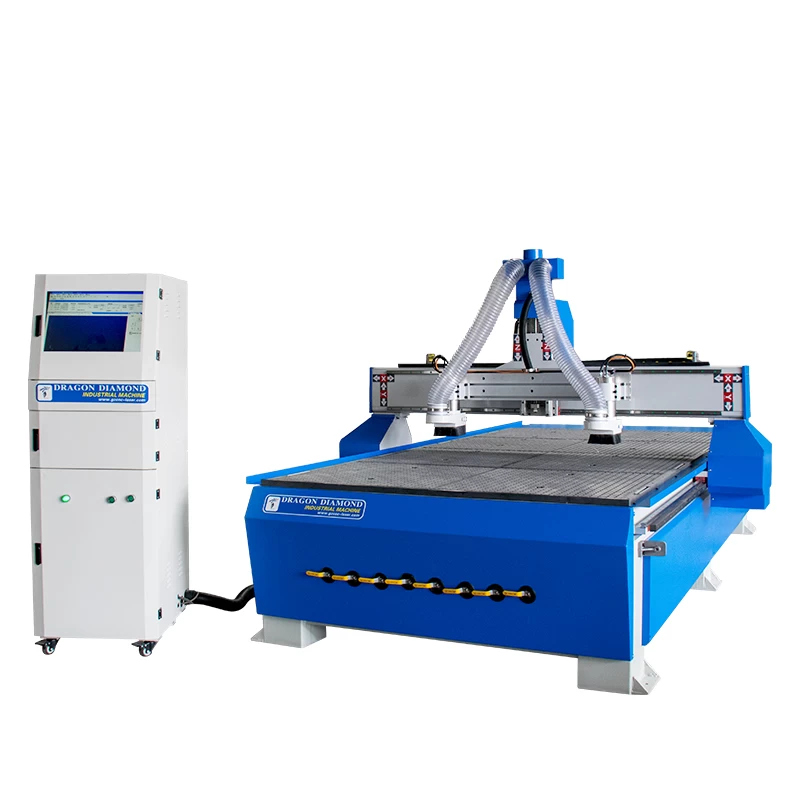

1.Single Head with Two Spindles
Double heads with two spindles is optional.Can be finished multiple process.
2.Vacuum table
Vacuum adsorption system with 5.5kw Water cycle vacuum pump,vacuum table which is divided into 6 zones,can adsorb different size materiel from small to big, saving materials load-unloaded time.

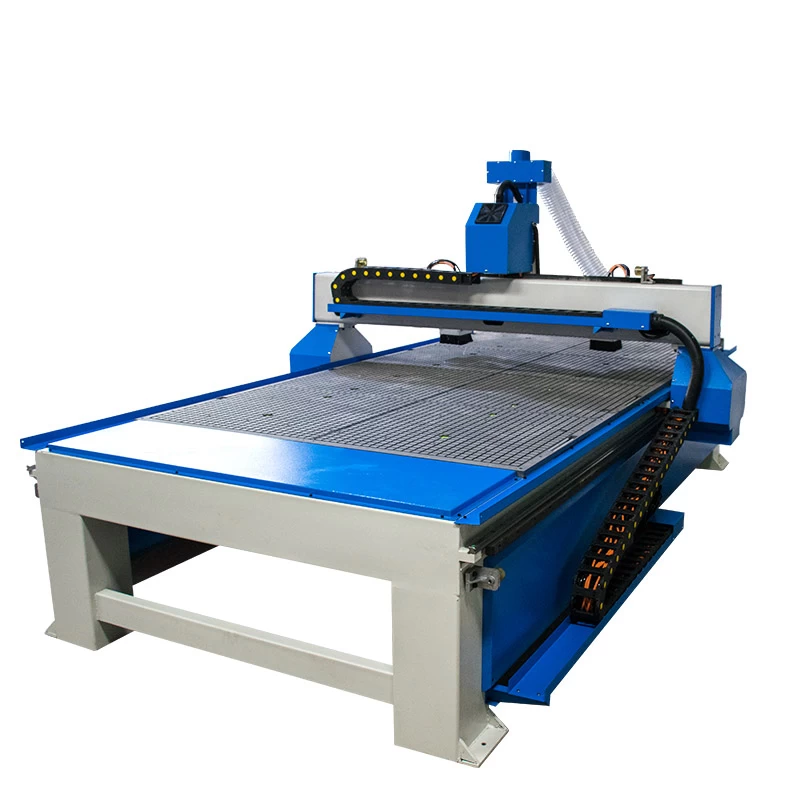

3.Stronger machine frame design

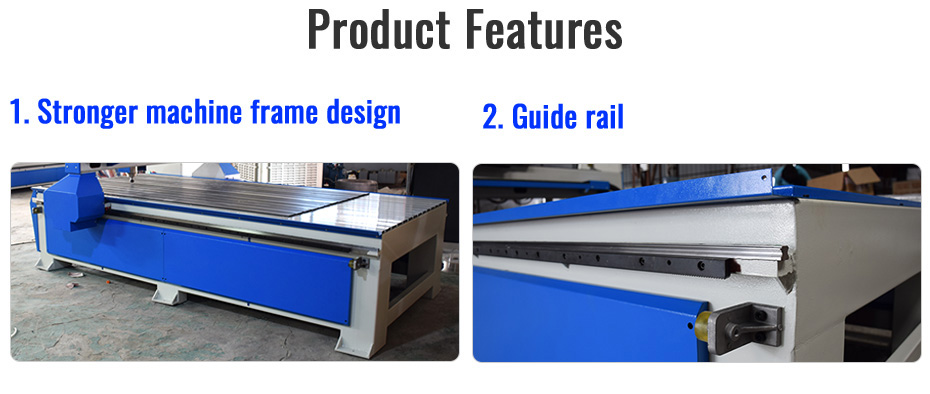

Welded steel T type structure as a whole,six-legged heavy-duty body, large bearing capacity with vibration Temper aging treatment ensures no deformation for long time, avoid broken knife, more stable,durable.

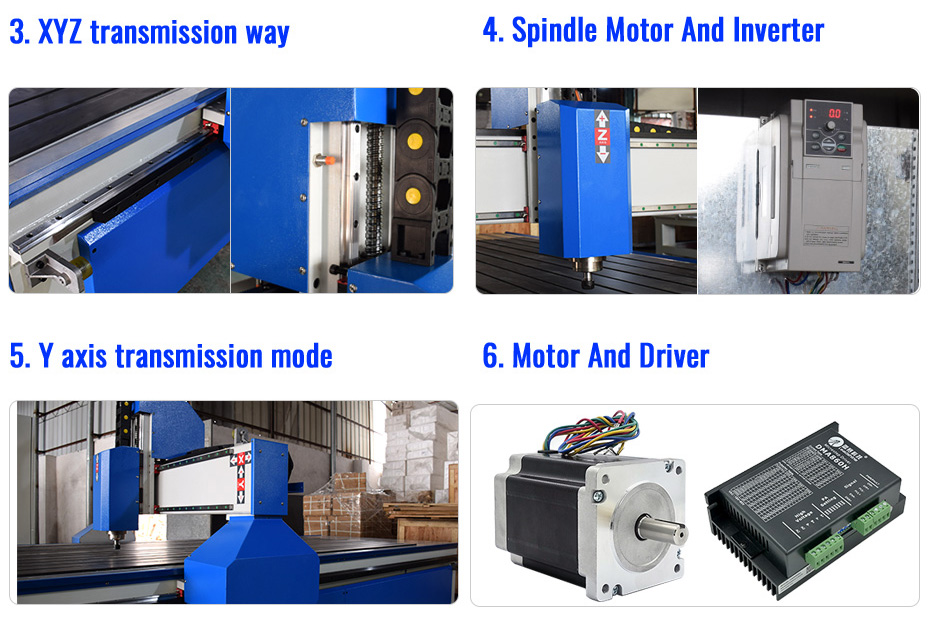

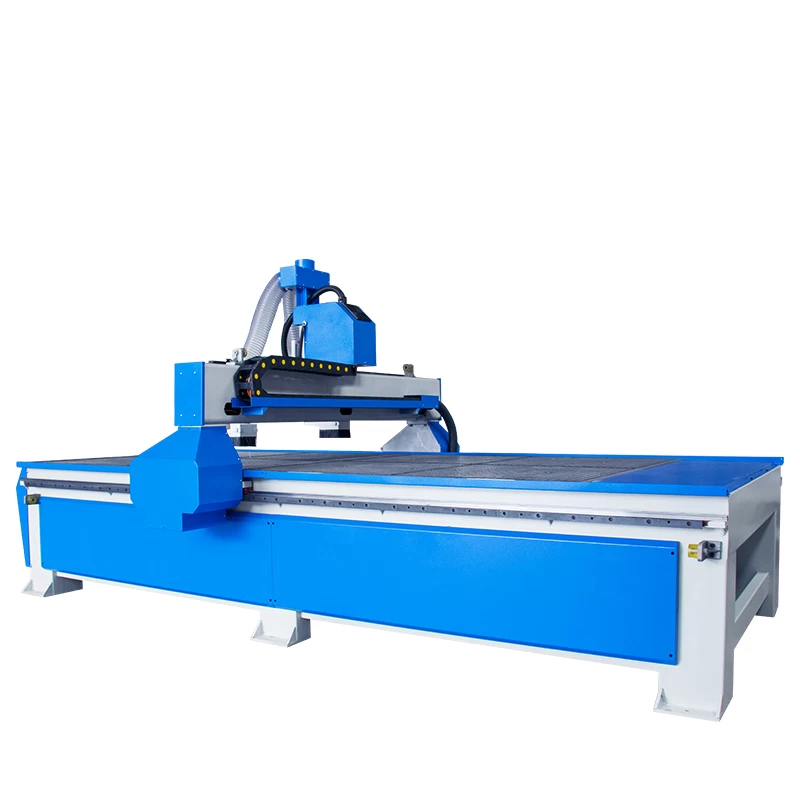

4.Transmission System
Imported Hiwin, Taiwan Linear square guide rail with Racks type transmission for X and Y axis, higher running speed and efficiency ,saving cost z- axis with precision ball screw, high precision and more durable.

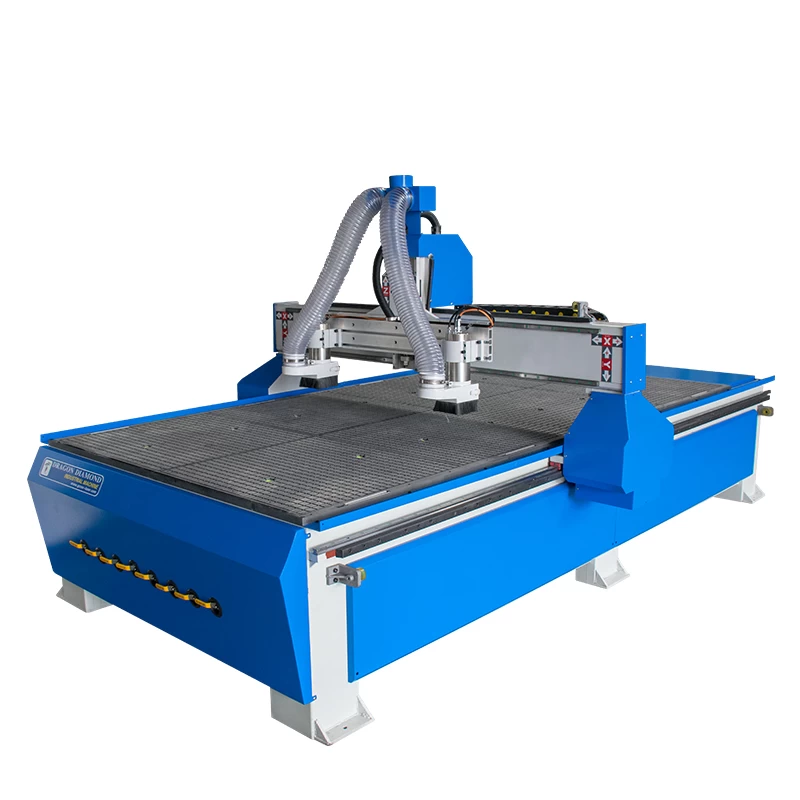

5.Gantry
The Y axis transmission mode for stepping two-way drive, more eficient, simplified carpentry and maintenance of the processing
of the maintenance work.
6.Spindle and Inverter
Large power 3.0kw water cooling spindle which is with stable performance, lower noise,powerful and high torque，matched with high-performance frequency inverter.
7.Stepper Motor and Driver
China famous 86BYGH450B stepper motor and driver for XYZ-axis, high precision, fast speed and more stable,dual motor driver Y axis with traveling speed up to more than 25000 mm/min.
8.Dust Collector
The dust collection system can collect the saw dust and chips while working to keep a cleaning working environment. It dose good for the human health and equipment.

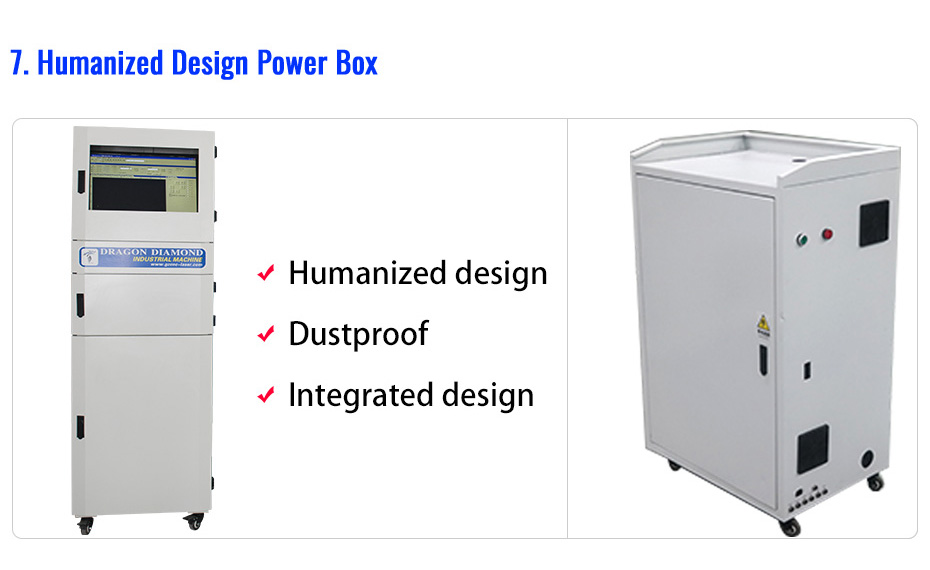

9.NC Studio Control System and Software Compatibility
Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa.With intelligent over limit protection function which can stop the mechanical collision due to improper size.
