E13103-3(5) SC20

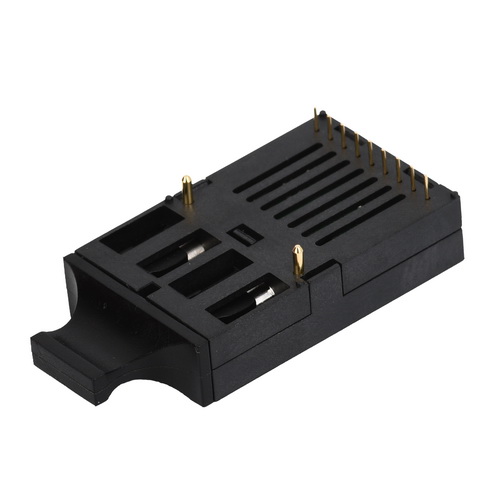

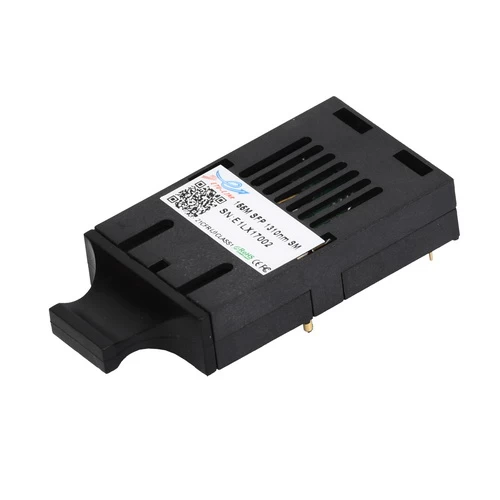

155M 1310nm Single-mode 1x9 TTL Duplex Transceiver (20km)
Ø Duplex SC/FC/ST optical interface compliant
Ø Industry Standard 1x9 Footprint
Ø Multi-rate of 1M~155Mbps operation
Ø Single 3.3V or 5V Power Supply
Ø Uncooled 1310nm FP laser transmitter
Ø DC-coupled LVTTL/TTL inputs and outputs
Ø LVTTL/ TTL Signal Detection Output
Ø Wave Solder able and Aqueous Washable
Ø Class 1 laser safety certified
Ø ROHS Compliant
Applications
Ø SONET/SDH/PDH Equipment Interconnect
Absolute Maximum Ratings
|
Parameter
|
Symbol
|
Min.
|
Max.
|
Units
|
Note
|
Storage Temperature
|
Ts
|
-40
|
85
|
℃
|
|
Power Supply Voltage
|
Vcc
|
0
|
4.5
|
V
|
|
0
|
6
|
V
|
|
Soldering Temperature
|
|
|
260
|
℃
|
10 seconds on leads
|
Storage Relative Humidity
|
RH
|
5
|
95
|
%
|
|
