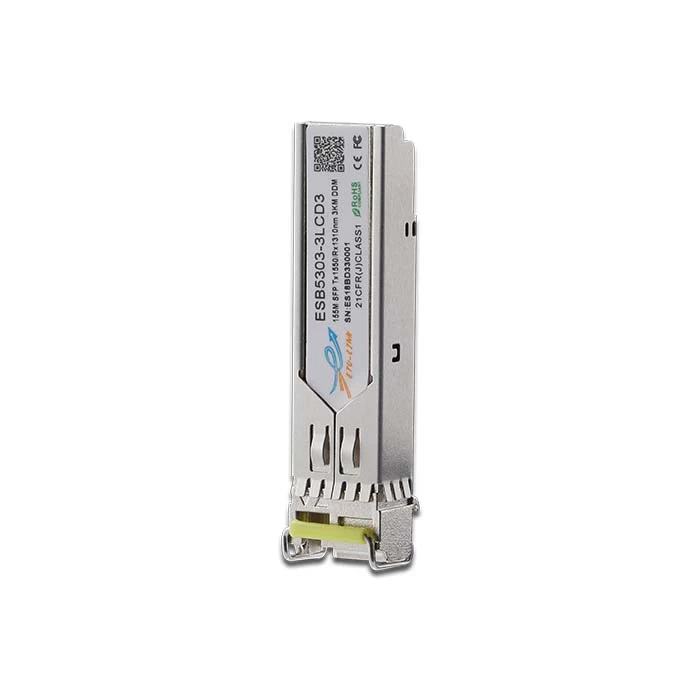

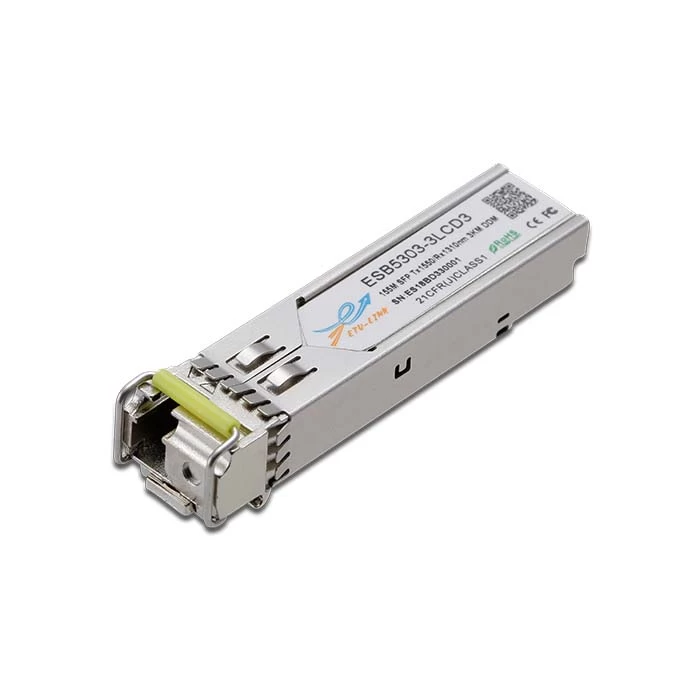

ESB5303-3LCD3
155Mbps SFP Bi-Directional Transceiver, 3KM Reach
Tx1550nm/Rx1310nm
Features
Ø Up to 155Mbps data-rate
Ø 1550nm FP laser and 1310nm PIN photodetector for 3KM transmission
Ø Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
Ø Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
Ø Compatible with RoHS
Ø +3.3V single power supply
Ø Operating case temperature range of
0°C to +70°C (Commercial)
-40°C to +85°C (Industrial)
Applications
Ø SDH STM-1, S-1.1,L-1.1, L-1.2
Ø SONET OC-3 IR1,LR1,LR2
Ø Other optical links
Description
The SFP-BIDI transceivers are high performance, cost effective modules supporting data-rate of
155Mbps and 3KM transmission distance with SMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Quality control
Compatible list
Cisco module
|
HUAWEImodule
|
ZTEmodule
|
Junipermodule
|
TP-LINK module
|
Allied Telesis module
|
GLC-T (10/100/1000)
|
SFP-FE-SX-MM1310-A
|
SFP-FX/OC3-M2K
|
ES8512-3LCD05
|
TL-SM311LM
|
AT-SPTX
|
GLC-LH-SMD
|
SFP-FE-LH40-SM1310
|
SFP-GE-S10K
|
ES3112-3LCD10
|
TL-SM321A
|
AT-SPSX
|
GLC-SX-MMD
|
ESFP-GE-SX-MM850
|
SFP-GE-S40K
|
ESP8592-3LCD03
|
TL-SM321B
|
AT-SPEX
|
GLC-EX-SMD1
|
SFP-GE-LH40-SM1310
|
SFP-GE-S80K
|
ESP3192-3LCD10
|
TXM431-LR
|
AT-SPLX40
|
GLC-ZX-SMD
|
SFP-GE-LH40-SM1550
|
SFP-GE-S120K
|
|
TXM431-SR
|
AT-SPZX80
|
GLC-BX-D
|
SFP-FE-LH80-SM1550
|
XFP-10G-S40K
|
|
|
AT-SPFX/2
|
GLC-BX-U
|
XFP-SX-MM850
|
XFP-10G-S10K
|
|
|
AT-SPFXBD-LC-13
|
CWDM SFP
|
XFP-LX-SM1310
|
XFP-10GE-M
|
|
|
AT-SPFXBD-LC-15
|
DWDM SFP
|
XFP-LH40-SM1550-F1
|
|
|
|
AT-SP10SR***
|
|
|
|
|
|
AT-SP10LR***
|
|
|
|
|
|
AT-SP10LR20/I
|
|
|
|
|
|
AT-SP10ER40/I***
|
|
|
|
|
|
AT-SP10ZR80/I***
|
