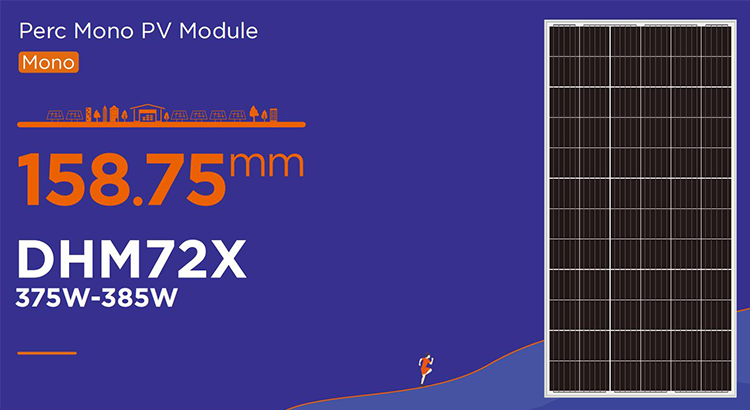

72 cells 158.75 Cell DHM72X-375/380W/385W all with A Grade for on-grid & off-grid use for residential and public rooftop & ground mounting PV Power System
|
Module Type
|
DHP72-345
|
DHP72-350
|
DHP72-360
|
DHP72-365
|
|
Maximum Power (Pmax)
|
315W
|
320W
|
325W
|
330W
|
|
Open-circuit Voltage (Voc)
|
45.6V
|
45.8V
|
45.9V
|
46.1V
|
|
Maximum Power Voltage (Vmp)
|
36.9V
|
37.1V
|
37.2V
|
37.3V
|
|
Short-circuit Current (Isc)
|
9.00A
|
9.10A
|
9.25A
|
9.38A
|
|
Maximum Power Current (Imp)
|
8.54A
|
8.63A
|
8.76A
|
8.85A
|
|
Module Efficiency(%)
|
16.25%
|
16.51%
|
16.77%
|
17.02%
|
|
Power Tolerance
|
0~+5W
|
|
Standard Test Environment
|
Irradiance 1000W/m2, Cell Temperature 25℃，Spectrum AM 1.5
|
|
Module Type
|
DHP72-315
|
DHP72-320
|
DHP72-325
|
DHP72-330
|
|
Maximum Power (Pmax)
|
315W
|
320W
|
325W
|
330W
|
|
Open-circuit Voltage (Voc)
|
45.6V
|
45.8V
|
45.9V
|
46.1V
|
|
Maximum Power Voltage (Vmp)
|
36.9V
|
37.1V
|
37.2V
|
37.3V
|
|
Short-circuit Current (Isc)
|
9.00A
|
9.10A
|
9.25A
|
9.38A
|
|
Maximum Power Current (Imp)
|
8.54A
|
8.63A
|
8.76A
|
8.85A
|
|
Module Efficiency(%)
|
16.25%
|
16.51%
|
16.77%
|
17.02%
|
|
Power Tolerance
|
0~+5W
|
|
Standard Test Environment
|
Irradiance 1000W/m2, Cell Temperature 25℃，Spectrum AM 1.5
|

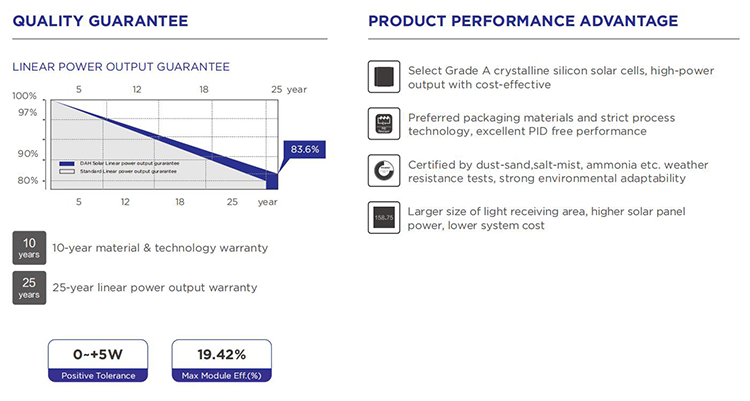

First-class solar panel warranty Reliable quality
1.10 years material & technology guarantee
2. 25 years linear power output guarantee
3. 100% Double full EL inspection
4. 0-+5W Positive power output guarantee
Product Characteristics
1. Select Grade A crystalline silicon solar cells, high-power output with cost-effective for solar panel.
2. Preferred packaging materials and strict process technology, excellent PID free performance.
3. Larger size of light receiving area, higher solar panel power, lower system cost.
4. Certified by dust-sand,salt-mist, ammonia etc. weather resistance tests, strong environmental adaptability.
