390W-410W 144Cell Mono Solar Panel design solution
Product description

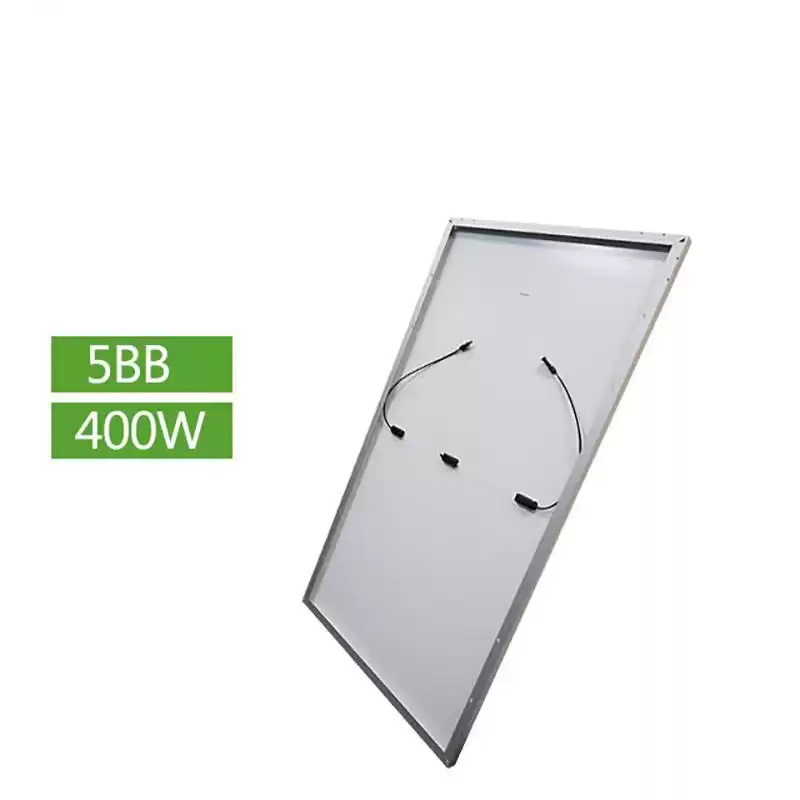

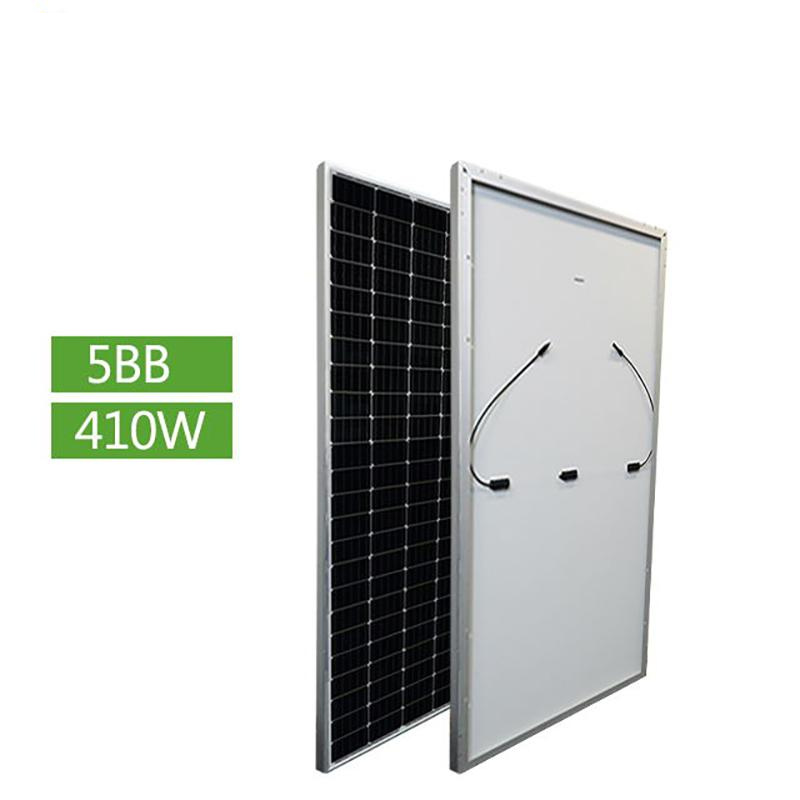

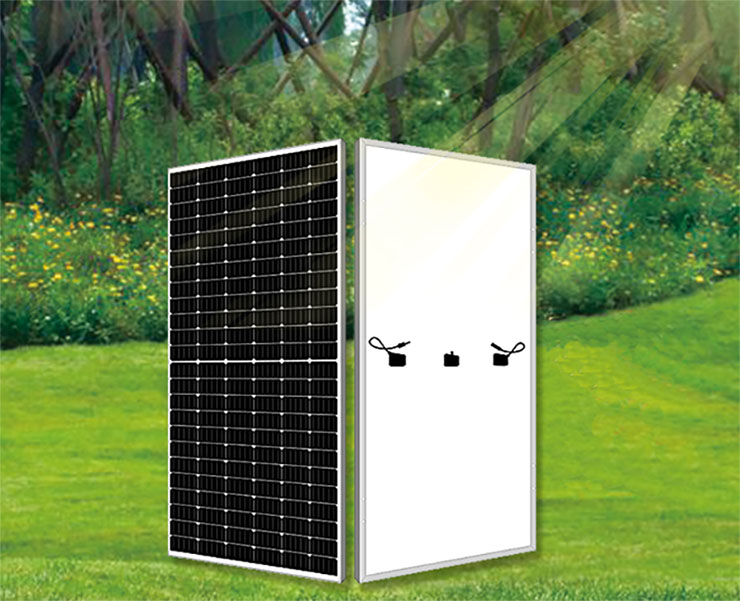

Product show
GREYSTONE series (Super-efficiency) half-cell Modules Assembled with the advanced half-cell technology offer the advantages of higher power output,reduced series resistance loss, and lower risk of hot spot. In order to meet the Clients' requirements of best quality and efficiency.
SPECIFICATIONS FOR SF-M6/72(390W-410W）
|
TYPICAL TYPE
|
SF-M6/72390
|
SF-M6/72395
|
SF-M6/72400
|
SF-M6/72405
|
SF-M6/72410
|
Max power(Pmax)
|
390
|
395
|
400
|
405
|
410
|
Max power voltage(Vmp)
|
40.2
|
40.4
|
40.6
|
40.8
|
41
|
Max power current(Imp)
|
9.76
|
9.83
|
9.88
|
9.96
|
10.01
|
Open circuit voltage(Voc)
|
48.6
|
48.8
|
49
|
49.2
|
49.4
|
Short circuit current(Isc)
|
10.39
|
10.48
|
10.57
|
10.66
|
10.75
|
Moudle efficienvy(%)
|
19.3
|
19.6
|
19.9
|
20.2
|
20.5
|
Power tolerance
|
0~+5W
|
Max system voltage
|
DC1000V
|
Maximum Series Fuse Rating
|
20A
|
Dimensions
|
1979x1002x35mm
|
Weight
|
22.1kgs
|
Front glass
|
High transparency solar glass 3.2mm (0.13 inches)
|
Frame
|
Silver, anodized aluminium alloy
|
Output cables
|
TUV1×4.0mm2,Length:1100mmorCustomizedLength
|
Junction box
|
IP67
|
Cell type
|
Monocrystalline silicon 158.75x158.75mm(6inch)
|
Number of cells
|
72 cells in series
|
Warranty
|
10years of product defects in materials & workmanship
10years for 90% of warranted minimum power output
25years for 80% of warranted minimum power output
|
|

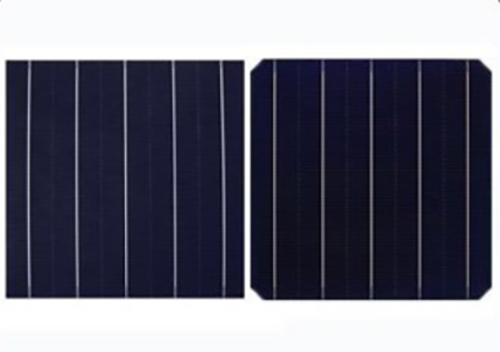

Solar Cell
Anti-PID
High conversion efficiency
|
|

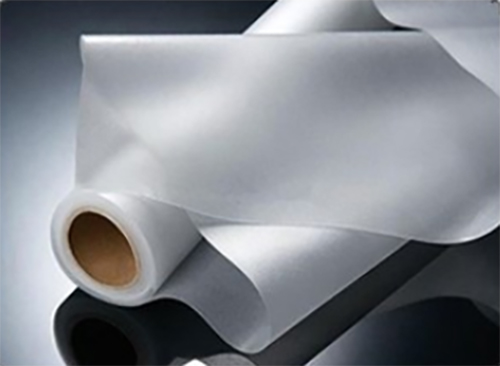

EVA
Anti-PID
Excellent tranmittance
Less bubble for solar cell encapsalation
|
|

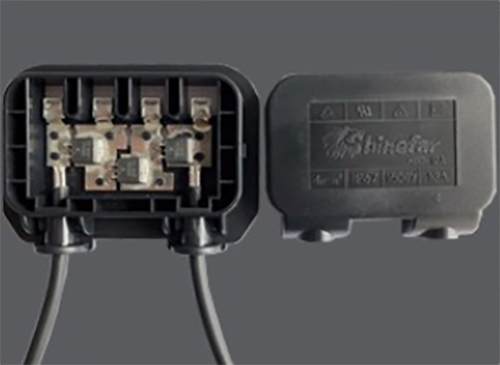

Junciton Box
TUV Solar connector PV MC4
|
|

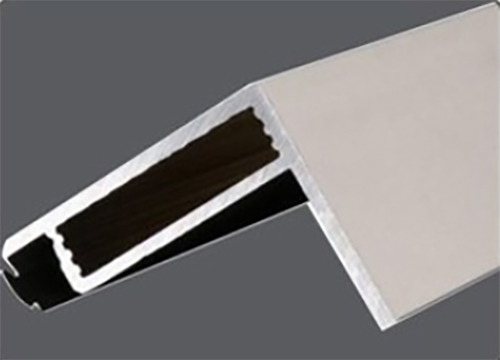

Alumlnum Frame
Anti-Corrosion, Oxidation resistance;
Strength and solid and strong
|
|

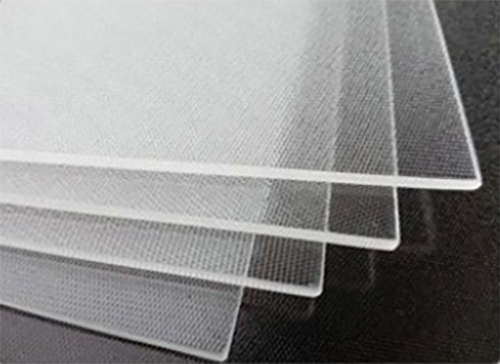

Front Glass
Low iron ultra clear tempered glass 93% transmittance
Can resist the hail effctively
|

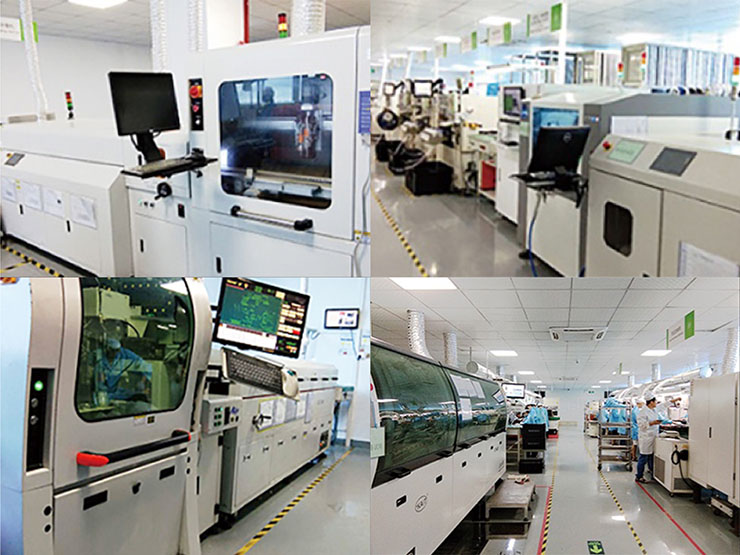

Factory

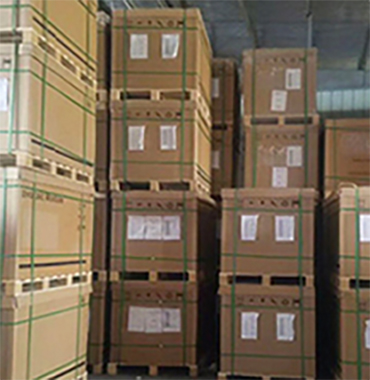

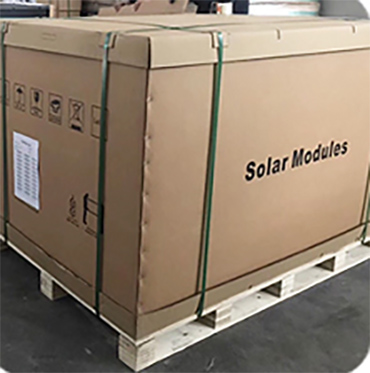

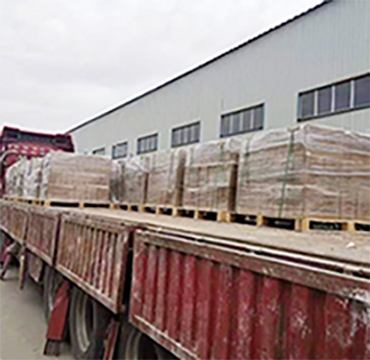

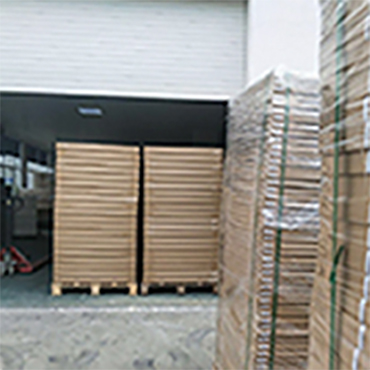

Packing & Delievery

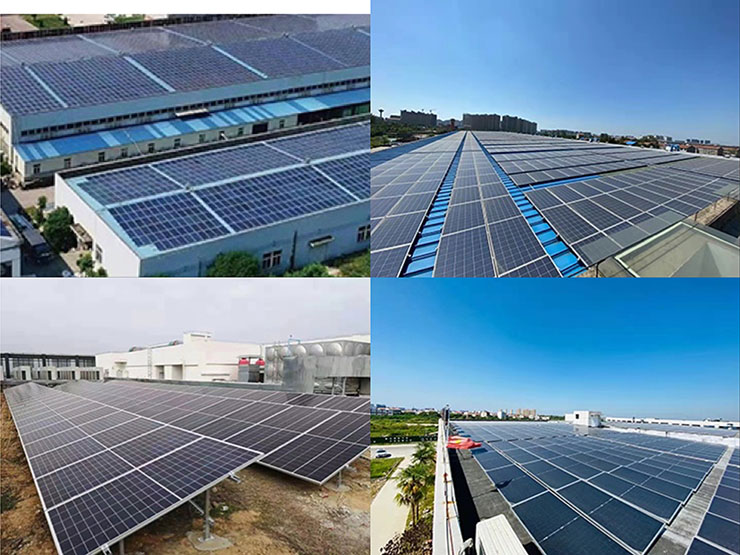

Project Show
FAQ
1、What are the advantages of your company?
A:Adequate inventory, and supply guarantee for the subsequent renewal of supply,
flexible provided according to different to different needs of customers, providing different solutions.
2、Do you provide samples ?
A: Yes, we could offer the sample. the samples are subject to large pride,
and the freight needs to be borne by you.
3、What is your MOQ?
A: Our MOQ is usually 20 pcs.
4、What is your delivery time?
A : The time of delivery about 7 days after we receive the deposit.
5、What is the shipping port?
A: We ship the goods via Ningbo/Shanghai port.
