Applications:
Garbage Collecting Truck Dongfeng (also called garbage collection truck Dongfeng, Dongfeng waste collector, Dongfeng refuse collection truck, garbage transportation truck, Dongfeng refuse collection vehicle) is designed
for daily rubbish transport in such living areas as all kinds of
cities, large station, port and wharf, airport, and densely-populated
areas like industrial and mineral enterprises and military units.
CEEC TRUCKS compactor
garbage truck reduces back-and-forth transport times and prevents
rubbish and stinks from spreading and avoids second-time pollution
produced by polluted water.
The refuse compactor vehicle tail-gas discharge reaches EUROPEAN standard. which is safe and environmental-protective.
Key Features:
---- DONGFENG chassis, perfect performance
---- CUMMINS engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Garbage container capacity from 2 to 20 Cublic Meter.
---- Easy operation and easy maintenance.
---- Virious types of refuse container lifter are available.
Specifications:
|

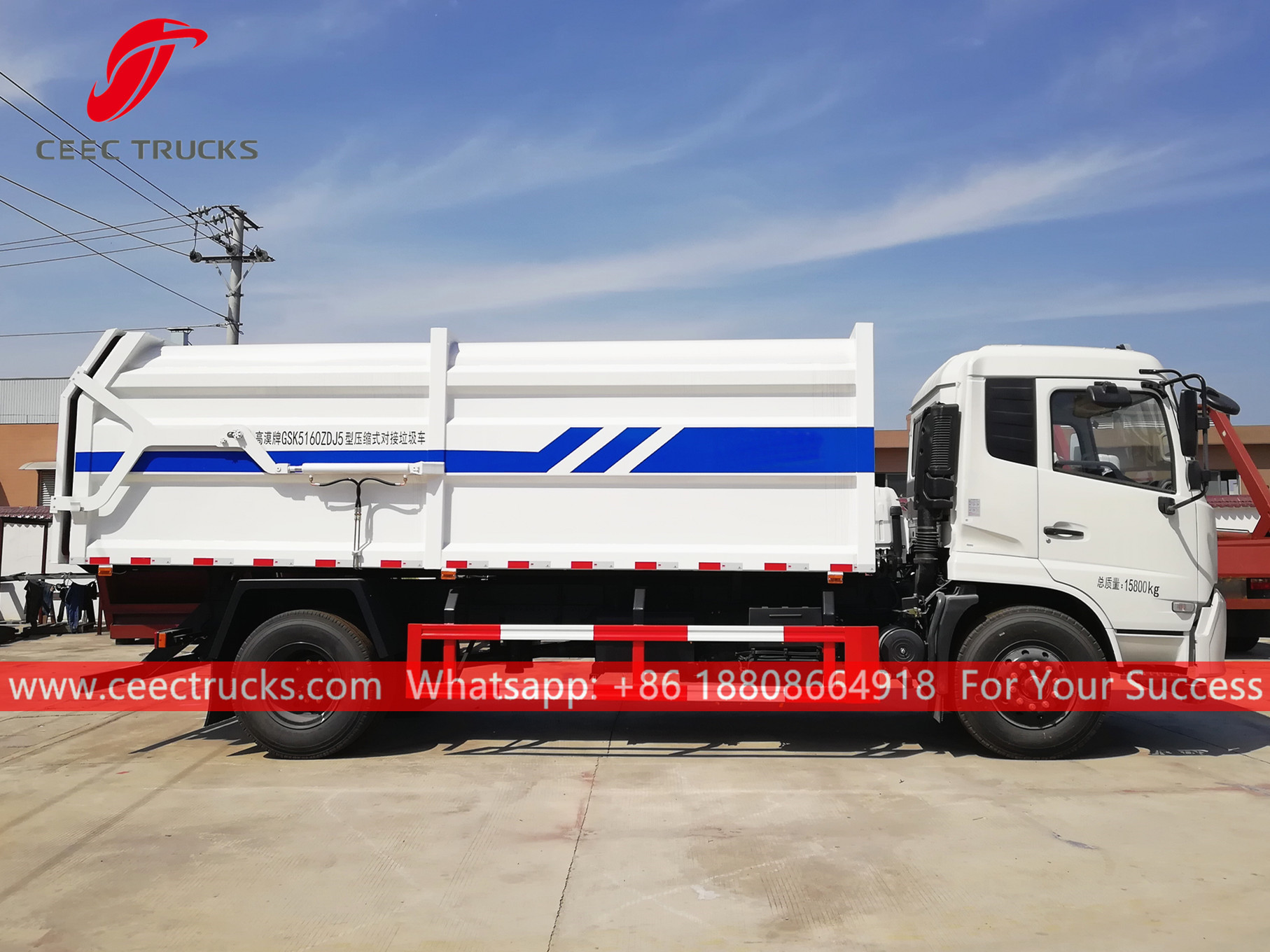

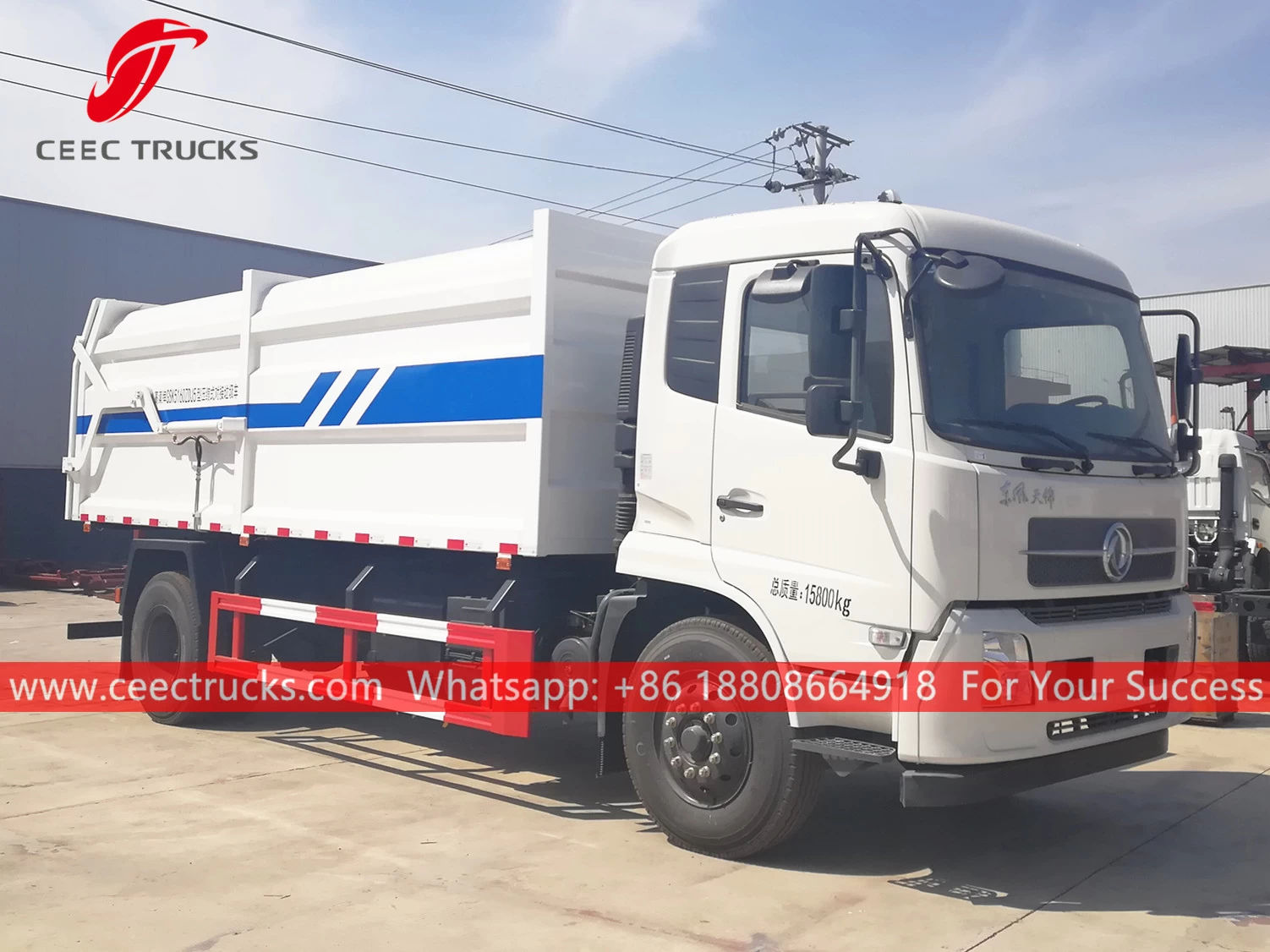

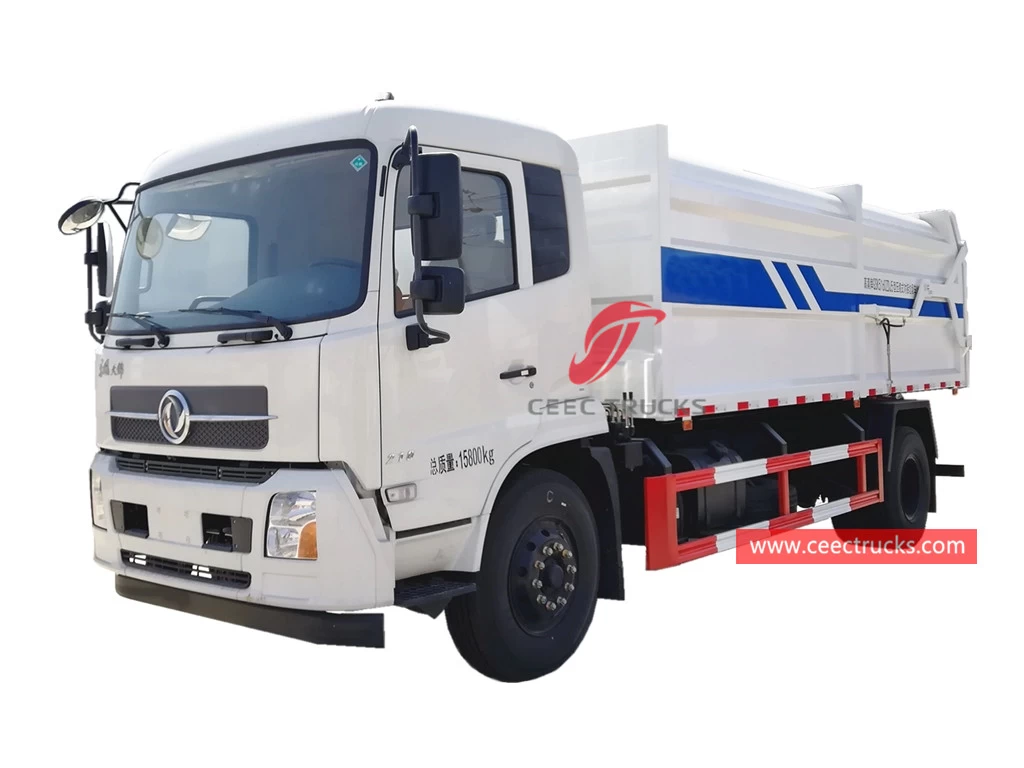

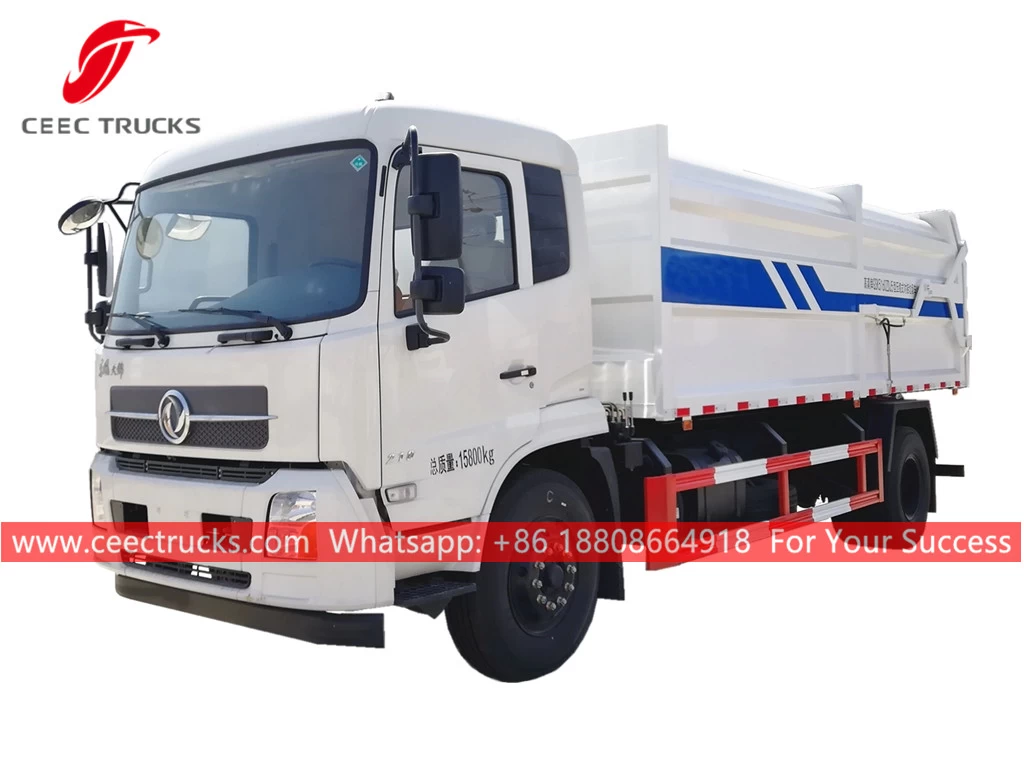

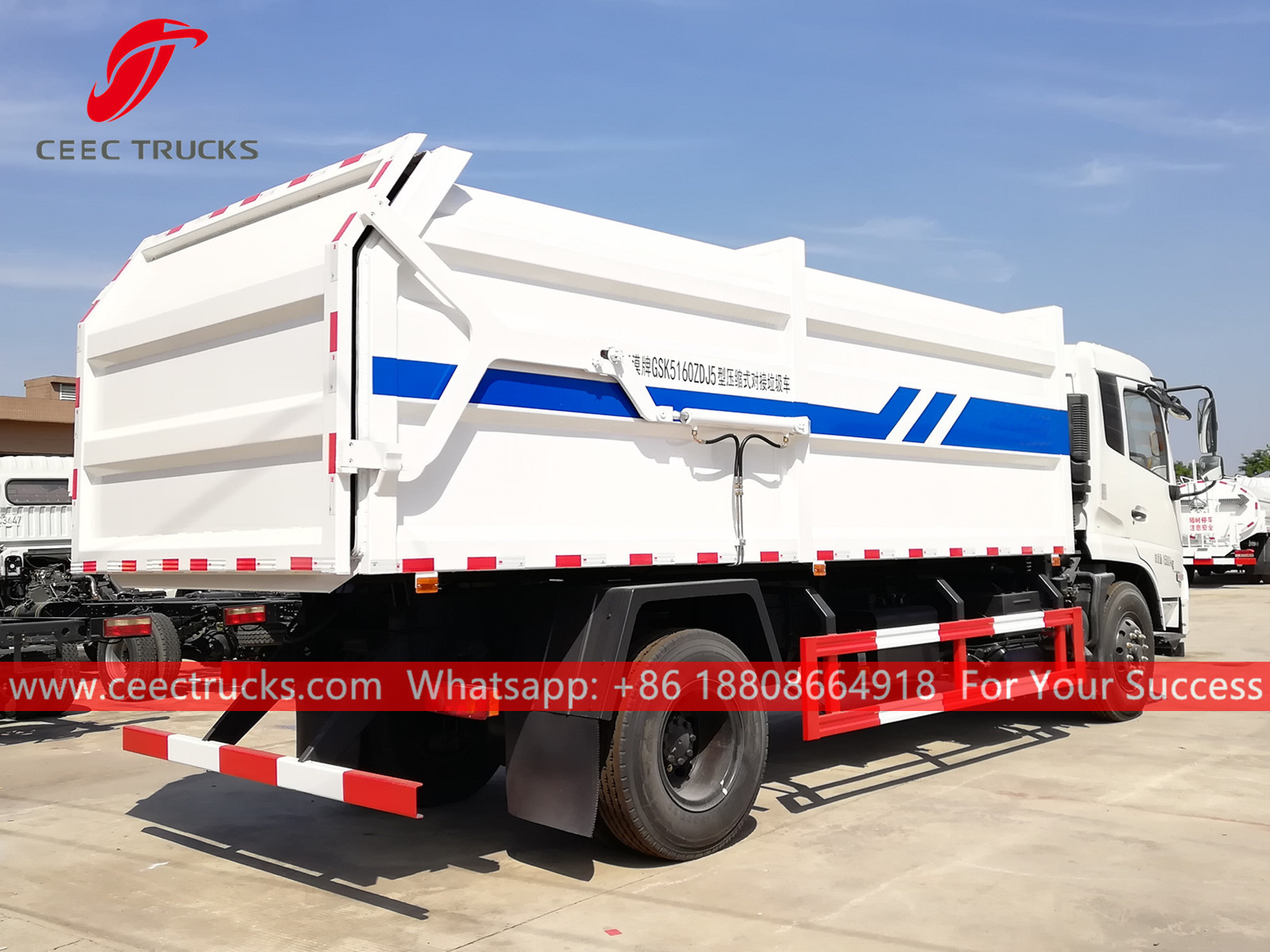

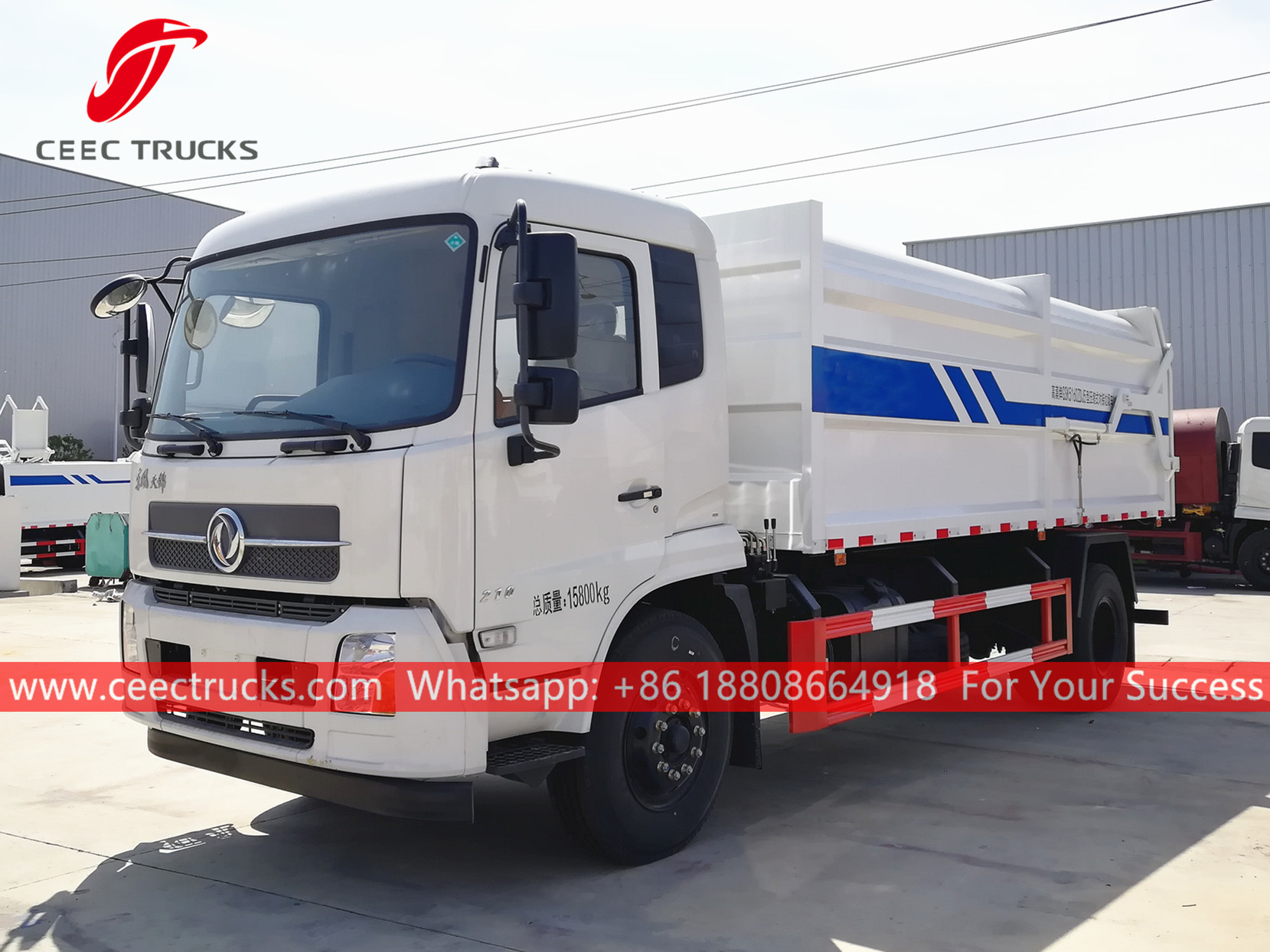

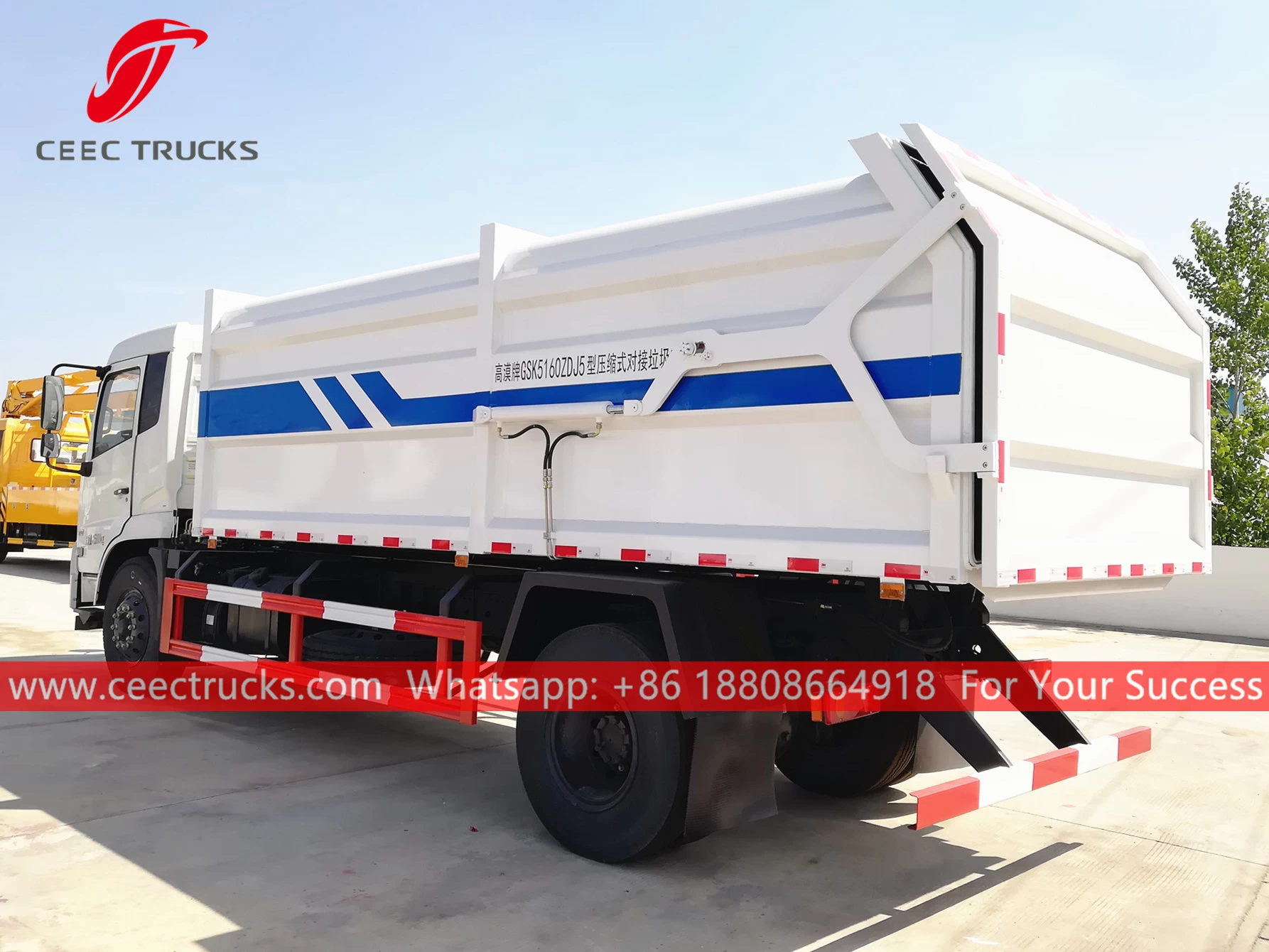

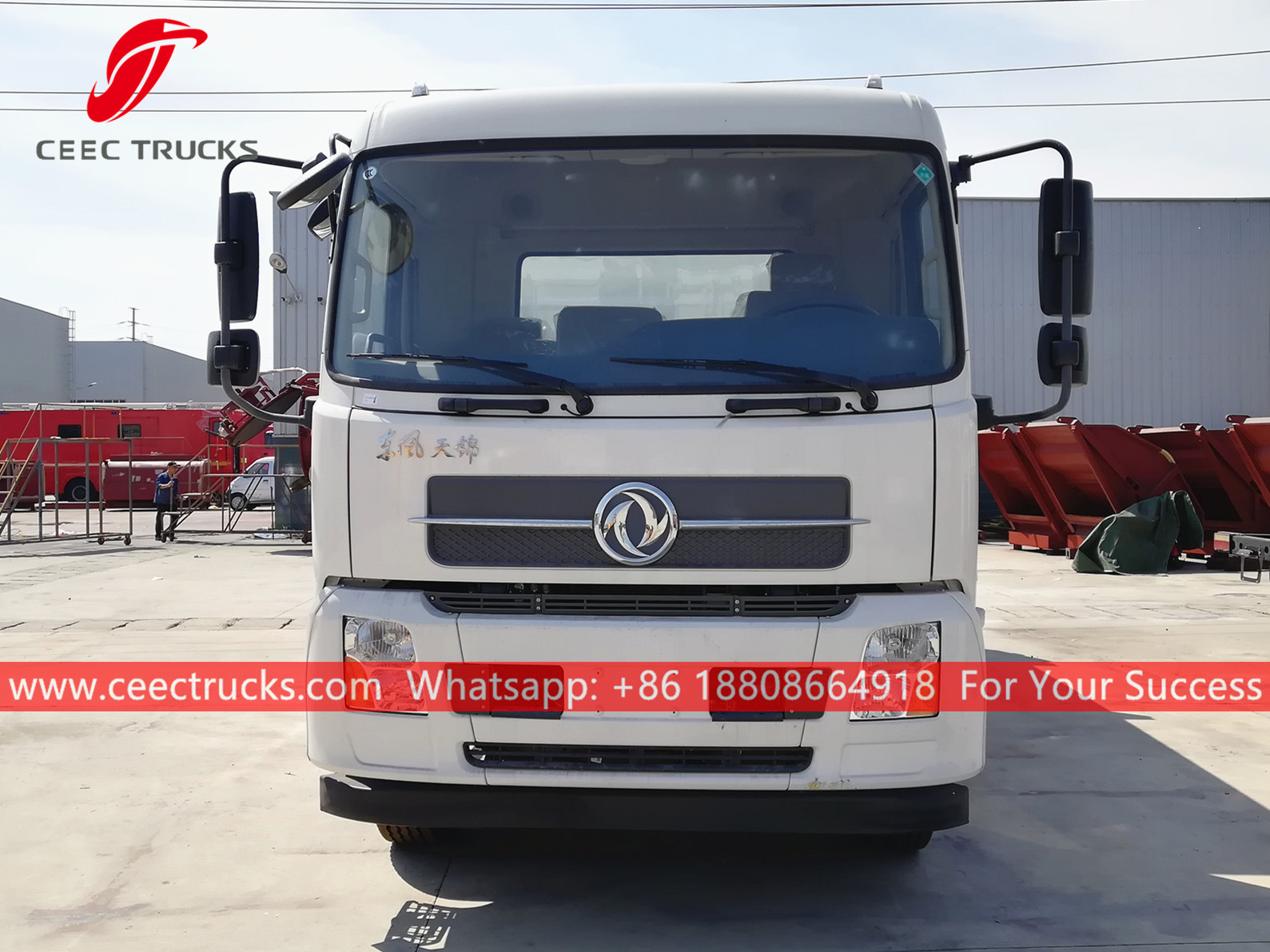

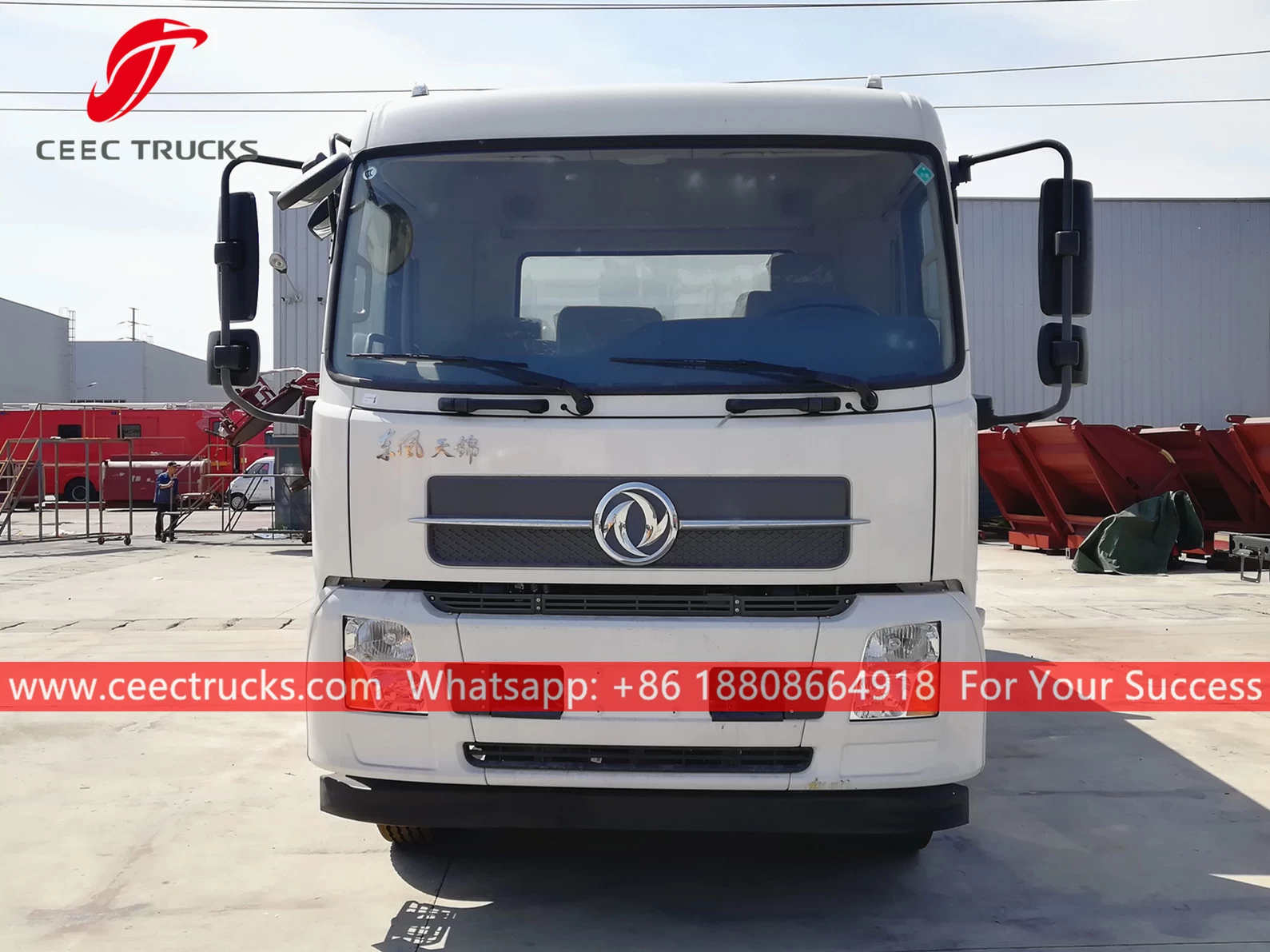

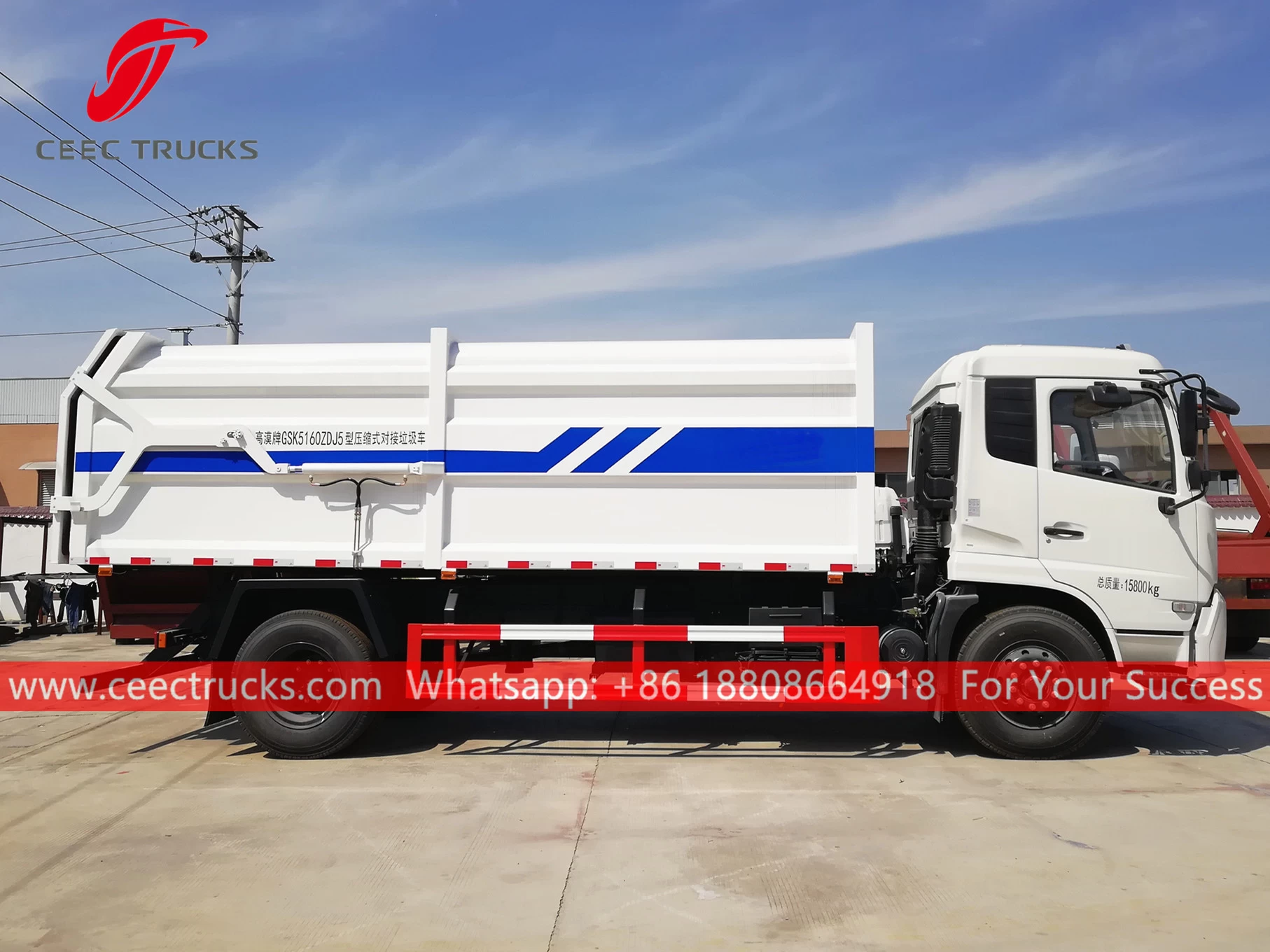

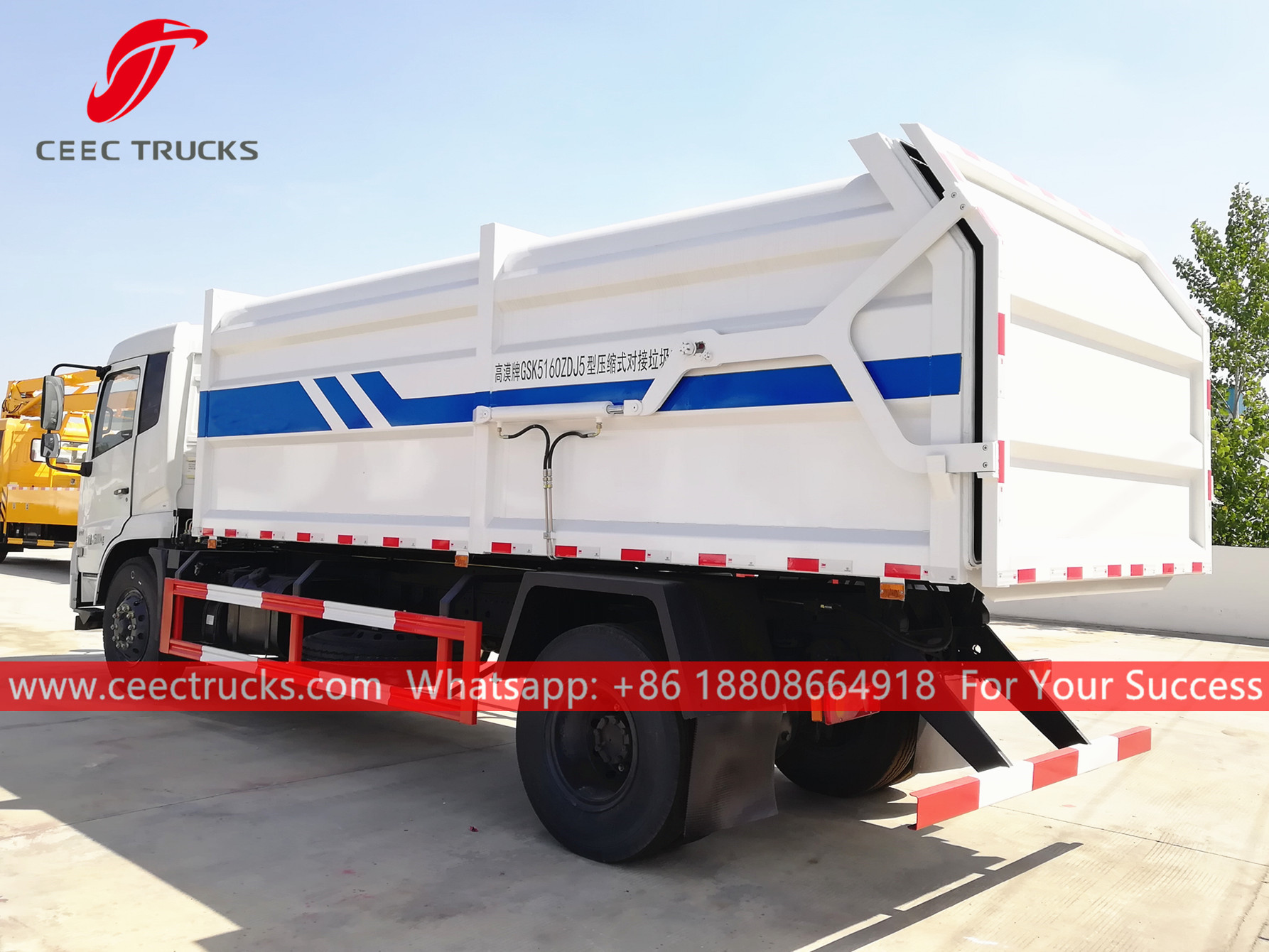

Dongfeng Refuse Collection Truck (15 cbm)
|
|
General
|
Vehicle Brand
|
CEEC TRUCKS
|
|
Chassis Brand
|
Dongfeng
|
|
Overall Dimension
|
7800 * 2500 * 3100 mm
|
|
GVW / Kerb Weight
|
15,800kg / 8,500kg
|
|
Cab
|
Cab Capacity
|
3 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
DONGFENG
|
|
Power
|
210 HP (155KW)
|
|
Displacement
|
6700 ml
|
|
Emission Standard
|
Euro 4 or 5
|
|
Chassis
|
Drive Type
|
4X2, (left / right hand drive)
|
|
Transmission
|
Manual 8 speed levers with 1 reverse
|
|
Wheelbase/No. of axle
|
4500 mm / 2
|
|
Tire Specification
|
10.00-20
|
|
Tire Number
|
6 tires and 1 spare tire
|
|
Max Speed
|
98 km/h
|
|
Paint
|
Metallic paint
|
|

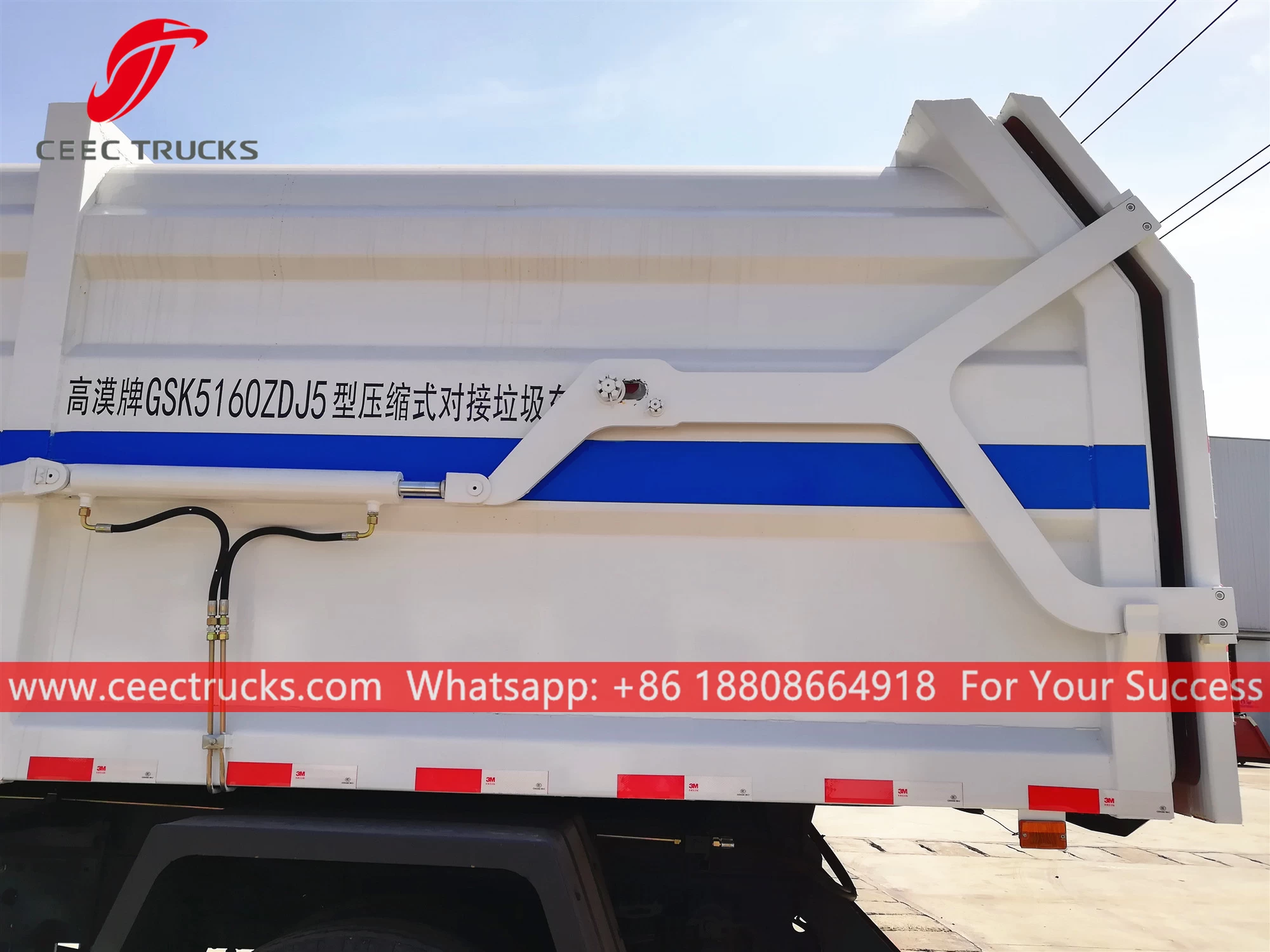

Superstructure
|
Body capacity
|
15cbm
|
|
Body material
|
Carbon steel as standard
|
|

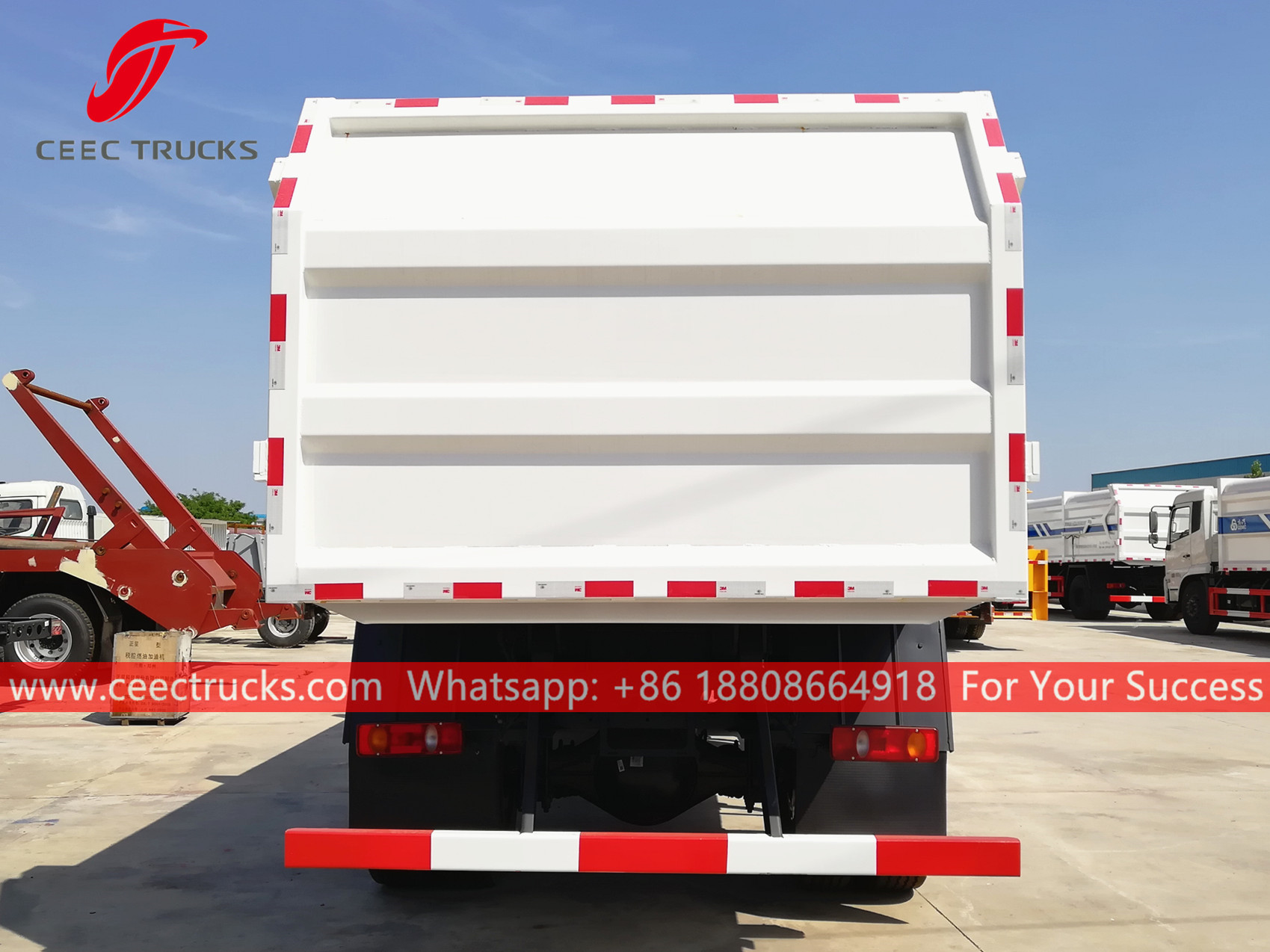

Rear door model
|
Hydraulic lifting rear door
|
|
Body lifting cycle time
|
15~20 s
|
|
Usage
|
Used in garbage station
|
|
Control system
|
Electrically Hydraulic control
Manual hydraulic control
|
|
Control panel
|
English or Your language
|
|
All standard accessories: Basic tool kit, English manual……
|
|
Optional
|
** Container material could be stainless steel.
** A sealed cover for the container.
** A truck with several containers.
|
