15kV 200A/600A Bushings & Inserts & Junctions American Type Cable Accessories

15kV 200A/600A Bushings & Inserts products are insulated, fully shielded components designed for high-voltage cable systems, meeting IEEE386-2016 standards. They are used in ring main units, transformers, and cable branch boxes, providing secure connections, cable branching, and grounding. These components offer reliable performance in high-voltage environments, ensuring protection against dust, water, and other environmental factors.

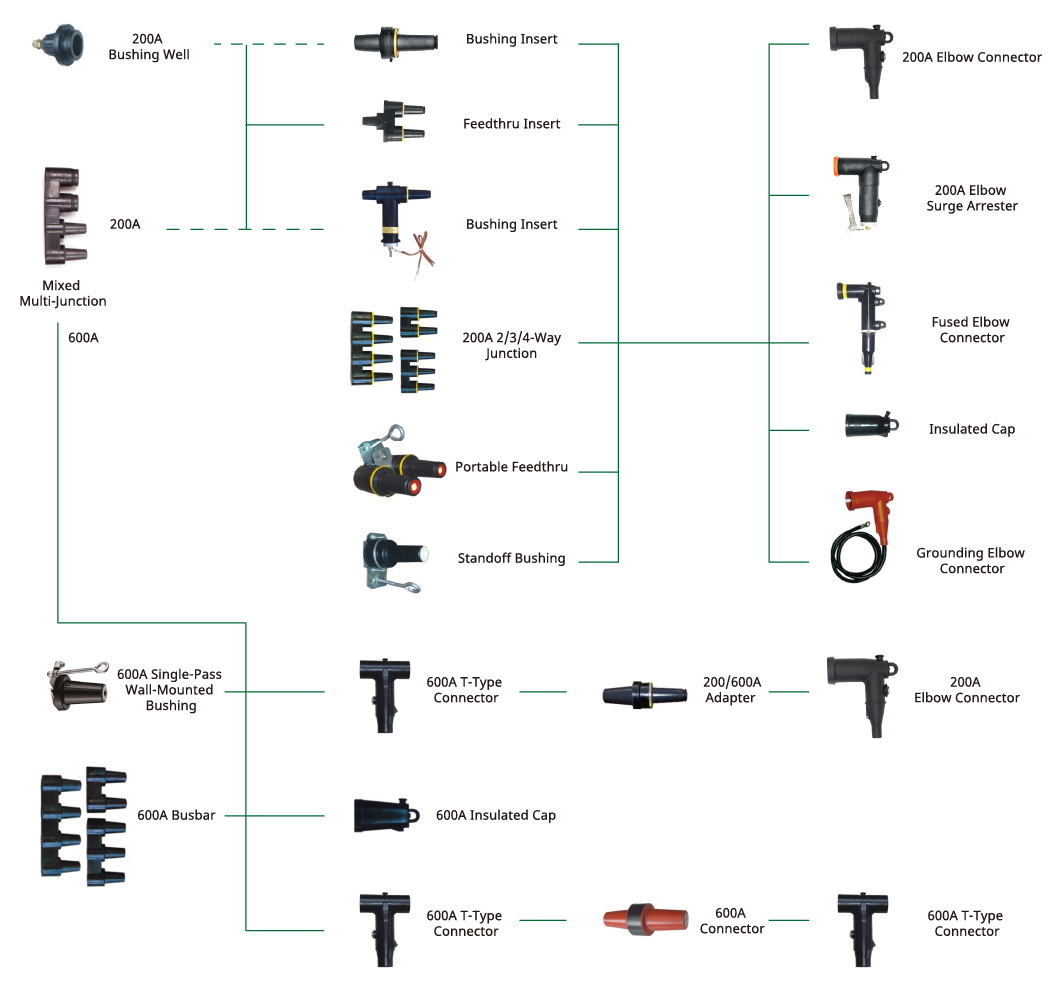

  • ANSI / IEEE Standard American Type Cable Accessories Overview

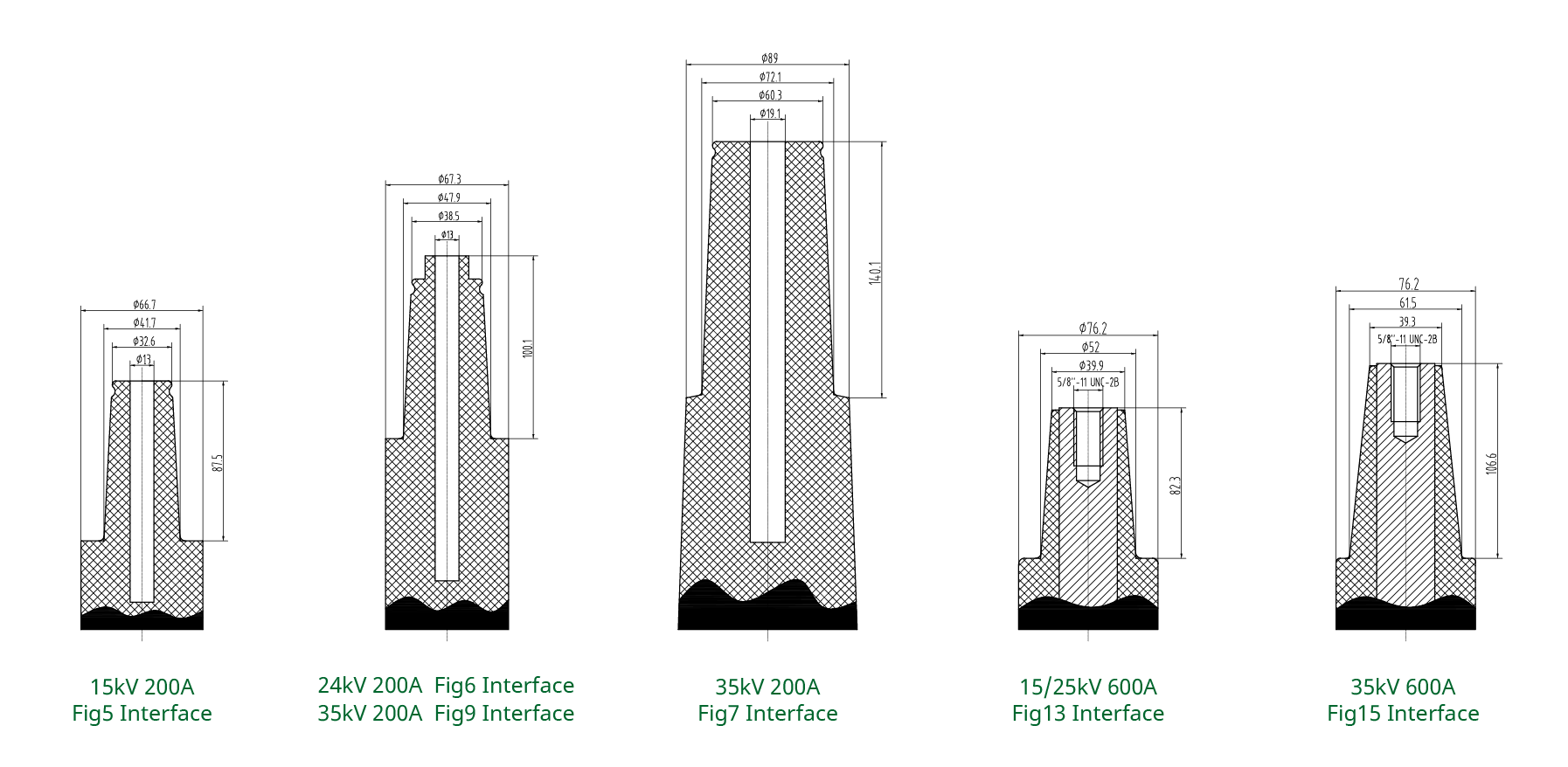

  • IEEE386-2016 American Type Separable Connector Interface















  • 15kV 200A/600A Series Cable Accessories

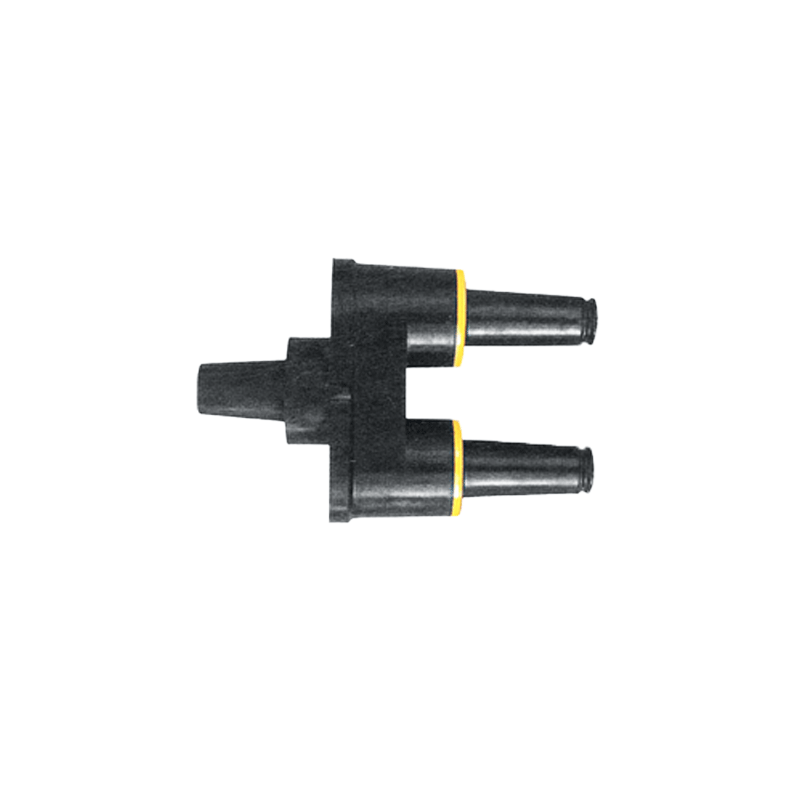

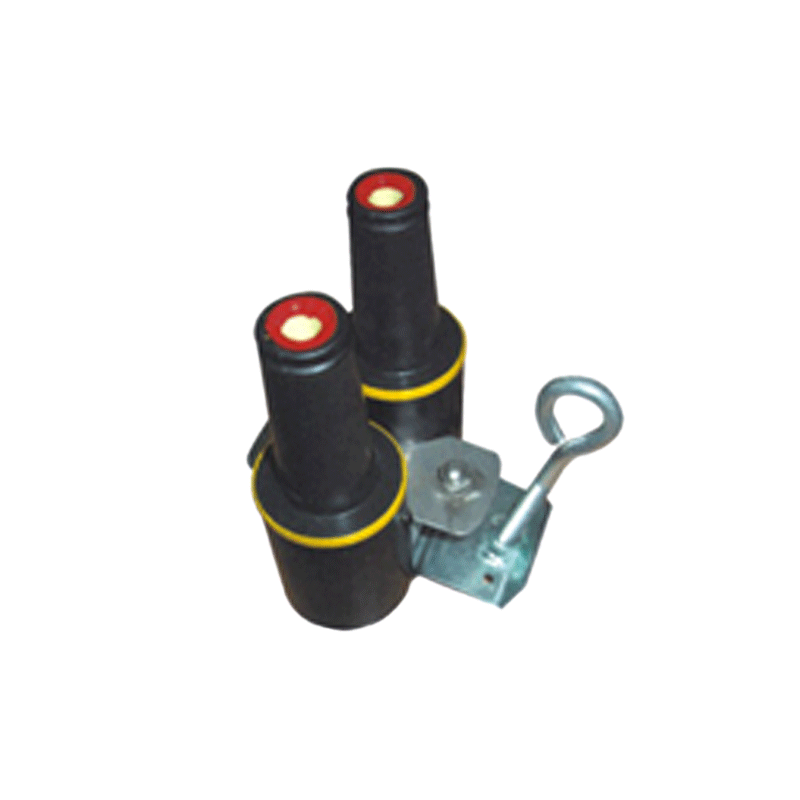

15kV 200A Bilateral Standoff Bushing

  • Testing, Grounding, Isolating, and Sectionalizing Energized Cables
  • Shields De-energized Elbow Connectors from Dust, Water, and Moisture
  • Compatible with Elbow Surge Arresters for Overvoltage Protection
  • Interface Figure 5, IEEE386-2016 Standard
  • Applications: Pad-mounted Transformers, Switchgear, Cable Cabinets

  • Insulated, Shielded, and Touch-safe
  • Isolates and Sectionalizes Energized Cables; Simplifies Parking of 200A Elbow Connectors
  • Shields De-energized Elbow Connectors from Dust, Water, and Moisture
  • Interface Figure 5, IEEE386-2016 Standard
  • Applications: Pad-mounted Transformers, Switchgear, and Other Equipment

15kV 200A Insulated Standoff Bushing

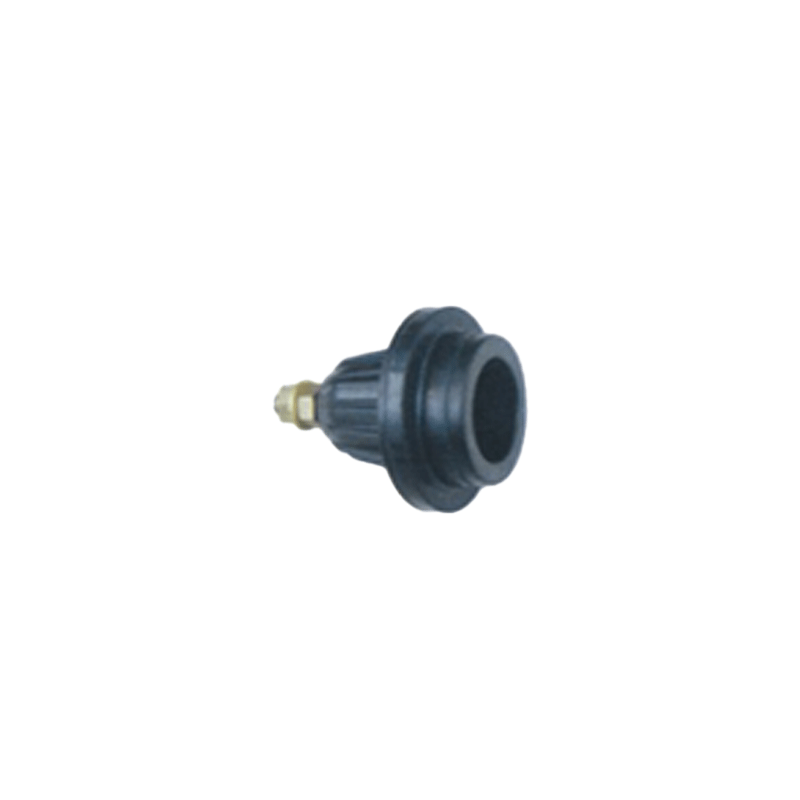

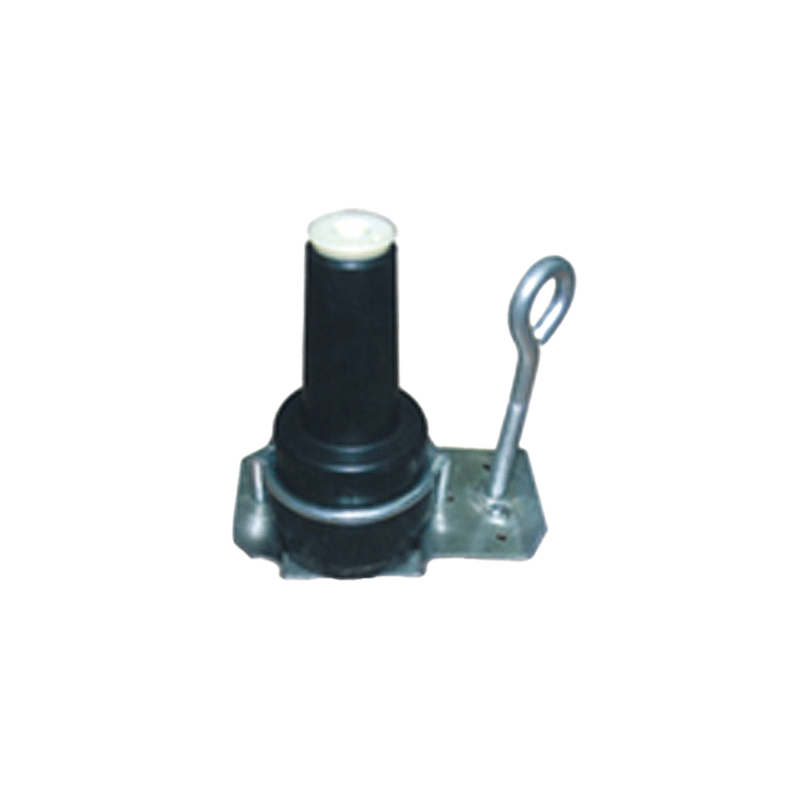

15kV 200A Bushing Well

  • Fixed Installation on the Enclosure with a Steel Loop
  • Mates with Loadbreak Bushing Inserts and Rotatable Feed-thru Inserts
  • Suitable for SF₆ or Oil-filled Transformers
  • Special Non-leakage Technology Ensures Excellent Conductivity
  • Applications: High-voltage Inlet Lines of Box Transformers and Ring Main Units




  • Provides Overvoltage Protection by Mating with Elbow Surge Arresters
  • Converts Box-type Wiring to Ring-network Wiring by Connecting Two Elbow Connectors
  • Equipped with a Special Twist-apparatus to Prevent Bolt Cracking
  • Interface Figure 5, IEEE386-2016 Standard
  • Applications: High-voltage Inlet Lines of Box Transformers

15kV 200A Rotatable Feedthru Insert

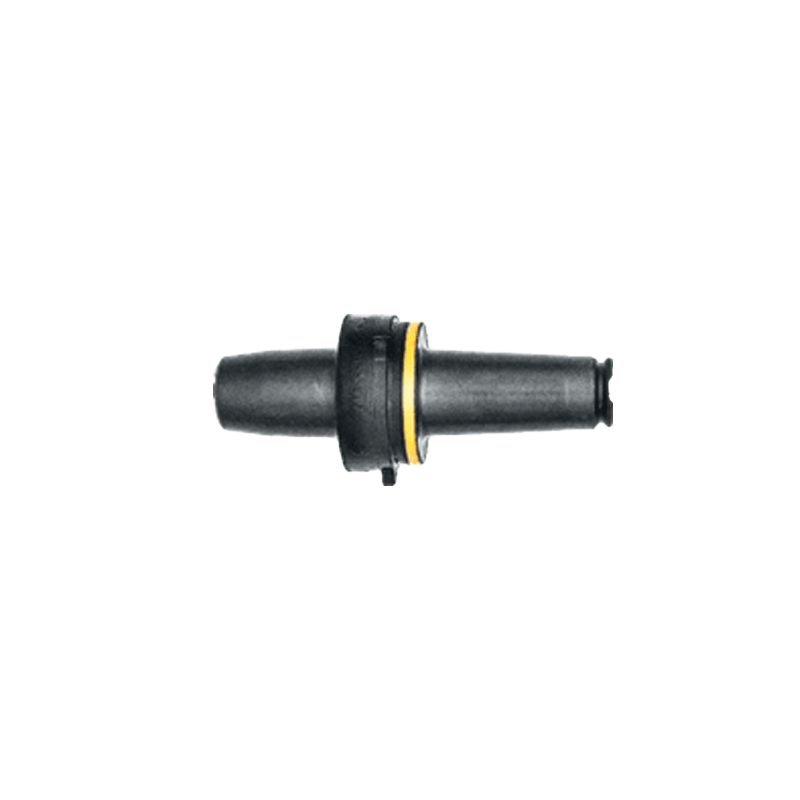

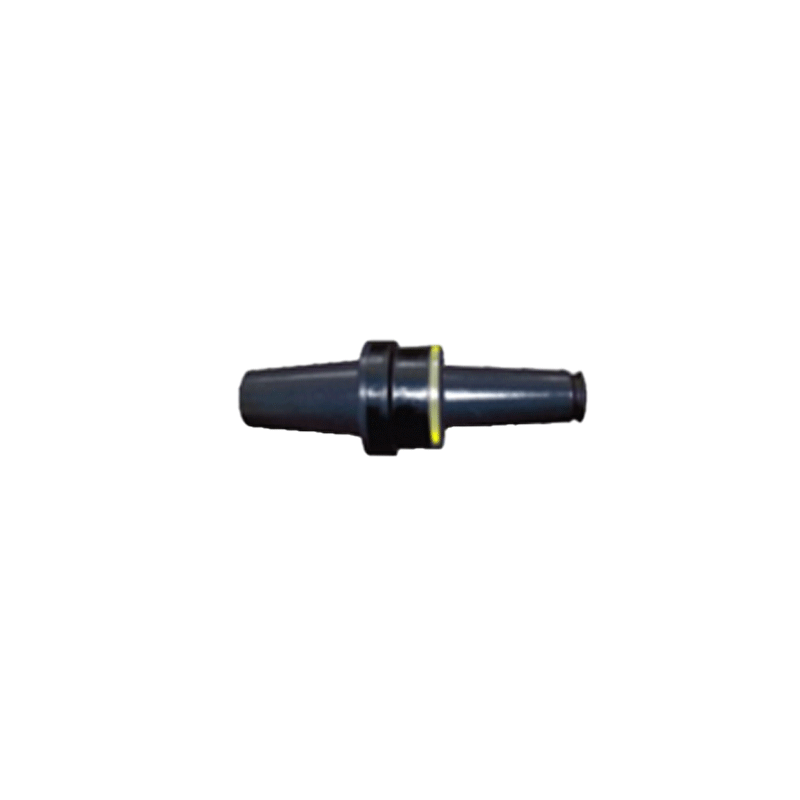

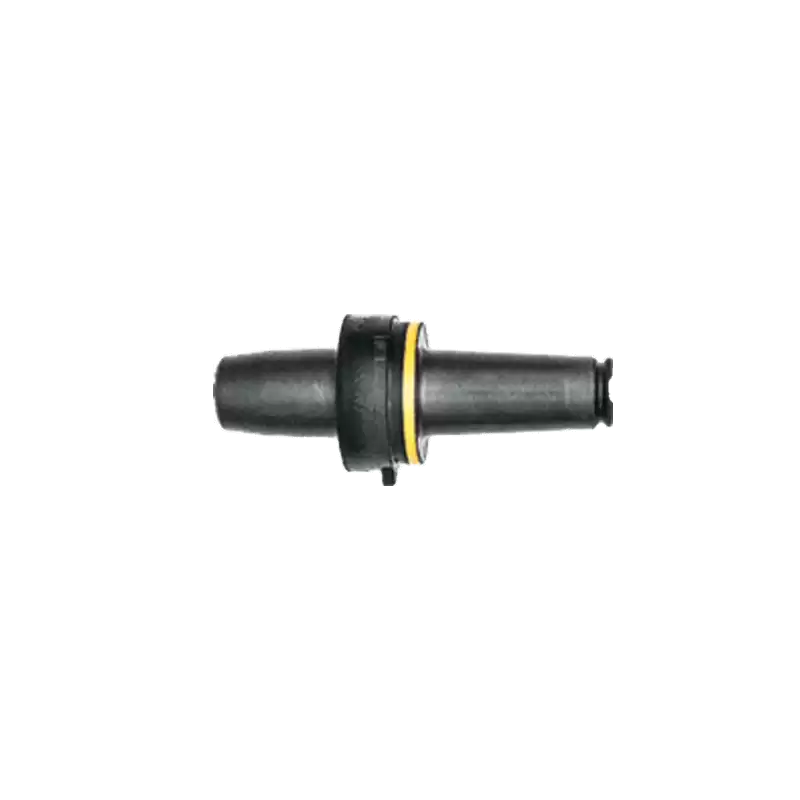

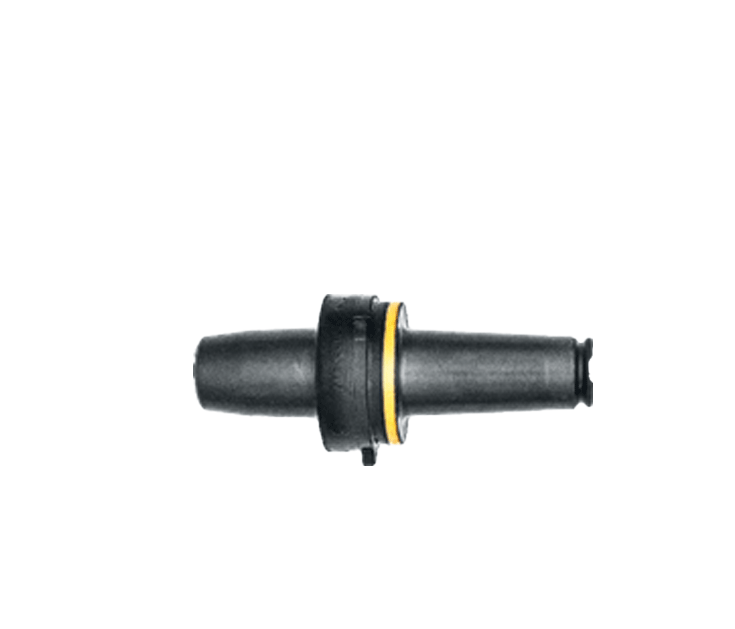

15kV 200A Bushing Insert

  • Screws onto the Bushing to Provide a Jack for Elbow Cable Connectors
  • Compatible with 8.7/15(17.5) kV XLPE Cables
  • Interface Figure 5, IEEE386-2016 Standard
  • Applications: Inlet Lines of Ring Main Units, Transformers, and Cable Branch Boxes

  • Insulated, Shielded, and Touch-safe

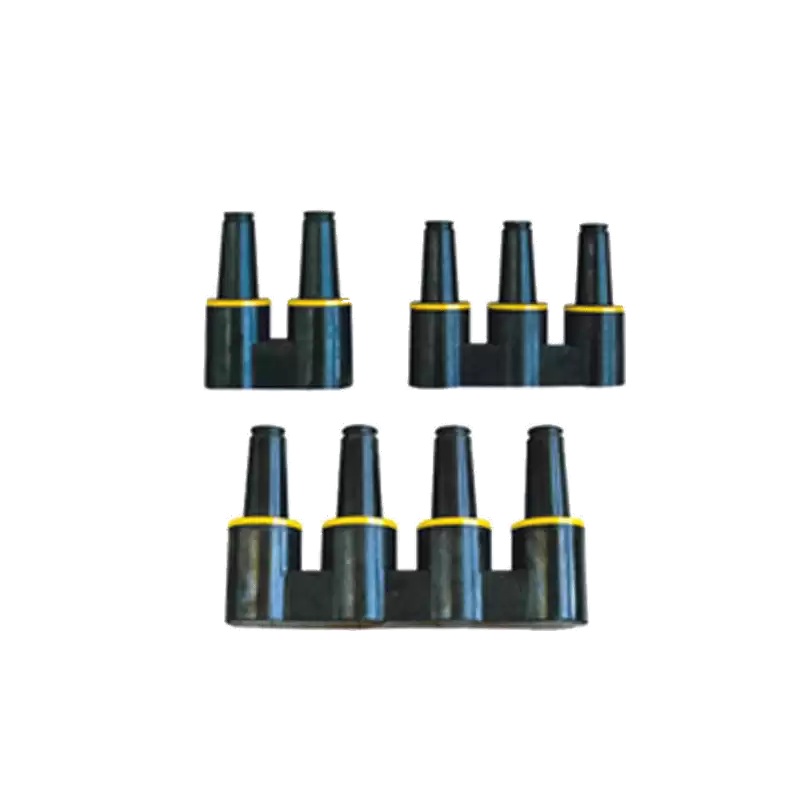

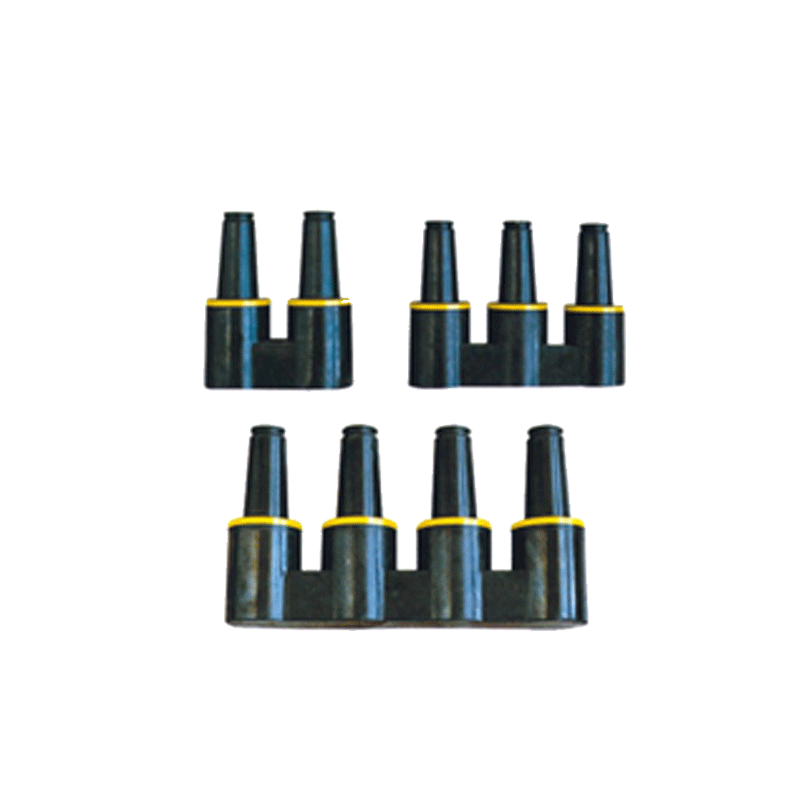

  • Mates with TEE Connectors to Form TT-II Connectors. Mates with Multi-way Junctions
  • Transitions from 600A to 200A Rated Current Interfaces
  • 200A connector: Mates with Elbow Connectors and Elbow Surge Arresters (Interface Figure 5, IEEE386-2016)
  • 600A connector: Conforms to Interface Figure 13, IEEE386-2016

15KV 200A/600A Bushing Extender













  • Specifications



200A American Type Loadbreak Connector


Rated Voltage 15kV 25kV 35kV
Rated Current 200A 200A 200A
Partial Discharge Q≦5pC@11kV Q≦5pC@19kV Q≦5pC@26kV
AC Withstand Voltage 34kV/1min 40kV/1min 50kV/1min
Lightning Impulse Withstand Voltage 95kV 125kV 150kV
Short Time Withstand Current 3.5kA3S 3.5kA3S 3.5kA3S
Rated Breaking Current 14.4kV200A10 times 26.3kV200A10times 36.6kV200A10times
Fault Making Current 0.17S10kA10times 0.17S10kA10times 0.17S10kA10times
Conductor Cross Section 25-120mm² 25-120mm² 25-120mm²





600A American Type Deadbreak Connector


Rated Voltage 15kV 25kV 35kV
Rated Current 600A 600A 600A
Partial Discharge Q≦5pC@11kV Q≦5pC@19kV Q≦5pC@26kV
AC withstand voltage 34kV/1min 40kV/1min 50kV/1min
Lightning Impulse Withstand Voltage 95kV 125kV 150kV
Short Time Withstand Current 3.5kA,3S 3.5kA,3S 3.5kA,3S
Conductor Cross Section 35-400mm² 35-400mm² 35-400mm²
