15kV 200A/600A Cable Elbow Connector & Plug & Junction American Type Cable Accessories

The 15kV 200A/600A connectors are insulated and fully shielded components designed for high-voltage cable systems, conforming to IEEE386-2016 standards. They are commonly used in applications like ring main units, transformers, and cable branch boxes. These connectors are available in various configurations, including single and multi-way junctions, and are suitable for cable maintenance, branching, and grounding applications.

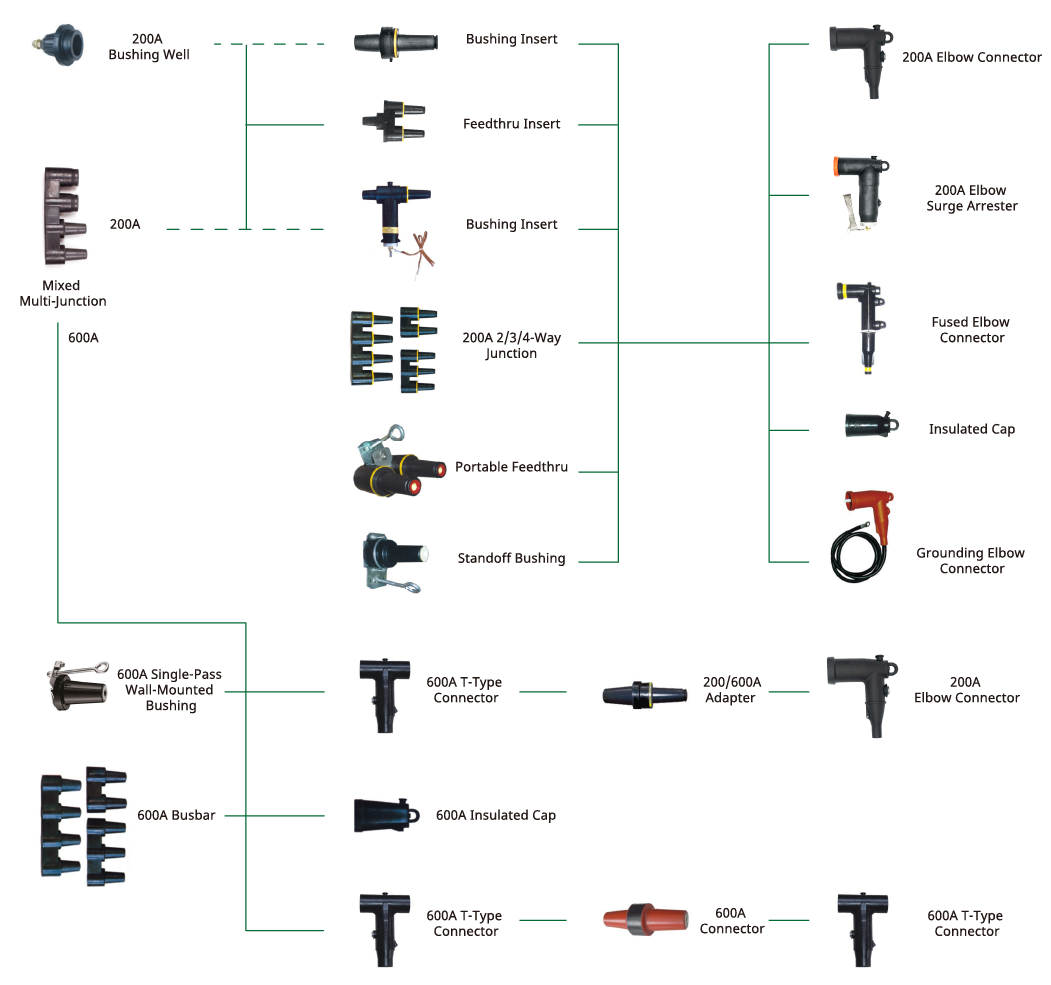

  • ANSI / IEEE Standard American Type Cable Accessories Overview

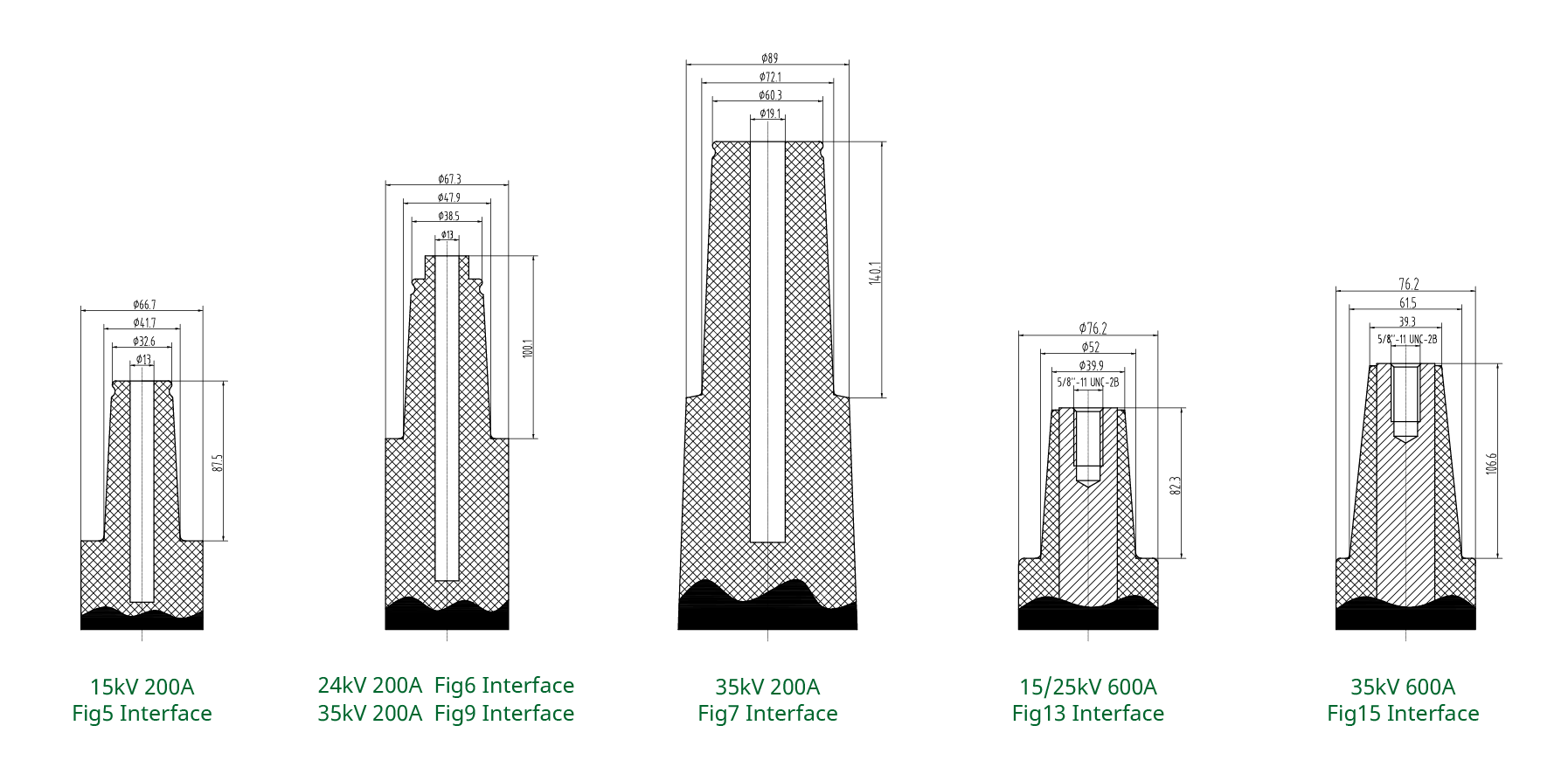

  • IEEE386-2016 American Type Separable Connector Interface













  • 15kV 200A/600A Series Cable Accessories

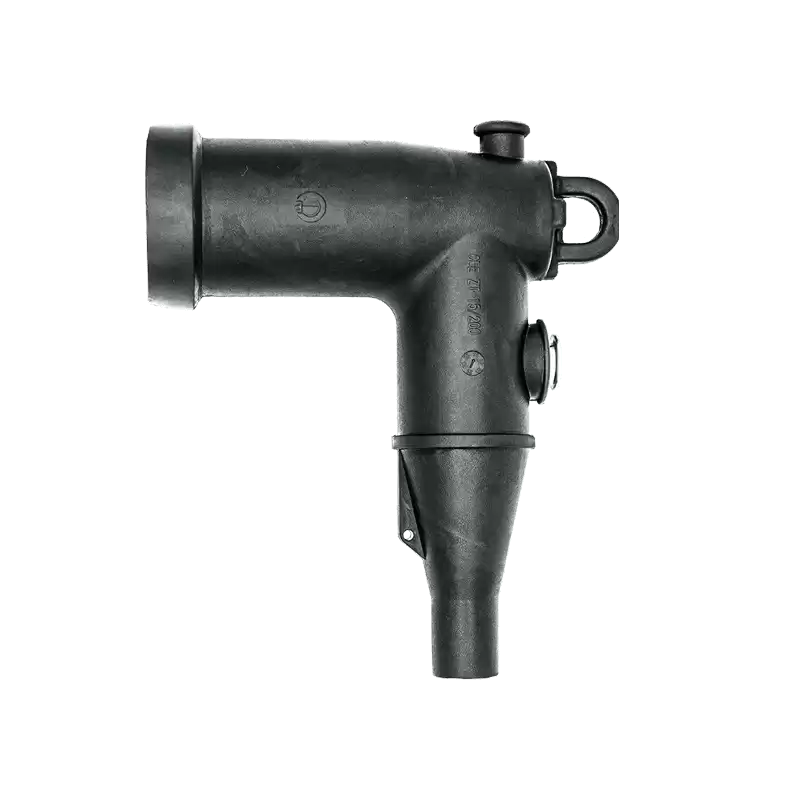

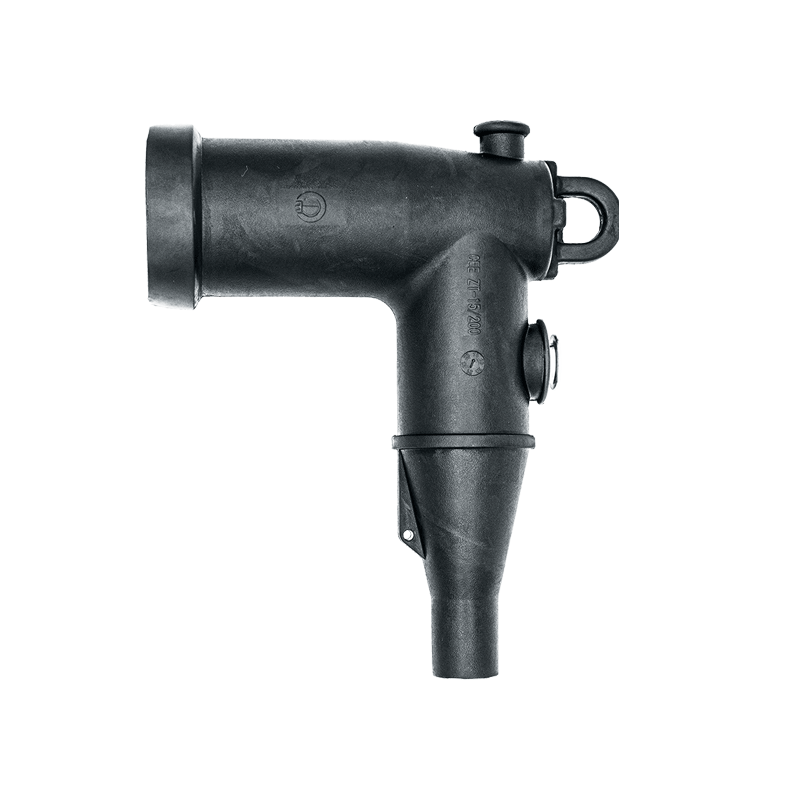

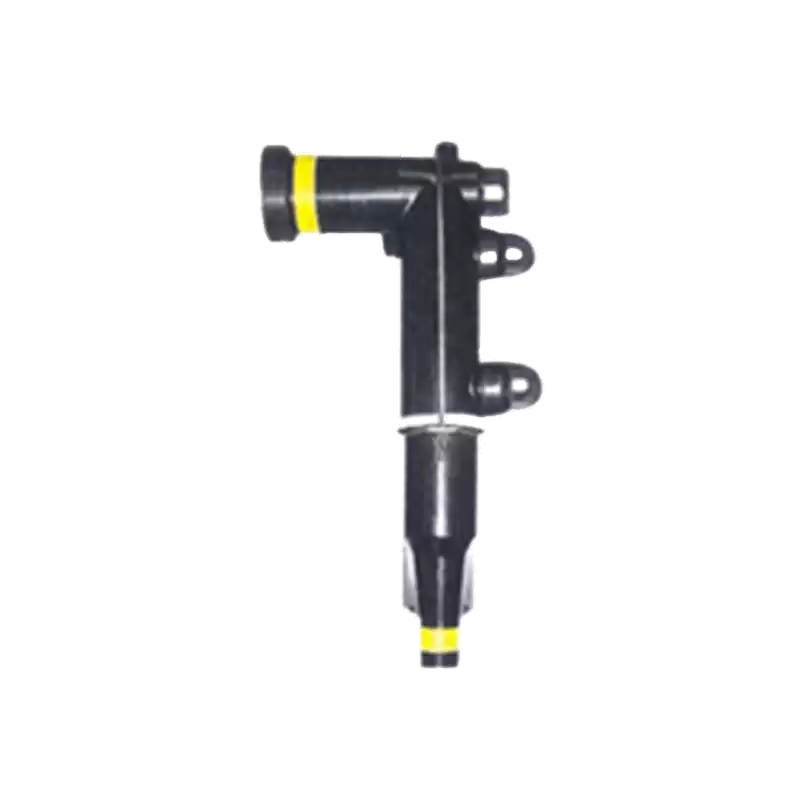

15KV 200A Loadbreak Elbow Connector

  • Insulated, Shielded, Touch-Safe Design
  • 8.7/15(17.5) kV XLPE Cable Compatibility (25-120 mm²)
  • Interface Figure 5, IEEE386-2016 Standard
  • Applications: Ring Main Units, Transformers, Cable Branch Boxes







  • Copper Conducting Rod with Arc-Extinguishing Function, High Insulation Strength, Anti-Aging Rubber
  • Interface Figure 5, IEEE386-2016 Standard
  • Compatible with Bushing Insert for Visible Grounding
  • Applications: Cable Maintenance Grounding, Cable Testing Outlet Line

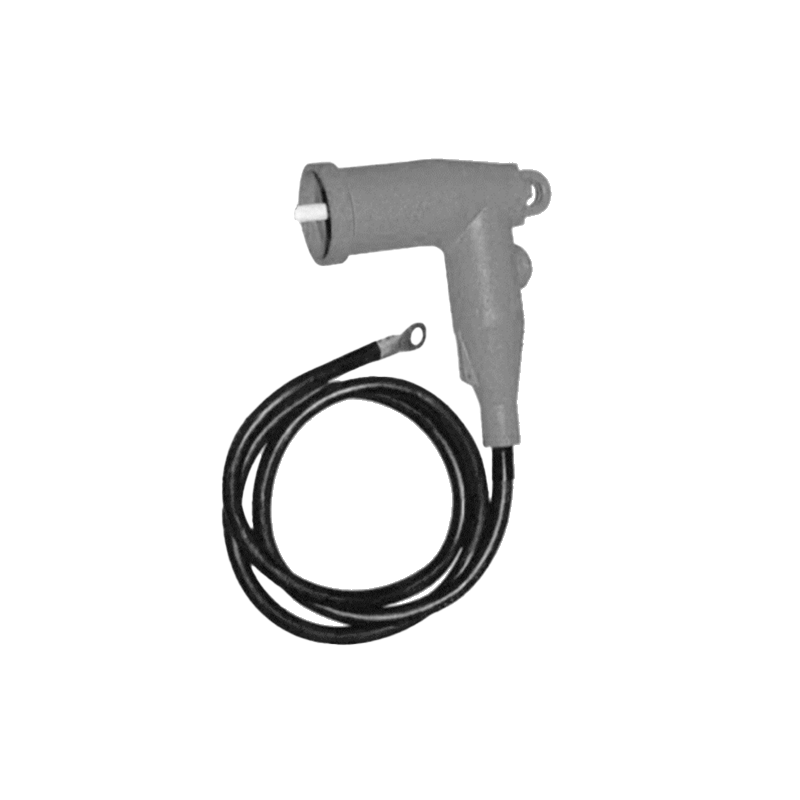

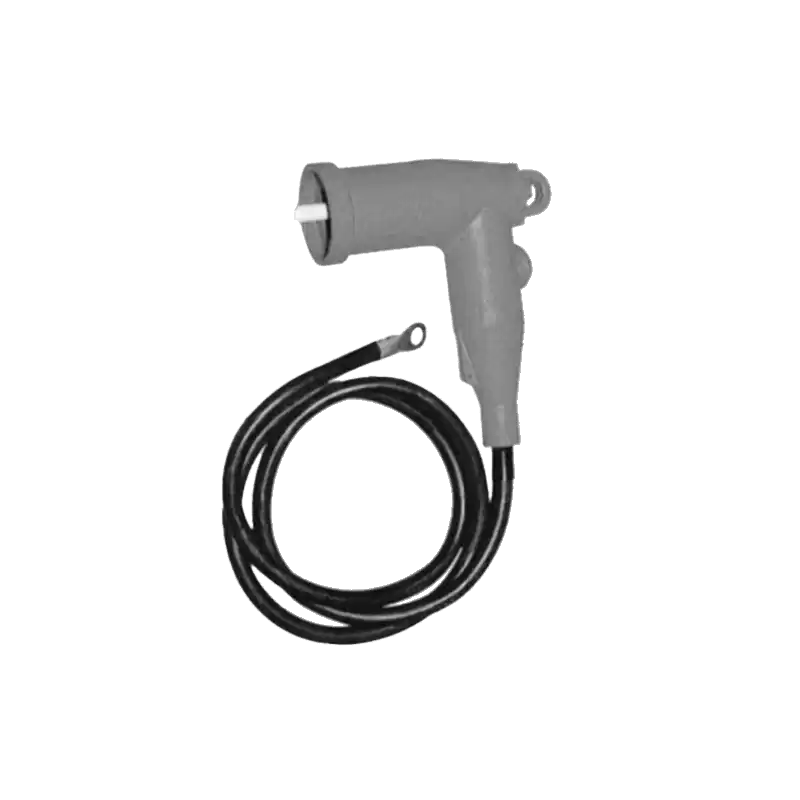

15KV 200A Grounding Elbow Connector

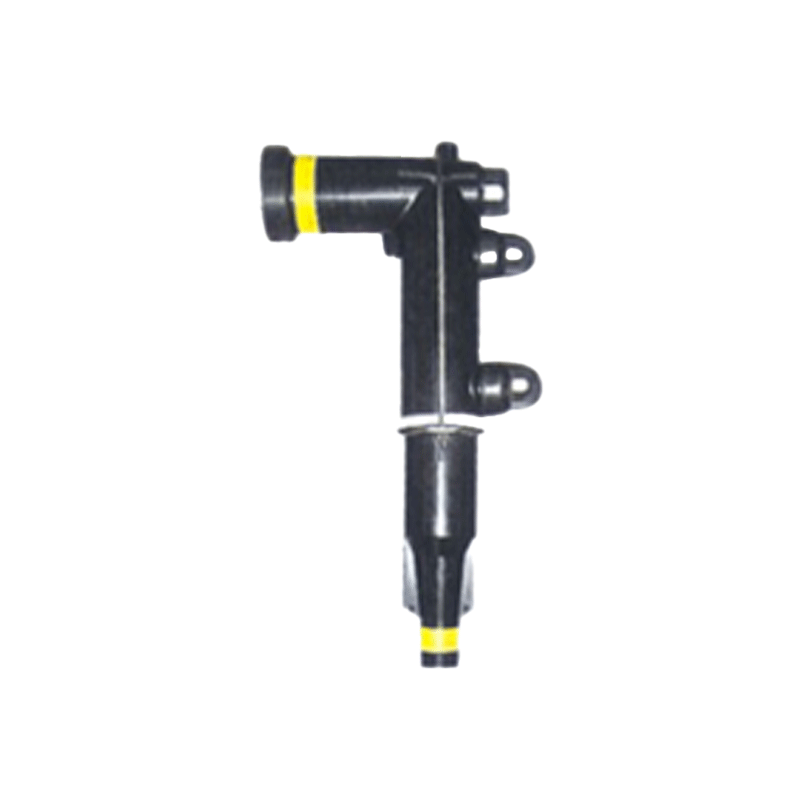

15KV 200A Fused Loadbreak Elbow Connector

  • Insulated, Fully Shielded, Touch-Safe Design
  • Current-Limiting Fuse (Detachable & Replaceable)
  • 8.7/15(17.5) kV XLPE Cable Compatibility (25-120 mm²)
  • Interface Figure 5, IEEE386-2016 Standard
  • Applications: Ring Main Units, Transformers, Cable Branch Boxes

  • Combination of Single Pass Bushing Insert and Surge Arrester
  • Provides Maintenance and Operation Space for High Voltage Transformers
  • Mates with Bushing Well for 200A Elbow Cable Connector Interface
  • Overvoltage Protection for Power Grid
  • Interface Figure 5, IEEE386-2016 Standard
  • Applications: Ring Main Units, Transformers, Cable Branch Boxes

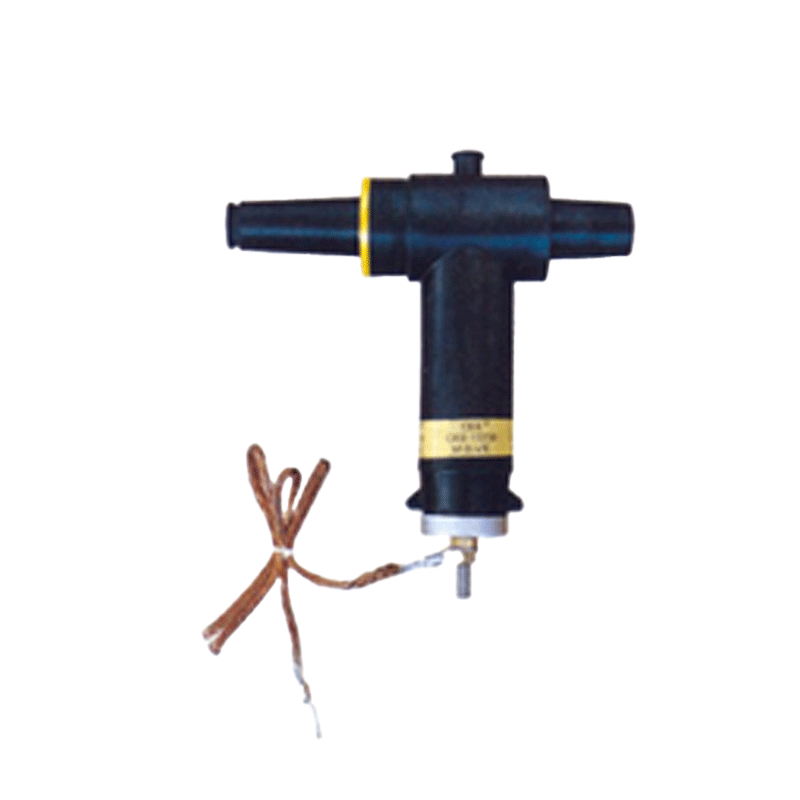

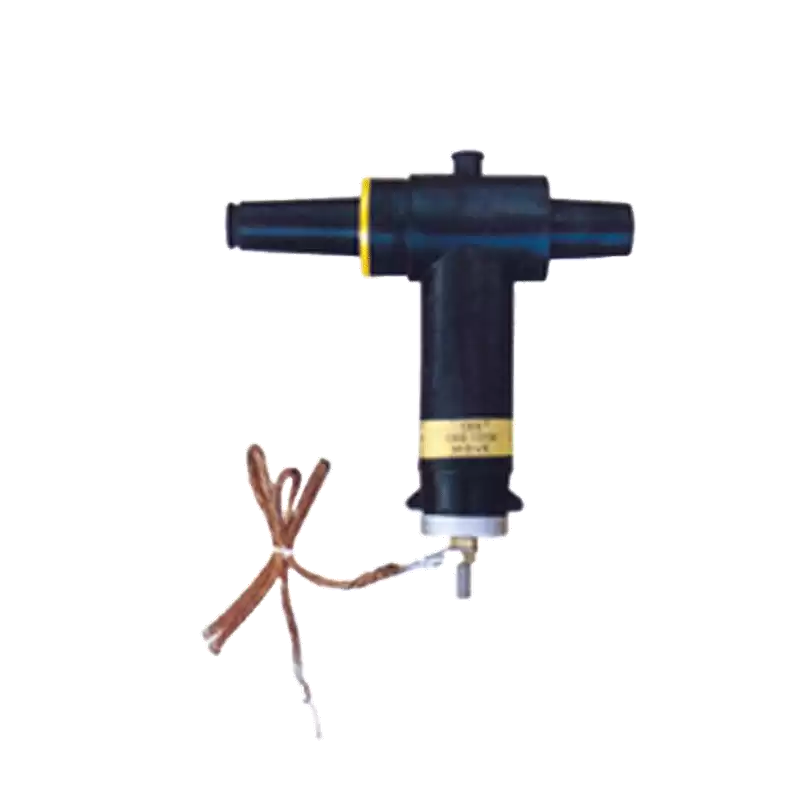

15KV 200A Cable Connector with Bushing Insert and Arrester

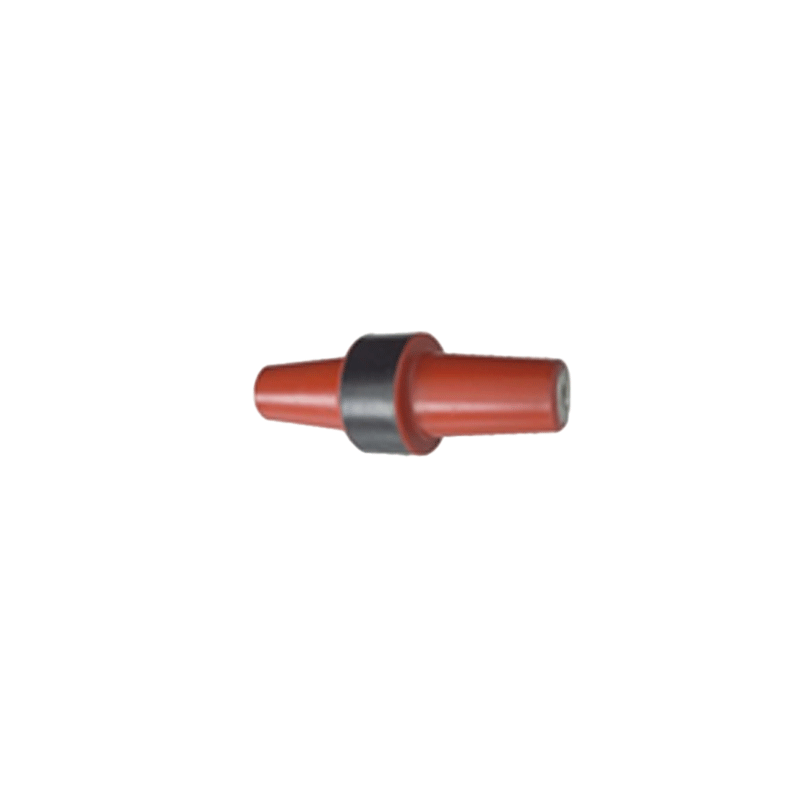

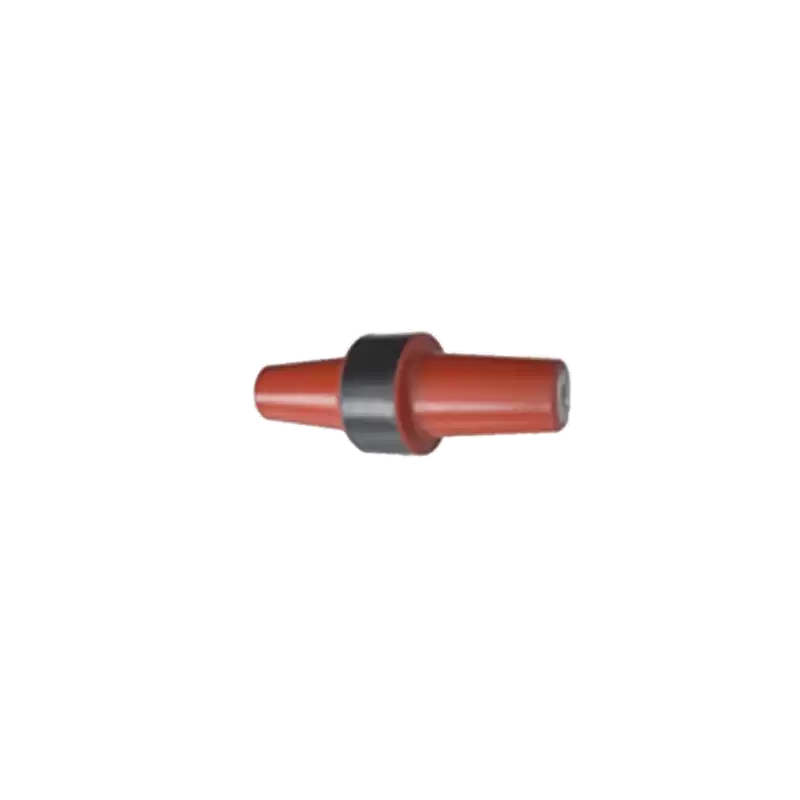

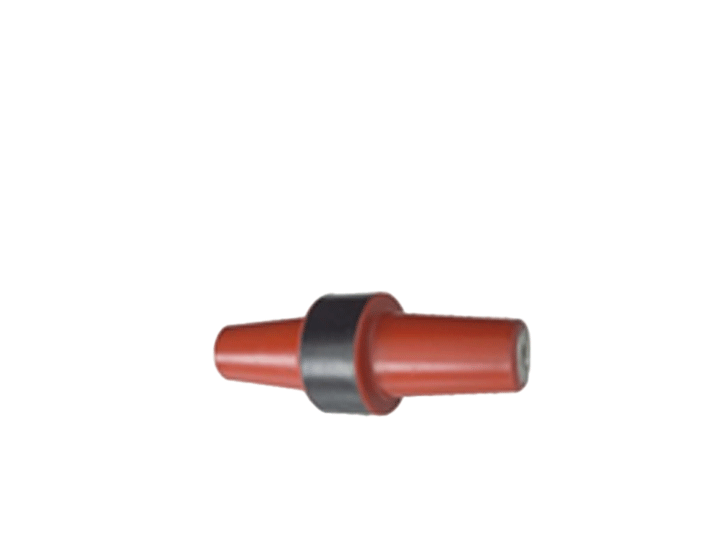

15KV 600A Connecting Plug

  • High-Voltage Cable Connection Equipment
  • Connects Multiple Tee Cable Connectors for Conductor and Busbar Integration
  • Interface Figure 13, IEEE386-2016 Standard

  • Fully Insulated and Shielded Multi-Junction
  • Available in 4-Way, 5-Way, and 6-Way Configurations
  • Compatible with Elbow Connectors, Insulation Caps, Grounding Cable Connectors, and Surge Arresters for Multiple Branch Lines
  • 200A (Interface Figures 3) and 600A (Interface Figures 13) Bushing Wells, Conforming to IEEE386-2016 Standard

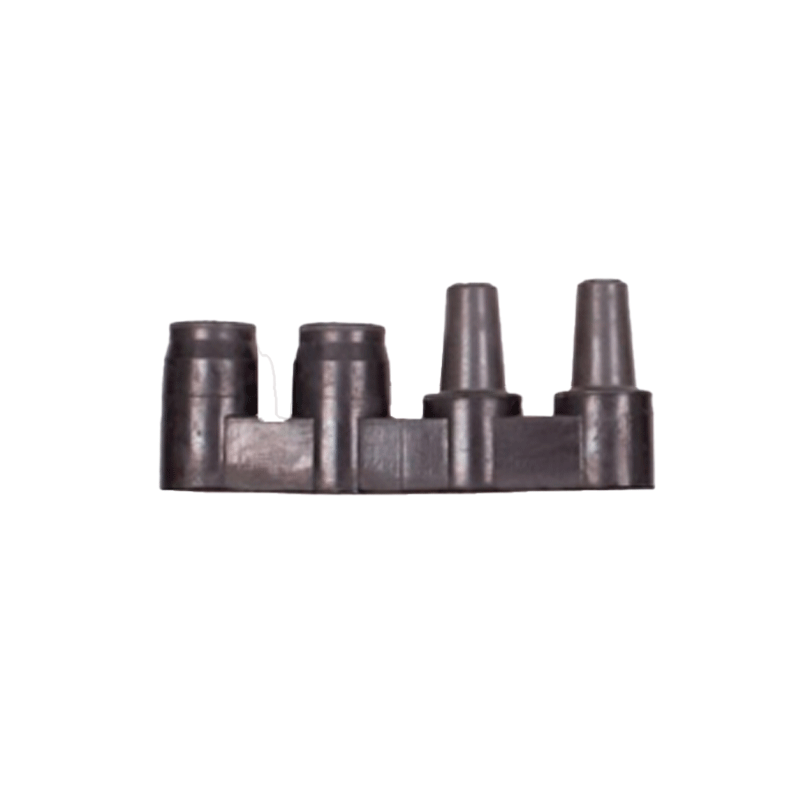

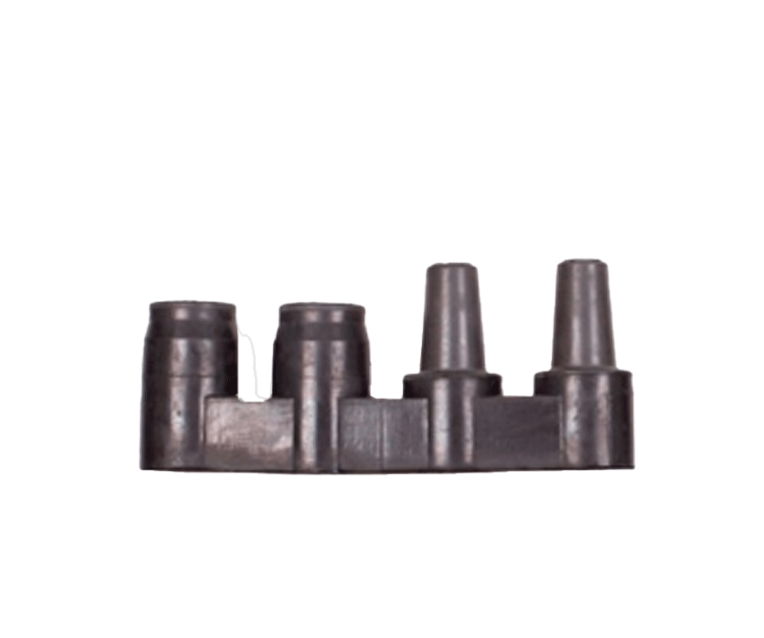

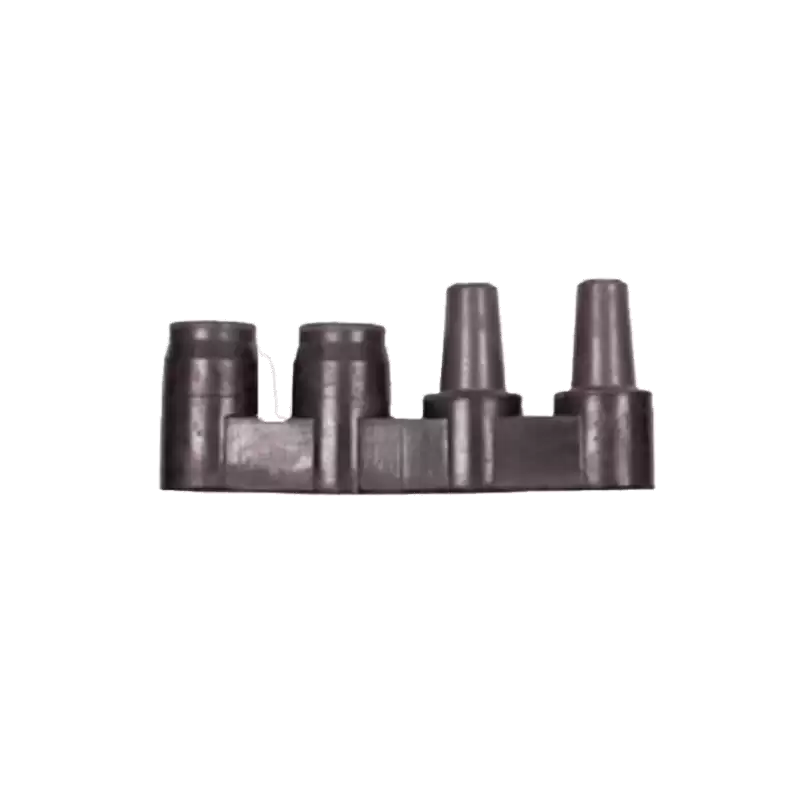

15KV 200A/600A  Multi-Junction

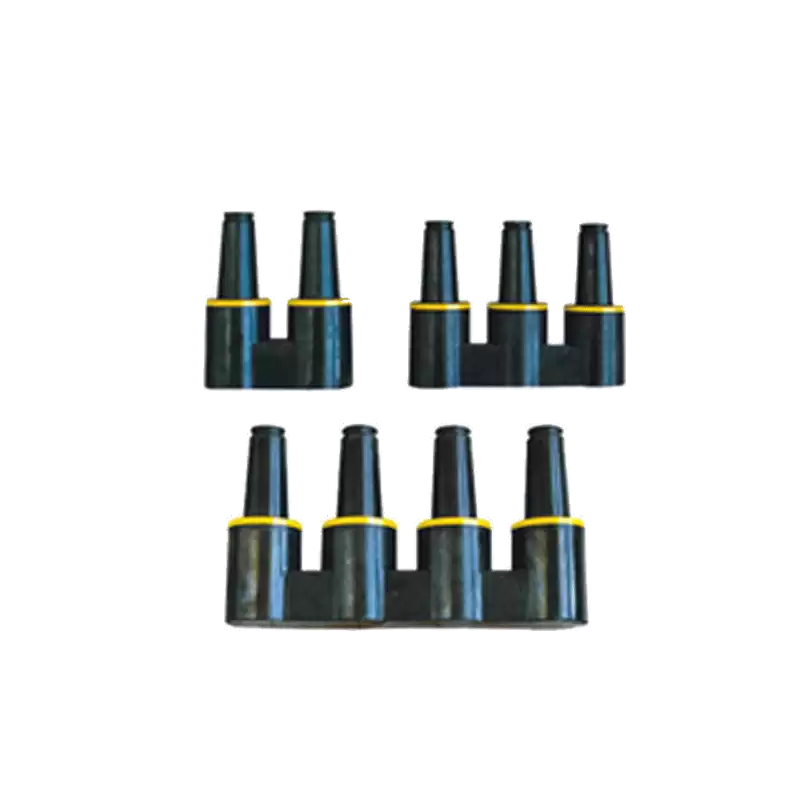

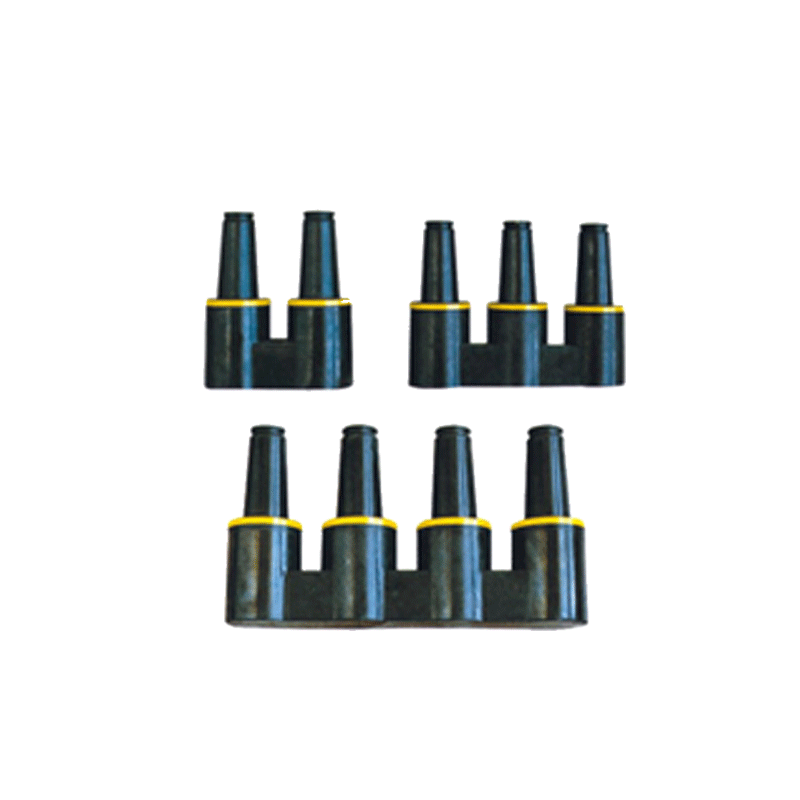

15KV 200A Multi-Junction

  • Fully Insulated and Shielded Multi-Junction
  • Available in 2-Way, 3-Way, and 4-Way Configurations
  • Compatible with Elbow Connectors, Insulation Caps, Grounding Cable Connectors, and Surge Arresters for Multiple Branch Lines
  • Interface Figure 5, IEEE386-2016 Standard











  • Specifications



200A American Type Loadbreak Connector


Rated Voltage 15kV 25kV 35kV
Rated Current 200A 200A 200A
Partial Discharge Q≦5pC@11kV Q≦5pC@19kV Q≦5pC@26kV
AC Withstand Voltage 34kV/1min 40kV/1min 50kV/1min
Lightning Impulse Withstand Voltage 95kV 125kV 150kV
Short Time Withstand Current 3.5kA3S 3.5kA3S 3.5kA3S
Rated Breaking Current 14.4kV200A10 times 26.3kV200A10times 36.6kV200A10times
Fault Making Current 0.17S10kA10times 0.17S10kA10times 0.17S10kA10times
Conductor Cross Section 25-120mm² 25-120mm² 25-120mm²





600A American Type Deadbreak Connector


Rated Voltage 15kV 25kV 35kV
Rated Current 600A 600A 600A
Partial Discharge Q≦5pC@11kV Q≦5pC@19kV Q≦5pC@26kV
AC Withstand voltage 34kV/1min 40kV/1min 50kV/1min
Lightning Impulse Withstand Voltage 95kV 125kV 150kV
Short Time Withstand Current 3.5kA,3S 3.5kA,3S 3.5kA,3S
Conductor Cross Section 35-400mm² 35-400mm² 35-400mm²
