15kV 200A Surge Protection & Cap American Type Cable Accessories

The 15kV 200A accessories, including insulation caps and surge arresters, provide essential insulation, protection, and safety for high-voltage cable systems like ring main units and transformers. Fully shielded, touch-safe, and compliant with IEEE386-2016 standards, ensuring reliable performance and long-lasting protection in electrical distribution networks.









  • ANSI / IEEE Standard American Type Cable Accessories Overview

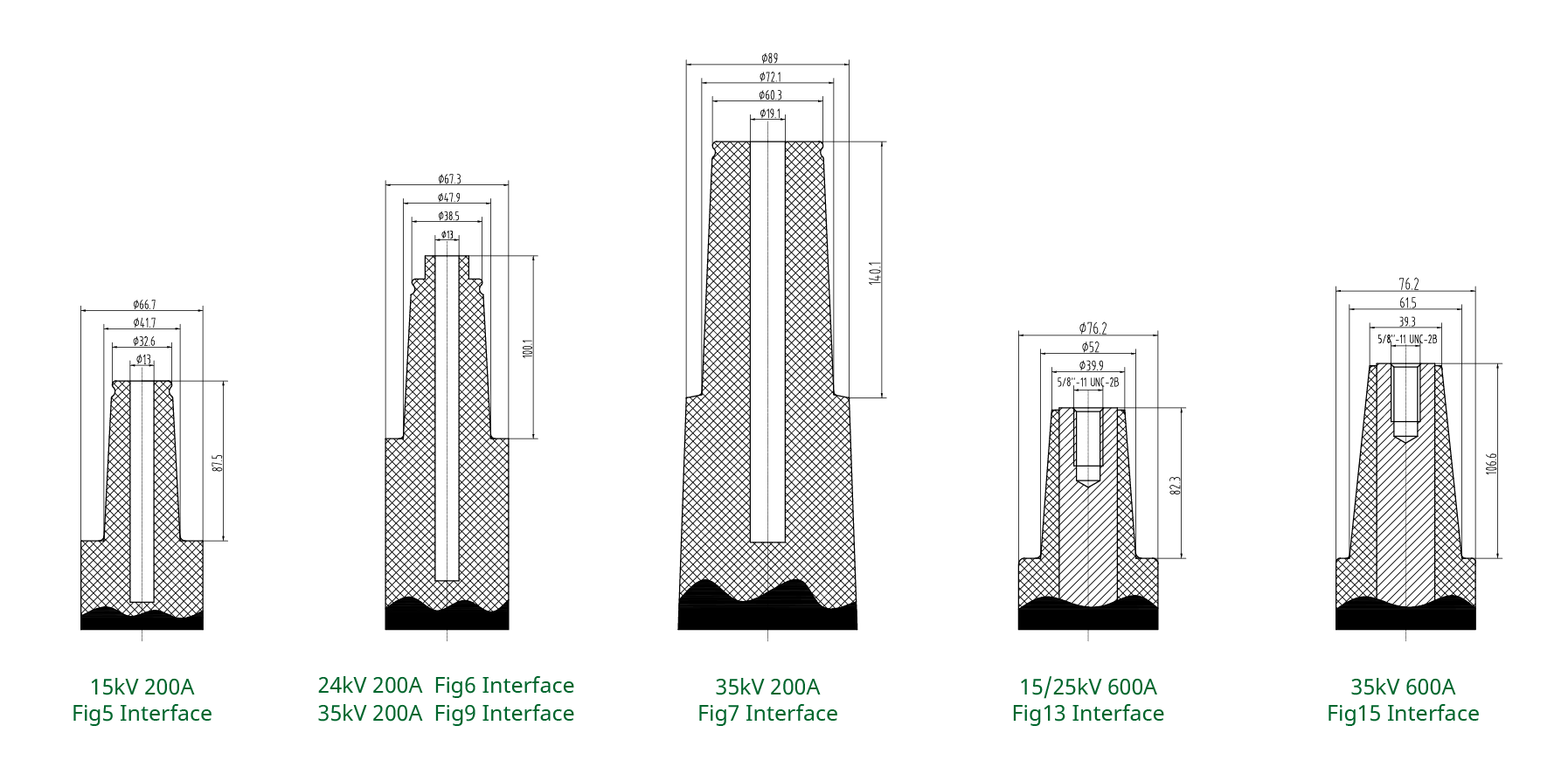

  • IEEE386-2016 American Type Separable Connector Interface

















  • 15kV 200A Series Cable Accessories

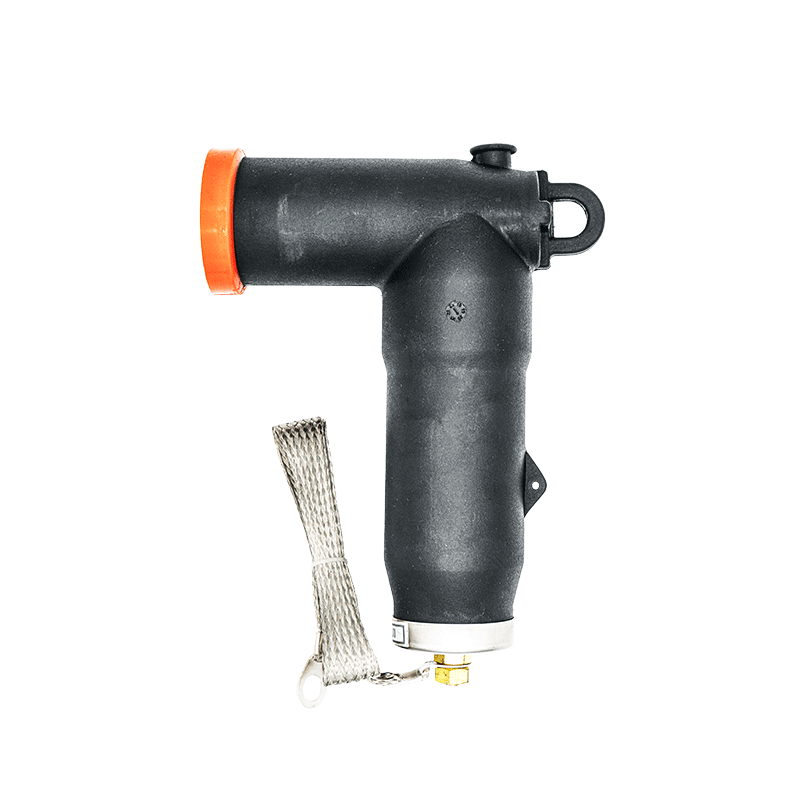

15kV 200A Surge Arrester

  • Insulated, Shielded, and Touch-safe
  • Compatible with 8.7/15(17.5) kV XLPE cables
  • Rear Arrester Protects Equipment from Lightning and Overvoltage
  • Applications: Suitable for the Outlet Line of Ring Main Units, Transformers, Cable Branch Boxes







  • Electrically Insulates and Mechanically Seals Bushing Interfaces
  • Shields De-energized Interfaces from Dust and Moisture
  • Need to be Used When a Reserved Interface is Present in the Junctions or Bushings
  • Interface Figure 5, IEEE386-2016 Standard)
  • Applications: Suitable for Permanent or Temporary Installation on Bushings or Multi-junctions

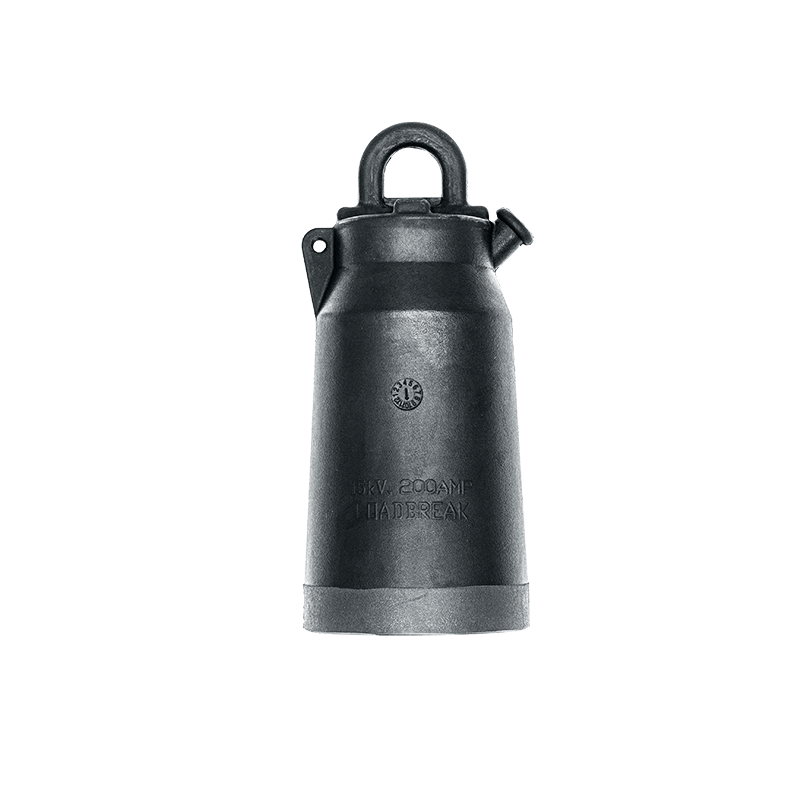

15kV 200A Insulation Cap















  • Specifications



200A American Type Loadbreak Connector


Rated Voltage 15kV 25kV 35kV
Rated Current 200A 200A 200A
Partial Discharge Q≦5pC@11kV Q≦5pC@19kV Q≦5pC@26kV
AC Withstand Voltage 34kV/1min 40kV/1min 50kV/1min
Lightning Impulse Withstand Voltage 95kV 125kV 150kV
Short Time Withstand Current 3.5kA3S 3.5kA3S 3.5kA3S
Rated Breaking Current 14.4kV200A10 times 26.3kV200A10times 36.6kV200A10times
Fault Making Current 0.17S10kA10times 0.17S10kA10times 0.17S10kA10times
Conductor Cross Section 25-120mm² 25-120mm² 25-120mm²
















Product Tags 15KV 200A Surge Arrester          15KV 200A Insulation Cap          High Voltage 15kV Cable Surge Cap          15kV Electrical Surge Protection Cap
