15kV/25kV 600A Series Bushing & Junction & Insert American Type Cable Accessories

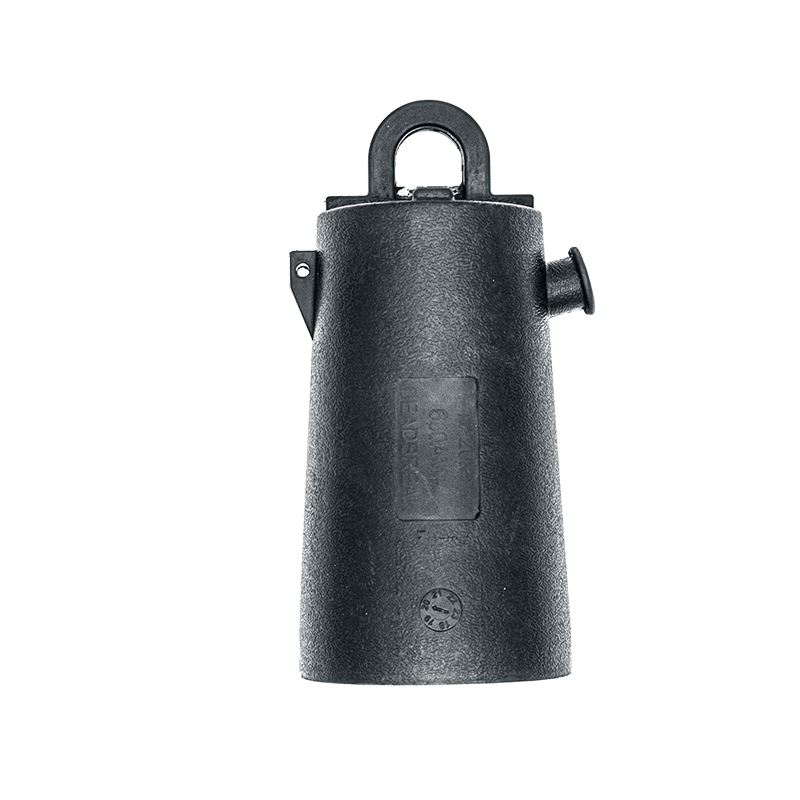

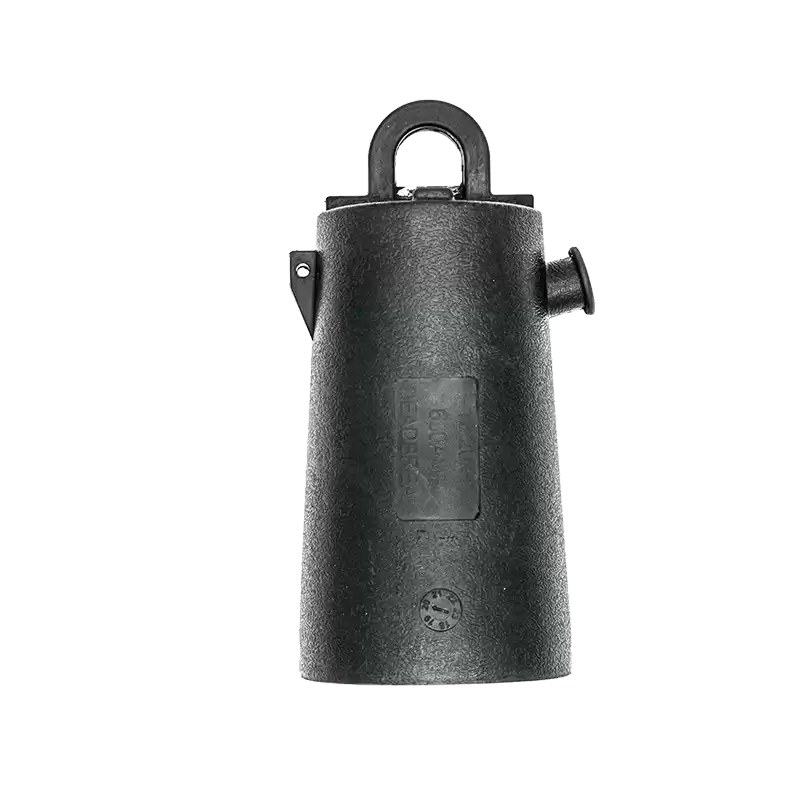

15kV/25kV 600A Insulation Cap

• Insulates and Seals Bushing Interfaces Electrically and Mechanically
• Protects De-energized Interfaces from Dust and Moisture
• Suitable for Both Permanent and Temporary Installation on Bushings or Multi-junctions
• Need to be Used When a Reserved Interface is Present in Junctions or Bushings
• Interface Figure 13, IEEE386-2016

• Insulated, Shielded, and Touch-safe
• Simplifies Temporary or Permanent Parking of Energized 200A Elbow Connectors
• Shields De-energized Elbow Connectors from Dust, Water, and Moisture
• Interface Figure 13,  IEEE386-2016
• Applications: Used to Isolate and Sectionalize Energized Cables in Pad-mounted Transformers, Switchgear, and Other Apparatus

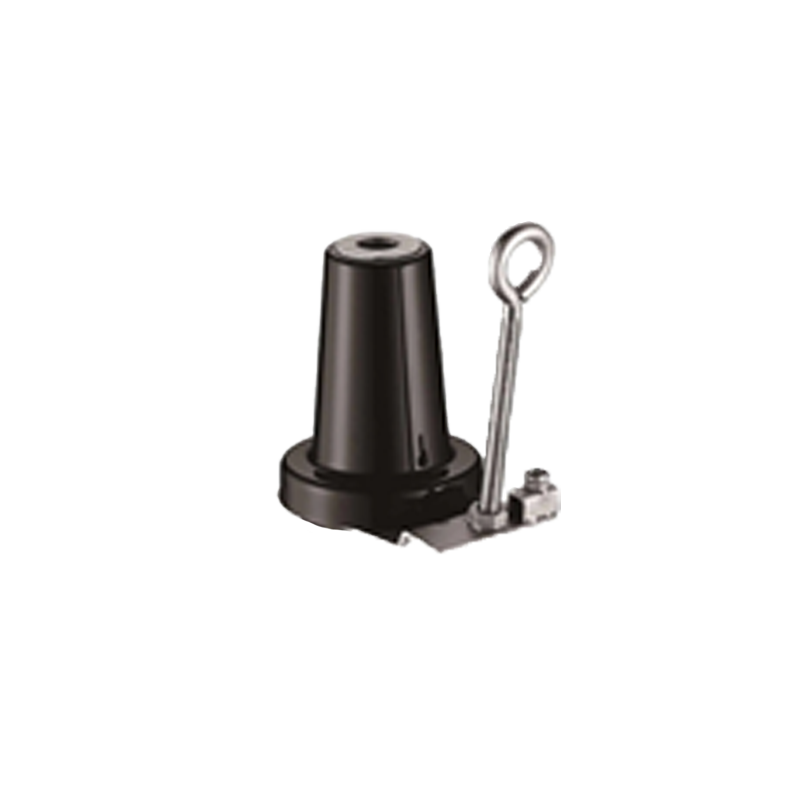

15kV/25kV 600A Insulated Standoff Bushing

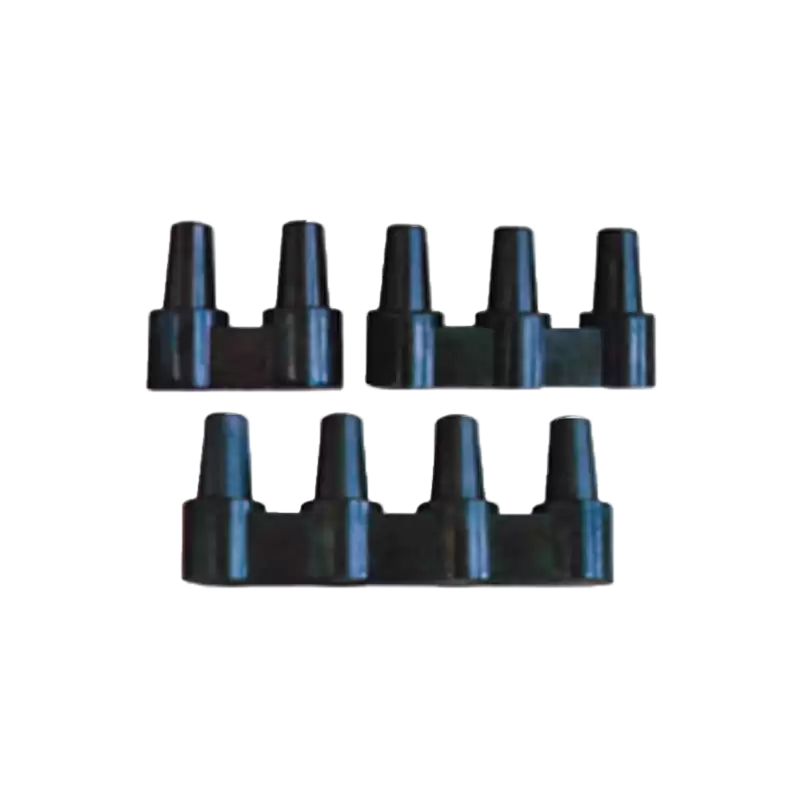

15kV/25kV 600A Multi-Junction

• Insulated, Shielded
• Available in 2 Way, 3 Way, and 4 Way Junctions
• Support to be Combined with Elbow Connectors, Insulation Caps, Elbow Grounding Cable Connectors, and Elbow Surge Arresters to form Multiple Branch Lines
• Interface Figure 13, IEEE386-2016

• Insulated, Shielded, and Touch-safe
• Support Installing a Live Indicator on the Testing Point to Detect if It's Charged
• Suitable for Cables with a Cross-section of 25-120 mm²
• Interface Figure 13, IEEE386-2016
• Applications: Ideal for Use in Ring Main Units, Transformers, and Cable Branch Boxes

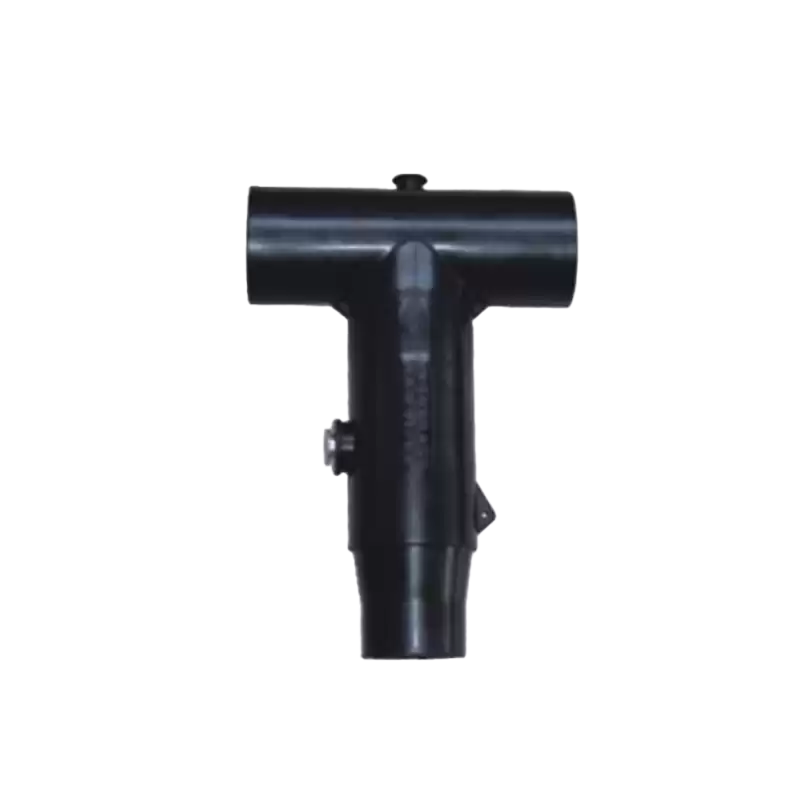

15kV/25kV 600A TEE Cable Connector

600A American Type Deadbreak Connector
