15KVA 12KW Prime Power Rating Generator Set Perkins Engine Model 403A-15G2 Produce in UK
The Perkins 403 range of electric power (EP) engines delivers the same compact benefits of its 2 cylinder stablemate, but takes a stride forward in terms of noise, refinement and power. The 3 cylinder range offers excellent power density and superb fuel economy and is designed to meet your power generation needs in both unregulated territories where extreme conditions are likely, and higher regulated territories with more stringent emissions standards.
GENERAL ENGINE DATA
|
Generator set model
|
Voltage
|
Hz
|
Phase
|
P.F.
|
Prime Power
|
Standby Power
|
|
(V)
|
|
|
|
KVA
|
KW
|
KVA
|
KW
|
|
AP17
|
230/400
|
50
|
3
|
0.8
|
15
|
12
|
17
|
13
|
|
•220/380V, 240/415V, 254/440V is avaliable
|
GENERAL ENGINE DATA
|
Engine manufacture
|
Perkins Engines Company Limited
|
|
Engine brand
|
Perkins
|
|
Engine model
|
403A-15G2
|
|
Engine speed (rpm)
|
1500
|
|
Prime power
|
Standby power
|
|
Gross engine power (kWb)
|
14
|
15.4
|
|
Typical Genset electrical output 0.8pf 25ºC (100 kPa) (KW)
|
12
|
13.26
|
|
Cylinders
|
3-cylinder, vertical in line
|
|
Cycle
|
4 stroke
|
|
Induction system
|
Naturally Aspirated
|
|
Compression ratio
|
22.5:1
|
|
Bore * Stroke (mm)
|
84*90
|
|
Cubic capacity (Litre)
|
1.496
|
ALTERNATOR Specification
|
Alternator manufacturer
|
Leroy-somer Electro-technique (Fuzhou) Company Ltd.
|
|
Alternator brand
|
Leroysomer
|
|
Alternator model
|
TAL-A40-D
|
|
Control system
|
SHUNT
|
|
A.V.R.
|
Included
|
|
Voltage regulation
|
±1.0%
|
|
Insulation system
|
Class H
|
|
Protection
|
IP23
|
|
Rated power factor
|
0.8
|
|
Winding pitch
|
Two thirds
|
|
Winding leads
|
6
|
|
Frequency (Hz)
|
50
|
|
Voltage (V)
|
400
|
|
Phase
|
3
|
|
Output ratings (kVA/kW)
|
|
|
----------------Cont.H-40°C
|
15/12
|
|
----------------Standby-27°C
|
16.5/13.2
|
|
THF
|
<2%
|
|
TIF
|
<50
|
|
Max. overspeed (Rev/Min)
|
2250
|
|
Bearing
|
Single
|

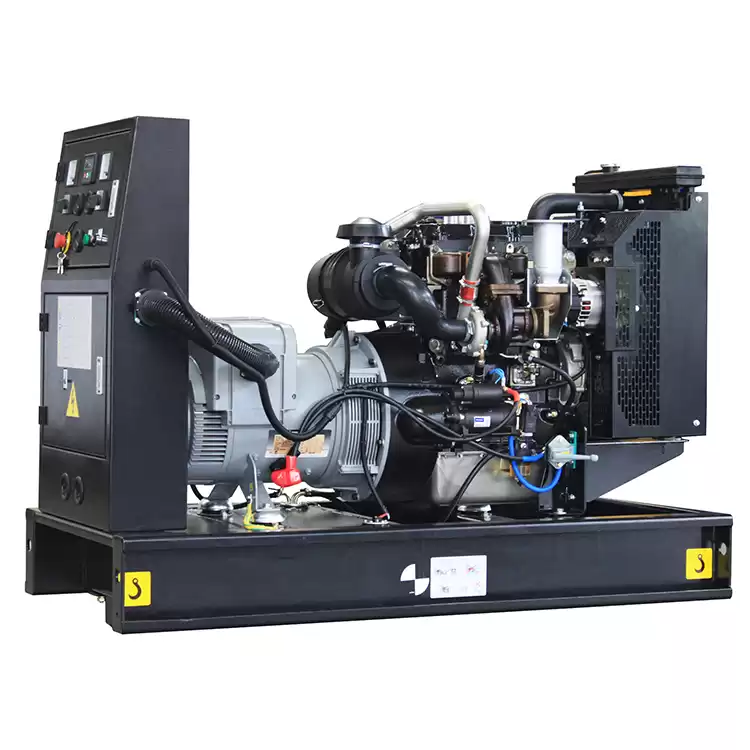

Pernkins Generator 12KW/15KVA 403A-15G2 Photo
FAQ:
Q1:What is your power range of your diesel generator?
Answer: We can provide 6KVA to 3000KVA.
Q2:What is the different between prime power and standby power?
Answer: Prime power is 12 hours continuous power, Standby Power is 1 Hour peak power.
Q3:How to choose the power?
Answer: Collect all power of your equipments, take the surge current into your consideration.
Q4:What is your payment term?
Answer: We accept T/T, L/C, Western Union.
Q5:What is your warranty?
Answer: We will warrant our diesel generator for 1000 hours or one year which comes first.
Q6:What is your MOQ?
Answer: MOQ is 1 set.
Q7:Do you offer OEM service?
Answer: OYes!
Q8:What is your lead time?
Answer:15-20days after receive your deposit.
