8 Channels 15V6A Battery Pack Test System Laptop Battery Performance Testing
SPECIFICATIONS
1 TOB-BTS-15V6ABattery tester equipmentis an eight-channelbattery analyzerto analyze polymer battery and cylindrical batteries from 12 mA to 6000 mA, up to 15V.
2 Thisbattery test systemprovides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing and etc.
3 This battery pack test system is mainly used for laptop battery pack performance testing.
|
Model
|
Battery pack tester TOB-BTS-15V6A
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Source voltage
|
AC110V-220V±10% Customized, 50/60HZ
|
|
Input impedance
|
≥1MΩ
|
|
Input power
|
1088W
|
|
Channel
characteristics
|
Constant current source and voltage source adopt
double closed loop independent structure
|
|
Channel control mode
|
Independent control
|
|
Voltage range
per channel
|
Charge : 3mV-15V Discharge : 2.5V-15V
Accuracy : ±0.1%
|
|
Current range
per channel
|
Charge : 12mA-6A Discharge : 12mA-6A
Accuracy : ±0.1%
|
|
Output power per channel
|
200W
|
|
Time
|
Current response time
|
0-6A : 20ms
|
|
Step time range
|
1s-365*24h,Time format : 00:00:00(H:Min:S)
|
|
Record condition
|
TimeΔt ：1-60000s VoltageΔU : 40mV-20V
CurrentΔI : 20mA-10A
|
|
Charging mode
|
Constant current charge,constant voltage charge,
constant current and voltage charge
|
|
Discharging mode
|
Constant current discharge,constant power discharge
|
|
Conditions of constraint
|
Time, voltage, current, capacity
|
|
Cycle
|
Cycle range
|
1-65535 times
|
|
Steps pur cycle
|
254
|
|
Protection
|
Power-down data protection,off-line test function and Safety condition setting protection
|
|
Voice
|
≤85dB
|
|
Communication interface
|
Serial ports
|
|
Channel number per unit
|
8
|
|
Dimension(L*W*H)
|
485*508*263mm
|
|
Working temperature/humidity
|
-10-40℃ ≤70%RH
|

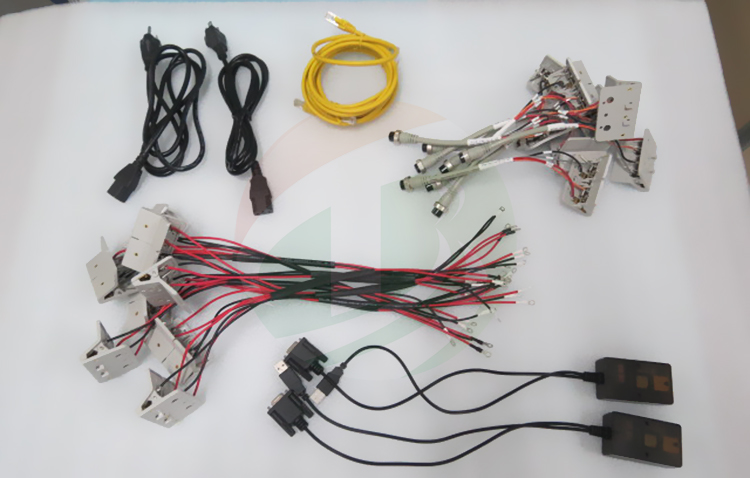

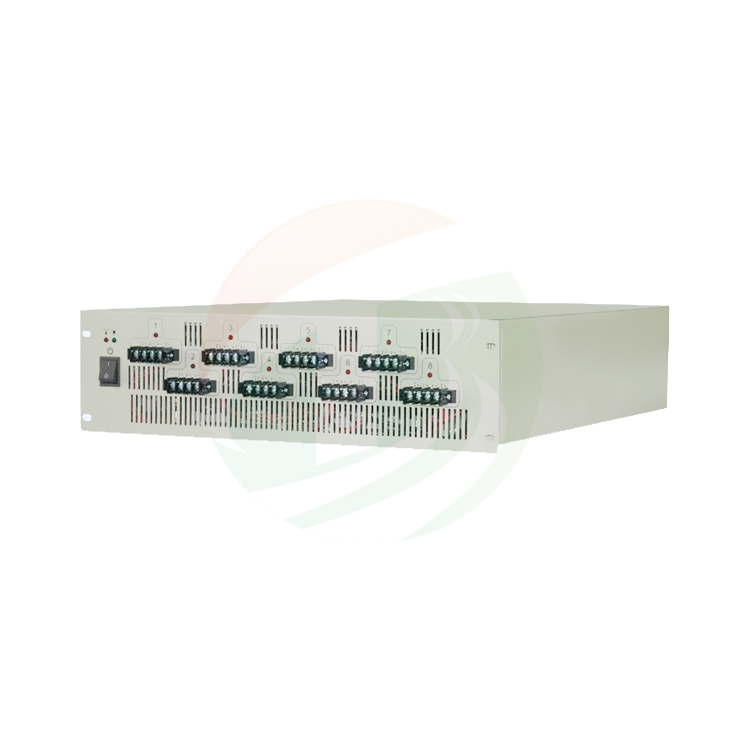

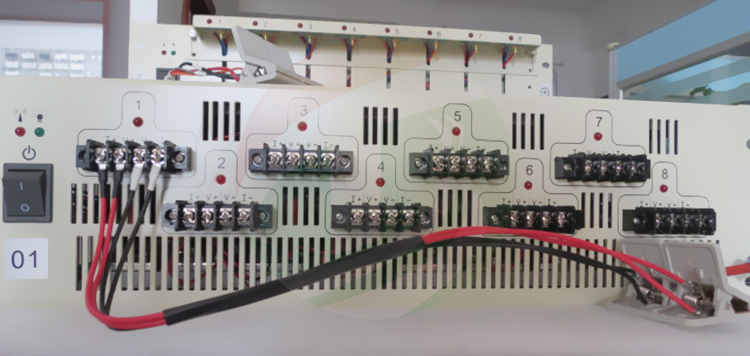

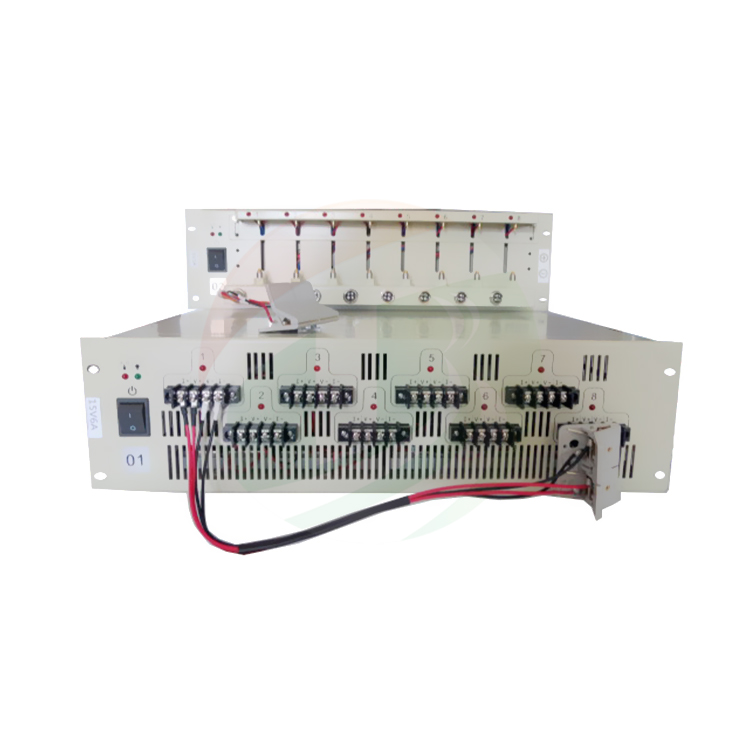

Product Display
