15W 5V 3A wide range AC input switching power supply driver for LED light
Description:
KH-15 series 15W 5V 3A switching power supply is enclosed model and small size type,it can be customized and we can provide other voltage power supply such as 5VDC 12VDC 15VDC 24VDC and so on.
Features:
1, 15W 5V high efficiency power supply, low temperature rise;
2, 5V 3A smps with built-in filters, low output noise;
3, Wide range of AC input voltage;
4, 15W 5V 3A PSU have short circuit, overload and overvoltage protection;
5, This switching power supply used in LED lighting,CCTV camera field etc.
Parameter
|
|
Item NO
|
KH-15-5
|
KH-15-12
|
KH-15-15
|
KH-15-24
|
|
Output
|
Output Voltage
|
+5V
|
+12V
|
+15V
|
+24V
|
|
Rated Current
|
3A
|
1.3A
|
1A
|
0.7A
|
|
Current Range
|
0-3A
|
0-1.3A
|
0-1A
|
0-0.7A
|
|
Rated Power
|
15W
|
15.6W
|
15W
|
16.8W
|
|
Ripple
|
50mVp-p
|
100mVp-p
|
100mVp-p
|
120mVp-p
|
|
Adjustable Output Range
|
±10%
|
|
Output Accuracy
|
±1%
|
|
Line Regulation
|
±0.5%
|
|
Load Regulation
|
±0.5%
|
|
Set up,Rise,Keep up time
|
800ms, 30ms, 16ms/115VAC 300ms, 30ms, 50ms/230VAC
|
|
Input
|
Input Voltage Range
|
88~264V AC,100~370VDC
|
|
Input Current
|
0.4A/115V,0.2A/230V
|
|
Input Frequency
|
47~63Hz
|
|
Efficiency
|
78%
|
84%
|
84%
|
85%
|
|
Inrush Current
|
30A@230V
|
|
Leakage Current
|
<0.3mA@240V
|
|
Protection
|
Over Load Protection
|
105~150%,Hiccup,automatic recovery
|
|
Short Circuit Protection
|
Hiccup,automatic recovery
|
|
Environment
|
Working Temp.,Humidity
|
-10~50℃,10~90% RH，No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃,10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min /1cycle, PERIOD FOR 60min EACH AXES
|
|
Safety&EMC Standards
|
Safety Standards
|
GB4943,EN60950
|
|
Withstand Voltage
|
I/P-O/P,I/P-FG:1.5KV,O/P-FG:0.5KV DC 1min
|
|
Insulation Resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC Standards
|
GB9254,EN55022 CLASS B
|
|
Others
|
Dimension
|
74*68*27mm(L*W*H)
|
|
Weight
|
0.15kg
|
|
Notes
|
1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured.
|

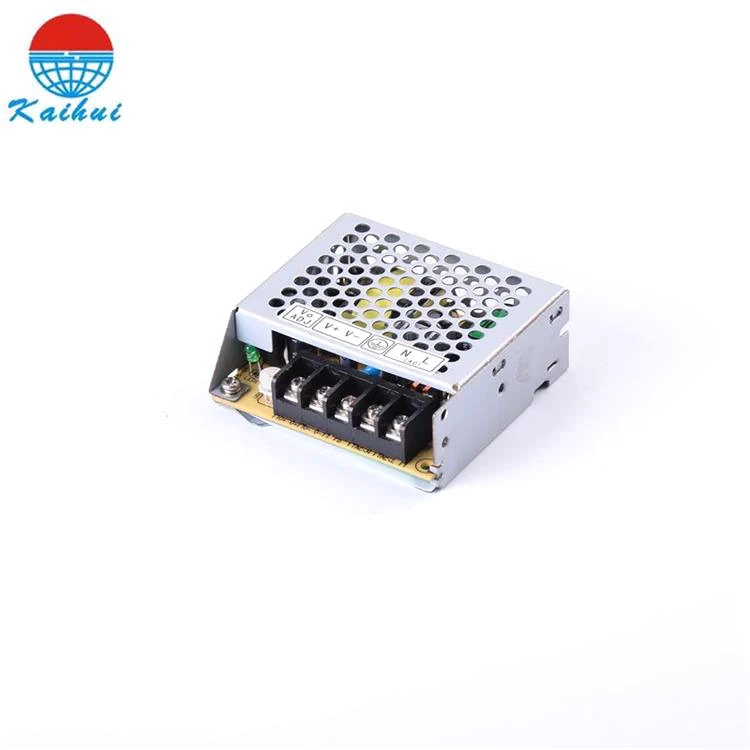

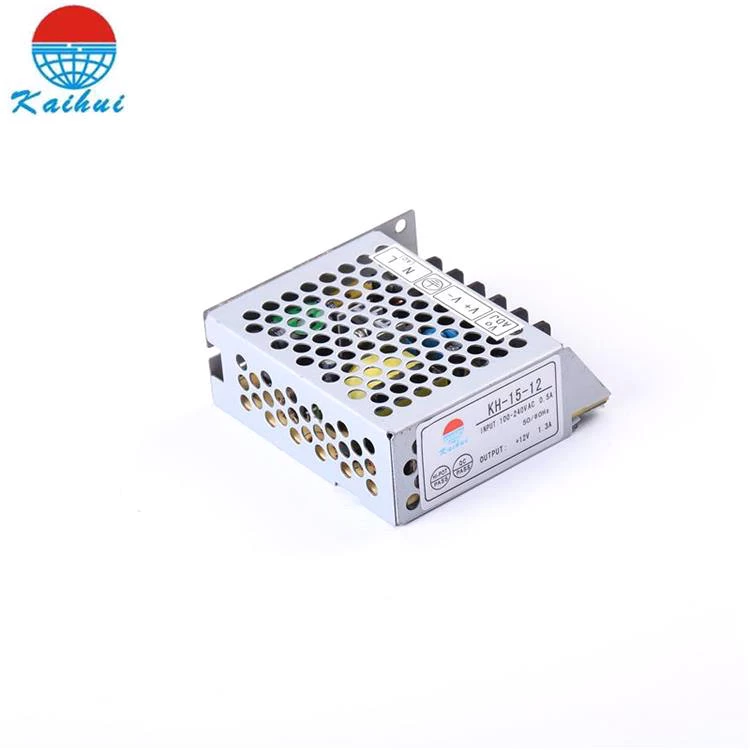

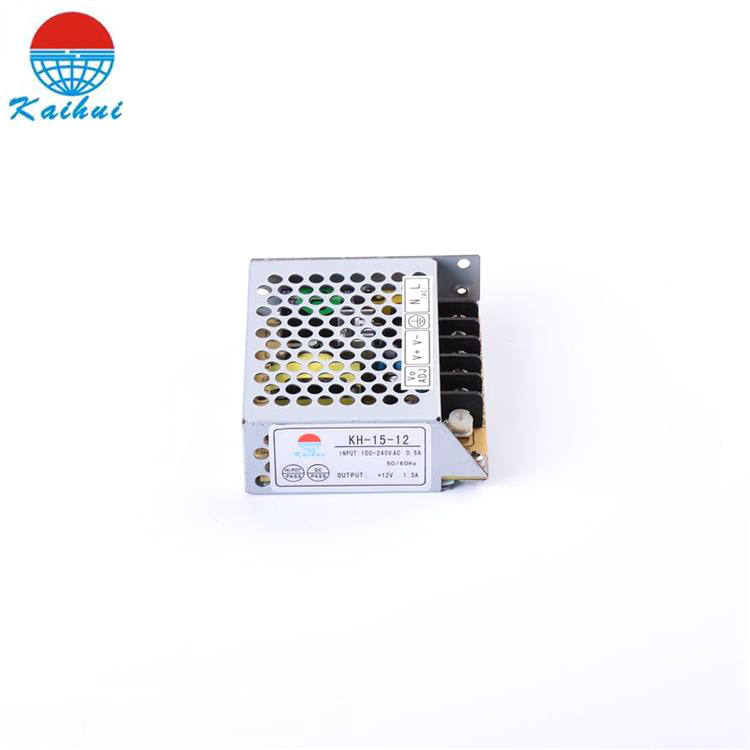

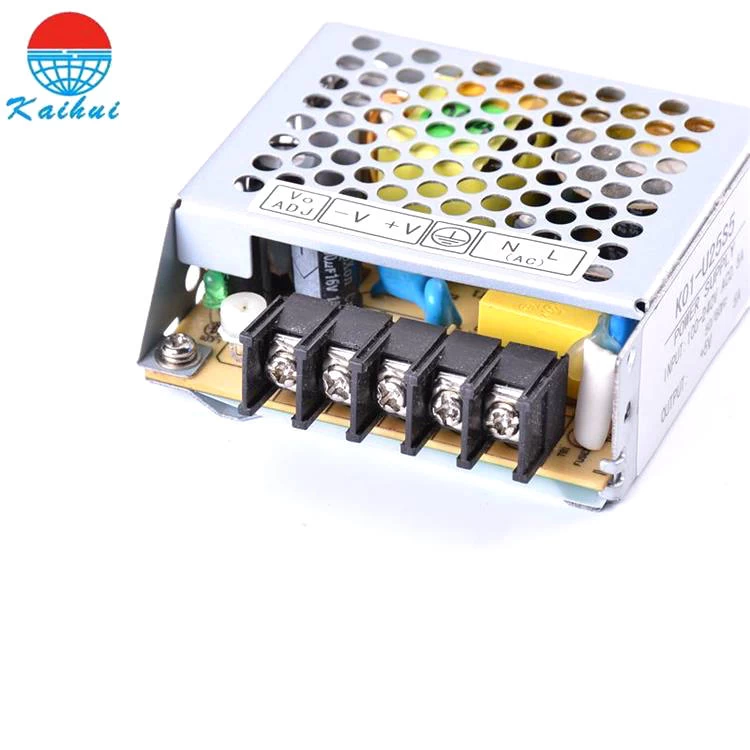

Product picture:
