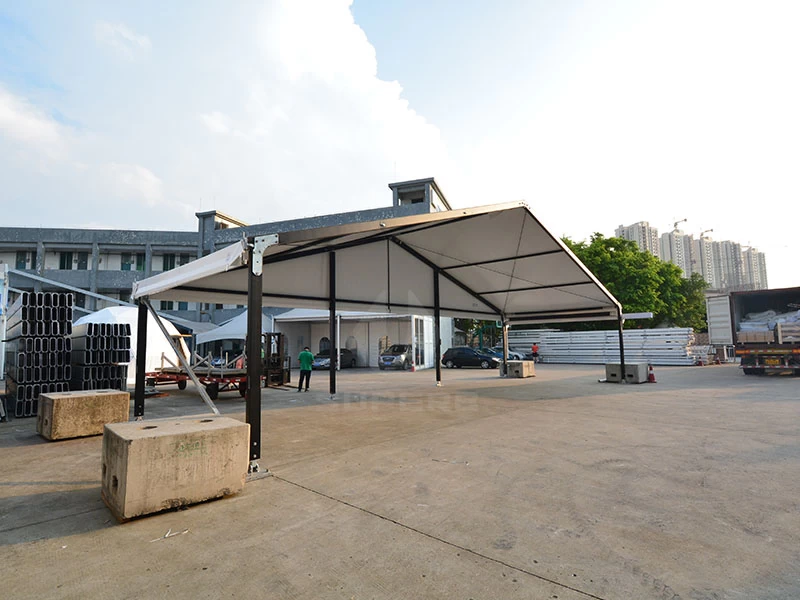

15x20 Wedding Party tent
20x20 tent could be widely used for temporary outdoor exhibitions,wedding parties, festival celebrations,conferences,sports and other events, and also good solution of temporary warehouse, workshop and temporary emergency relief and other purposes. No pole inside,100% interior space be used. Full line accessories is available,windows sidewalls or plain PVC sidewalls are up to customers.
15x20 Wedding Party tent
Features:
● No exterior guy ropes or staking required.
● No poles inside, 100% interior space be used.
● Roof and gable vent is available.
● Relocatable, easy to install, dismantle and transport.
Available sizes:
● Clear span available from 3m to 60m.
● Length: adjustable by 3m unit (SS & WS series) or 5m unit (for other series).
The Specification of 15x20 tent :
Type |
Span (m) |
Side height (m) |
Ridge height (m) |
Bay Distance (m) |
Roof Pitch |
Longest Component (m) |
Wind Load (km/h) |
LS20/4-5 |
20 |
4 |
7.2 |
5 |
18° |
10.7 |
100 |
LS25/4-5 |
25 |
4 |
8 |
5 |
18° |
10.7 |
100 |
LS30/4-5 |
30 |
4 |
8.9 |
5 |
18° |
10.7 |
100 |
Main frame Profile |
256x120x5mm(4-channel) |
||||||
Eave Connection |
Hot-dip Galvanized Twin Steel Plate |
||||||
Roof Fixing |
Bar Tension |
||||||
Frame Material |
Hard Pressed Extruded Aluminum 6061/T6 |
||||||
Cover Material |
Double PVC coated Polyester textile, flame retardant to DIN4102 B1,M2,650-900g/sq.m |
The Accessories of 15x20 tent :
