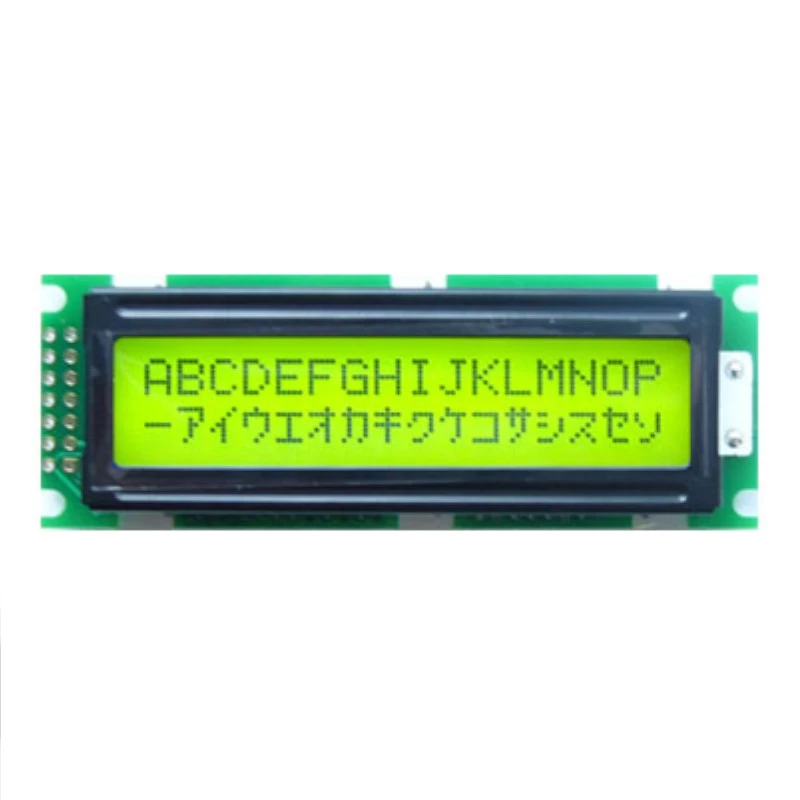

16*2 Mono Character LCD display with Yellow Green Stn AIP31066 IC

SC1602004-V01 is a Character LCD Display with 16*2 resolution, it built in with AIP31066 IC, it supports 8-bit MPU interface, 16 PIN, 6 o'clock View direction.

  • Driver ICAIP31066
  • Interface8bit MPU interface
  • Viewing Area (mm)64.3*16
  • Outline Dimension (mm)85*30*11.8
  • Resolution16*2
  • BacklightYellow-Green LED
  • PIN16
Facebook Twitter Pinterest LinkedIn 分享

Basic Information


LCD Type:                     STN/Y-G/Positive/Transflective

Resolution:                   16*2

Outline Dimension:       85(L) * 30(W) * 11.8(T)

View area:                     64.3(L) * 16( W)

Driver IC:                      AIP31066

Interface:                      8-bit MPU interface

View Direction:              6 o'clock

PIN:                                16

Backlight:                      Yellow-Green LED




Drawing





General Specification


Item Standard Value Unit
  Display Type 16 Characters x 2 Lines Mm
  LCD Type STN,POSITIVE(Y-G),TRANSFLECTIVE Mm
  Driver Condition LCD Module : 1/16 Duty , 1/5 Bias
 Mm
  Viewing Direction 6 O'Clock Mm
  Backlight Type SIDE Y-G Mm
  Interface 8-bit MPU interface -
  Driver IC AIP31066 -
  Outline Dimension 85(L) * 30(W) * 11.8(T) mm
  Viewing Area 64.3(L) * 16( W) mm
  Dot size 0.56(W) ´ 0.61(H) mm
  Dot pitch 0.6(W) ´ 0.65(H) mm
  Character size 2.96(W) ´ 5.16(H) mm



Interface Definition


Pin No. Symbol Function
1 VSS Ground (0V)
2 VDD Supply Voltage for Logic (+5.0V )
3 VO Contrast Adjustment
4 RS Data/Instruction Select
5 R/W Read/Write Select
6 E Enable Signal
7 DB0 Data Bus
8 DB1 Data Bus
9 DB2 Data Bus
10 DB3 Data Bus
11 DB4 Data Bus
12 DB5 Data Bus
13 DB6 Data Bus
14 DB7 Data Bus
15 LED_A LED Power Supply + (5.0V)
16 LED_K LED Power Supply - (0V)
