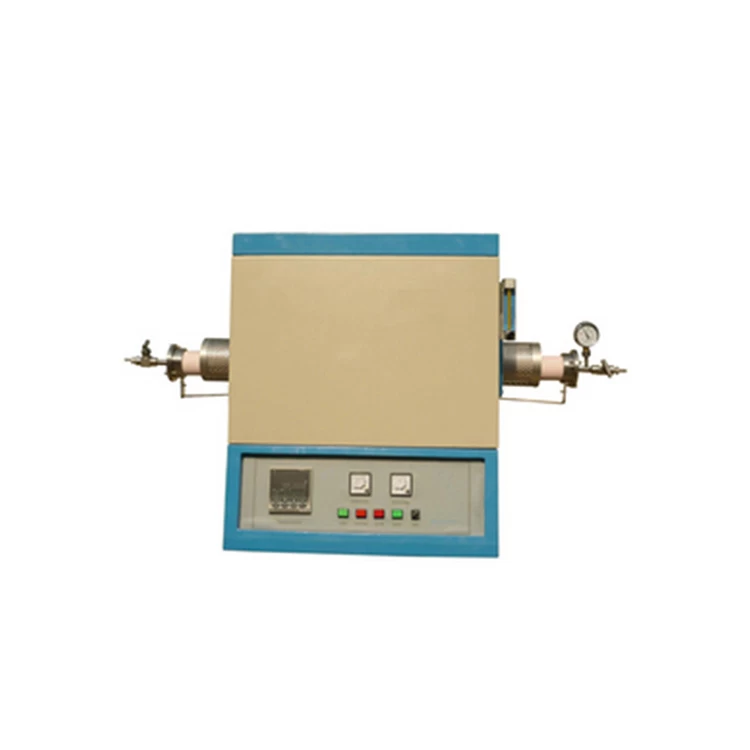

1600°C Single Zone Laboratory Tube Furnace with Vacuum Flanges and Corundum Tube
SPECIFICATIONS
The TOB-KTL1600 Modeltube furnaceis ahorizontal tube furnaceadopts Silicon molybdenum as heating element. 40 segments programmable temperature controllers are installed with 6 groups of PID adjustment.
It is the ideallaboratory equipmentfor universities, research institutes, industrial and mining enterprises to do High temperatureatmosphere sintering, Atmosphere reduction, CVD experimental, vacuum annealingsuch as for preparing nano materials and film.
|
Model
|
Tube Size
|
Power
|
Dimension
(L*W*H)
|
Voltage
|
Heating Zone
Length
|
Max Heating
Temperature
|
|
TOB-KTL1600-I
|
Φ60*1000mm
|
4kw
|
650*450*670mm
|
AC110V/220V
|
260mm
|
1600℃
|
|
TOB-KTL1600-II
|
Φ80*1000mm
|
4kw
|
650*450*670mm
|
|
TOB-KTL1600-III
|
Φ100*1000mm
|
4kw
|
650*500*700mm
|
|
Heating element
|
1800 type Silicon molybdenum
|
|
Temperature controller
|
40 program temperature control system,
With over temperature, broken accidentally protection function,
6 groups of PID adjustment
Control precision of + / - 1 ℃
|
|
Furnace chamber
|
1800 type Polycrystal alumina fiber
|
|
Tube material
|
99 alumina tube
|
|
Vacuum Flange &
Fitting Ports
|
Stainless steel flange with Gas nozzle, valve, pressure gauge
|
|
Pressure measure
system
|
Pressure gauge (Resistance vacuum gauge can be chosen according requirements)
|
|
Air intake control
|
Flow meter (Protons flow controller can be chosen according requirements )
|
|
Vacuum system
|
Vacuum pump can be chosen
|
|
Warranty
|
One year limited warranty with lifetime support
|
