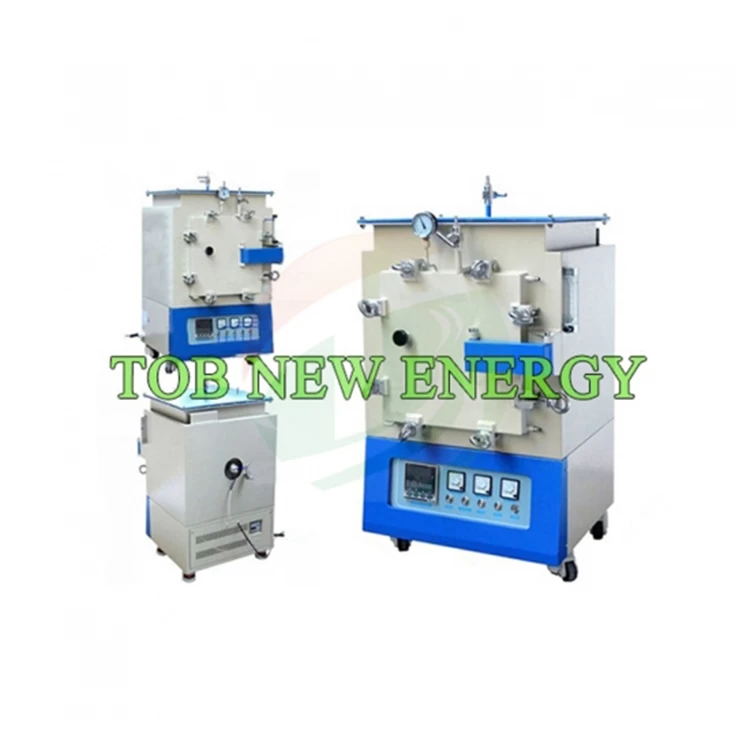

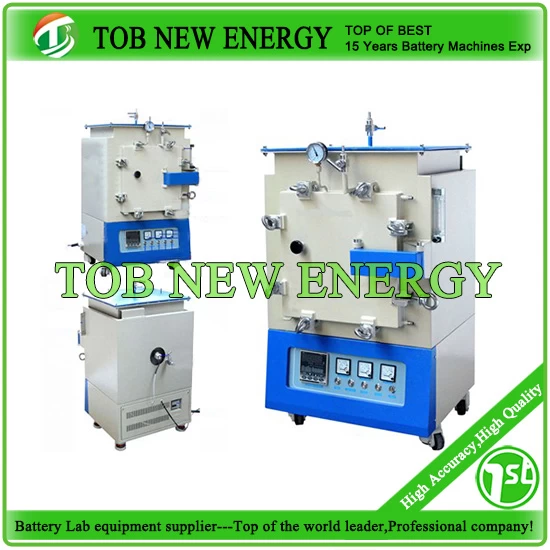

1600 ℃ atmosphere chamber furnace

1600 ℃ atmosphere chamber furnace



1600 ℃ atmosphere chamber furnaces


SPECIFICATIONS



TYPE

TOB-DSP-GF1600-I

TOB-DSP-GF1600-II

TOB-DSP-GF1600-III

TOB-DSP-GF1600-IV

TOB-DSP-GF1600-V

TOB-DSP-GF1600-VI

Power

3KW

5KW

7 KW

9KW

13 KW

27KW

Furnace tube size(mm)

160X150X150

200X200X200

300X200X200

300X250X250

400X300X300

500X400X400

Dimension

550X470X 810

600X 510X860

600X 610X860

 650X610X940

700X710X1355

880X710X 1355

Power supply voltage

220V

380V

Phase number

Single-phase

Three Phase

Heating element

1800 type silicon molybdenum rod

Temperature control mode

一.Yudian temperature control

30 sections can only use PID temperature regulation.

二.FP93 temperature control (from Japan)

(Replace imported instruments, for an additional fee)

1,40 section program temperature control can be divided into 4,2,1 group program,

if the program is divided into four groups, each program segment 10,

2,6 group PID control, low, medium and high temperature can each with a set of PID,

such that each segment is capable of controlling the temperature is very accurate.

Control accuracy

+/- 1 ℃

Triggers

1.Phase trigger (with soft start and current limiting function)

2.Current limiting function: no matter how to adjust the heating time,

our furnace transformer secondary current through the post is limited to 160A,

limited protection of equipment, no matter how you operate, the device will not burn.

3.Soft-start function: When the power current will slowly increase,

the impact on the heating element is small, help extend the life of the heating element

SCR

106 / 16E Germany Semikron

Max temperature

1600℃

Rated temperature

1550 ℃

Heating rate

≤20 ℃ / Min (available upon request modification)

Recommended heating rate

≤10 ℃ / Min



Thermocouple Type

Type B

Certification

CE

Surrounding surface temperature

≤45℃


Maximum temperature use in a variety of atmosphere

Atmosphere

Max temperature

NO2,CO2,O2,Air

1600℃

He,Ar,Ne

1550℃

SO2

1500℃

CO,N2

1500℃

Wet H2

1300℃

Dry H2

1250℃
