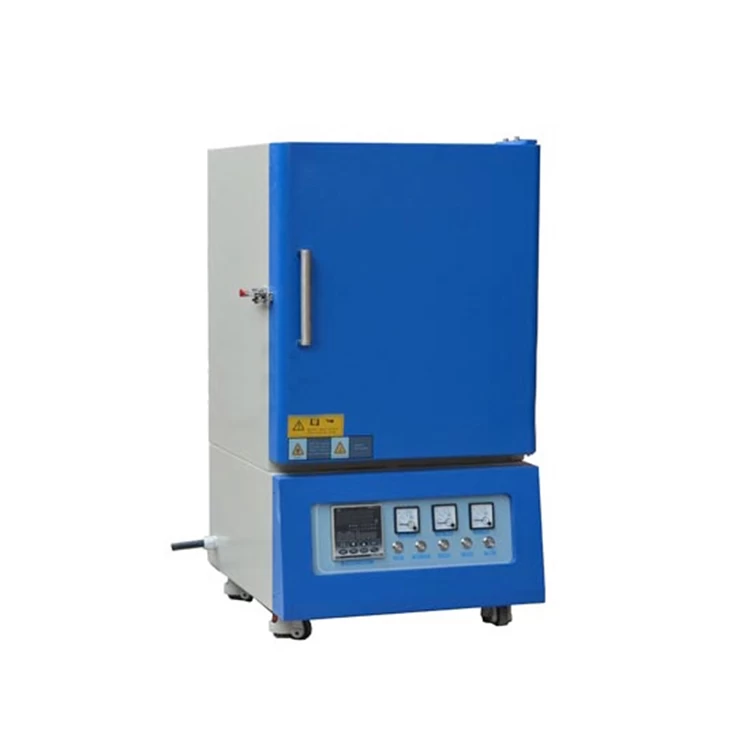

1600 ℃ Laboratory High Temperature chamber furnace



1600 chamber furnaces


SPECIFICATIONS



Model

TOB-DSP-KF1600-I

TOB-DSP-KF1600-II

TOB-DSP-KF1600-III

TOB-DSP-KF1600-IV

TOB-DSP-KF1600-VI

TOB-DSP-KF1600-VI

TOB-DSP-KF1600-VII

Power

3 KW

5KW

7KW

9KW

12KW

21KW

65KW

Furnace tube size(mm)

160X150X150

200X200X200

300X200X200

300X250X250

400X300X300

500X400X400

1200X600X600

Dimension

510X490X780

560X550X850

560X630X850

610X630X930

660X730X1340

910X900X1500

1670X1180X1500

Power supply voltage

220V

380V

Phase number

Single-phase

Three Phase

Heating element

1700 type silicon molybdenum rod

Temperature control mode

一.Yudian temperature control

30 sections can only use PID temperature regulation.

二.FP93 temperature control (from Japan)

(Replace imported instruments, for an additional fee)

1,40 section program temperature control can be divided into 4,2,1 group program,

 if the program is divided into four groups, each program segment 10,

2,6 group PID control, low, medium and high temperature can each with a set of PID,

 such that each segment is capable of controlling the temperature is very accurate.

Control accuracy

+/- 1 ℃

Heating rate

≤30 ℃/ Min

Recommended heating rate

15℃/ Min

Max temperature

1600 ℃

Rated temperature

1550 ℃

Surrounding surface temperature

≤35℃

Thermocouple Type

Type B

Triggers

1.Phase trigger (with soft start and current limiting function)

2.Current limiting function: no matter how to adjust the heating time,

our furnace transformer secondary current through the post is limited to 160A,

limited protection of equipment, no matter how you operate, the device will not burn.

3.Soft-start function: When the power current will slowly increase,

the impact on the heating element is small, help extend the life of the heating element

SCR

106 / 16E Germany Semikron

Certification

CE
