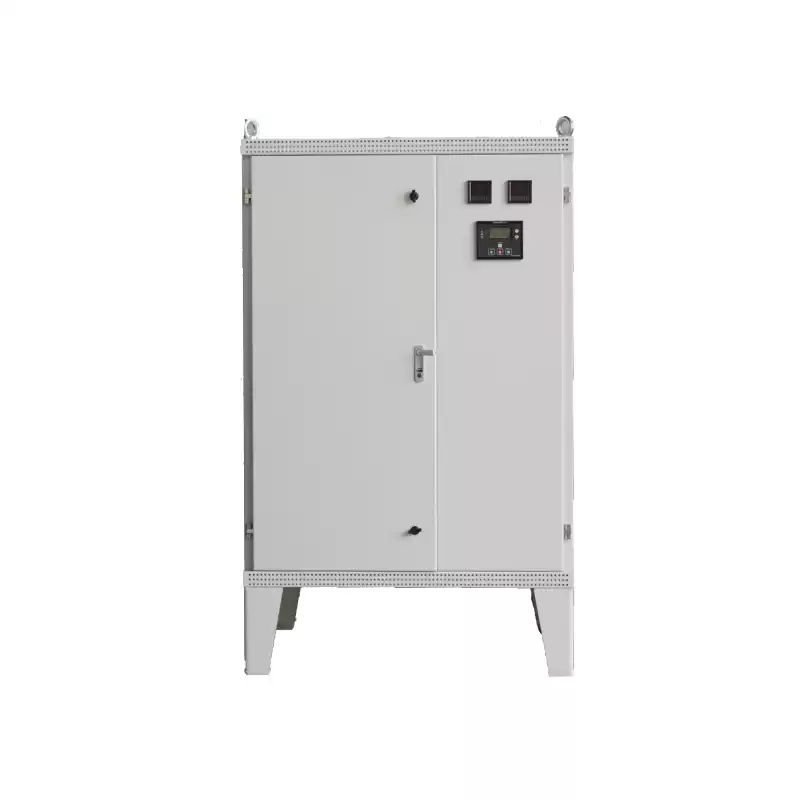

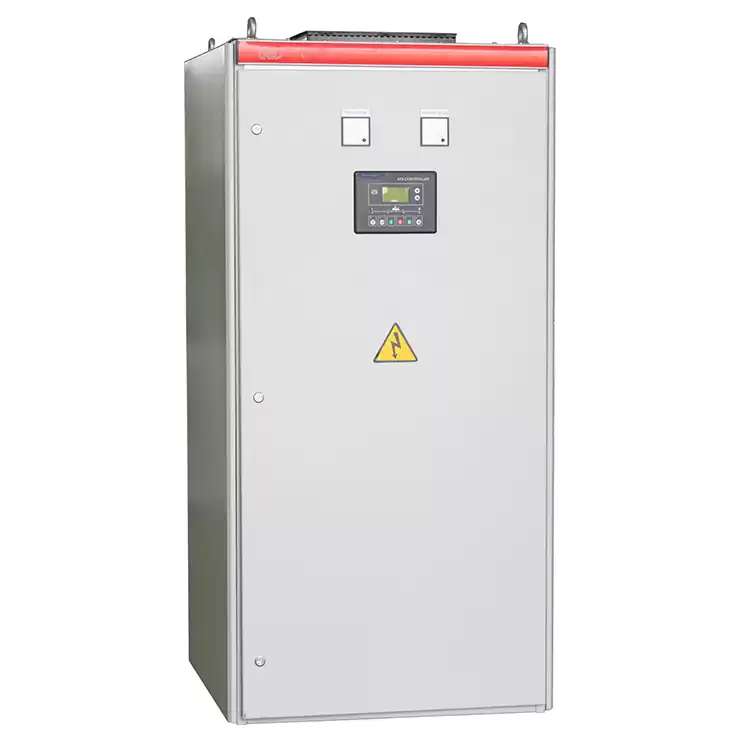

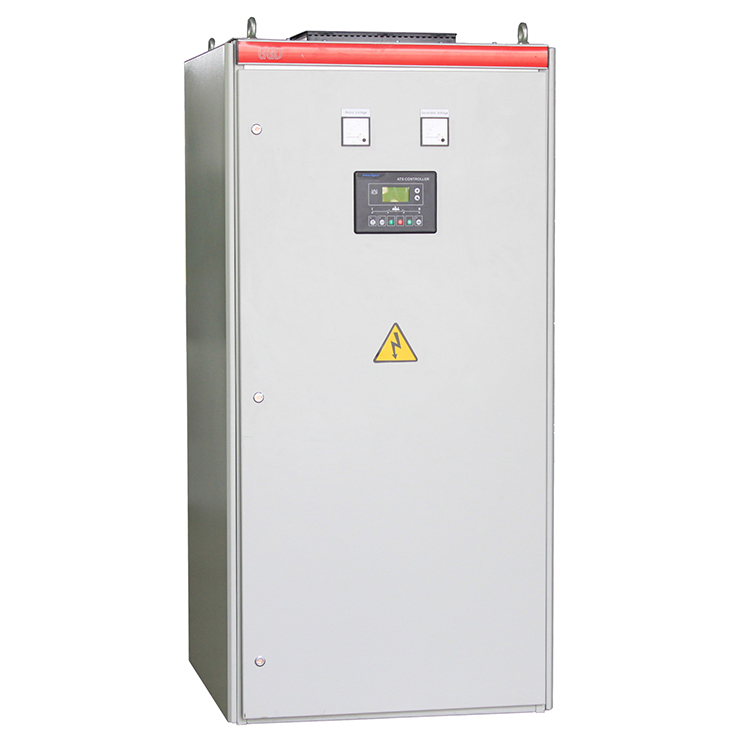

1600A To 3200A ATS Automatic Transfer Switch Dual Power For Generator Set
-
The movable and static contacts are made of 99.99% high-purity T2 copper, the outer casing is made of SMC or ABS material, and the three-proof process is used. The AC-33A grade product has high reliability and long service life;
-
During the conversion process and after the closing, the pressure between the moving and static contacts is constant, and the equipment failure caused by the high voltage pulse generated by the bumping or shaking of the contact is minimized;
-
The current coverage range is 6A-6300A, which can easily meet the diversified load requirements of civil, industrial and commercial applications. It is applicable to the first, second and third-level distribution network systems in the low-voltage power distribution field.
Performance:
|
1, Double complex contact, horizontal and vertical type frame basically, it have come to "Zero" arc(no arc chute);
|
2, Reliable machine interlock and elecric interlock, the executive union parts adopt independency overload disconnect switch,
it makes more reliable and safety.
|
|
3, "zero" techinique, can force to set"zero" under emergency situation(break off two ways power supply at the same time).Meet the requirement of the fire protection linkage.
|
4, Operate overload disconnect switch change over adopt singless electromotor drive, switch over smooth and reliable, no noise,
little wallop
|
|
5, Operate machine drive motor use only under the executive overload disconnect switch change over instanecus current across, outstanding energy saying.
|
6, Perform overload disconnect switch with mechanism interlock device. It ensure the common use, standby power working
reliable and not interference.
|
|
7, Distinct on and off position indicator, padlock function et.c safe realize the isolator between electric power and overload
|
|
8, High security, high automatization, high retiablility, use life more than 8000times
|
Application:
SKT ATS used in Generator system, to changeover two power sources. Widely used at the field of
important power supply site,which transport, distribution power supply system and automatization system.
For fire protection, hospital, bank, building etc, where doesn't allowed power off.

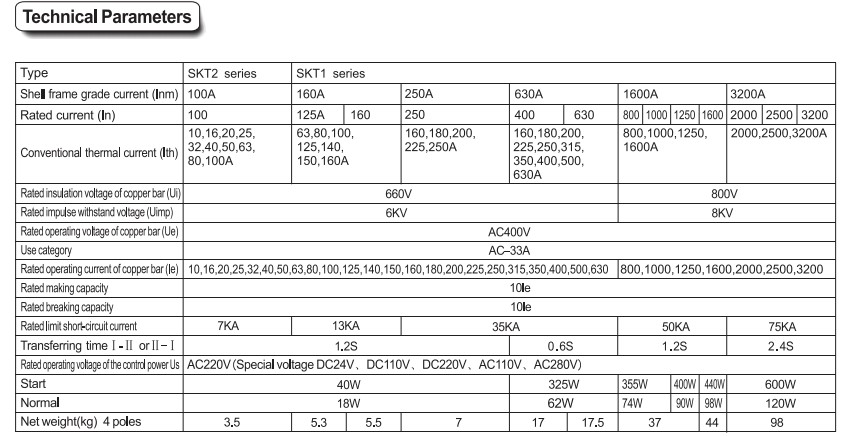

ATS Specifications:
|
Manufacturer
|
XIAMEN AI POWER TECHNOLOGY CO., LTD.
|
|
ATS module Brand
|
Aisikai
|
|
ATS model
|
YAT2500
|
|
Capacity(A)
|
2500
|
|
Voltage(V)
|
400V, 380V, 220V, 480V
|
|
Poles
|
4 poles
|
|
Type
|
Double Power
|
|
Type
|
PC
|
|
Agreed thermal current Ith
|
2500A
|
|
Rated insulation voltage Ui
|
1000V
|
|
Rated impulse withstand voltage Uimp
|
12kV
|
|
Rated voltage of the switch copper
|
AC 440V
|
|
Rated work current Ie
|
2500A
|
|
Rated connection capability
|
10 Ie
|
|
Rated breaking capability
|
10 Ie
|
|
Rated conditional short-circuit current
|
80 kA
|
|
Rated short-time withstand current Is
|
35 kA
|
|
Trasfer time 1 - 2 or 2 - 1
|
2.4 s
|
|
Control voltage of the switch motor
|
DC24V AC220V AC280V
|

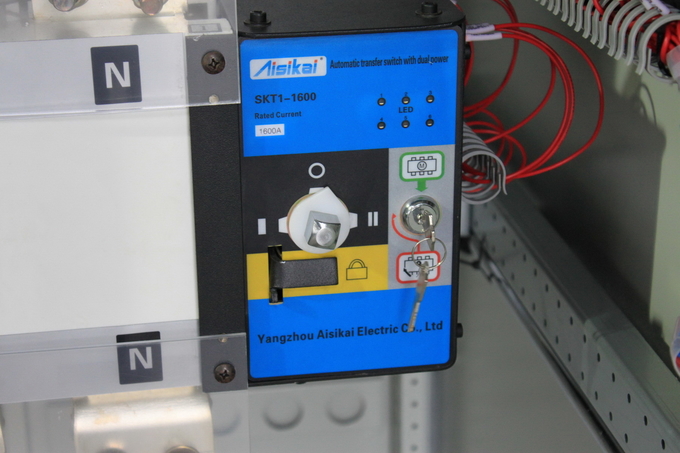

SKT series automatic transfer switch is the most advanced third generation ATS. It's of PC Class (one-piece structure). SKT standard type is able to operate the current from 20A to 3200A.
Its use category reaches the highest AC-33A, is suitable for reliable
STANDARDS
IEC60947-6-1
GB/T14048.11
FEATURES
-
Voltage and Switch Working Conditions Indications Using LED
-
External Replaceable Fuses, Easy For Maintenance
-
Built-in Microprogrammed Control Unit Realise Voltage Dectection Function
-
Silver Plated High Purity Copper Bars
-
Brige Connect Structure on Load Side
-
Three-Sections Design (I β 0 β II), Zero Position For Dual Powers Off
-
Pluggable Wiring Terminals
-
Mechanical Interlock & Electrical Interlock
FAQ
1.Are you a factory or trading company?
A: We are a factory.
2.What is the material of your products?
A: Iron, Steel, plastic, etc.
3.How about quality control in your factory?
A: AI people are always paying great attentions to quality controlling from the beginning to the end.
4.How about your guarantee?
A: Our warranty period is 1 year or 1000 running hours, whichever comes first.
