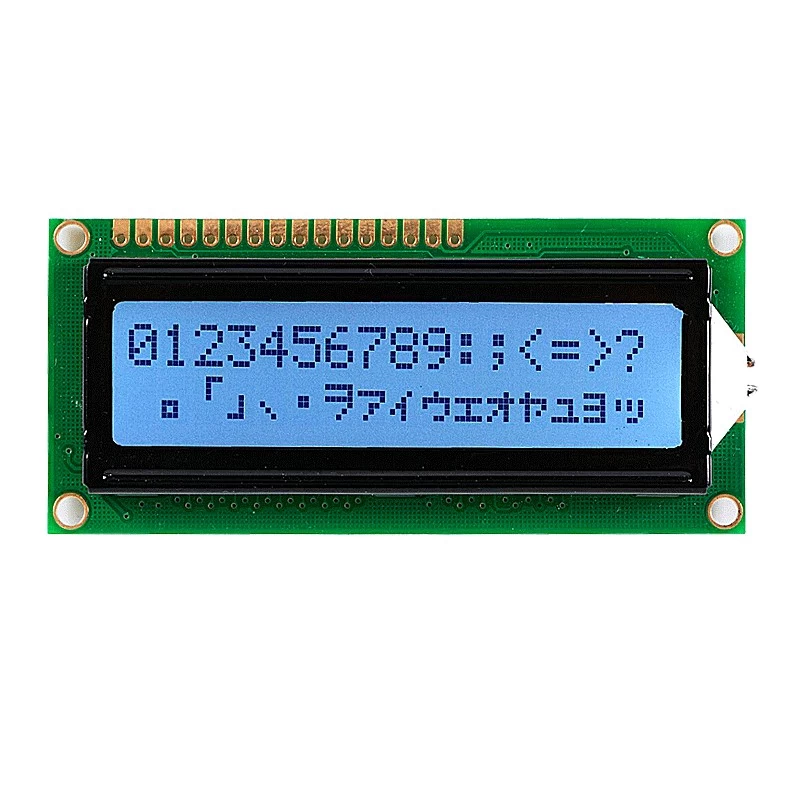

Basic Information
LCD Type: STN/NEGATIVE(BLUE)//TRANSMISSIVE
Resolution: 16*2
Outline Dimension: 80(L) * 36(W) * 11.8(T)
View area: 64.3(L) * 16( W)
Driver IC: AIP31066
View Direction: 6 o'clock
PIN: 16
Backlight: Yellow-Green LED
General Specification
|
Item
|
Standard Value
|
Unit
|
|
Display Type
|
16 Characters x 2 Lines
|
Mm
|
|
LCD Type
|
STN,NEGATIVE(BLUE),TRANSMISSIVE
|
Mm
|
|
Driver Condition
|
LCD Module : 1/16 Duty , 1/5 Bias
|
Mm
|
|
Viewing Direction
|
6 O'Clock
|
Mm
|
|
Backlight Type
|
SIDE WHIET
|
Mm
|
|
Interface
|
8-bit MPU interface
|
-
|
|
Driver IC
|
AIP31066
|
-
|
|
Outline Dimension
|
80(L) * 36(W) * 11.8(T)
|
mm
|
|
Viewing Area
|
64.3(L) * 16( W)
|
mm
|
|
Dot size
|
0.56(W) ´ 0.61(H)
|
mm
|
|
Dot pitch
|
0.6(W) ´ 0.65(H)
|
mm
|
|
Character size
|
2.96(W) ´ 5.16(H)
|
mm
|
Interface Definition
|
Pin No.
|
Symbol
|
Function
|
|
1
|
VSS
|
Ground (0V)
|
|
2
|
VDD
|
Supply Voltage for Logic (+5.0V )
|
|
3
|
VO
|
Contrast Adjustment
|
|
4
|
RS
|
Data/Instruction Select
|
|
5
|
R/W
|
Read/Write Select
|
|
6
|
E
|
Enable Signal
|
|
7
|
DB0
|
Data Bus
|
|
8
|
DB1
|
Data Bus
|
|
9
|
DB2
|
Data Bus
|
|
10
|
DB3
|
Data Bus
|
|
11
|
DB4
|
Data Bus
|
|
12
|
DB5
|
Data Bus
|
|
13
|
DB6
|
Data Bus
|
|
14
|
DB7
|
Data Bus
|
|
15
|
LED_A
|
LED Power Supply + (5.0V)
|
|
16
|
LED_K
|
LED Power Supply - (0V)
|
