1602 Character LCD display without backlight STN-GRAY Positive Reflective COG 2.25inch

SC1602013-V01 is a Character LCD Display with 16*2 resolution, it built in with ST7032-0D IC, 15 PIN, 6 o'clock View direction.


  • Driver ICST7032-0D
  • Interface-
  • Viewing Area (mm)61.0*10.8
  • Outline Dimension (mm)65.0*27.7*2.8
  • Resolution16*2
  • BacklightNo Backlight
  • PIN15
Facebook Twitter Pinterest LinkedIn 分享

Basic Information


LCD Type:                     STN/GRAY/POSITIVE/REFLECTIVE

Resolution:                   16*2

Outline Dimension:       65.00*27.70*2.80

View area:                     61*15.7

View Direction:              6 o'clock

PIN:                                15

Backlight:                      No backlight




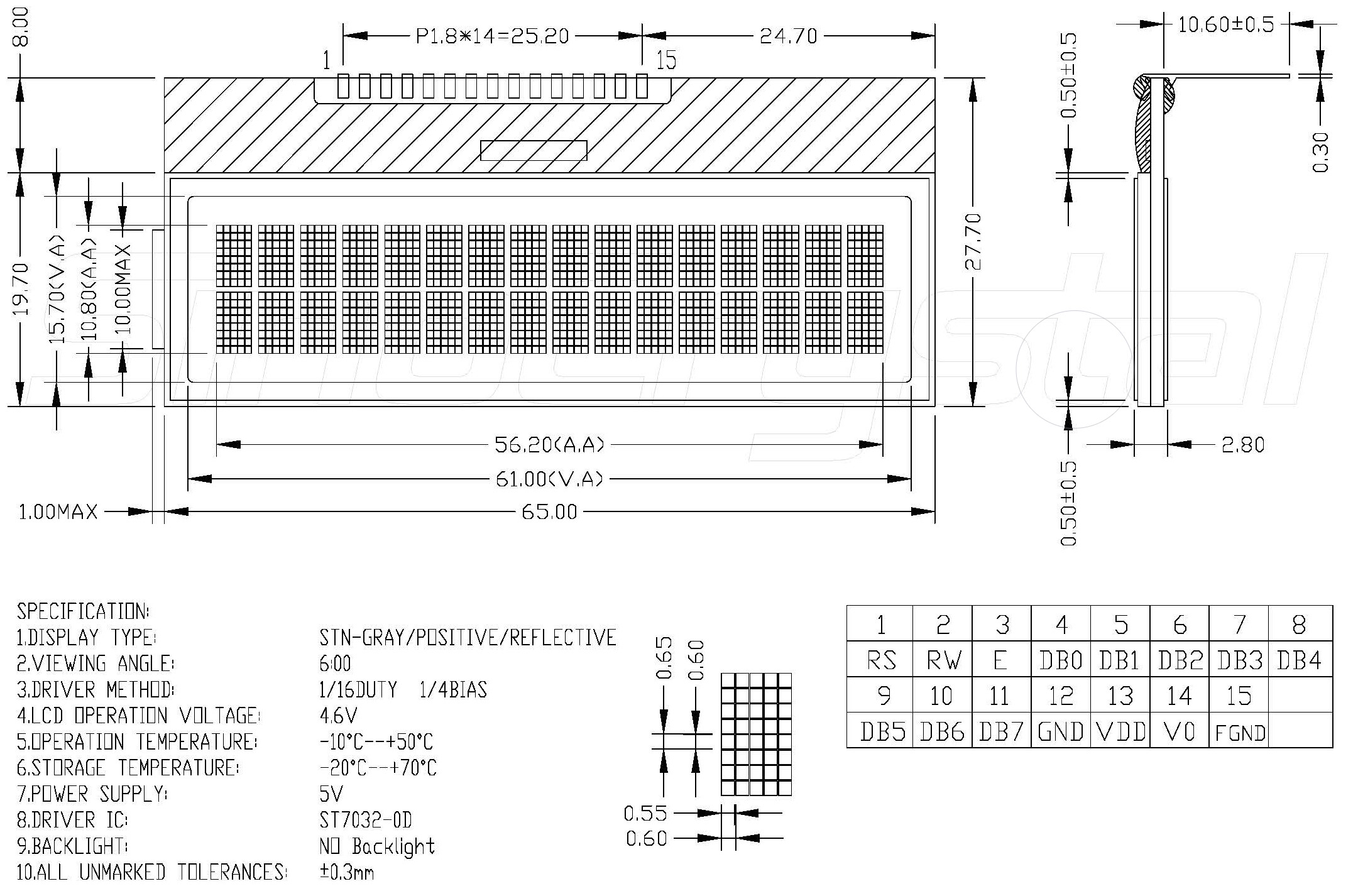

Drawing





General Specification


ITEM STANDARD VALUE UNIT
  NUMBER OF CHARACTER 16×2 Mm
  MODULE DIMENSION 65.0×27.7×10.6(MAX) Mm
  VIEWING AREA 61.0×15.7 Mm
  DOT SIZE 0.55×0.65 Mm
  DOT PITCH 0.60×0.65 Mm
  LCD TYPE STN/GRAY/POSITIVE/REFLECTIVE
  DUTY 1/16
  VIEWING DIRECTION 6:00 o'clock
  BACK LIGHT TYPE/BACK LIGHT COLOR NO BACKLIGHT
  APPROX. WEIGHT TBD G



Interface Definition


Pin No. Symbol Level Description
1 RS H/L Register selection input
H : Indicate that DB0 to DB7 are display data.
L : Indicate that DB0 to DB7 are control data
2 RW H/L Read or Write signal
0 : Write
1 : Read
3 E H/L Enable signal
4--11 DB0-DB7 H/L 8-bit bi-directional data bus
12 GND -- Gound
13 VDD -- Supply voltage for logic
14 V0 -- Supply voltage for LCD
15 FGND -- Frame Ground
