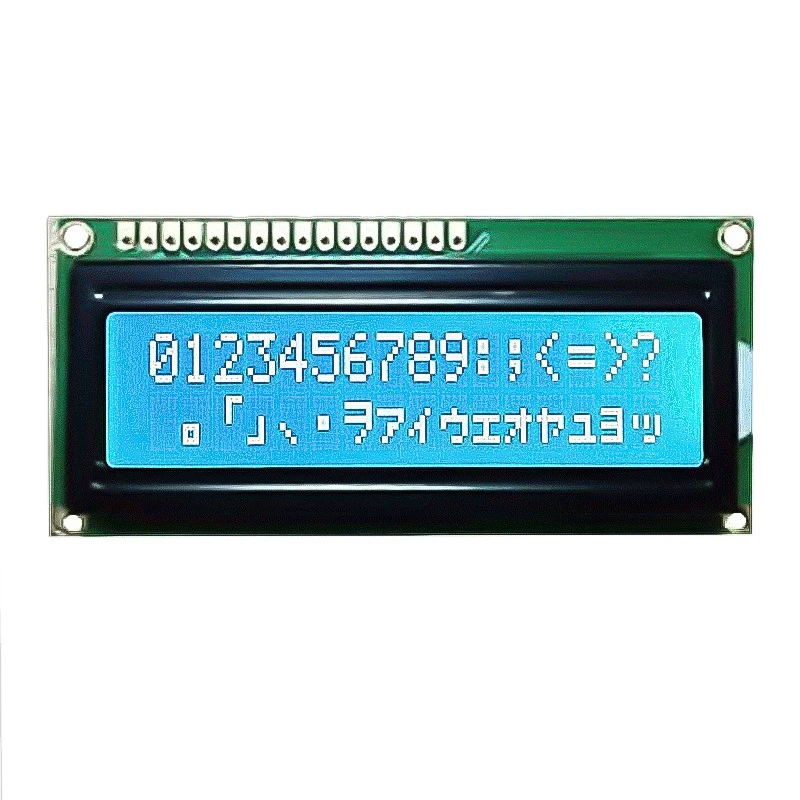

1602 Character LCD Screen with Yellow Green Stn AIP31066 IC Mono LCD Display

SC1602003-V01 is a Character LCD Display with 16*2 resolution, it built in with AIP31066 IC, it supports 8-bit MPU interface, 16 PIN, 6 o'clock View direction.

  • BacklightYellow-Green LED
  • Driver ICAIP31066
  • Interface8-bit MPU interface
  • Outline Dimension (mm)122*44*12.3
  • Viewing Area (mm)99*24
  • Resolution16*2
  • PIN16
Facebook Twitter Pinterest LinkedIn 分享

Basic Information


LCD Type:                      STN/Y-G/Positive/Transflective

Resolution:                    16*2

Outline Dimension:        122(L) * 44(W) * 12.3(T)

View area:                      99(L) * 24( W)

Driver IC:                       AIP31066

Interface:                       8-bit MPU interface

View Direction:              6 o'clock

PIN:                              16

Backlight:                      Yellow-Green LED




General Specification


Item Standard Value Unit
Display Type 16 Characters x 2 Lines Mm
LCD Type STN,POSITIVE(Y-G),TRANSFLECTIVE Mm
Driver Condition LCD Module : 1/16 Duty , 1/5 Bias Mm
Viewing Direction 6 O'Clock Mm
Backlight Type SIDE Y-G Mm
Interface 8-bit MPU interface -
Driver IC AIP31066 -
Outline Dimension 122(L) * 44(W) * 12.3(T) mm
Viewing Area 99(L) * 24( W) mm
Dot size 0.88(W) ´ 1.05(H) mm
Dot pitch 0.98(W) ´ 1.15(H) mm
Character size 4.8(W) ´ 7.95(H) mm



Interface Definition


Pin No. Symbol Function
1 VSS Ground (0V)
2 VDD Supply Voltage for Logic (+5.0V )
3 VO Contrast Adjustment
4 RS Data/Instruction Select
5 R/W Read/Write Select
6 E Enable Signal
7 DB0 Data Bus
8 DB1 Data Bus
9 DB2 Data Bus
10 DB3 Data Bus
11 DB4 Data Bus
12 DB5 Data Bus
13 DB6 Data Bus
14 DB7 Data Bus
15 LED_A LED Power Supply + (5.0V)
16 LED_K LED Power Supply - (0V)
