Working principle:

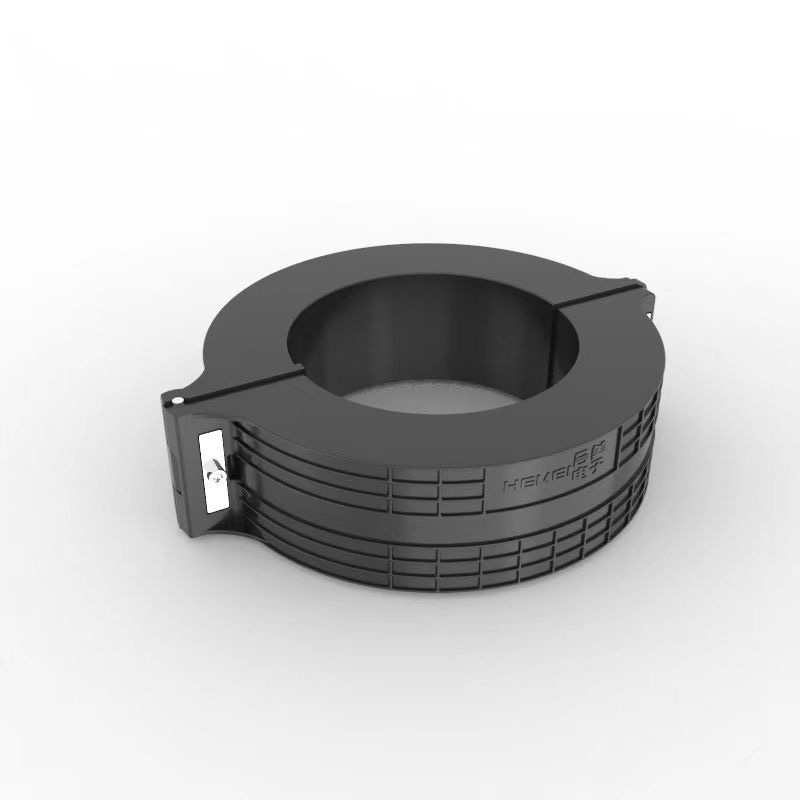

The harvesting energy current transformer transmits electrical quantities through the principle of electromagnetic induction; and based on the ratio value of the primary and secondary sides, it converts the large current in the primary side of the power system into the small current used by the secondary equipment.
Application：
High-voltage transmission lines/medium-voltage distribution networks/high-speed rail/underground mines/energy consumption monitoring/metallurgy/dock shore power/large pump industry/hydropower and wind power detection/water conservancy monitoring/new energy vehicles/smart power consumption/smart mines/civilian airports/others Industry application
-
New energy vehicles
-
Electricity industry
-
Underground mines
-
High-speed rail
-
metallurgy

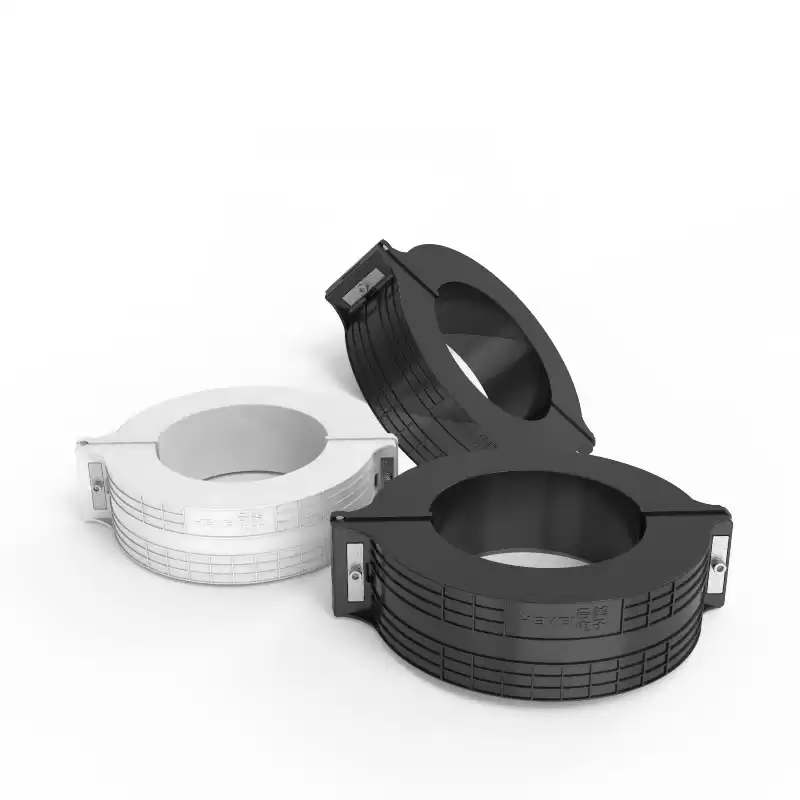

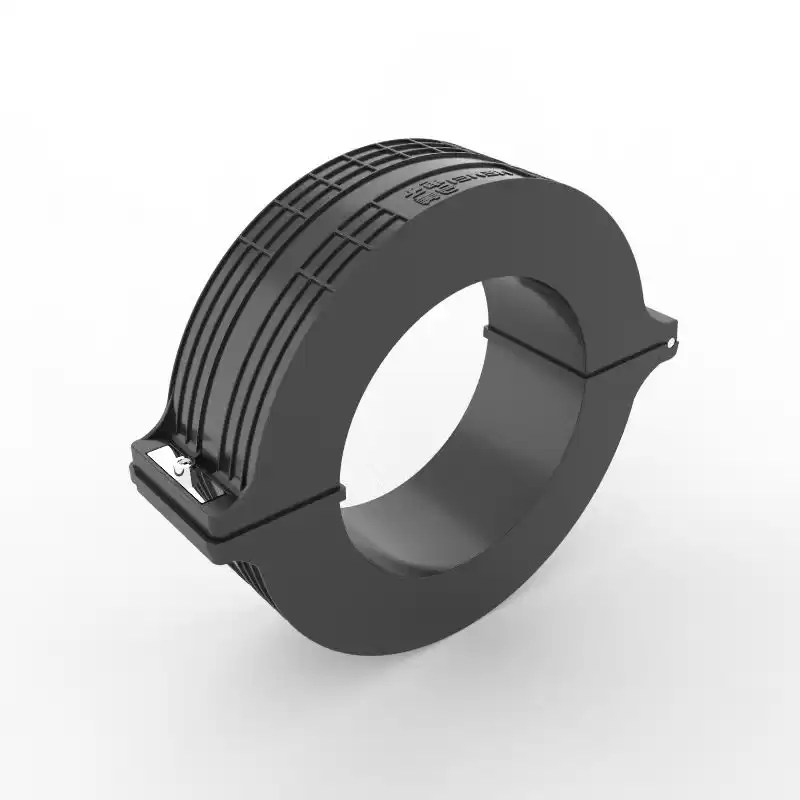

Harvesting Energy CT can be customised
|
Output Power
|
Inner diameter
|
Continuous current
|
Waterproof level
|
Voltage
|
Accuracy
|
Core Material
|
|
10A/0.5W
|
40mm
|
1250A
|
IP65~IP68 |
5～550KV
|
0.5
|
permalloy / silicon steel |
|
20A/3W
|
45mm
|
1250A
|
IP65~IP68 |
5～550KV
|
0.5
|
permalloy / silicon steel |
|
30A/5W
|
45mm
|
1250A
|
IP65~IP68 |
5～550KV
|
0.5
|
permalloy / silicon steel |
|
10A/1W
|
50mm
|
4000A
|
IP65~IP68 |
5～550KV
|
0.5
|
permalloy / silicon steel |
|
20A/3W
|
60mm
|
1250A
|
IP65~IP68 |
5～550KV
|
0.5
|
permalloy / silicon steel |
|
20A/4W
|
120mm
|
2000A
|
IP65~IP68 |
5～550KV
|
0.5
|
permalloy / silicon steel |
|
20A/3W
|
160mm
|
1250A
|
IP65~IP68 |
5～550KV
|
0.5
|
permalloy / silicon steel |
|
20A/5W
|
160mm
|
1250A
|
IP65~IP68 |
5～550KV
|
0.5
|
permalloy / silicon steel |
|
20A/3W
|
160mm
|
2000A
|
IP65~IP68 |
5～550KV
|
0.5
|
permalloy / silicon steel |
|
20A/3W
|
180mm
|
2000A
|
IP65~IP68 |
5～550KV
|
0.5
|
permalloy / silicon steel
|

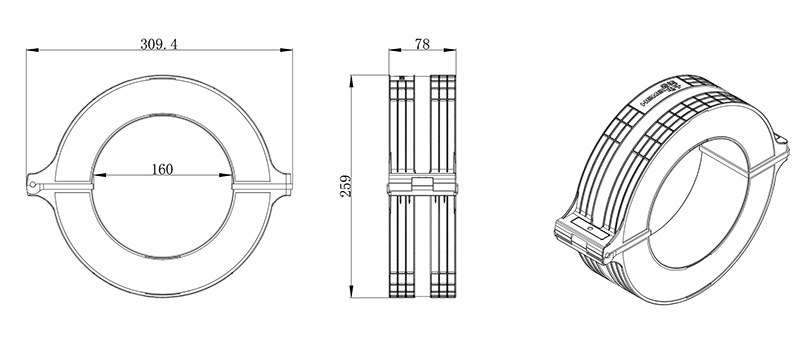

Dimension drawing：
Feature:
1. The harvesting energy CT is of open structure, easy to install and operate.
2. The inner diameter of the transformer can be selected according to the diameter of the primary high voltage line.
3. Transformers of different types and sizes can be matched according to the current of the primary side high voltage line.
4. Energy transformers and induction power modules are used.
5. Rational planning of load distribution according to the conventional operating values and power curves of the conductor currents.
6. Due to the magnetic circuit, there will be a slight ticking sound when the energy transformer is working, which is a normal phenomenon.
core advantages:
1. Manufacturing of opening and closing permalloy iron cores
Heat treatment technology, solidification technology, precision cutting technology, surface grinding technology
2. Opening and closing silicon steel core passivation and anti-rust technology
Metal oxide film, strong adhesion, no damage
3. Opening and closing structure (protection level IP68)
Elastic structure, precise closing, no vibration and noise, strong waterproof performance
4. AC measurement
0.01 level ultra-high precision measurement, wide frequency range
5.Magnetic shielding technology
Be familiar with the shielding mechanisms of various materials, and understand the characteristics and applications of various magnetic and metal materials
Hemei Electronics has a professional service team, if you have any questions about our harvesting energy current transformers or need us to customise the product for you, please feel free to leave a message below, our staff will solve your problem.
