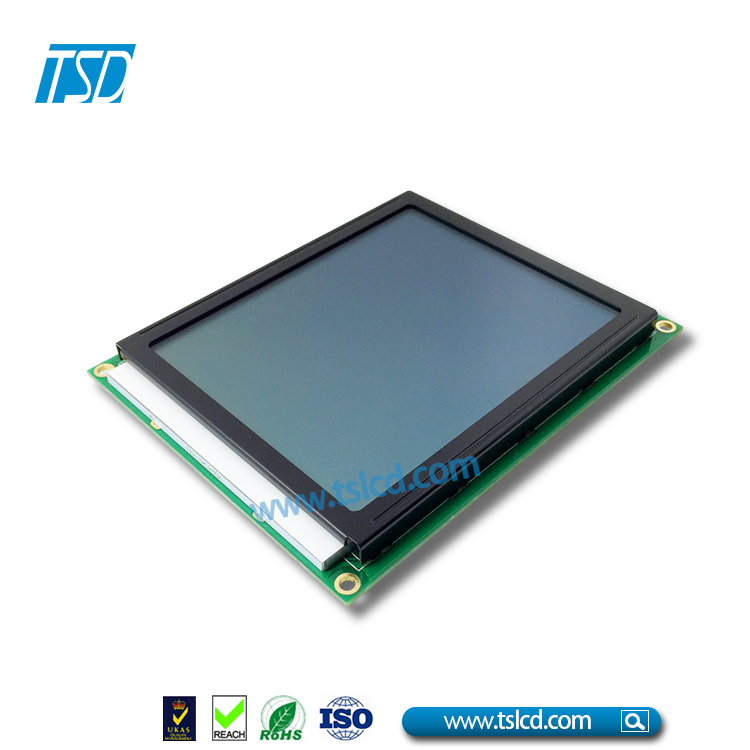

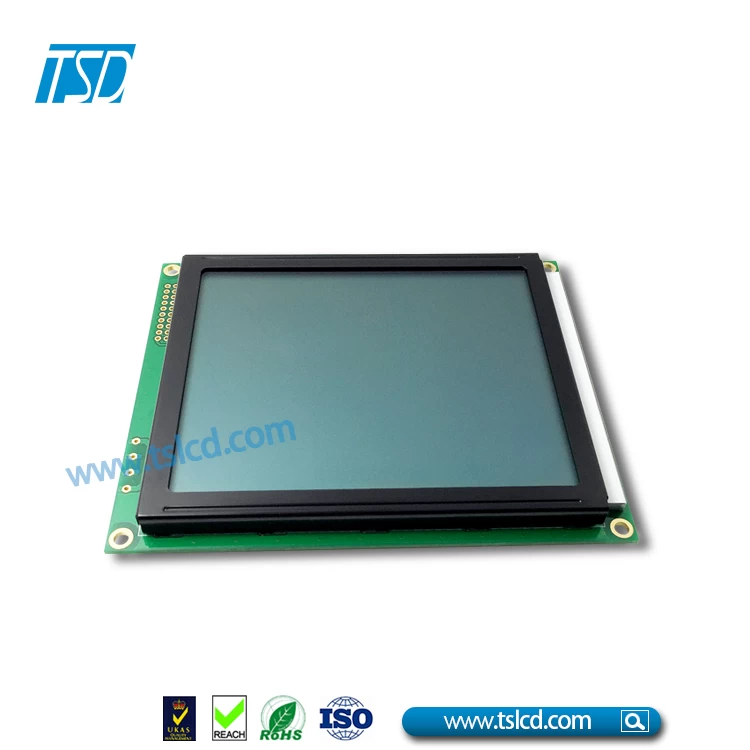

160x128 Dots COB Graphic Mono LCD Module with IC T6963C

160x128 dots graphic lcd module

COB technology

STN-YG/ STN-blue/FSTN positive

Price competitive


Facebook Twitter Pinterest LinkedIn 分享
Item Spec.
Display type STN,Blue,Negative,Transmissive
Description 160x128 dots lcd
Outline(mm) 129.0x102.0x12.1max
View Area(mm) 101.0x82.0
Active Area(mm) 92.76x74.2
Dot size 0.54x0.54mm
Dot pitch 0.58x0.58mm
Controller IC T6963C+NT7086
Viewing direction 6H
Operating temperature -20°C-70°C
Storage temperature -30°C-80°C
Drive Mode 1/128 DUTY, 1/12 BIAS, vop=15.0v
Backlight White LED
Polarizer Type Positive, Transflective
