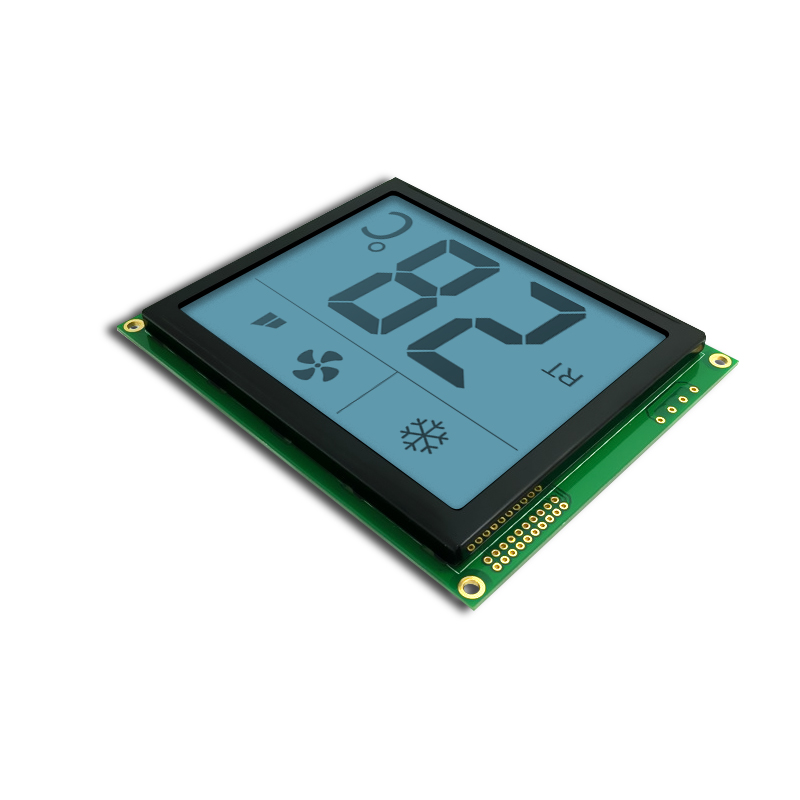

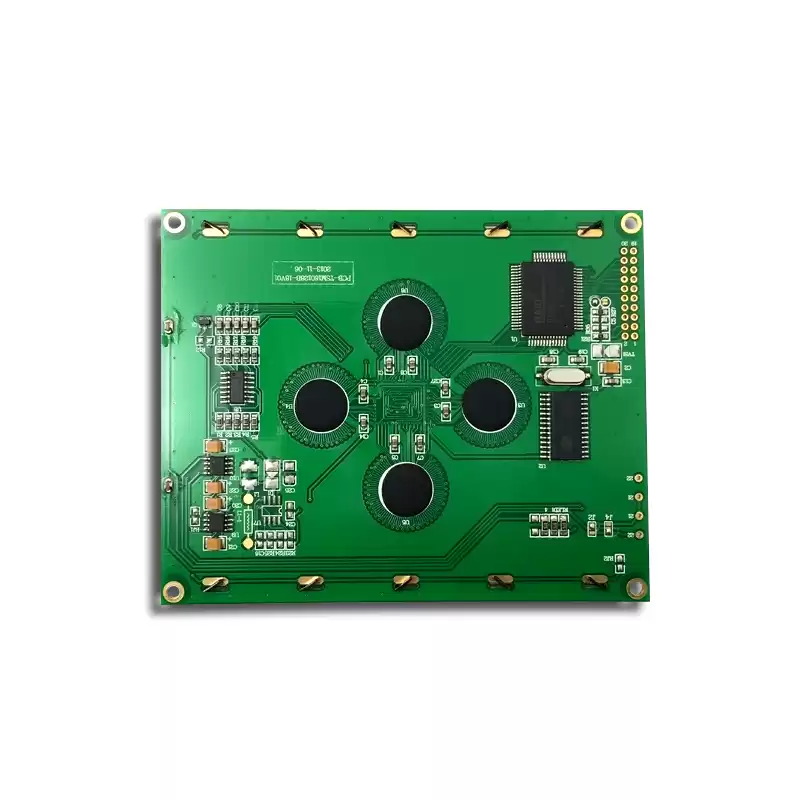

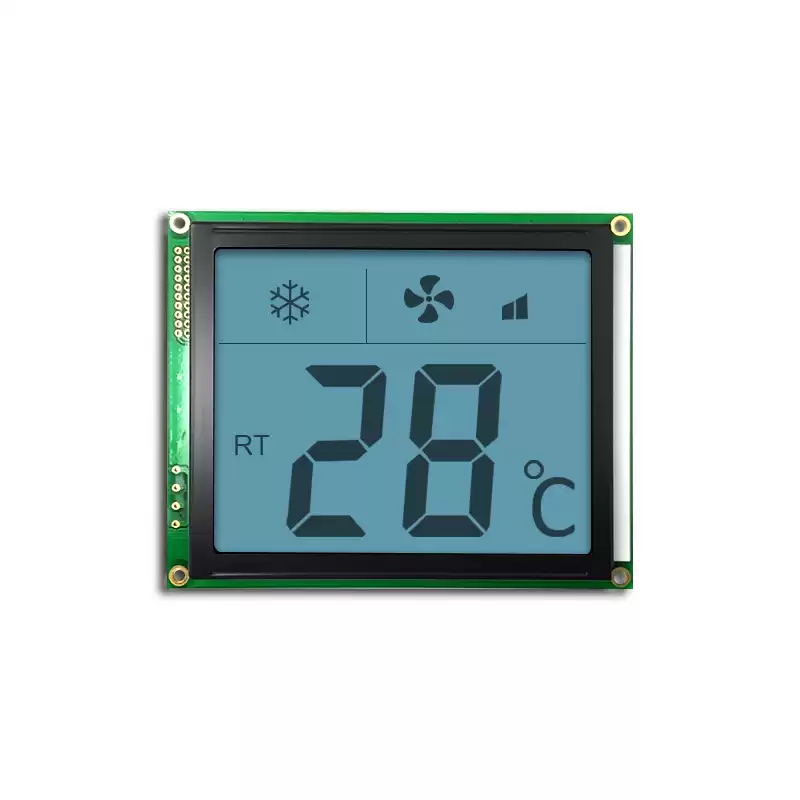

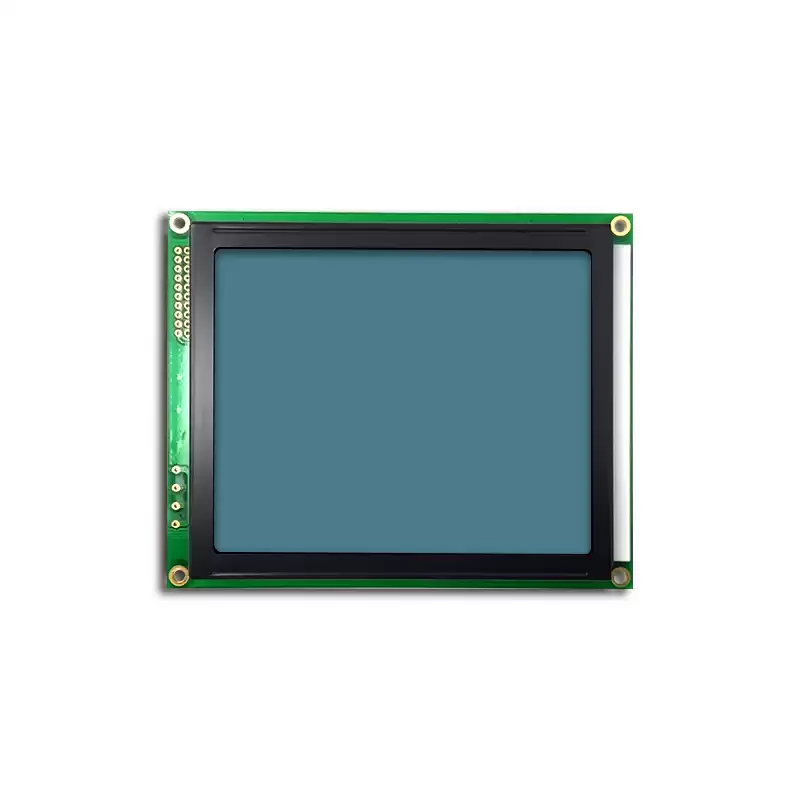

160X128 Monochrome Graphic Lcd Display Module
160X128 Monochrome Graphic Lcd Display Module
|
Number of dots
|
160*128 dots
|
|
Module Dimension(mm)
|
129.0*102*12.1 MAX
|
|
Active Area(mm)
|
101.0*82.0
|
|
Dot size
|
0.54(W)*0.54(H)
|
|
Dot pitch
|
0.58(W)*0.58(H)
|
|
Driving Method
|
1/128 DUTY,1/12,BIAS,VOP=15.0V
|
|
Viewing direction
|
6H
|
|
Operating Temperature
|
-20 to 70
|
|
Storage Temperature
|
-30 to 80
|
|
Backlight
|
White
|
|
Driver IC
|
T6963C+NT7086
|
|
Display Mode
|
STN ,Blue
|
|
Display type
|
Transmissive,Negative
|
