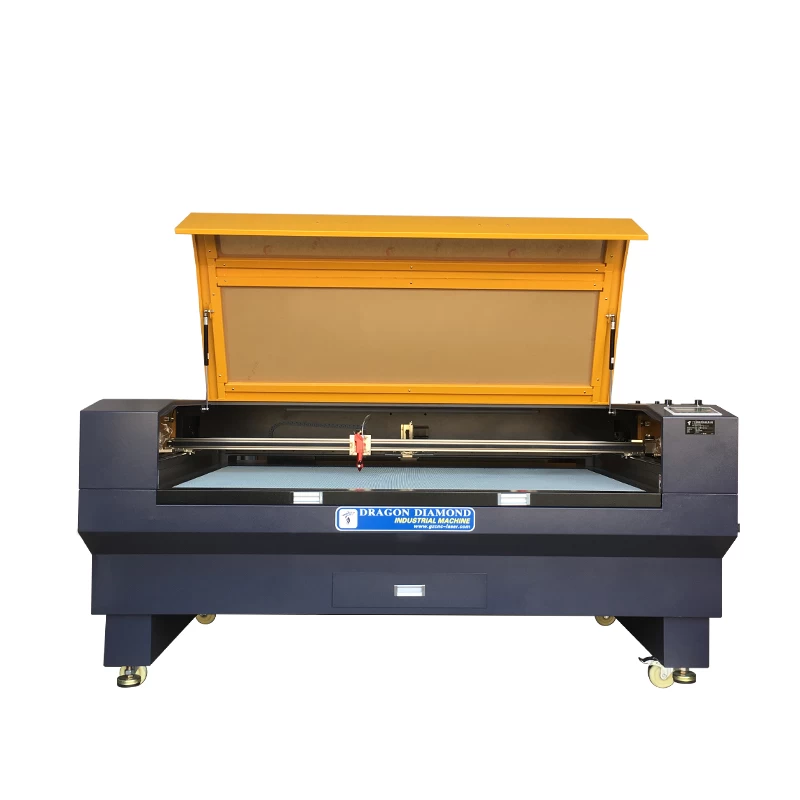

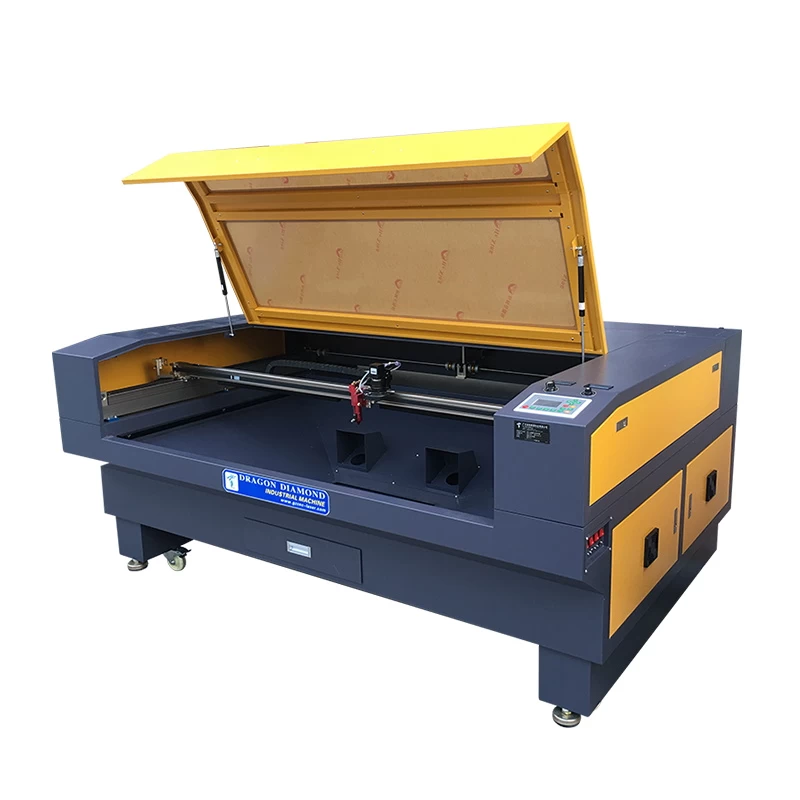

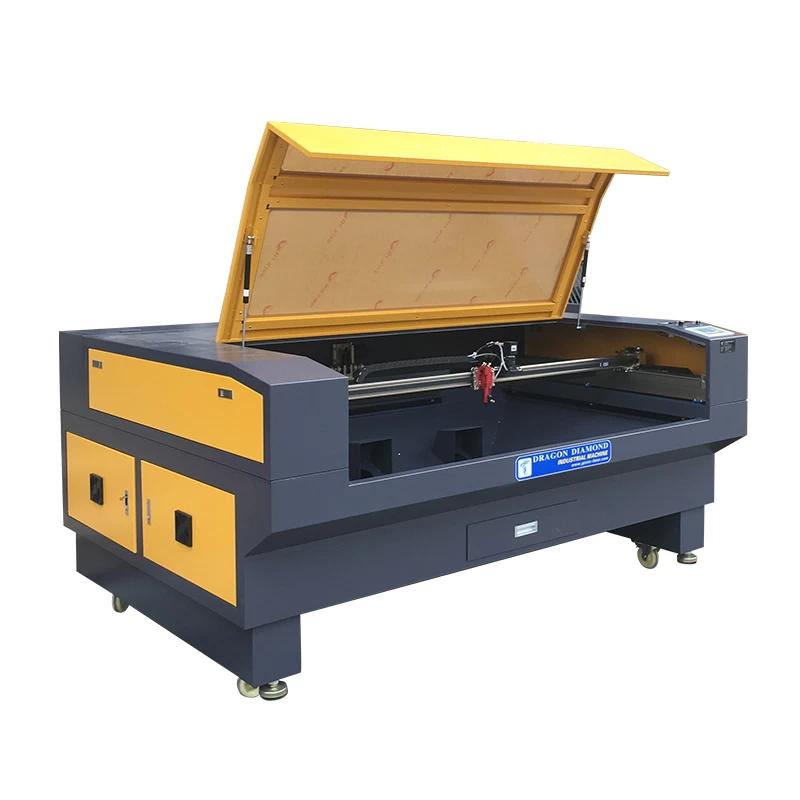

1610CCD Camera Laser Cutting Engraving Machine Crafts Products
PRODUCT PARAMETER
|
NO.
|
Model
|
Lz-1610CCD
|
|
1
|
Working Area
|
1460x980mm
|
|
2
|
Packing Size
|
2300x1650x1300mm
|
|
3
|
Working Table
|
HoneyComb Table
|
|
4
|
Laser tube type
|
CO2 sealed laser tube
|
|
5
|
Cooling System
|
Water Chiller CW5200
|
|
6
|
Control System
|
RUIDA6442G
|
|
7
|
Software
|
RD Work
|
|
8
|
Software supported
|
CorelDraw,Photoshop,AutoCAD,TAJIMA
|
|
9
|
File output mode
|
2.0 USB interface
|
|
10
|
Laser power
|
60~150W for option
|
|
11
|
Motor
|
Leadshine Stepper motor
|
|
12
|
Resolution
|
1,000--10,000 dpi
|
|
13
|
Machine Power
|
<3,000W
|
|
14
|
Minimum Character Size
|
English1.0×1.0mm
|
|
15
|
Engraving speed
|
0-40000mm/min
|
|
16
|
Cutting speed
|
0-10000mm/min
|
|
17
|
Reposition Accuracy
|
0.01mm
|
|
18
|
Graphic format supported
|
BMP, PLT, DST, DXF, AI
|
|
19
|
Voltage
|
AC220V/110V,50HZ/60HZ
|
APPLICABLE MATERIALS
Rubber, plastic, cloth, leather, woollens, crystal, organic glass, tile, jade, bamboo, wood, etc.

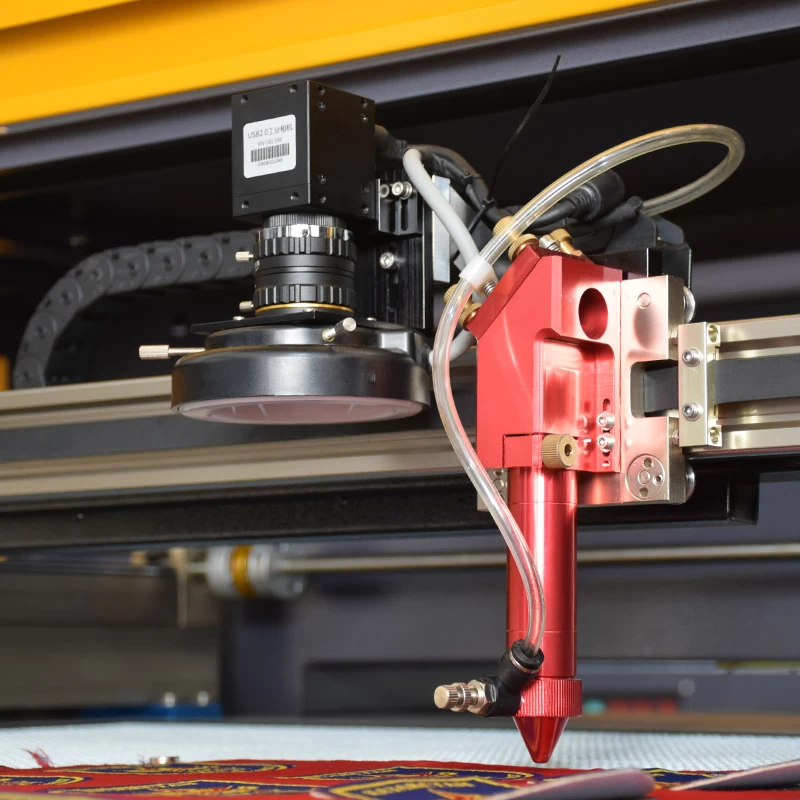

The CCD camera equipped with the ccd camera laser cutting machine can quickly scan the entire processing format before cutting, and then identify the reference point and position the material, so as to achieve a more accurate cutting effect. ccd camera laser cutting machine is very popular in textile field.
APPLICABLE INDUSTRYS
Rubber, plastic, cloth toys, leather, computer embroidery cutting, mould, crafts, bamboo and wood, advertising and building decoration, packaging and printing, paper products.
TYPICAL APPLICATION
Acrylic crystal words, acrylic fish tank, ceramic crafts, rubber board printing, applique, special-shaped trademark, engraving and hollowing out patterns or designs on garment and leather.
PRODUCT FEATURES

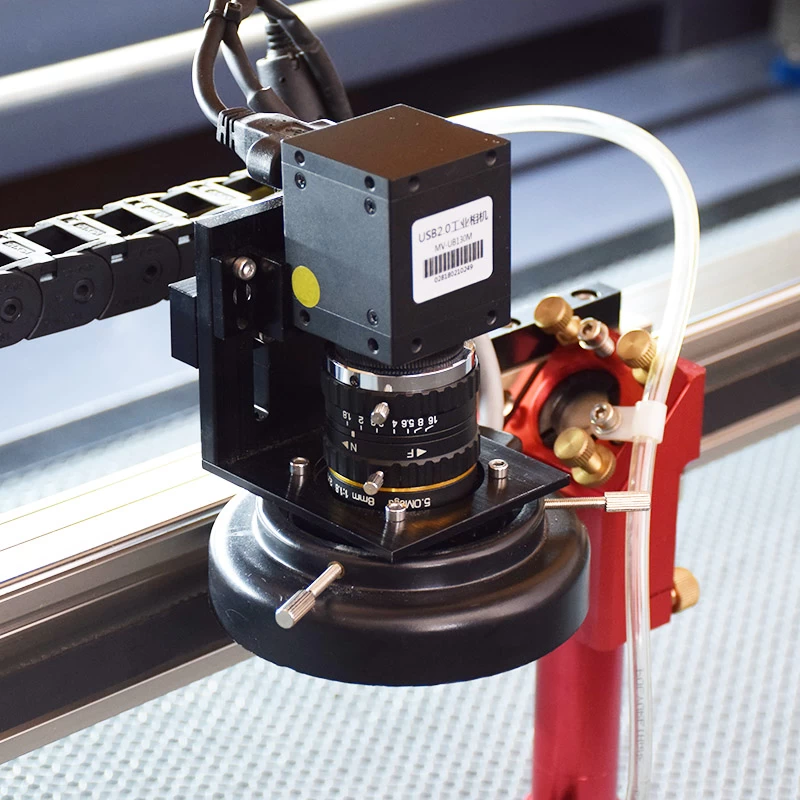

1.The Camera in Automatic Camera Positioning Cutting Machine reflects very fast with high frame rate. It’s much easier to install and adjust. One time position fixing will be OK for total work.
2.Has professional visual light source .During working process, it can automatically intake the pictures into computer by the visual system. Through treatment, it can automatically search for the work and position accurately to cut.
