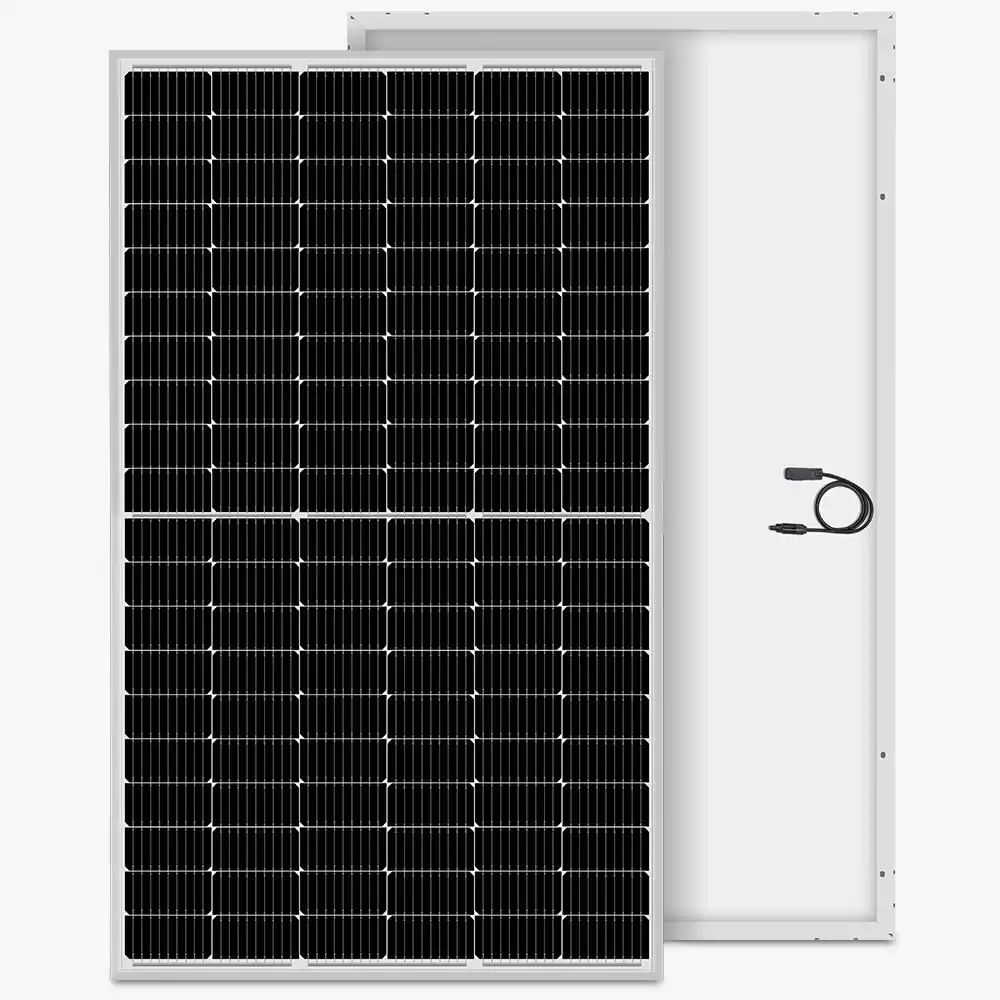

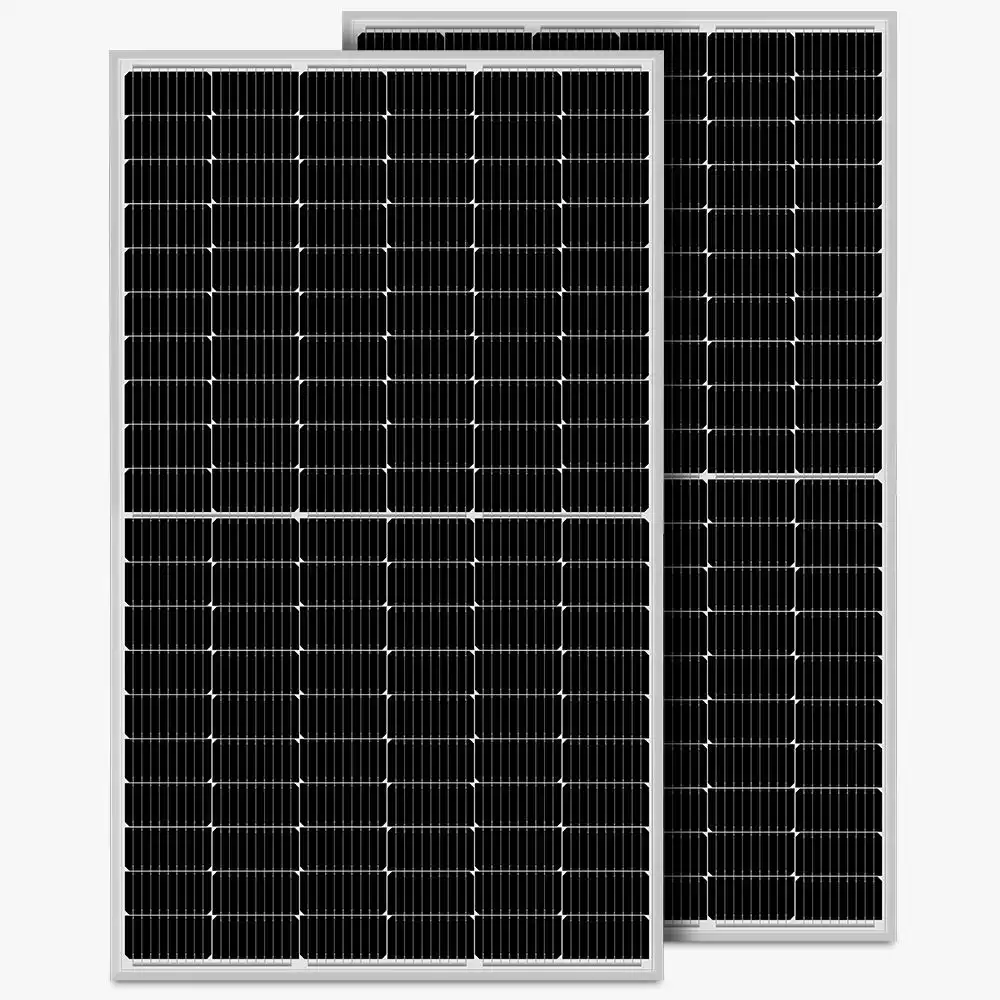

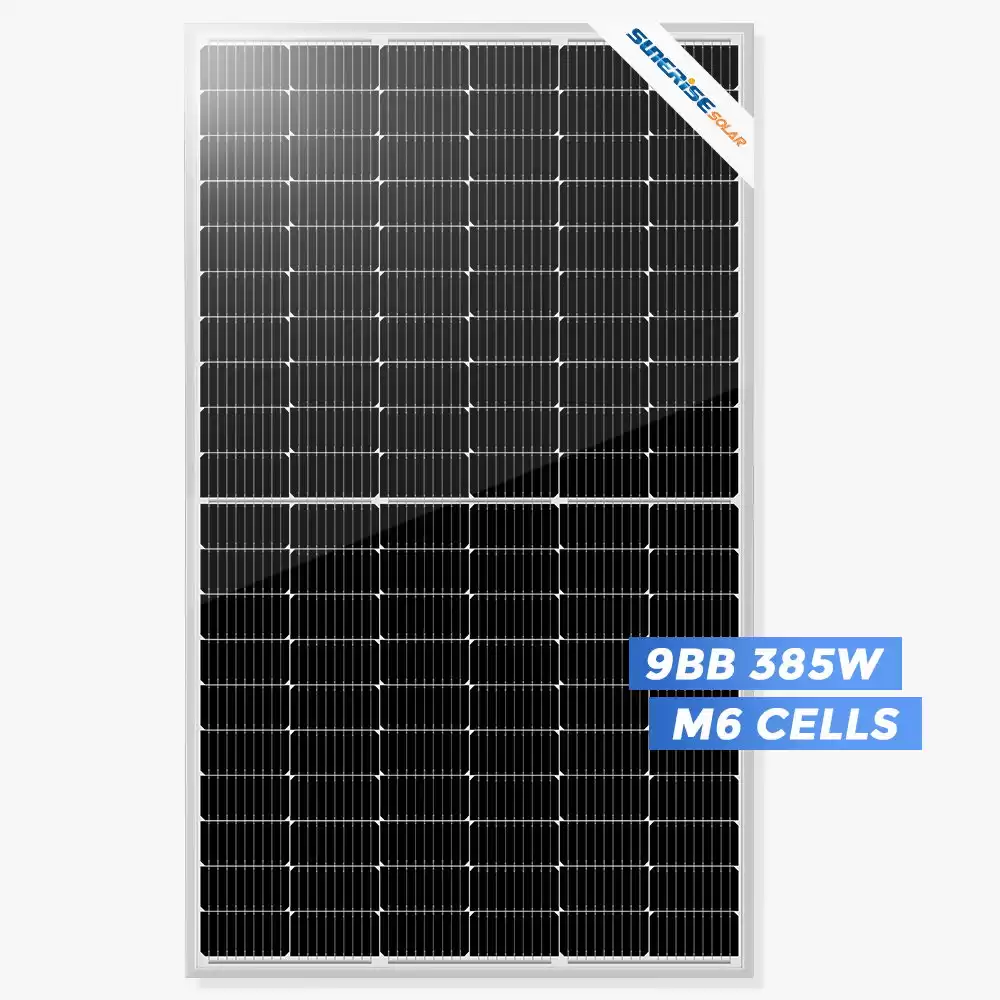

166mm 9BB Half cell Mono 385 Watt Solar Panel Price
With half-cut and MBB technology, this solar panel has a rated power of up to 385 watt. The 385w mono solar panel arrays are widely used for residential self-consumption, industrial and commercial facilities. Enquire now and get the best price.
JC (370~390)-120M Solar Panel Features
-
Excellent module efficiency up to 21.41%
-
IP68 junction box for long-term weather endurance
-
Heavy snow load up to 5400 Pa, wind load up to 3600 Pa
-
Selected material and stringent quality system ensure PID free
-
Applicable to harsh environment of deserts, farmlands and seasides
-
Much lower risk of hot spot
|
Electrical Characteristics(STC)
|
|
Module
|
JC(360~390)-120M
|
|
Module Type
|
JC360M
|
JC365M
|
JC370M
|
JC375M
|
JC380M
|
JC385M
|
JC390M
|
|
Maximum Power (Pmax)
|
360W
|
365W
|
370W
|
375W
|
380W
|
385W
|
390W
|
|
Maximum Power Voltage (Vmp)
|
33.80V
|
34.00V
|
34.20V
|
34.40V
|
34.60V
|
34.80V
|
35.00V
|
|
Maximum Power Current (Imp)
|
10.65A
|
10.74A
|
10.82A
|
10.90A
|
10.98A
|
11.06A
|
11.14A
|
|
Open-circuit Voltage (Voc)
|
40.60V
|
40.80V
|
41.00V
|
41.20V
|
41.40V
|
41.60V
|
41.80V
|
|
Short-circuit Current (Isc)
|
11.24A
|
11.30A
|
11.36A
|
11.42A
|
11.48A
|
11.54A
|
11.60A
|
|
Module Efficiency (%)
|
19.76%
|
20.04%
|
20.31%
|
20.59%
|
20.89%
|
21.13%
|
21.41%
|
|
Power Tolerance
|
0~+5W
|
|
Temperature Coeffcient of Isc
|
0.05%/℃
|
|
Temperature Coeffcient of Voc
|
-0.31%/℃
|
|
Temperature Coeffcient of Pmax
|
-0.35%/℃
|
Warranty
Solar Module Material
Our Factory
Packing & Delivery
