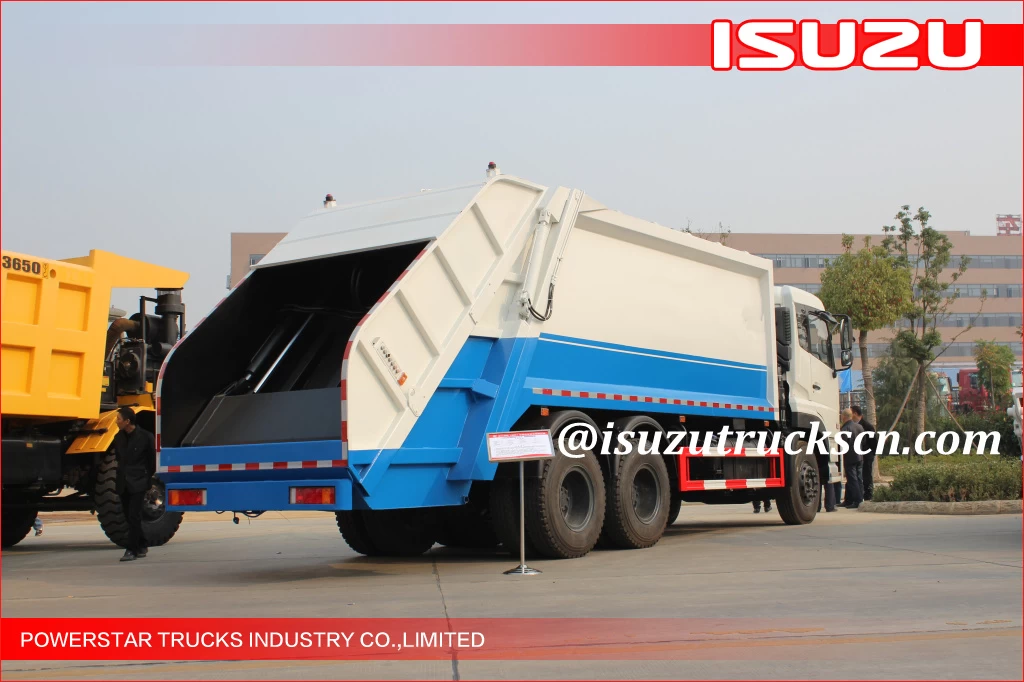

16Cbm-18Cbm Isuzu
Chassis Garbage Transport Truck
Tags: Best quality
16Cbm-18Cbm Isuzu Chassis Garbage Transport Truck manufacturer, Japanese Isuzu Garbage
Compactor Vehicle, 4*2 Rubbish Compressed trucks Isuzu, Isuzu chassis Waste
Compactor Trucks, Isuzu Brand Rear Loading Garbage Truck, Trash Compactor
Garbage Truck
Description:
The new generation
Refuse Garbge Compactor is mainly used in collecting and transporting the
scattering refuse of the urban area, community, factory, school yard.
The refined
appearance, the fully sealed truck body, the sealed door of the truck body is
able to prevent the sewage from leaking during transporting so that secondary
pollution is avoided. The imported hydraulic units are of the best quality with
convenience and reliability.
Areas of
Application and Use:
◆ Urban area or community garbage collecting
◆ Schoolyard garbage collecting
◆ Factory garbage collecting
◆ Suburban waste transfer
◆ Non-construction waste collecting
Features:
◆ Easy operation and easy maintenance!
◆ With imported PLC (programmable logic
controller) for integrated control
◆ Collecting refuse in sealed condition,
equipping with waste water tank, preventing re-pollution.
◆ Substantial truss structure, payload
distributed appropriately in hopper lip, no deformation.
◆ Automatic controlled throttle and hydraulic
safety valves, avoiding power wastage, lower oil consumption.
◆ Automatic and manual operating control,
improving operation reliability
◆ The engine power output control, namely the
throttle control, can realize fully automatic control through the electronic
throttle controller, so the engine will automatically change to a higher speed
or idle speed under different operating modes, thus avoiding power loss and
system heat to reduce fuel consumption and realize good economical
efficiency.
◆ Both automatic and manual control modes are
available. Two operation boxes mounted in the cab and at the rear side of the
vehicle respectively can facilitate the operation.
◆ Different bin (hopper) tipping mechanisms are
provided for different users to select in accordance with different garbage
collecting
Specifications:

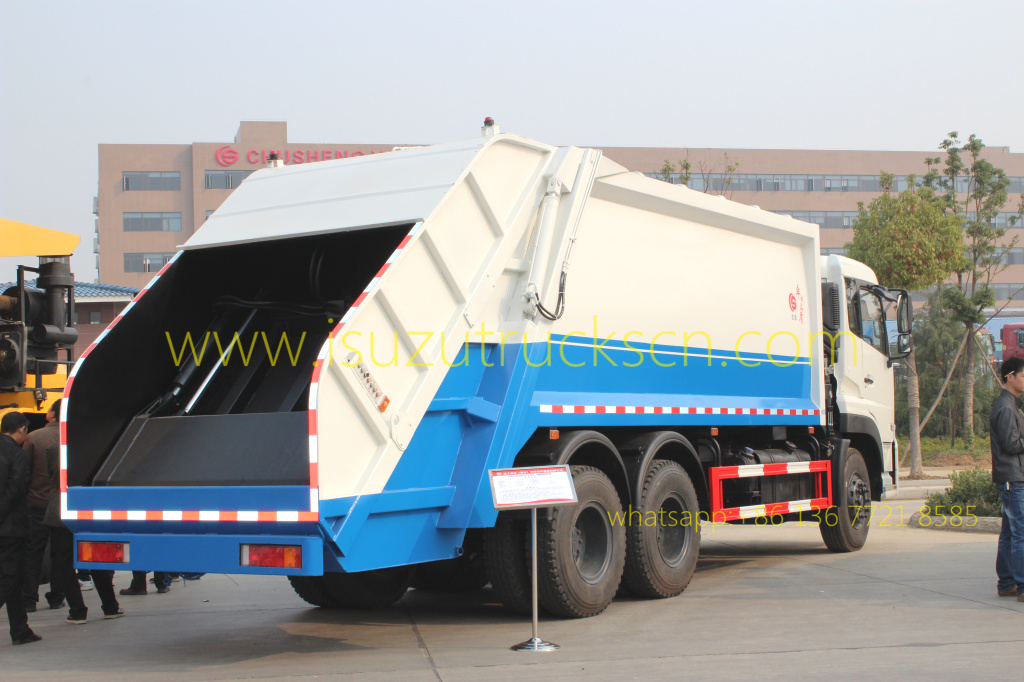

Waste Compactor Truck Isuzu (18 CBM)
|
General
|
Vehicle Brand
|
POWERSTAR
|
Chassis Brand
|
ISUZU
|
Overall Dimension
|
11730 * 2500 * 3460 mm
|
GVW / Kerb Weight
|
25,000kg / 12,890kg
|

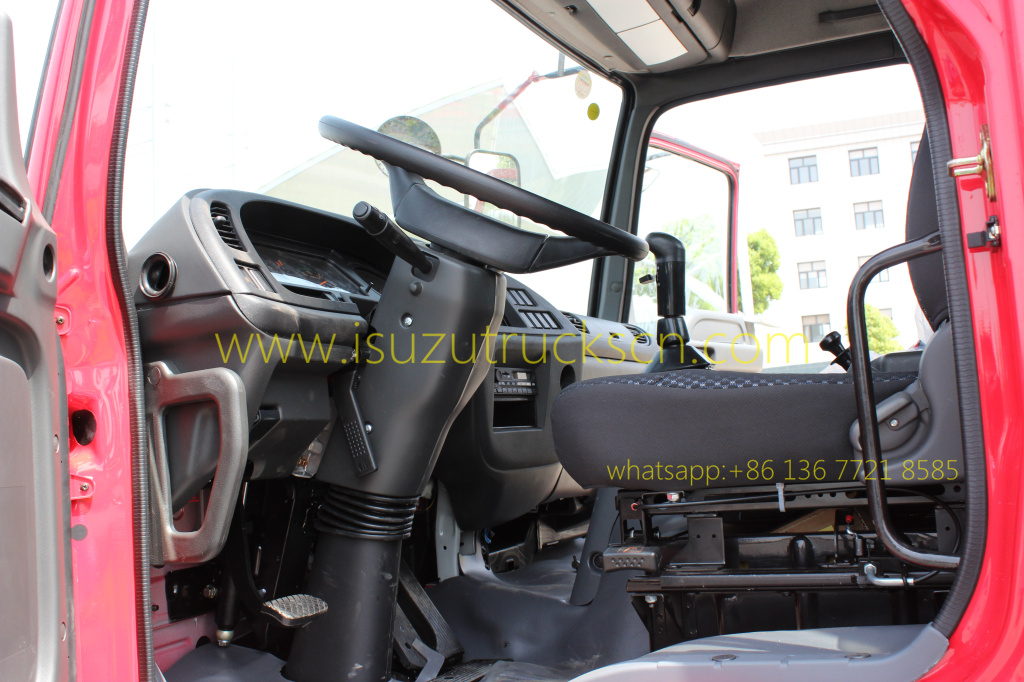

Cab
|
Cab Capacity
|
3 persons allowed
|
Air Conditioner
|
Heating/cooling air conditioner
|
Engine
|
Fuel Type
|
Diesel
|
Engine Brand
|
ISUZU
|
Power
|
280 HP (206KW)
|
Displacement
|
7790ml
|
Emission Standard
|
Euro IV or V
|
Chassis
|
Drive Type
|
6X4, (left hand drive)
|
Transmission
|
9 speed levers with 1 reverse
|
Wheelbase/No. of axle
|
4350+1300 mm / 2
|
Tire Specification
|
11.00-20
|
Tire Number
|
10 tires and 1 spare tire
|
Max Speed
|
95 km/h
|
Paint
|
Metallic paint
|
Superstructure
|
Body Capacity
|
18 CBM
|
Fill Hopper Capacity
|
1.9 m3
|
Sewager Tank volume
|
200 L
|
Body Material
|
Weather resisting steel
|
Filling work cycle time
|
20~25 s
|
Filling lift time
|
6~9 s
|
Filling lift capacity
|
8 Tons
|
Discharge time
|
18~22 s
|
Max compression force
|
12 Tons
|
Discharge model
|
Horizontal Ejection
|
Control
|
Electrically Hydraulic control
Manual Hydraulic control
|
Emergency Stop Button
|
Hopper Both Sides
|
All standard accessories: Warning lights, music alarm, basic tool kit, English manual……
|
Optional
|
** Backup alarm can be equipped.
** Camera can be equipped.
** Operation language can be English or Appointed language.
|
Working Principles of Garbage Compactor
Different bin optional:

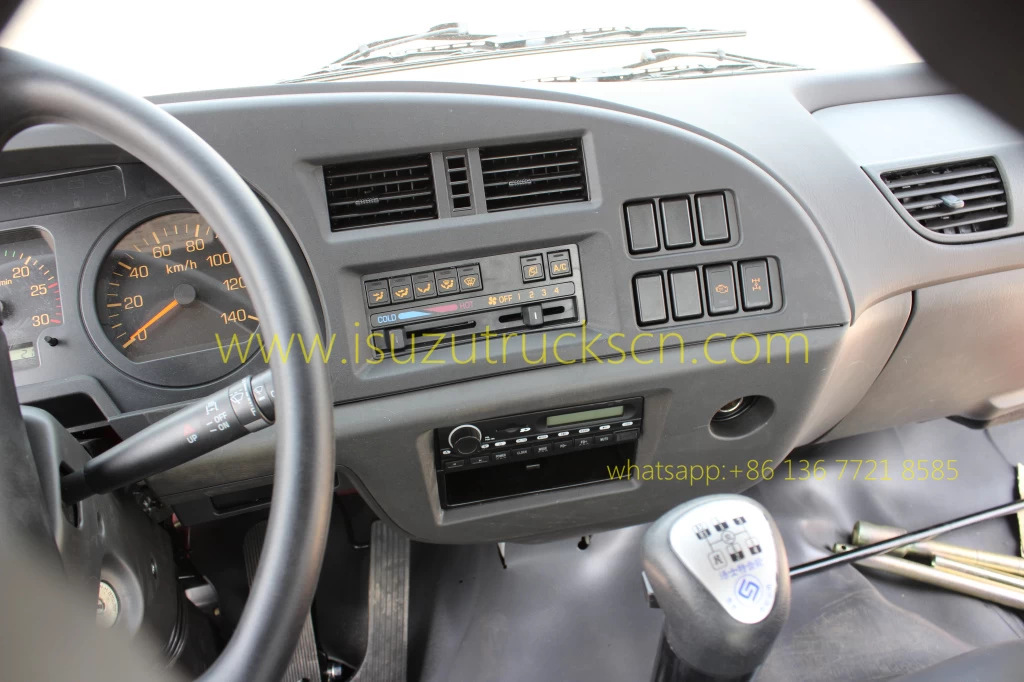

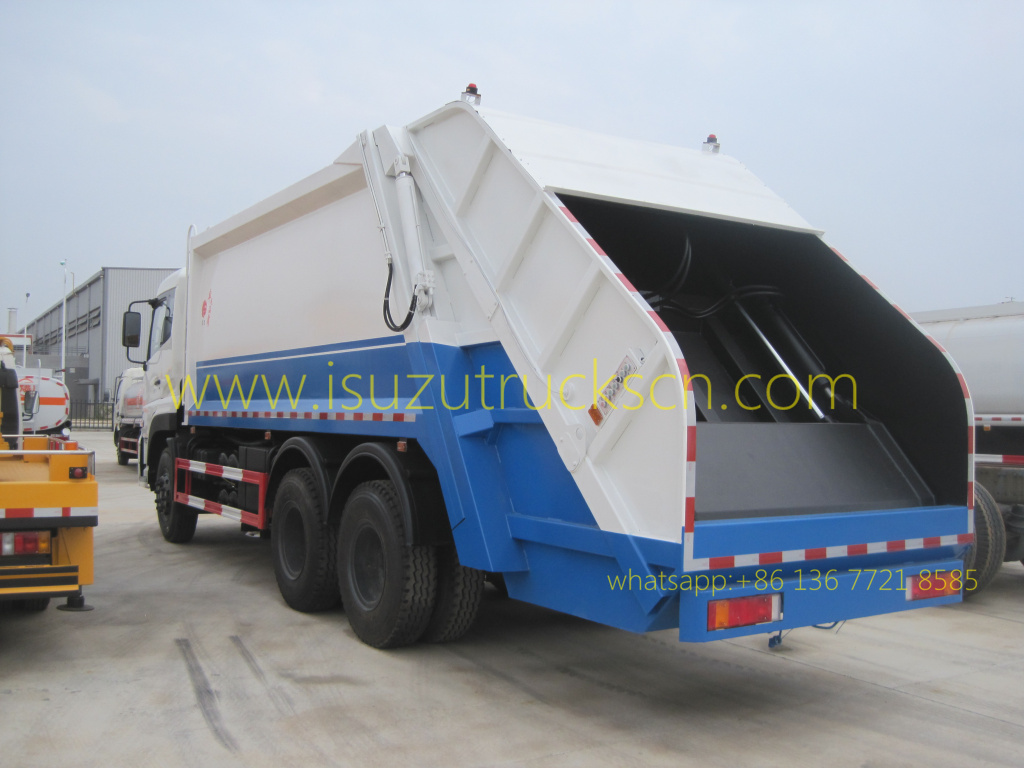

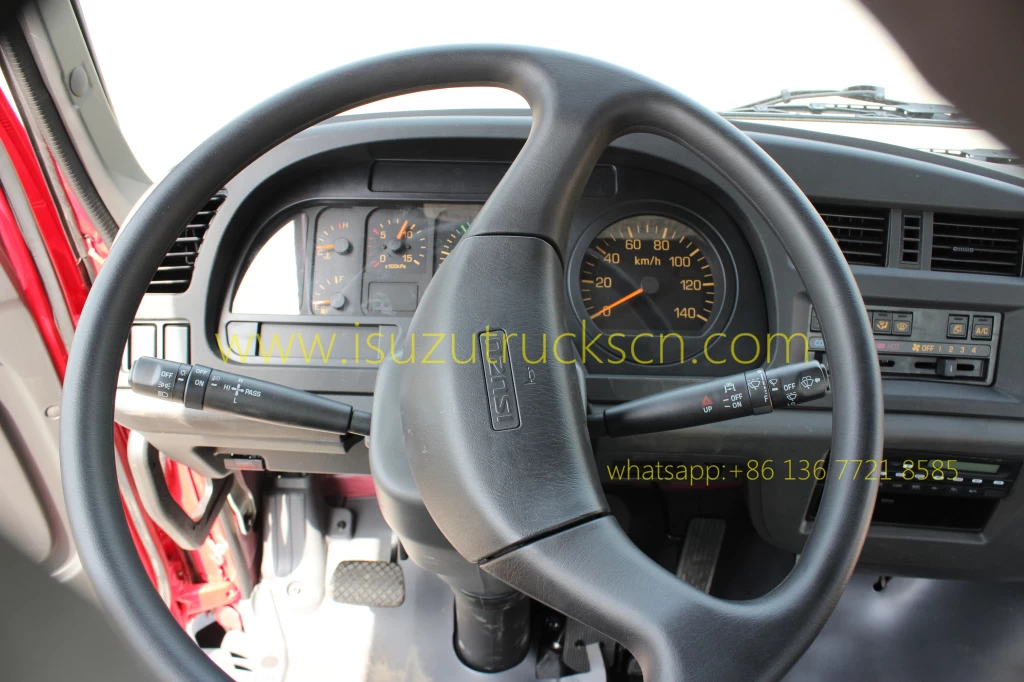

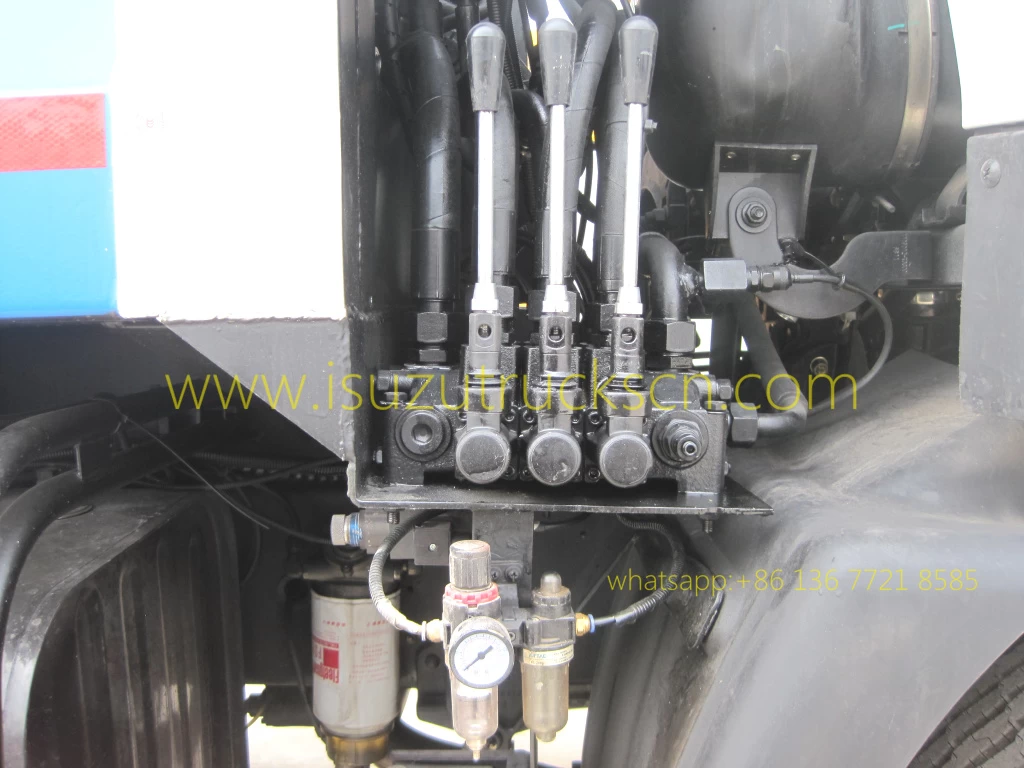

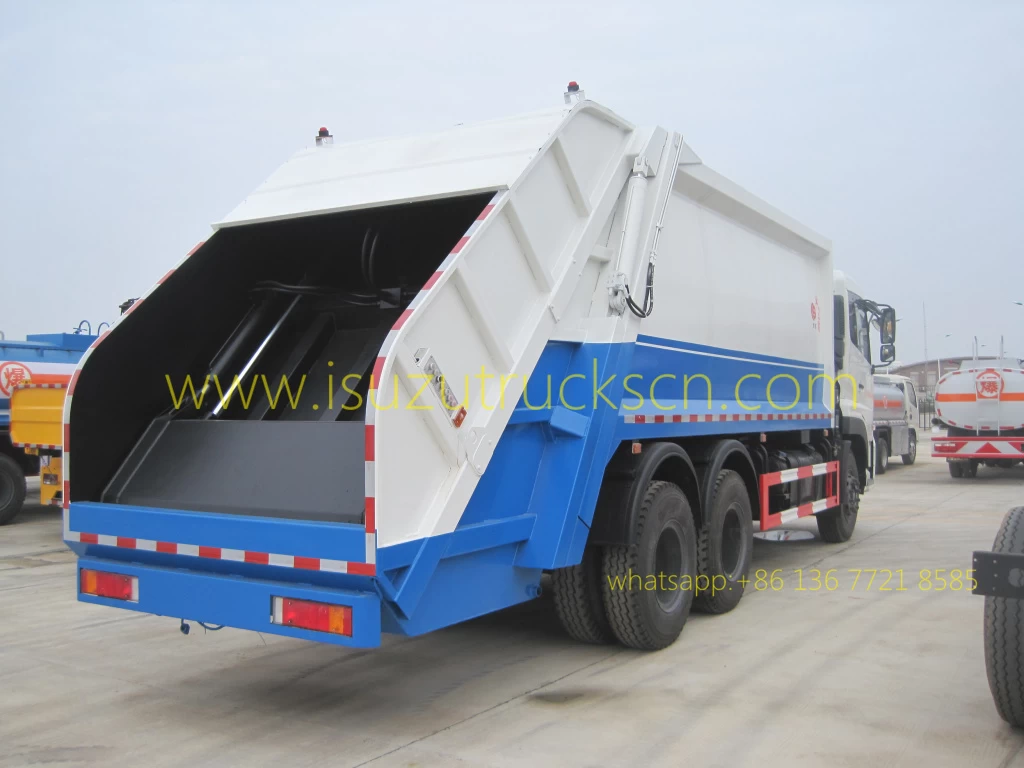

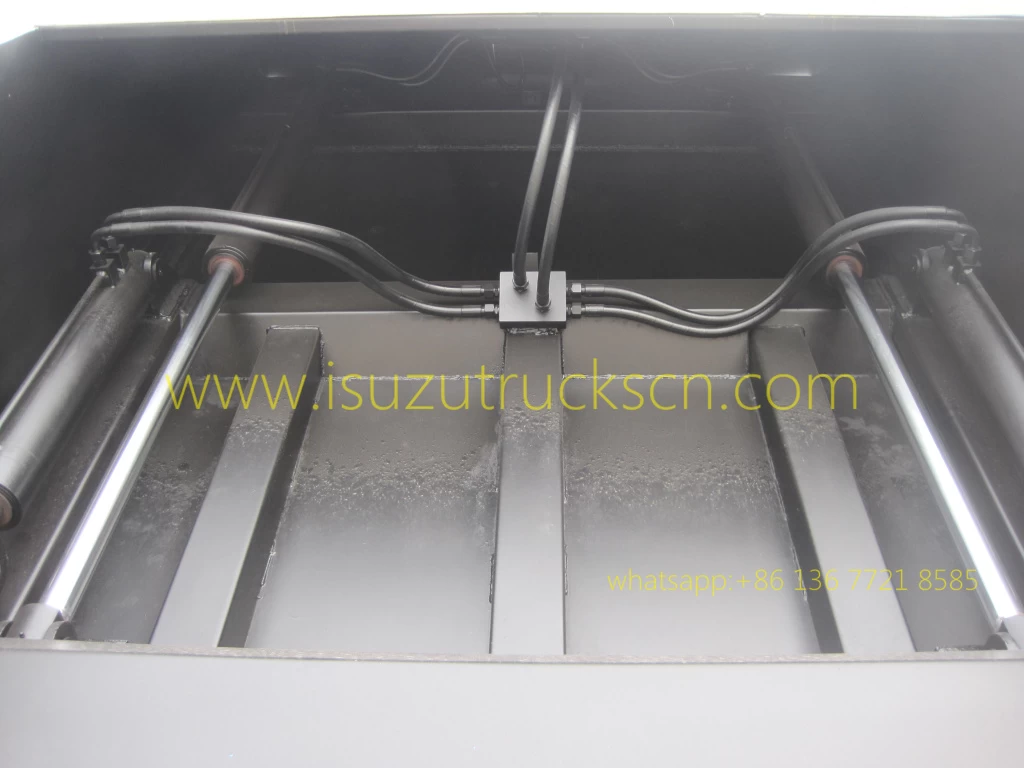

Detail pictures:

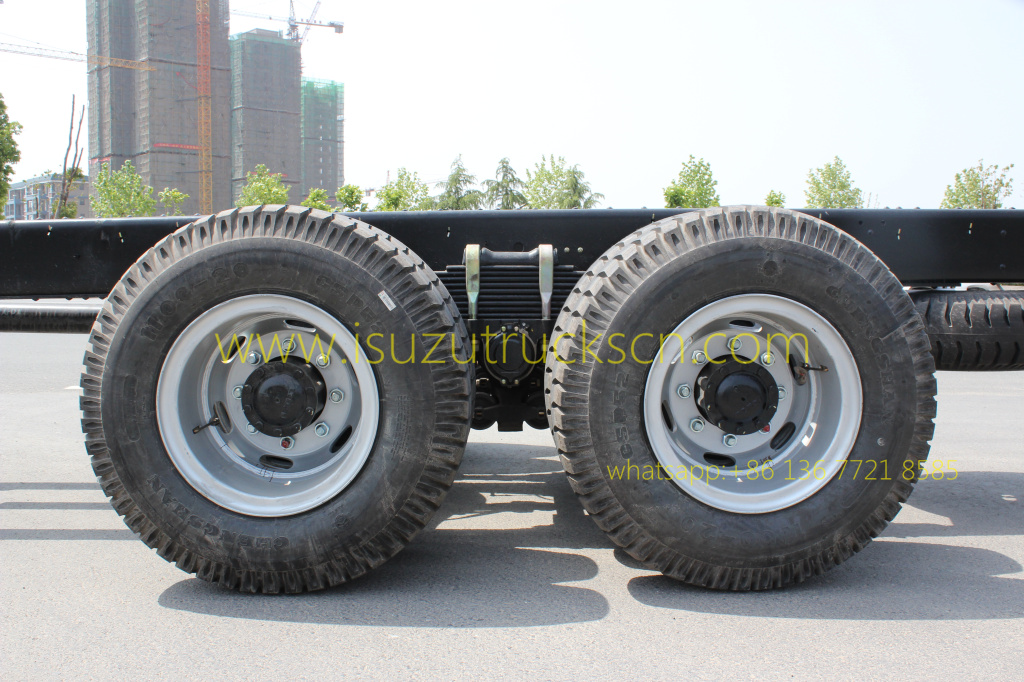

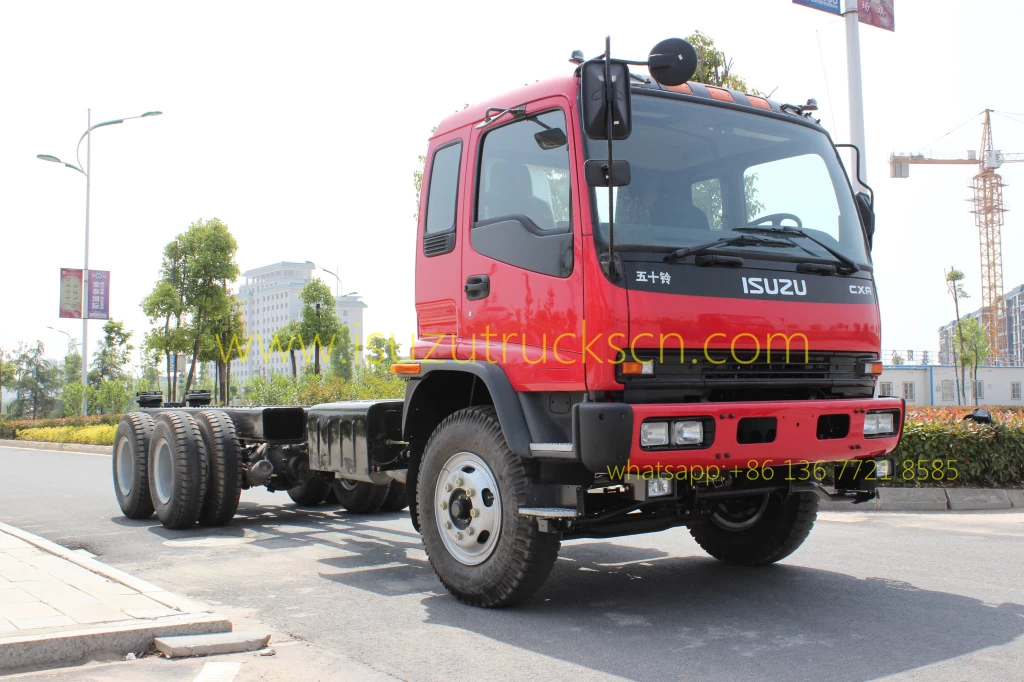

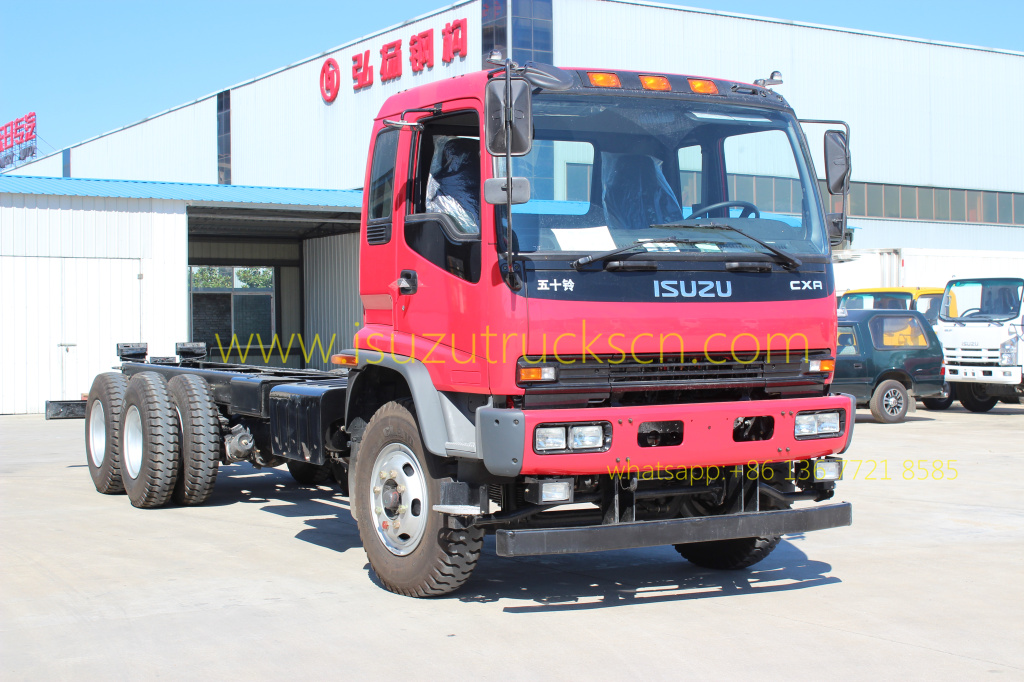

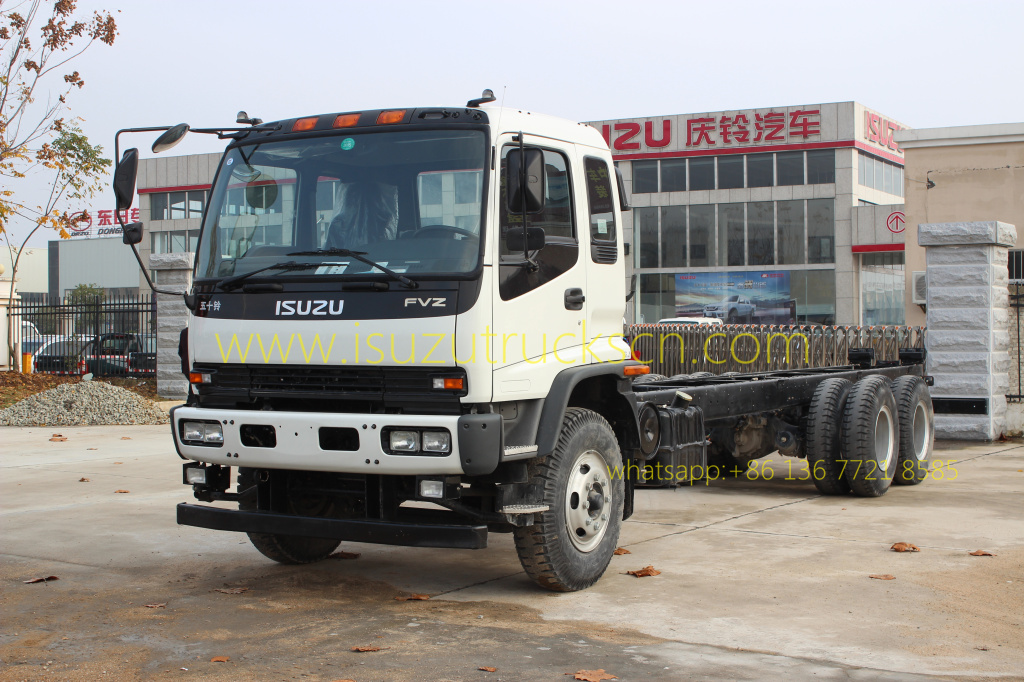

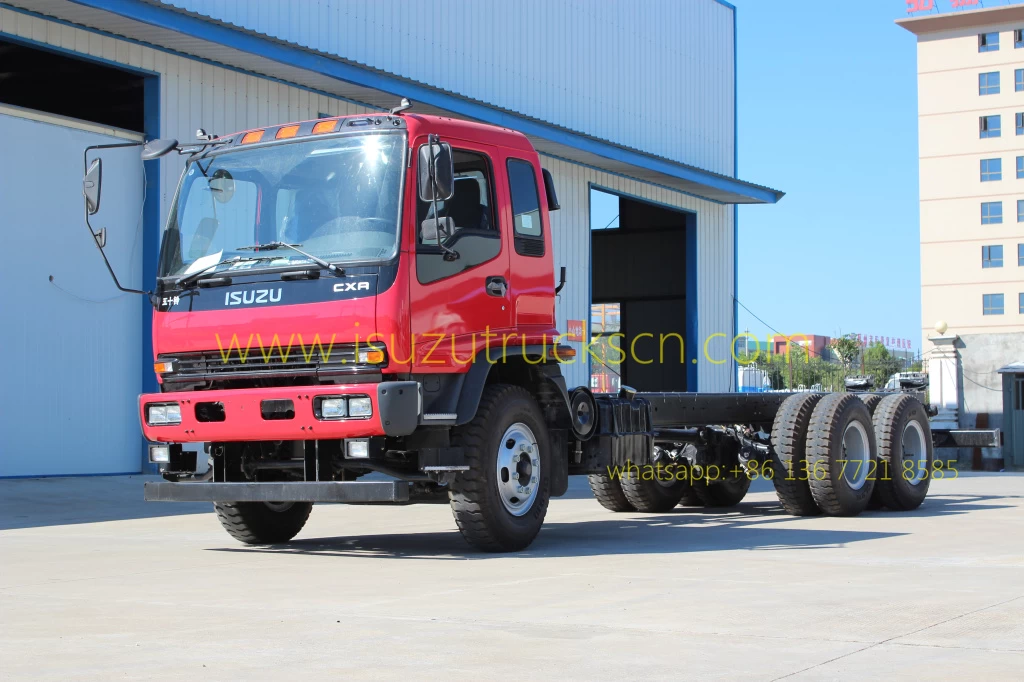

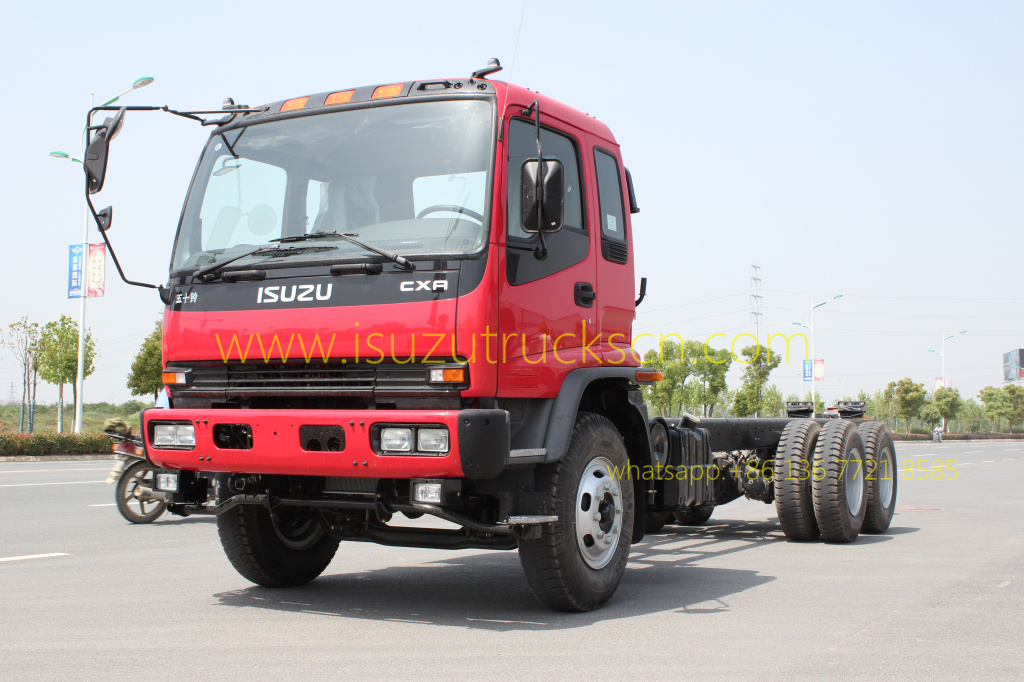

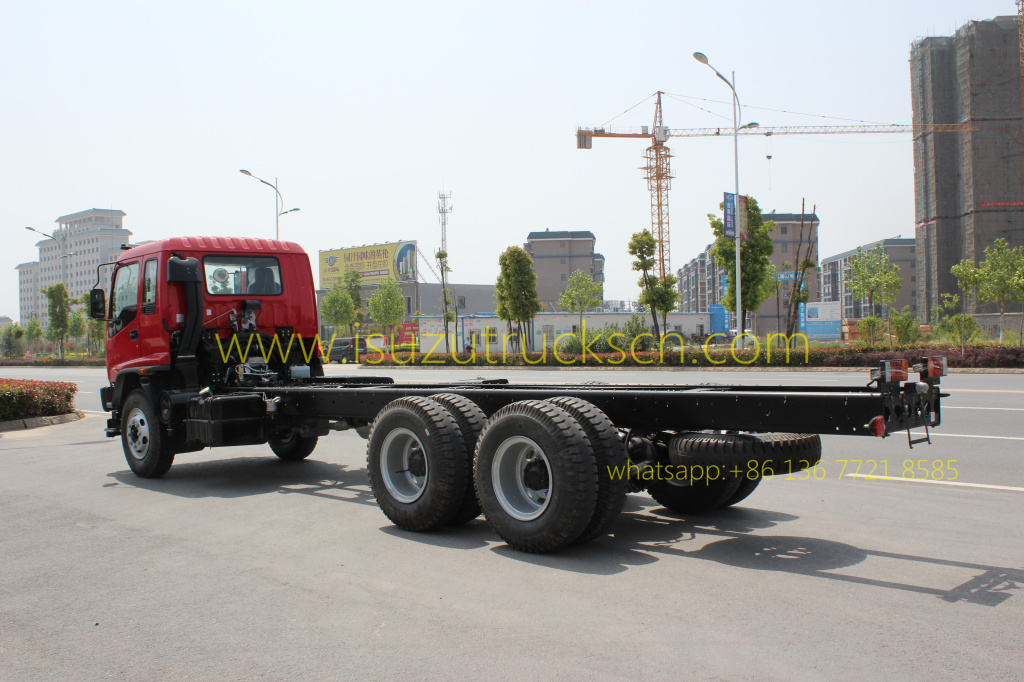

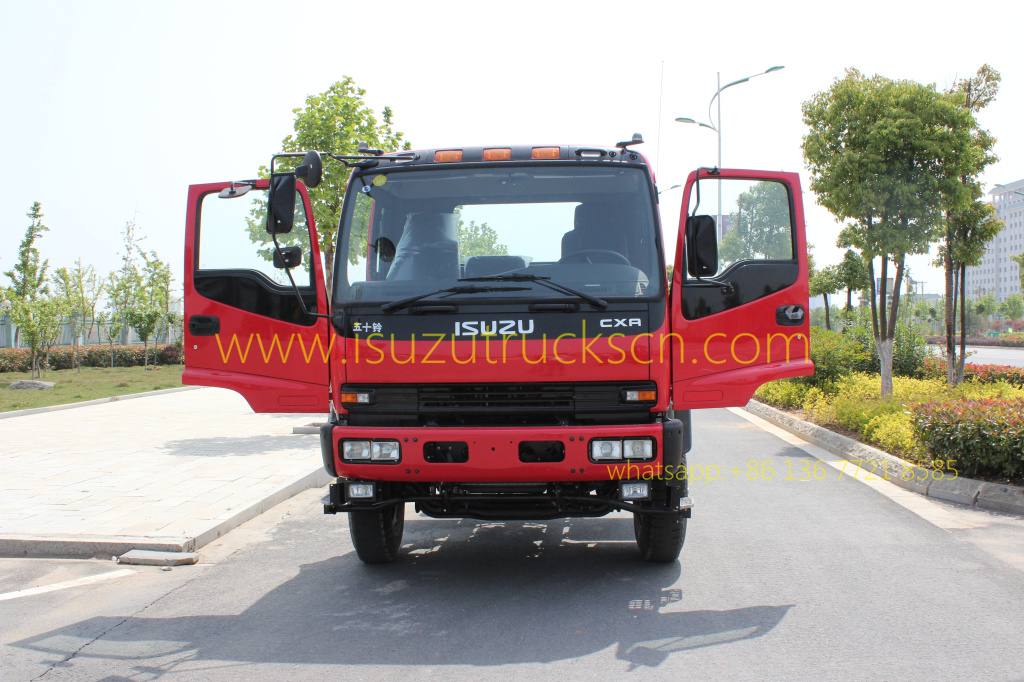

Recommand suitable truck chassis
according to your special requirements!
Details pictures of 4cbm Compression Garbage Truck Isuzu
Details pictures of 4cbm Compression Garbage Truck Isuzu
Operation manual of 4cbm Compression Garbage Truck Isuzu
Garbage Truck Workshop
Working
Principles of ISUZU Truck Garbage Compactor
Different
bin (hopper) tipping mechanisms:
Shipment:
