Description

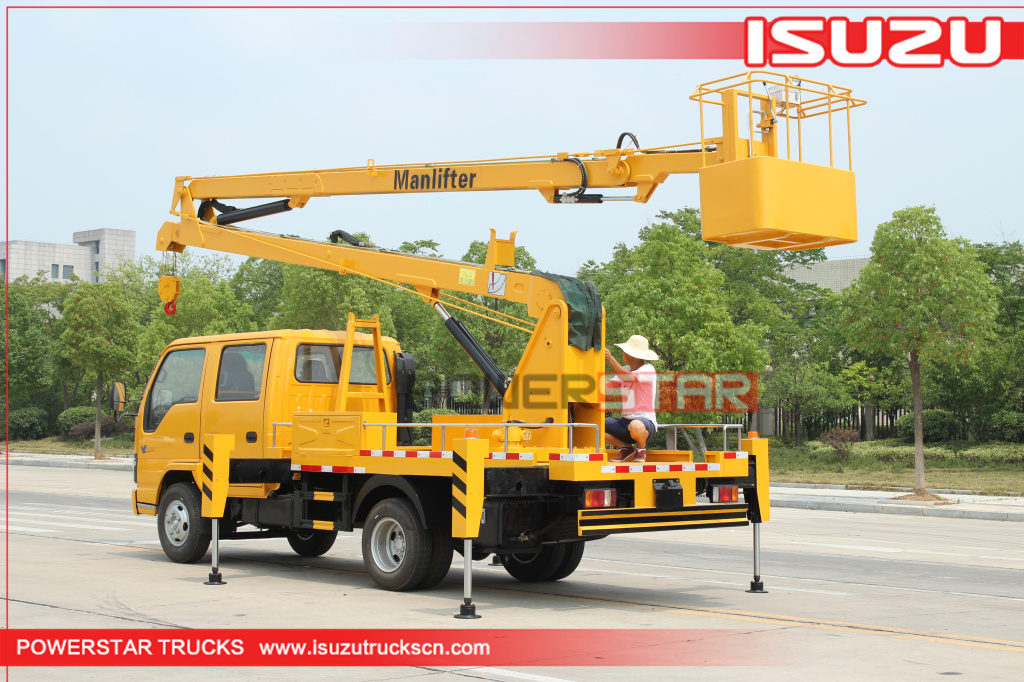

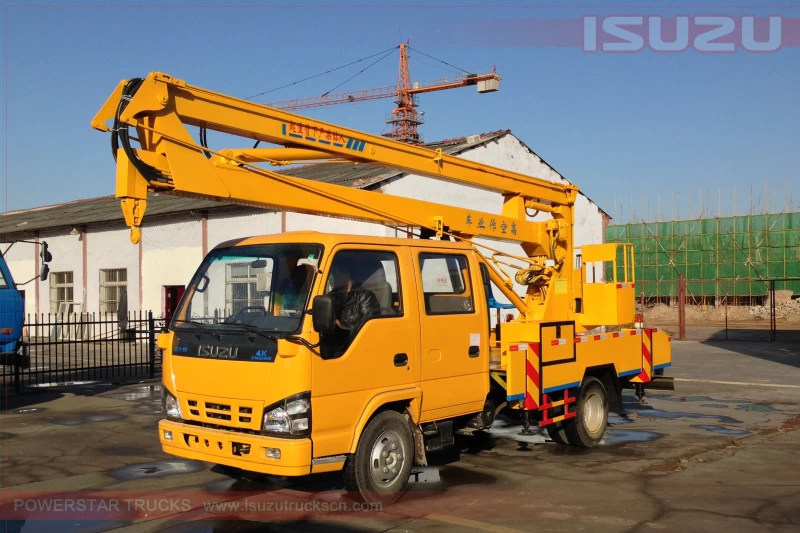

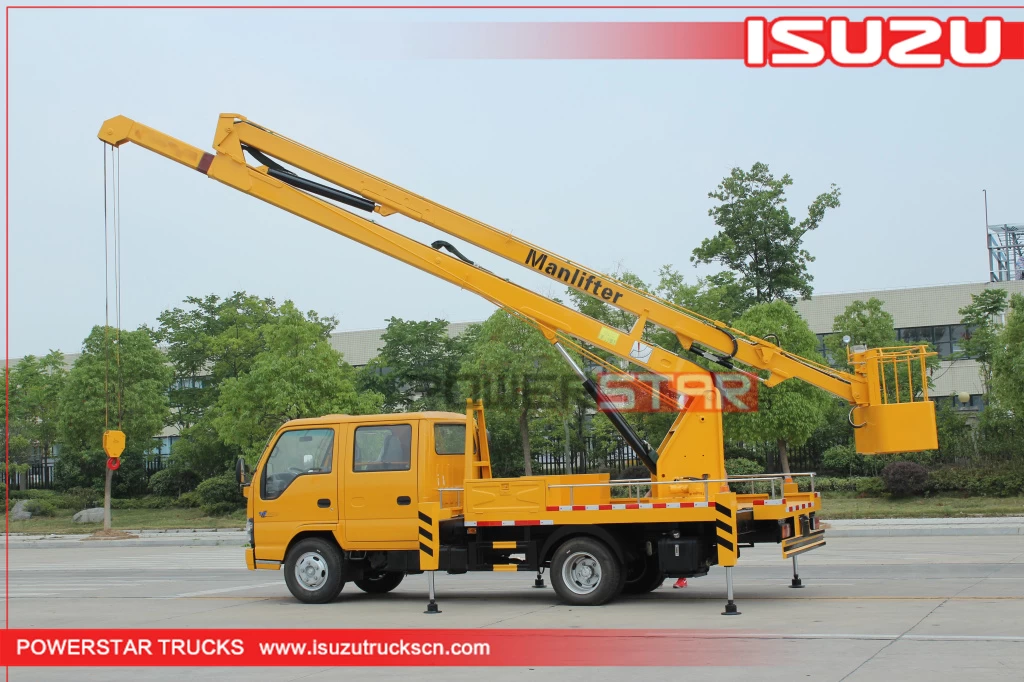

16m~18m Boom Lift Truck Isuzu Manlifter for sale

Function:

Aerial Lift Working Truck Isuzu (also called Aerial lift truck, Basket crane truck, Overhead working truck, Aerial boomlift truck, Hydraulic beam liter, bucket truck, truck mounted aerial lift vehicle, man lift truck, etc.) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.

POWERSTAR Aerial platform trucks are available of 6m-8m, 8m-12m, 14m-16m, 18m, 20m-22m, 24-26m. Insulated cage is optional.

Features:

---- ISUZU chassis ensures perfect driving performance;
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km;

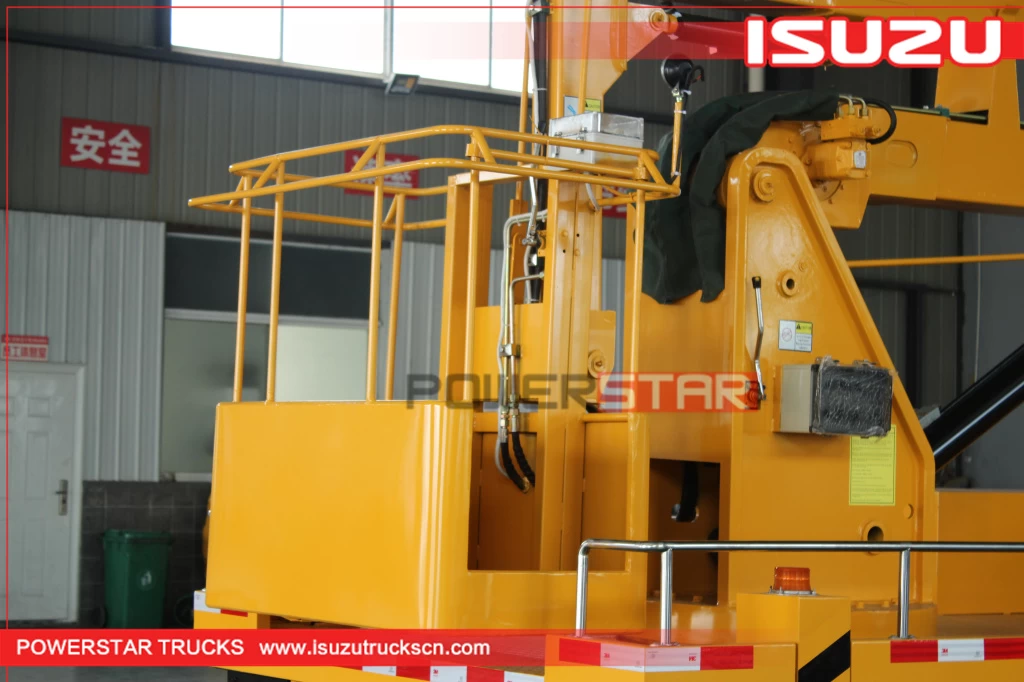

---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);
---- Working cage can rotate 90 degree in left and right;

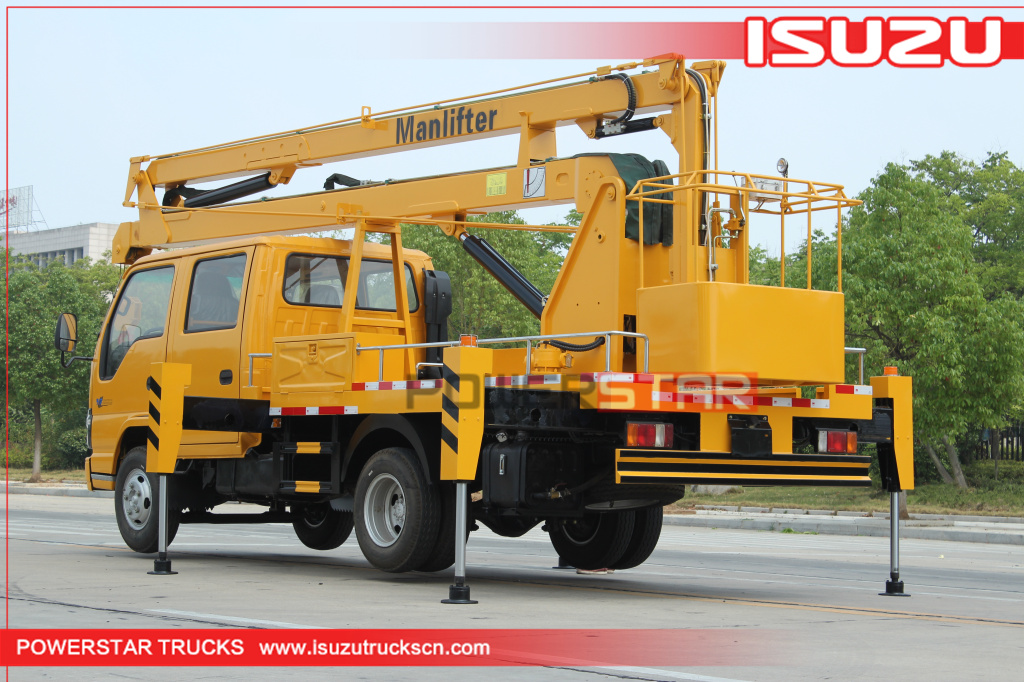

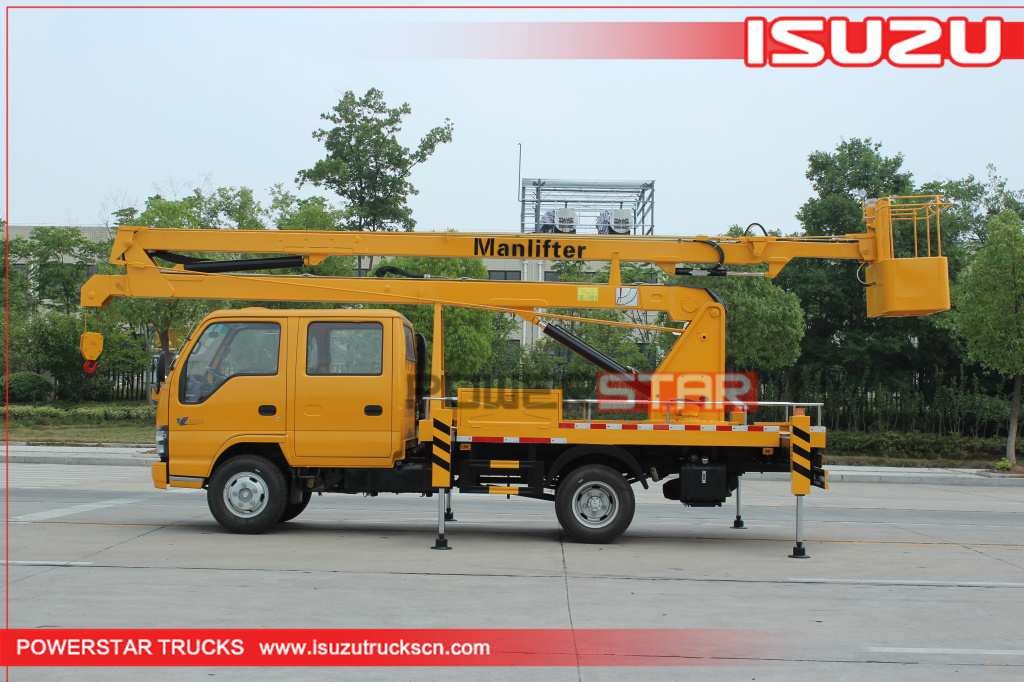

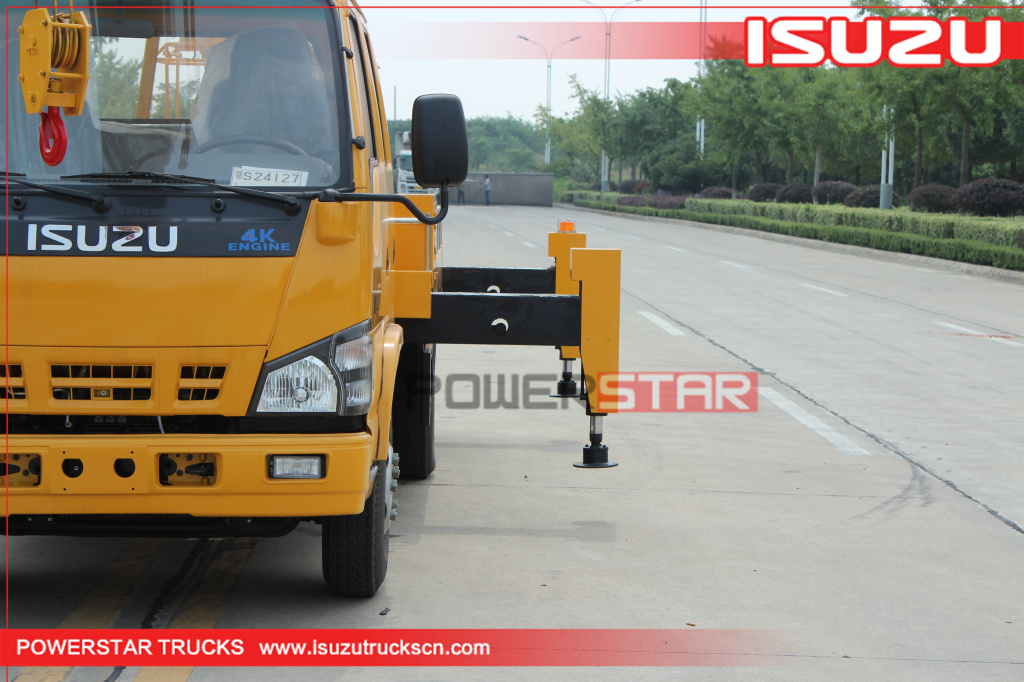

---- 4pcs outriggers and front support improve operation stability and safety;
---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
---- Wireless remote control system is available.

Specification:

Similar Key Words: Hydraulic lifting platform, Man lift truck, Aerial working platform, Aerial lift and bucket truck, Aerial lift vehicles

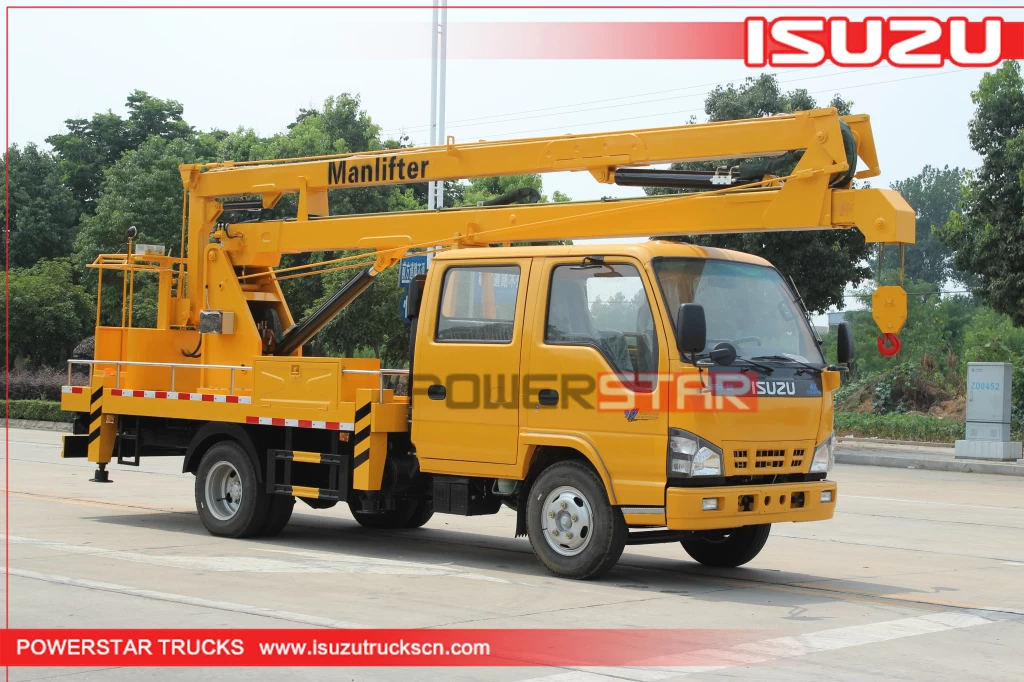

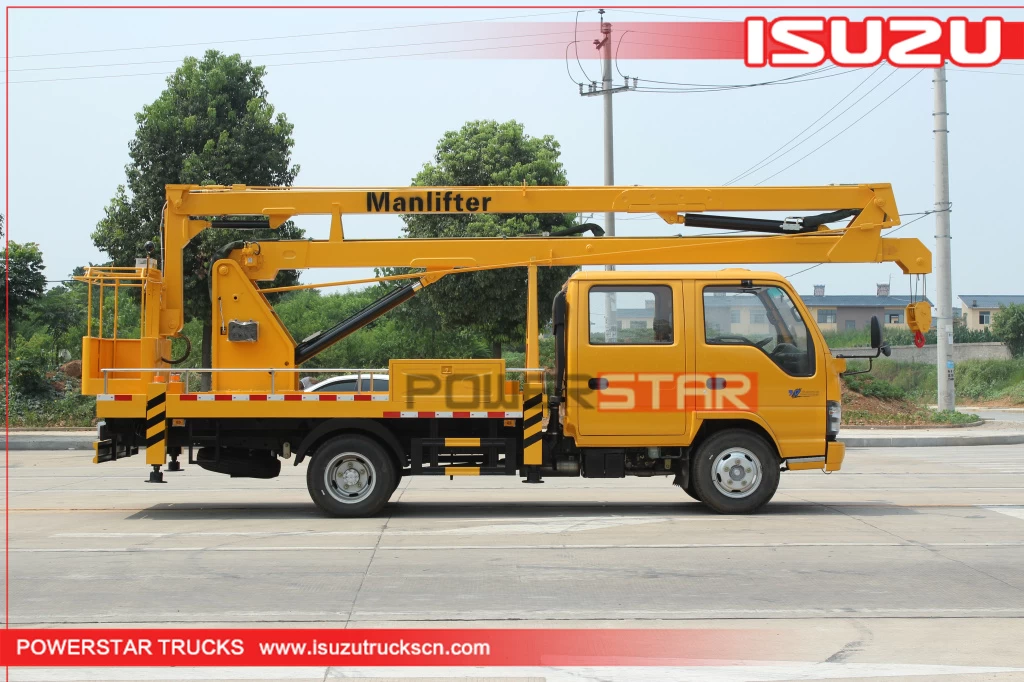

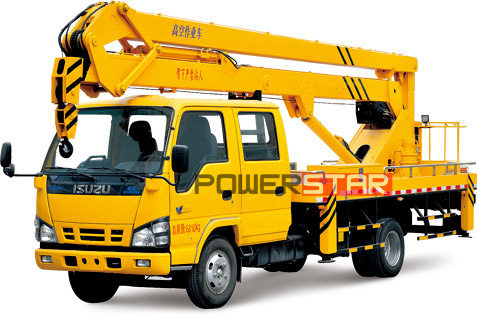

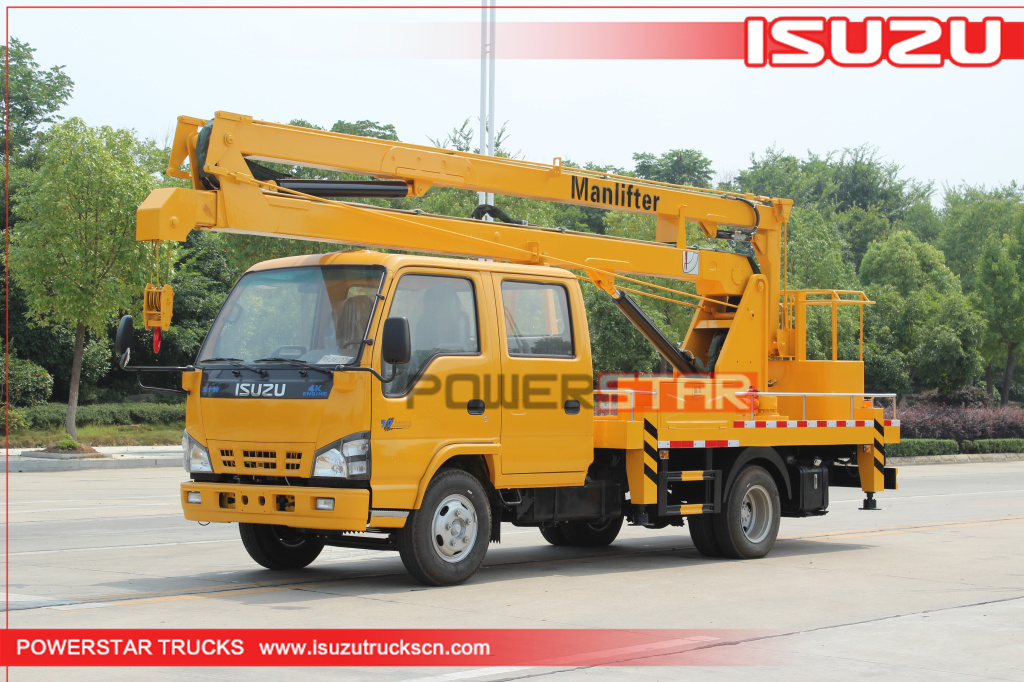

Basket Crane Truck ISUZU (16M)
General	Vehicle Brand	POWERSTAR
	Chassis Brand	ISUZU
	Overall Dimension	7650 x 2100 x 3250 mm
	GVW / Kerb Weight	6,810 kg / 6,485 kg
Cab	Cab Capacity	2+3 persons allowed
Cab	Air Conditioner	With air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU engine, 4KH1-TCG40
	Power	120Ps (88KW)
	Displacement	2999 ml
	Emission Standard	Euro IV
Chassis	Drive Type	4X2, left hand drive
	Transmission	ISUZU MSB transmission, 5-forward gears & 1 reverse, no overhaul within 500,000km
	Wheelbase/No. of axle	3815 mm / 2
	Tyre Specification	7.00-16 or 7.00R16
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	95 km/h
	Paint	Metallic paint
Superstructure	Cage Rated Capacity	200 kg

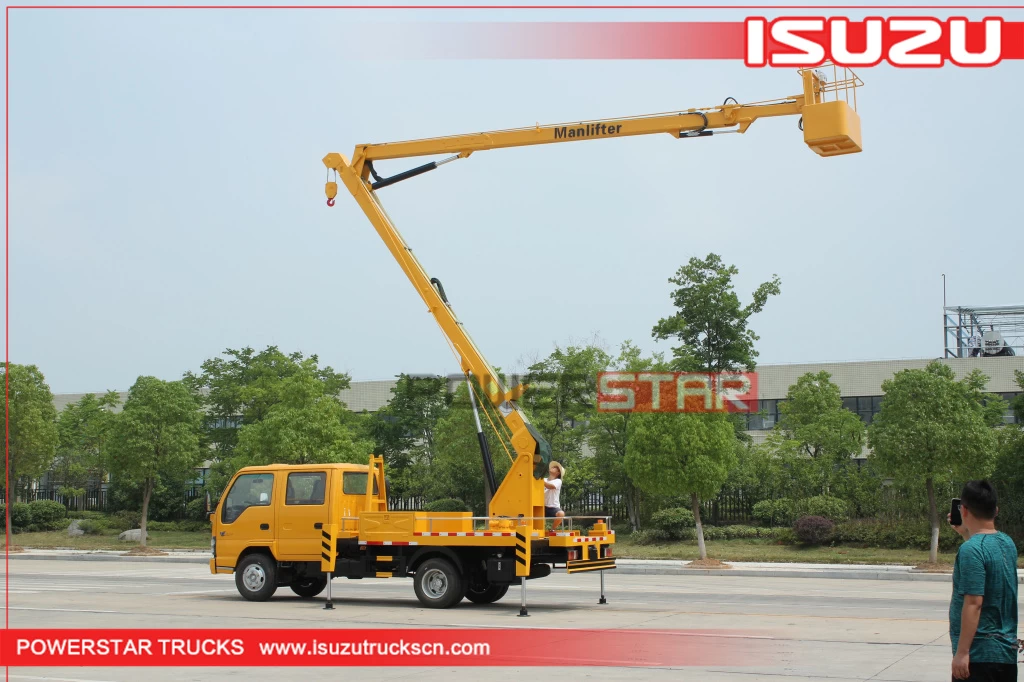

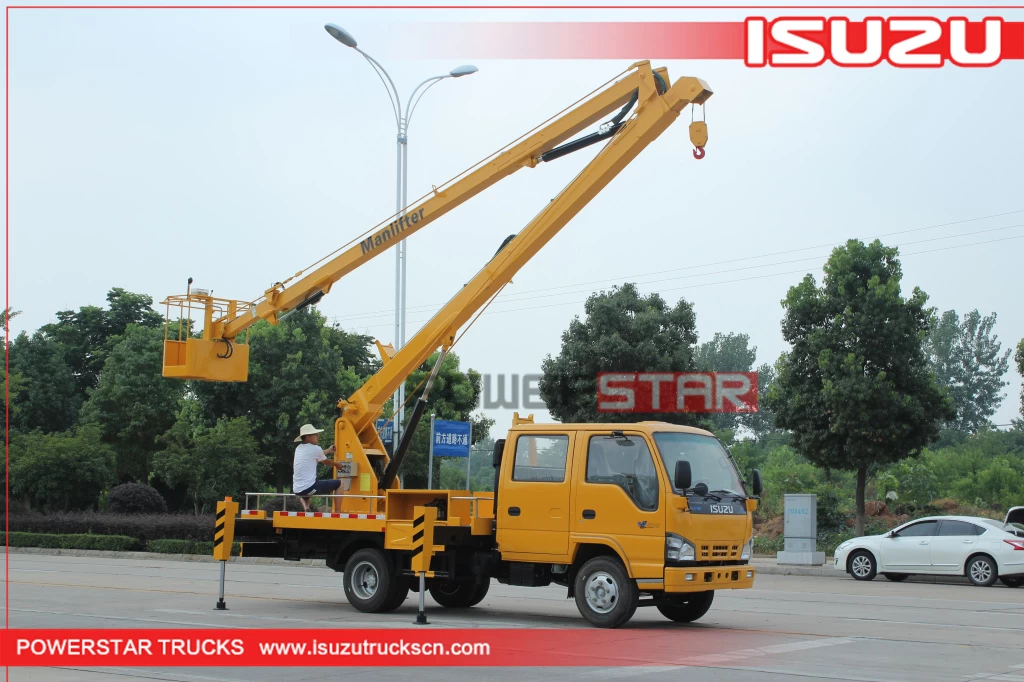

	Working Height	16 m

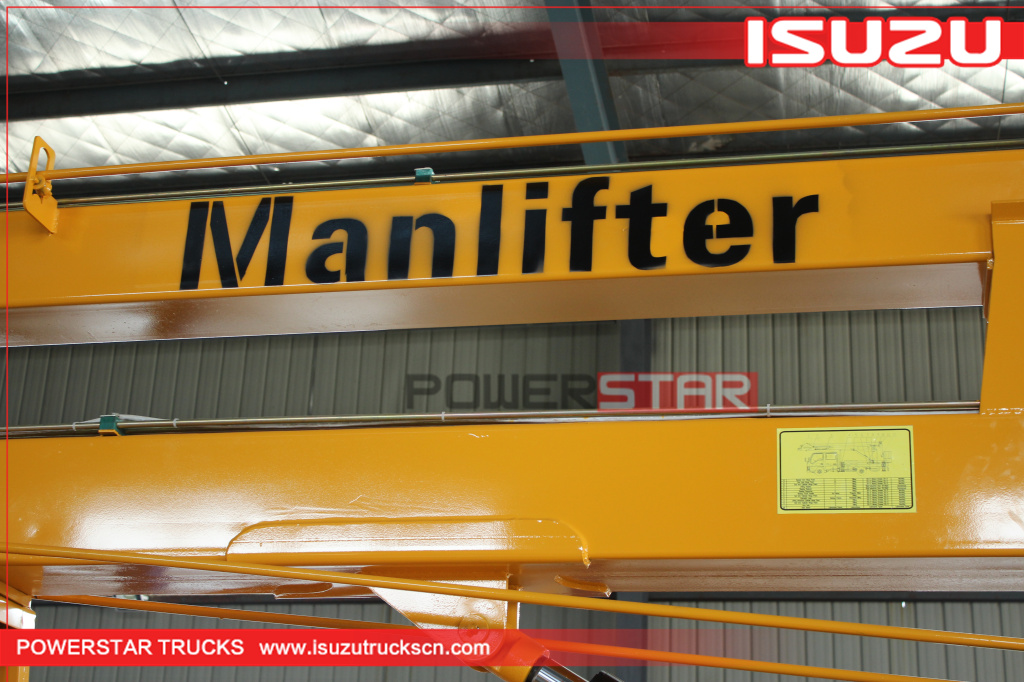

	Beam	The beam is articulated & telescopic extension type, hydraulic actuated and controlled

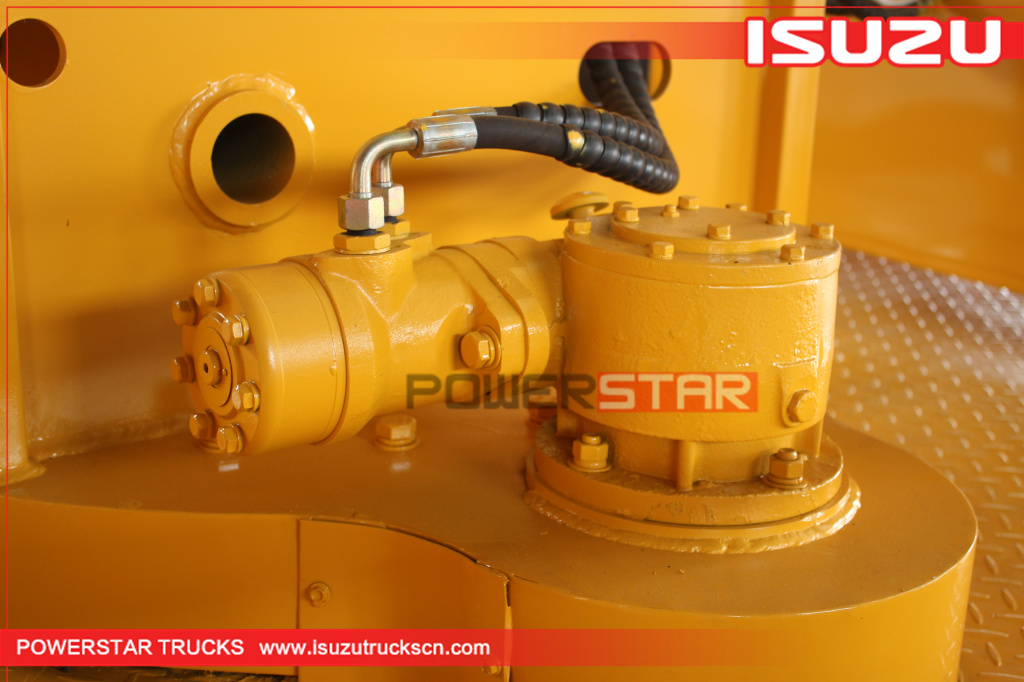

	Slewing	Slewing range is continuous 235° (minimum) with a slewing speed of maximum 15° per second.

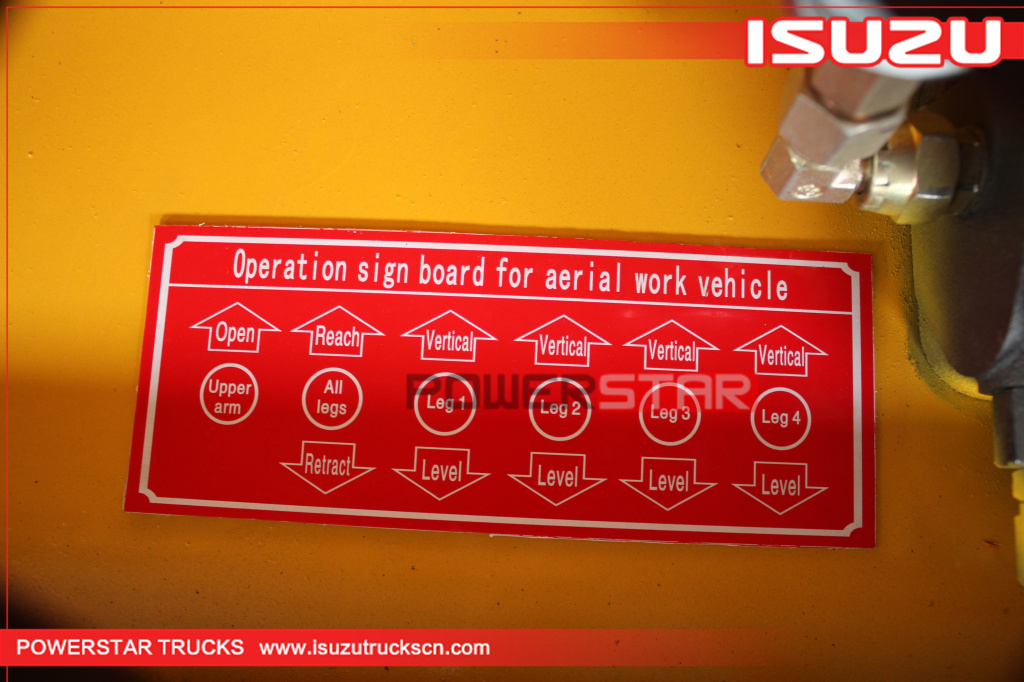

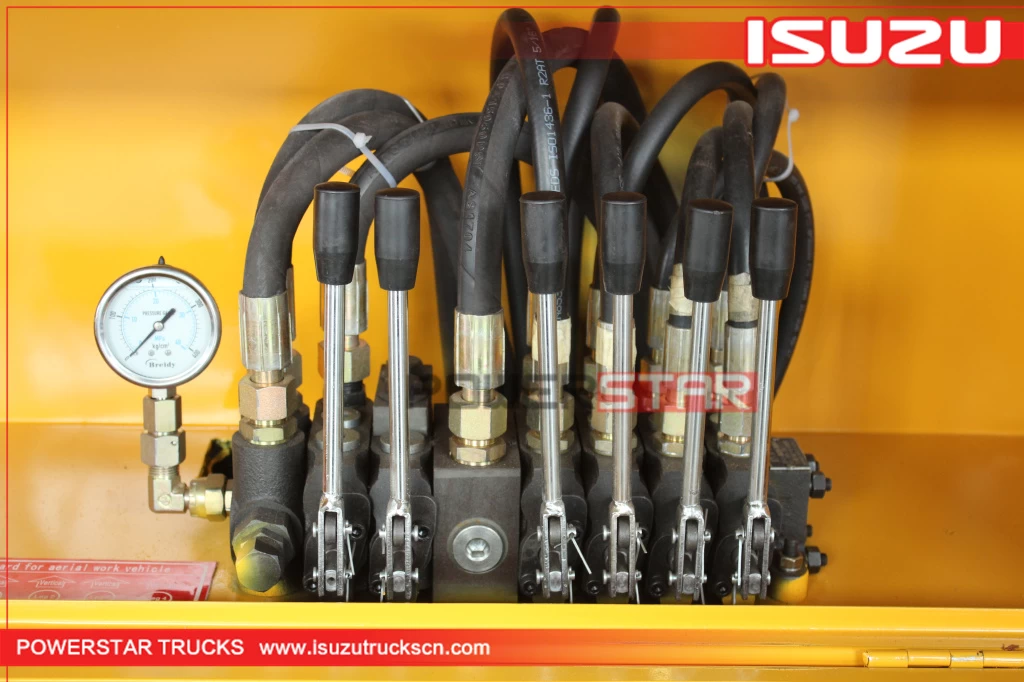

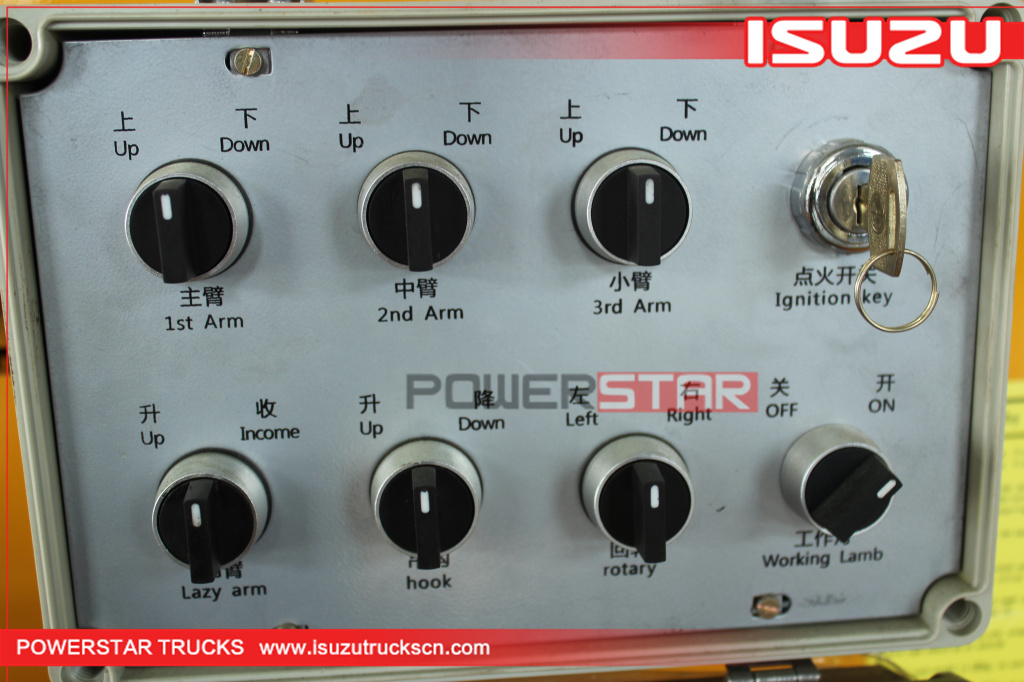

	Control	Control both on the ground and remote control in cage
	Safety Device	Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump
	Leveling System	Hydraulic stabilizer to level the vehicle on uneven ground
Optional	Insulated cage; Wireless remote control system
