Applications:
Arm lift bucket truck JMC (also called Aerial Work Platform Truck, JMC truck mounted boom lift, high platform work truck, Mobile Elevating Aerial Work Platform, manlifter trucks) is
ideal for maintenance of traffic lights, street lights, landscaping
trees, cleaning/setting signboard and other high aerial works.
CEEC TRUCKS can supply aerial platform truck from 6m-8m, 8m-12m, 14m-16m, 18m, 20-24m, 28m-32m.Insulated cage is optional.
Key Features:
---- JMC chassis, perfect performance
---- JMC engine, super powerful, no overhaul within 100,000 km.
---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);

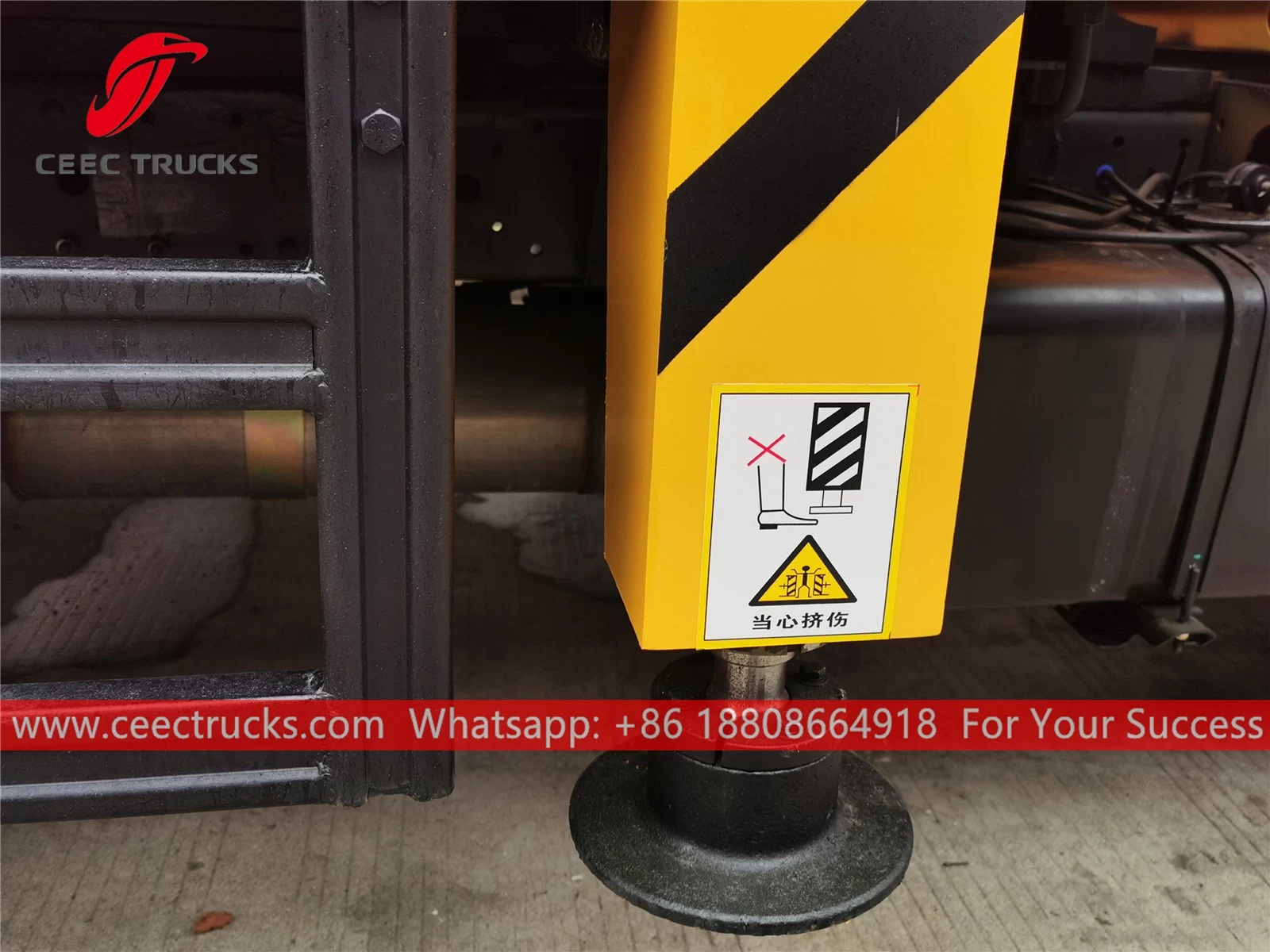

---- 4pcs outriggers and front support improve operation stability and safety;
----
Safety Devices are available, such as relief valves, balance valves,
double-way hydraulic locks, motor emergency system etc.;
---- Wireless remote control system is available.
Specifications:
|

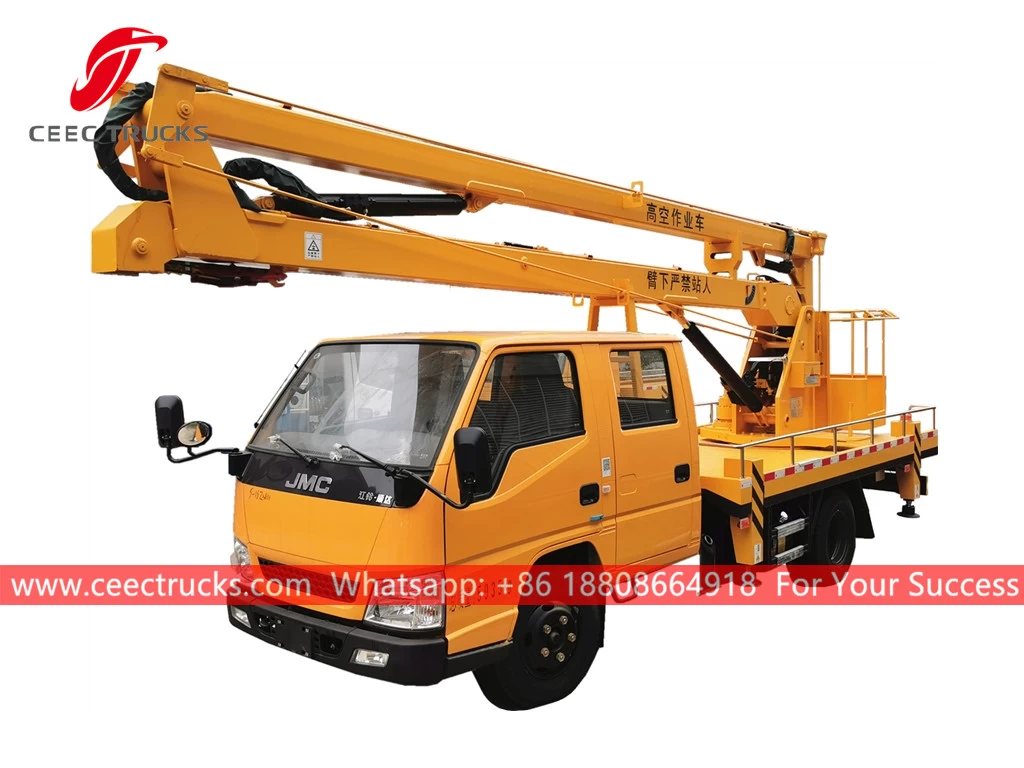

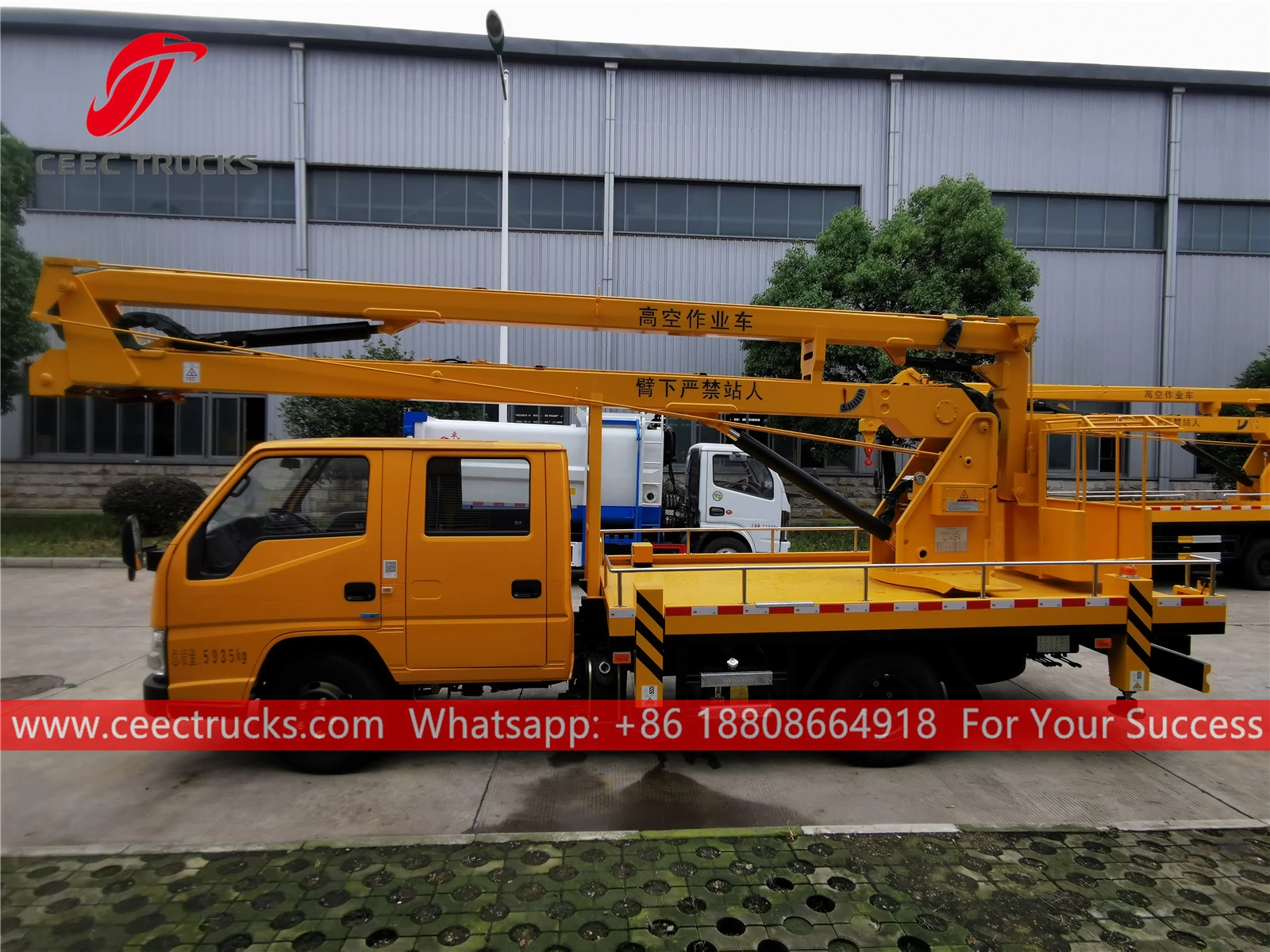

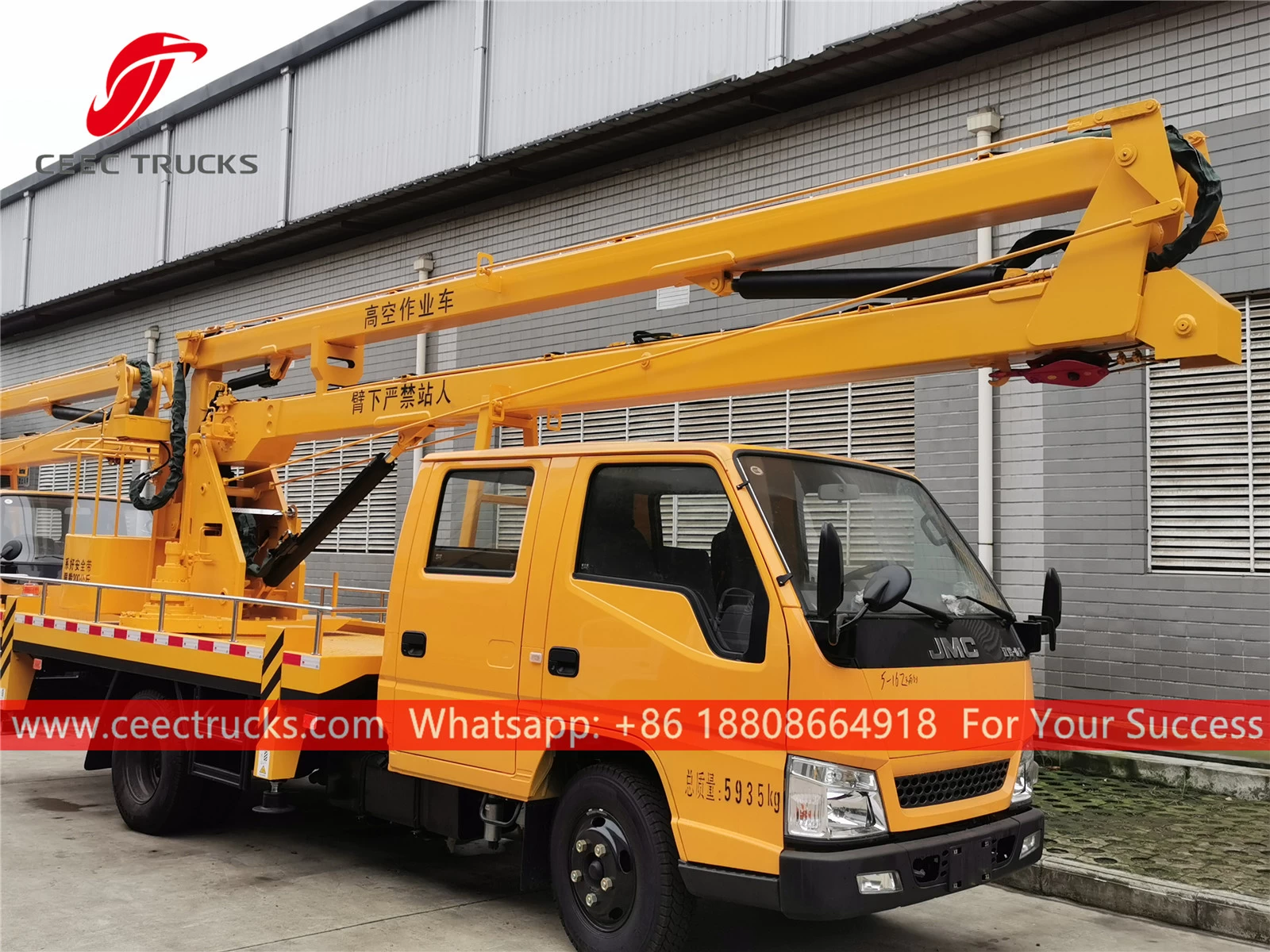

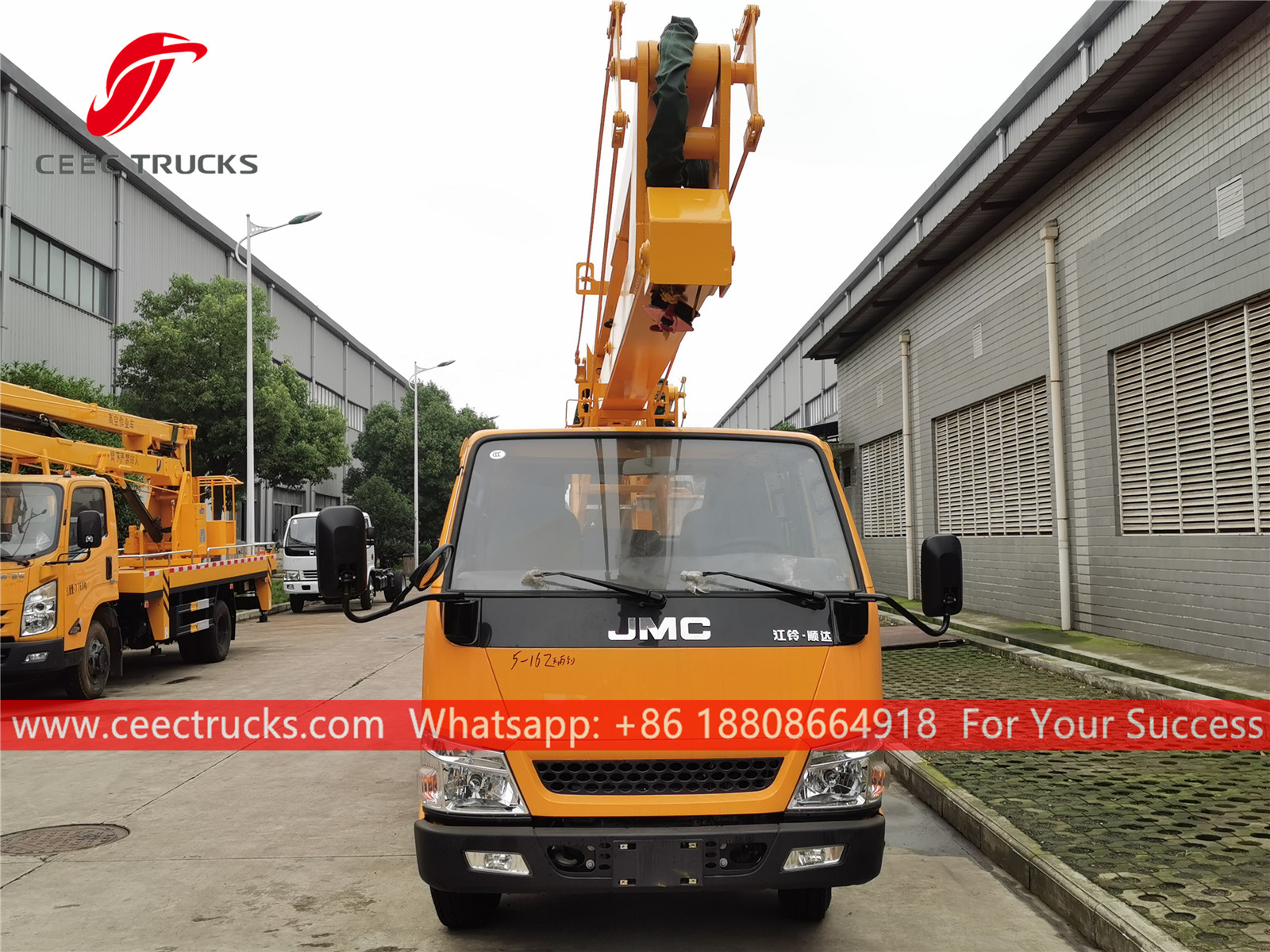

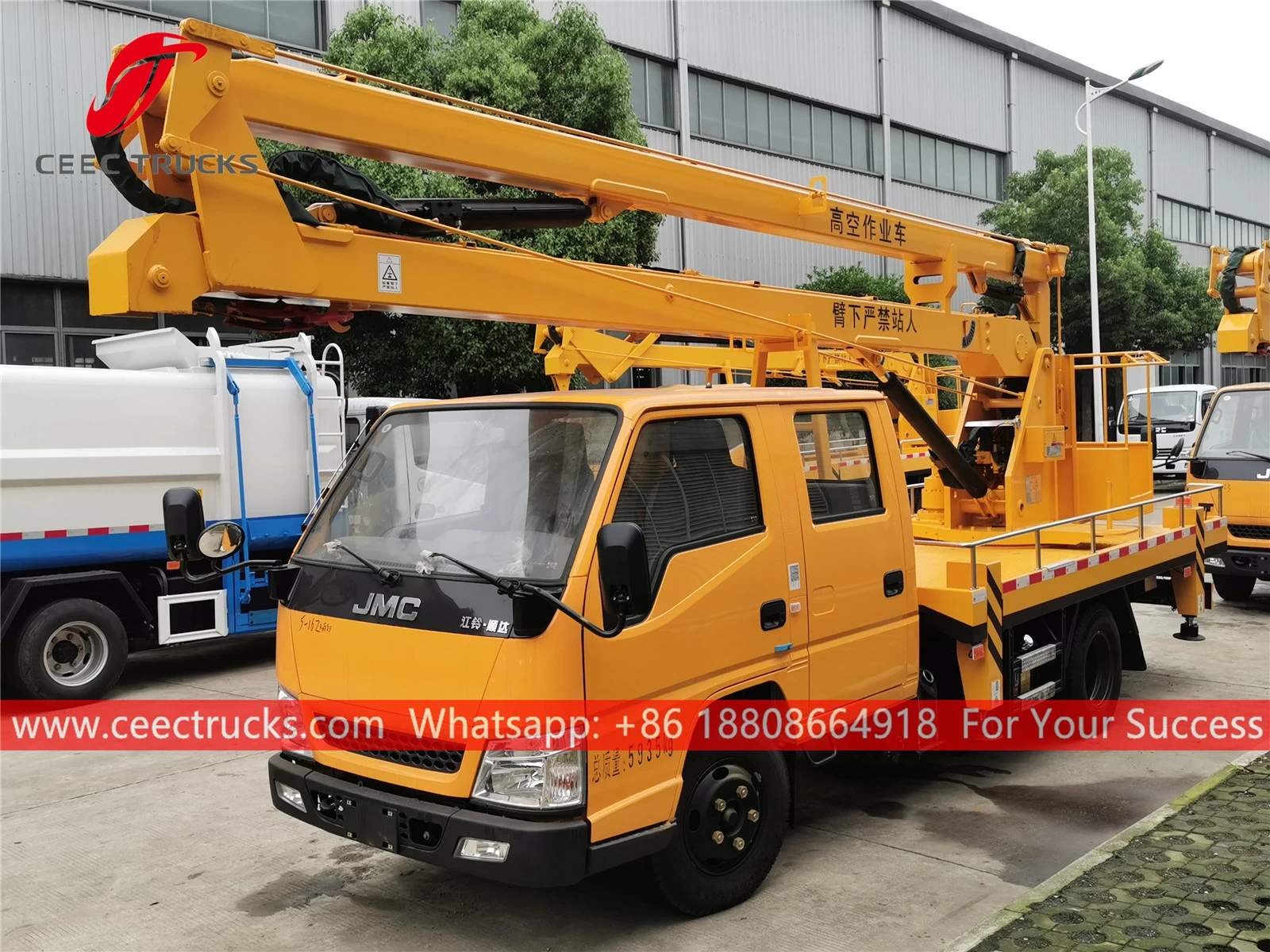

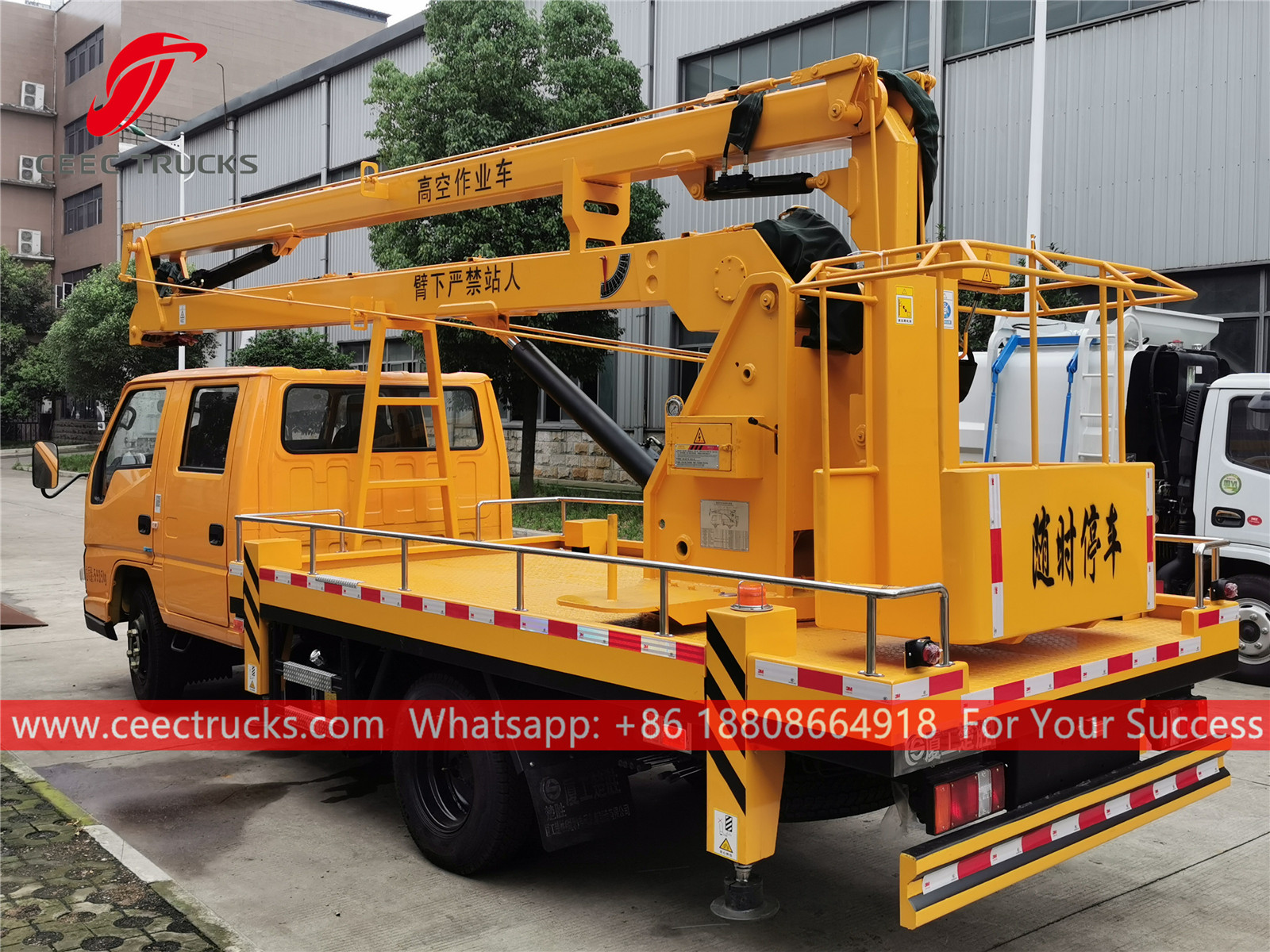

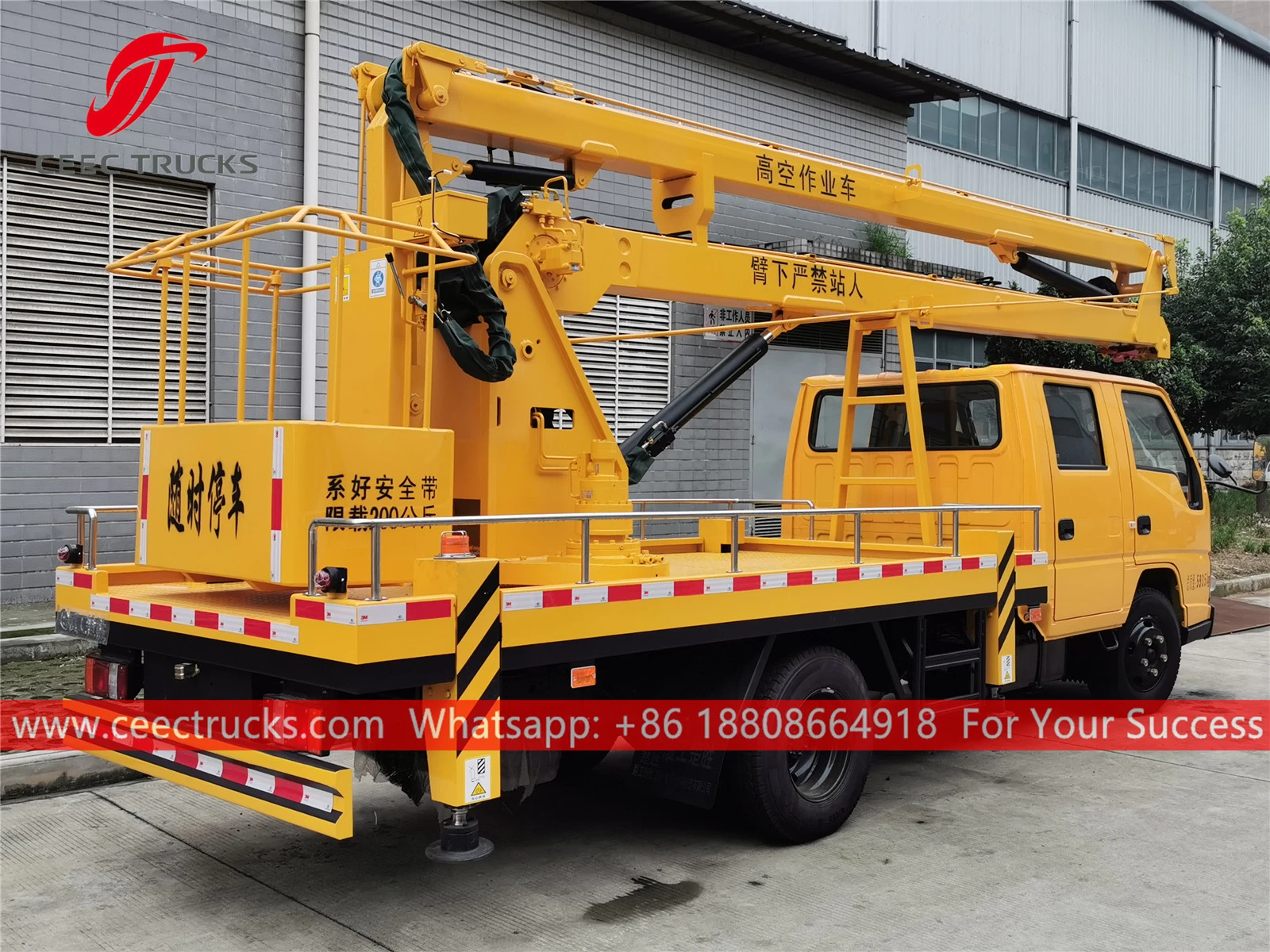

JMC Truck mounted aerial work platform (16M)
|
|
General
|
Vehicle Brand
|
CEEC TRUCKS
|
|
Chassis Brand
|
JMC
|
|
Overall
Dimension
|
7550 x 1980 x
3080 mm
|
|
GVW / Kerb
Weight
|
5,935 kg / 5,610 kg
|
|
Cab
|
Cab Capacity
|
2+3 persons
allowed
|
|
Air
Conditioner
|
With air
conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
JMC engine
|
|
Power
|
115Ps (85 KW)
|
|
Displacement
|
2771 ml
|
|
Emission
Standard
|
Euro 4 or 5
|
|
Chassis
|
Drive Type
|
4X2, left hand
drive
|
|
Transmission
|
Manual transmission, 5-forward gears & 1 reverse, no overhaul within 500,000km
|
|
Wheelbase/No.
of axle
|
3360 mm / 2
|
|
Tyre
Specification
|
7.00-16 or
7.00R16
|
|
Tyre Number
|
6 tyres and 1
spare tyre
|
|
Max Speed
|
95 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|

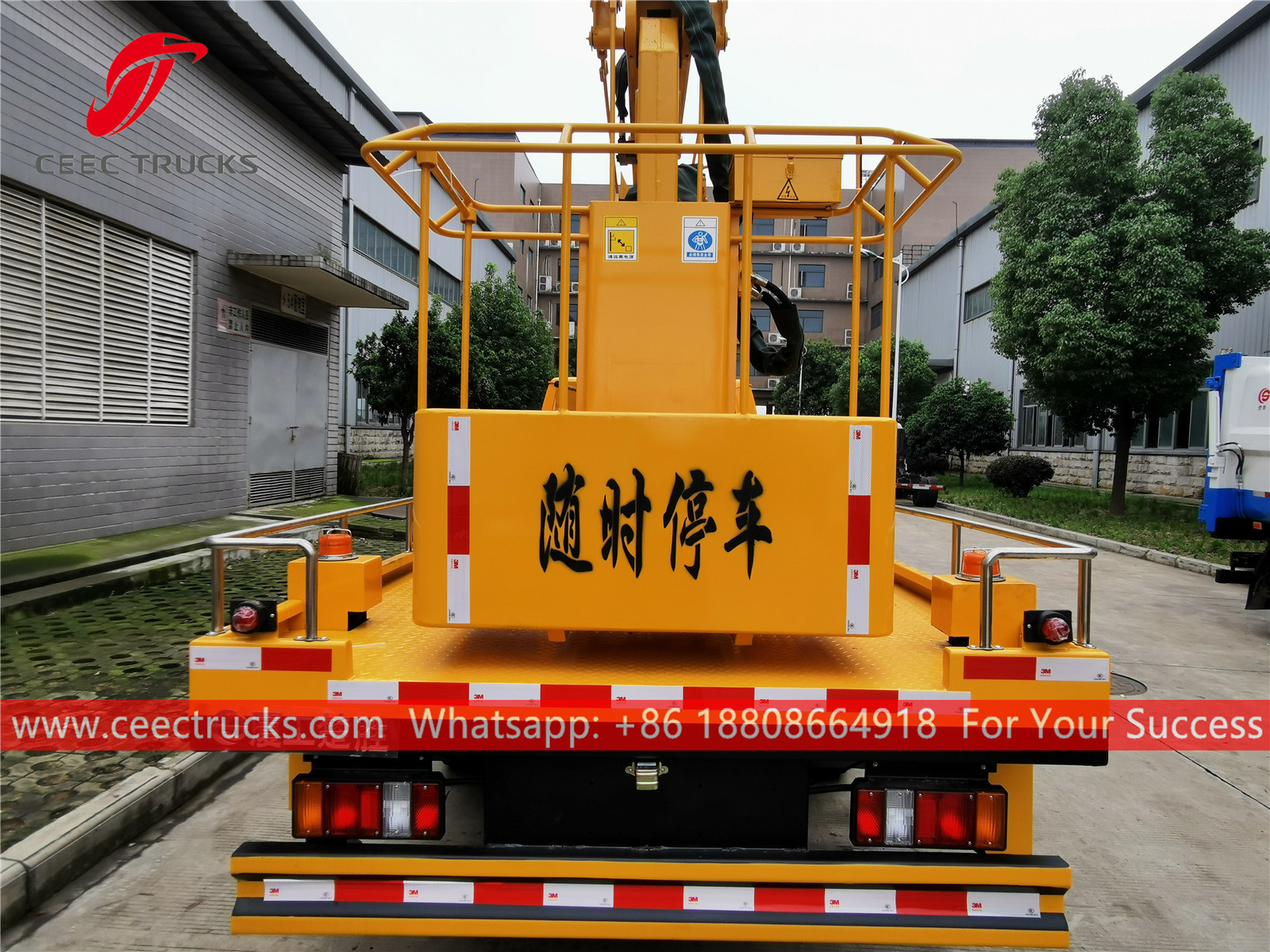

Cage Rated
Capacity
|
200 kg
|
|
Working Height
|
16 m
|
|
Beam
|
The beam is
articulated & telescopic extension type, hydraulic actuated and
controlled
|
|
Slewing
|
Slewing range
is continuous 235° (minimum) with a slewing speed of maximum 15° per second.
|
|
Control
|
Control both
on the ground and remote control in cage
|
|
Safety Device
|
Relief valve,
balance valve, double-way hydraulic lock, hand operated emergency hydraulic
pump
|
|
Leveling
System
|
Hydraulic
stabilizer to level the vehicle on uneven ground
|
|
Optional
|
Insulated
cage; Wireless remote control system
|
