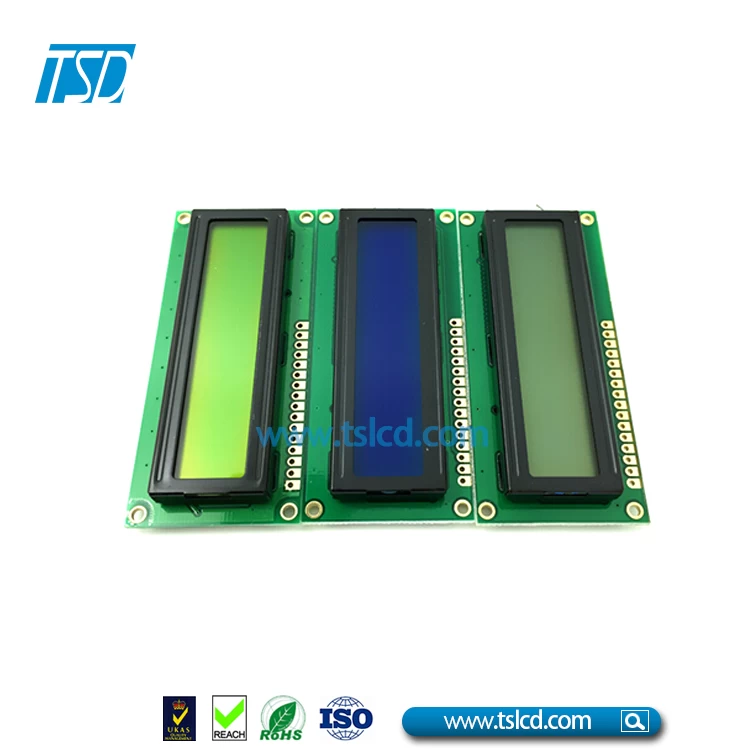

16x2 FSTN cob lcd cahracter with backlight

Display Character

16 character x 2 lines

Display background color

FSTN White/ Back character

Polarize mode

Positive  negative, Transflective

Outline Size(mm)

80.0x36.0x11.0

Active Area(mm)

64.5x14.5

Viewing Angle

6 O'clock

Diver IC

NV3035GTC

Character font

5x8 dots + cursor

Dots size(mm)

0.56x0.61

Character Size(mm)

2.96x5.16

Character pitch(mm)

3.5x5.6

Power

5V

Character Generator RAM

TBD64X8 bits

Display Data RAM

40X8 bits

Character Generator ROM

8320 bits
