17" Touch Industrial Display 1280*1024 Resolution
Product Introduction
PLM-1705T is suitable for industrial field HMI, industrial automation control with high electromagnetic interference, harsh environment and low power consumption
The PLM-1705T industrial display is a cost effective, versatile solution that fits the needs of many industrial applications. This display can be panel mounted, making its front bezel IP66 protected against dust and liquids. Or, it can be mounted to an arm, stand, or hung on a surface.
The display can be connected to any computer including a rugged box PC or another touchscreen panel PC. This industrial touchscreen display includes VGA, DVI, HDMI, and DisplayPort video inputs.
| Specification Parameters |
Optional |
| Front panel |
Aluminum alloy panel,black |
Wire-drawn metal or other colors |
| Rear case |
black |
Black, Metallic silver |
| LED |
17” TFT，LED backlight； Resolution 1280*1024； Pixel spacing：0.297*0.297； Maximum color：16.2M； Brightness：350cd/㎡； Contrast：500：1； Reaction time：6ms； MTBF：50，000h Visual Angle：(+75°~-75°)(+75°~-75°)； |
| Touch |
5 lines resistive touchscreen |
Capacitance screen can be customized |
| Industrial power |
12V@5A Adapte,Taiwan Jovi brand |
|
| Interface |
DC IN; VGA; HDMI, USB |
Can be customized DVI and other interfaces |
| Size |
384mm（length）* 316.5mm（width）* 51.4mm(thickness） |
| Weight |
5/6kg |
| Install method |
Installation of embedded screw; Installation of embedded hooks; VISA wall mounting |
| Environment |
| Operating temperature |
0～60℃ |
Storage Temperature |
-20～75℃ |
Environmental humidity |
0~90% air humidity,no condensation |
| Order information |
| PLM-1705T |
17-inch industrial display，1280*1024 resolution，Resistive touch screen |
| PLM-1705TR |
17-inch industrial display，1280*1024 resolution，Resistive touch screen |
|

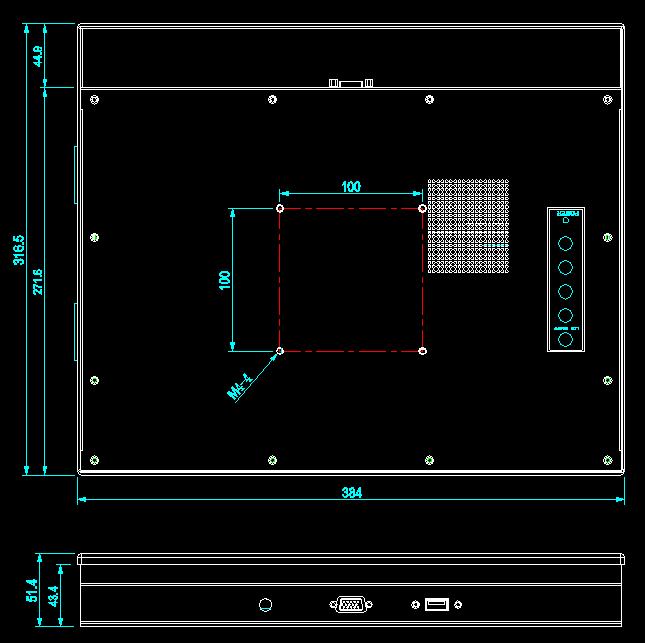

Installation size chart
|
|
|
Product Features
■ Beautiful aluminum alloy
■ 1280*1024 Resolution
■ Optional resistance or capacitance touch screen
■ All steel structure
Undertake Custom Business
■ Customer LOGO/ nameplate can be customized on the front panel and boot interface
■ Color can be customized
■ Customized structure, size and appearance
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
