Product
Introduce:

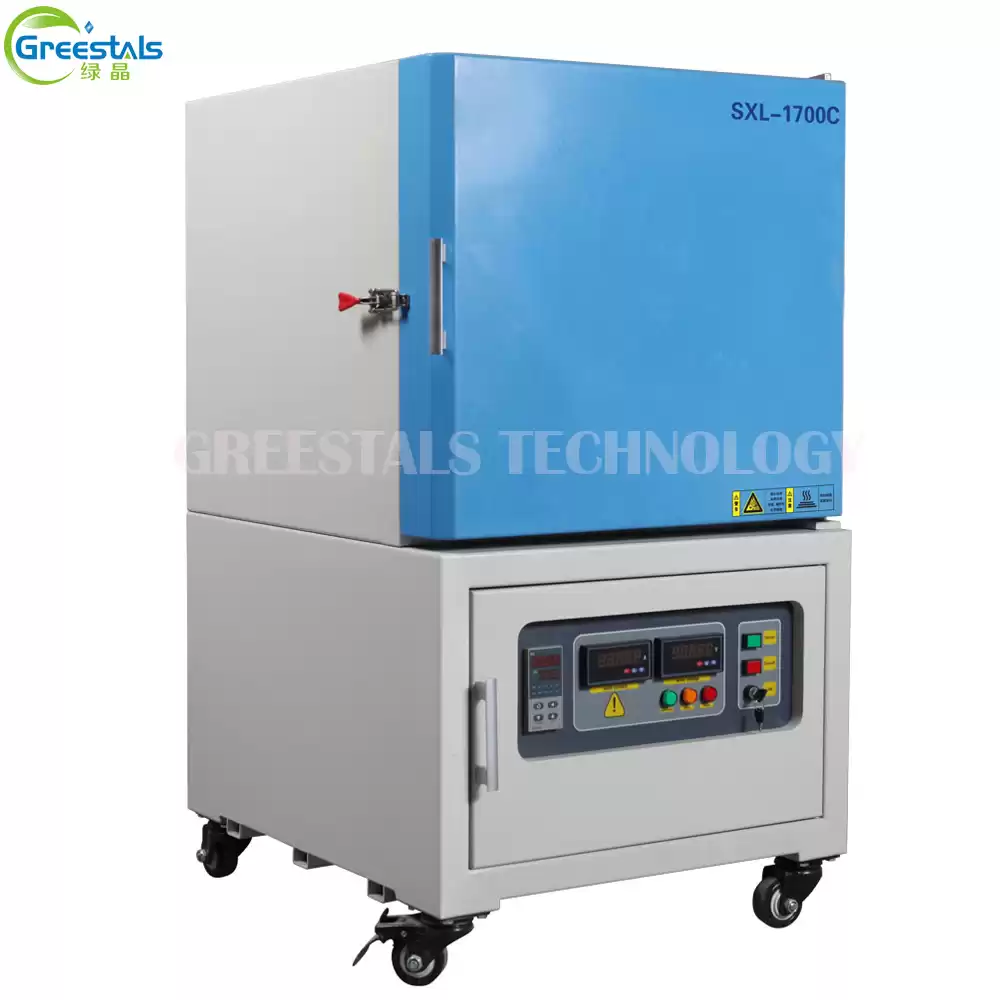

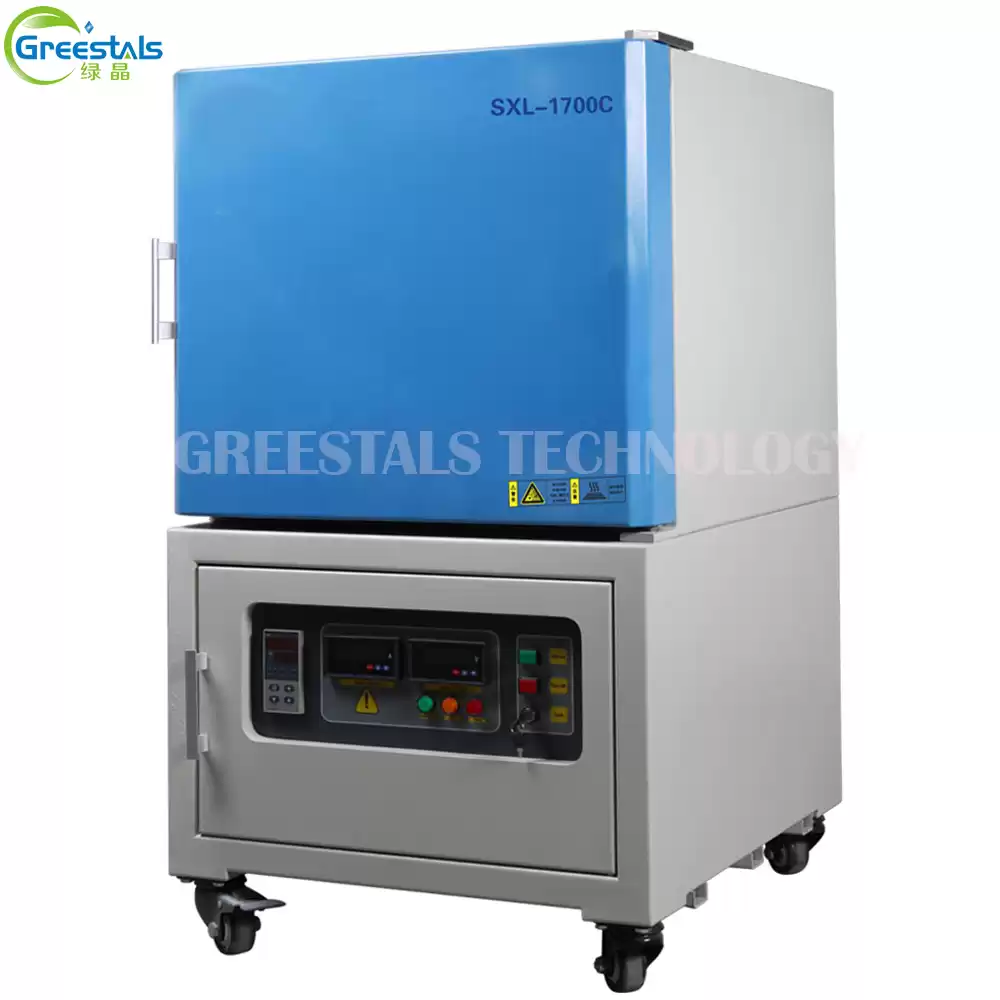

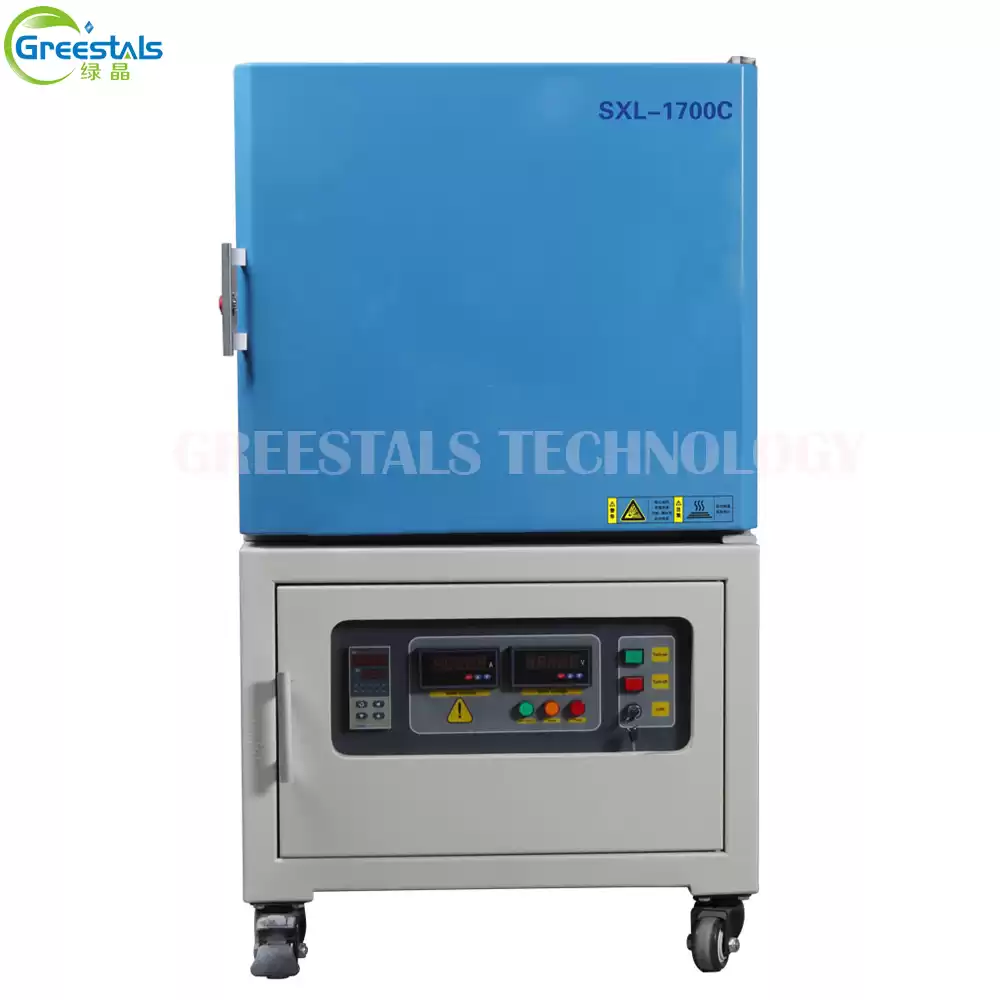

SXL-1700C Box type electric lab muffle furnace is adopted
high quality silicon molybdenum rod as heating element; With dual shell
structure and intelligent auto-control temperature system, SCR control, phase
shifting trigger. The furnace chamber is adopted the 1700 type
imported polycrystalline alumina fiber. Equipped with intelligent cooling
System between the dual shell, when the surface temperature reach to 50℃, the
cooling fun will start working automatically, so it can ensure the surface
temperature is low; Using constant current soft-start control, to extend the
life of heating elements.
Main function & Features:
1. Furnace chamber adopted high quality alumina
polycrystalline fiber, which used Japanese technology (vac-sorb
forming alumina polycrystalline fiber) with good insulation and
durability properties, high tensile strength and no miscellaneous ball; Chamber
surface coated with imported 1700 degree high temperature resistant heat
insulation coating, it can improve the reflectivity and the heat efficiency of
furnace, and prolong the service life of furnace. So this furnace much more
energy saving than the furnace use common fiber materials.
2. With high quality silicon
molybdenum rod as heating elements, high heating efficiency, greatly improving
the service life.

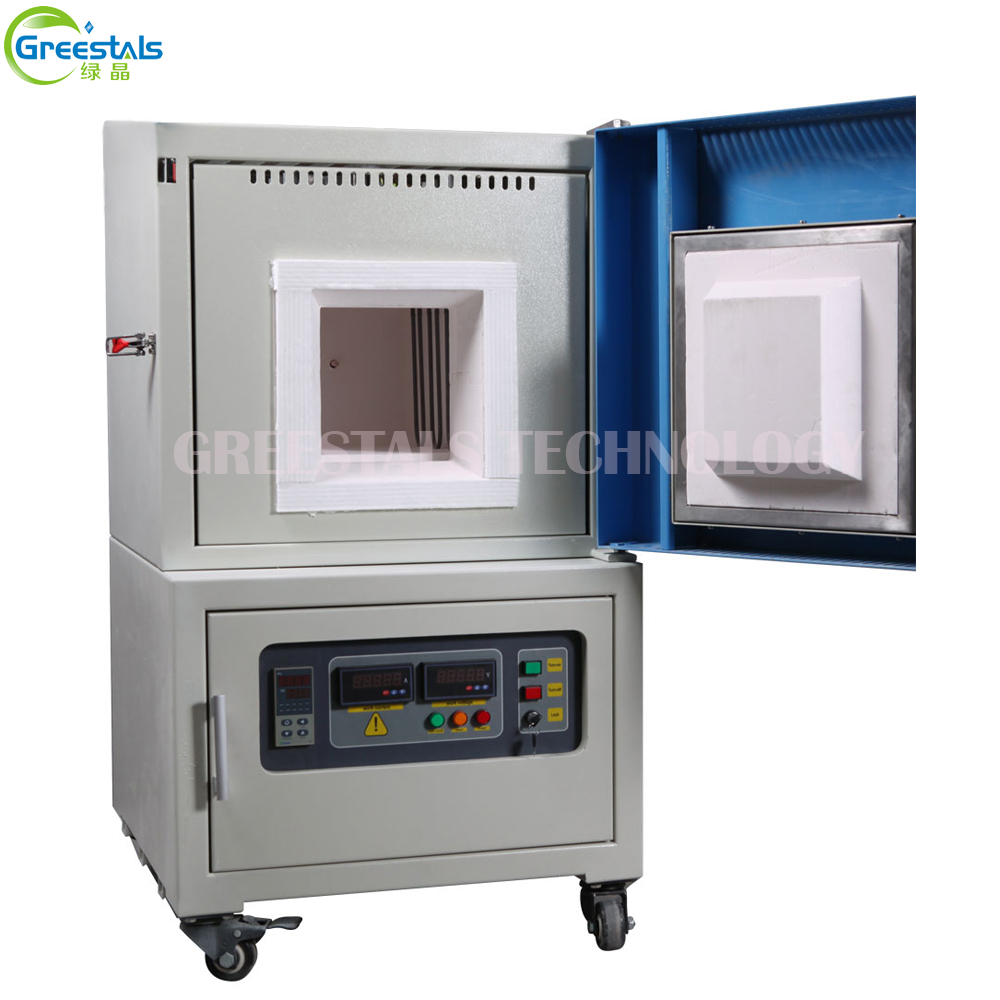

3. Furnace chamber with assembling structure, through strict
computation, durable to use, does not collapse; equipped with breathing holes,
can reduce shrinkage of furnace chamber and prolong the service life.
4. Side open type furnace door, open the door power will be cut off
automatically.
4. Reserved 485 convert interface, can be connected with PC through
software. It has remote control, real time tracking, history recorder, and
output report function.
Main uses:
Universities, research institutes, industrial and mining
enterprises to do the powder sintering , sintering of ceramics, high
temperature experiments, material handling, quality inspection purposes.
Technical parameters:
|
Model
|
SXL-1700C
|
|
Power supply
|
AC220V 50HZ(110V
50HZ is available)
|
|
Furnace
chamber (D x W x H)
|
300*200*200mm
|
400*300*300mm
|
|
Overall size
|
620*680*1050mm
|
640*760*1600
|
|
Rated power
|
6KW
|
14KW
|
|
Instrument Weight
|
195kg
|
300kg
|
|
Furnace
chamber
|
1700 type imported alumina
polycrystalline fibers furnace chamber, scientific design and with durable,
good insulation properties.
|
|
Heating
elements
|
high quality silicon molybdenum rod
|
|
Thermocouple
|
B-type thermocouple
|
|
Temperature control mode
|
The temperature control system uses artificial intelligence
technology, with PID control, self - tuning function, 50 segment heating and
cooling program
|
|
Continuous working temperature
|
≤1600℃
|
|
Maximum temperature
|
1650℃
|
|
Recommended
heating rate
|
10℃/min
|
|
Temperature control accuracy
|
±1℃
|
|
Standard accessories
|
Door brick 1 piece
Crucible tongs 1 piece
Warranty card 1 piece
|
|
Optional accessories
|
Furnace hobs , a variety of corundum crucible, oven
glove, computer control software and paperless recorder, etc.
|
