1700 Degree High Temperature Sintering Muffle Furnace With 40 Segments Programmable Temperature Controllers
SPECIFICATIONS

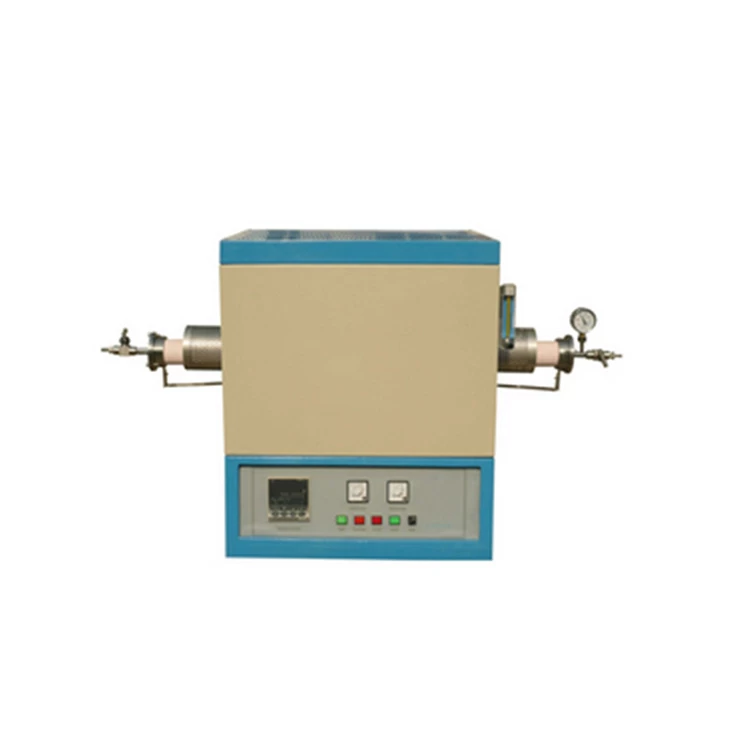

The TOB-KTL1700laboratory tube furnaceis ahigh temperature sintering muffle furnaceadopts Silicon molybdenum rods as heating element with max temperature 1700℃. 40 segments programmable temperature controllers are installed with 6 groups of PID adjustment.
Thislaboratory tube furnaceis the ideal laboratory equipment for universities, research institutes, industrial and mining enterprises to do High temperature atmosphere sintering, Atmosphere reduction, CVD experimental, vacuum annealing such as for preparing nano materials and film.
|
Model
|
Tube Size
|
Power
|
Dimension
(L*W*H)
|
Voltage
|
Heating Zone
Length
|
Max Heating
Temperature
|
|
TOB-KTL1700-I
|
Φ60*1000mm
|
4kw
|
650*450*670mm
|
AC110V/220V
|
260mm
|
1700℃
|
|
TOB-KTL1700-II
|
Φ80*1000mm
|
4kw
|
650*450*670mm
|
|
Heating element
|
1800 type Silicon molybdenum rods
|
|
Temperature controller
|
40 program temperature control system,
With over temperature, broken accidentally protection function,
6 groups of PID adjustment
Control precision of + / - 1 ℃
|
|
Furnace chamber
|
1800 type Polycrystal alumina fiber
|
|
Tube material
|
99.8 high purity alumina tube
|
|
Vacuum Flange &
Fitting Ports
|
Stainless steel flange with Gas nozzle, valve, pressure gauge
|
|
Pressure measure
system
|
Pressure gauge (Resistance vacuum gauge can be chosen according requirements)
|
|
Air intake control
|
Flow meter (Protons flow controller can be chosen according requirements )
|
|
Vacuum system
|
Vacuum pump can be chosen
|
|
Warranty
|
One year limited warranty with lifetime support
|
