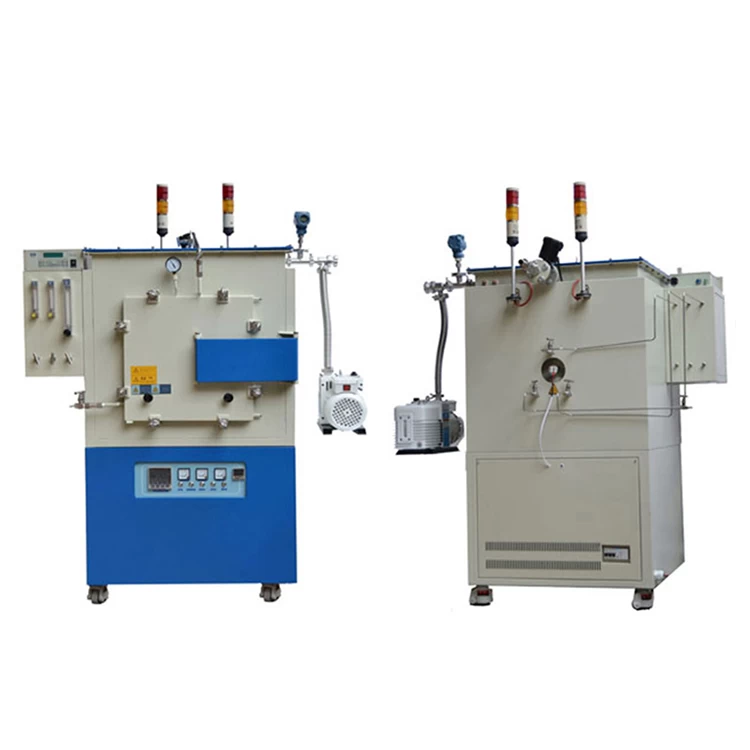

1700 ℃ Vacuum atmosphere furnace of hydrogen
SPECIFICATIONS
|
Model
|
TOB-DSP-VF17Q-I
|
TOB-DSP-VF17Q-II
|
TOB-DSP-VF17Q-III
|
|
Power
|
4 KW
|
8 KW
|
16 KW
|
|
Furnace tube size(mm)
|
160X150X150
|
300X200X200
|
400X300X300
|
|
Dimension
|
550X470X810
|
600X 610X860
|
700X 710X1355
|
|
Power supply voltage
|
220V
|
380V
|
|
Phase number
|
Single-phase
|
|
Heating element
|
1800 type Molybdenum Wire
|
|
Temperature control mode
|
FP93 temperature control (from Japan)
1,40 section program temperature control can be divided into 4,2,1 group program,
if the program is divided into four groups, each program segment 10,
2,6 group PID control, low, medium and high temperature can each with a set of PID,
such that each segment is capable of controlling the temperature is very accurate.
|
|
Control accuracy
|
+/- 1 ℃
|
|
Triggers
|
1.Phase trigger (with soft start and current limiting function)
2.Current limiting function: no matter how to adjust the heating time,
our furnace transformer secondary current through the post is limited to 160A,
limited protection of equipment, no matter how you operate, the device will not burn.
3.Soft-start function: When the power current will slowly increase,
the impact on the heating element is small, help extend the life of the heating element
|
|
SCR
|
106 / 16E Germany Semikron
|
|
Max temperature
|
1600 ℃
|
|
Rated temperature
|
1550 ℃
|
|
Vacuum degree in cold state
|
≤100Pa
|
|
Heating rate
|
≤20 ℃ / Min (available upon request modification)
|
|
Recommended heating rate
|
≤10 ℃ / Min
|
|
Thermocouple Type
|
Type B
|
|
Certification
|
CE
|
|
Surrounding surface temperature
|
≤45℃
|
NOTE:This type furnace atmosphere is not to be heating in the air and oxygen.Only heating in the following atmosphere.
|
Atmosphere
|
Max temperature
|
|
He,Ar,Ne
|
1700℃
|
|
H2 (70%), N2 (30%)
Mixed gas
|
1700℃
|
|
H2
|
1700℃
|
|
He, Ar, Ne and H2
A mixed gas,
H2 may be any content
|
1700℃
|
