Product Item:17000 liters 3 Axle Fuel Tanker Drawbar Trailer
Introduction of drawbar tanker trailer
SUNSKY 3 axles
drawbar trailer is manufactured in various sizes according to the current need
for transport of petrol and diesel products. The trailer is delivered with the
best quality aluminum or carbon steel tank with a low net weight, which allows
your truck to transport more product on the same trip.
The
construction has the same tank size as a 4-axle tanker with distribution in the
immediate area where the trailer is used as an external storage, the entire net
volume of the trailer can be over pumped to the tanker in a workflow.
We
build our fuel tanks on suitable approved chassis in the strong quality. One
front axle and two rear axles with an optional steering on the 3rd axle is
often the most used combination.
Specification
|
Style
|
17000 liters
fuel tanker drawbar trailer
|
|
The thickness
of shell& dish
|
6 mm/ Q345B
carbon mild steel
|
|
Compartment:
|
3
|
|
Dimension(L*W*H)mm:
|
9500*2500*3400
|
|
Payload(kgs):
|
30000
|
|
Tare
weight(kgs):
|
7400
|
|
Dolly
|
One axle dolly
|
|
Tire size
|
12R22.5 (13
sets)
|
|
Rim size
|
9.00*22.5 (13
sets)
|
|
Axle
|
Fuwa brand 13
tons
|
|
Leafs spring
|
Spring
suspension with 8 pcs of leaf spring
|
|
Brake system
|
Dual line with
WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air
tank
|
|
Manhole:
|
Europe Standard
C801A-560Φ500
|
|
Discharge and
bottom valve
|
Pneumatic 3”
|
|
Prime &
Topcoat painting
|
Zinc-rich
& Polyurethane painting
|

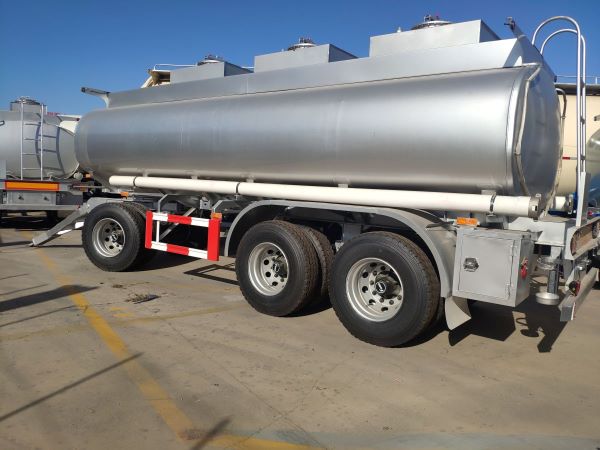

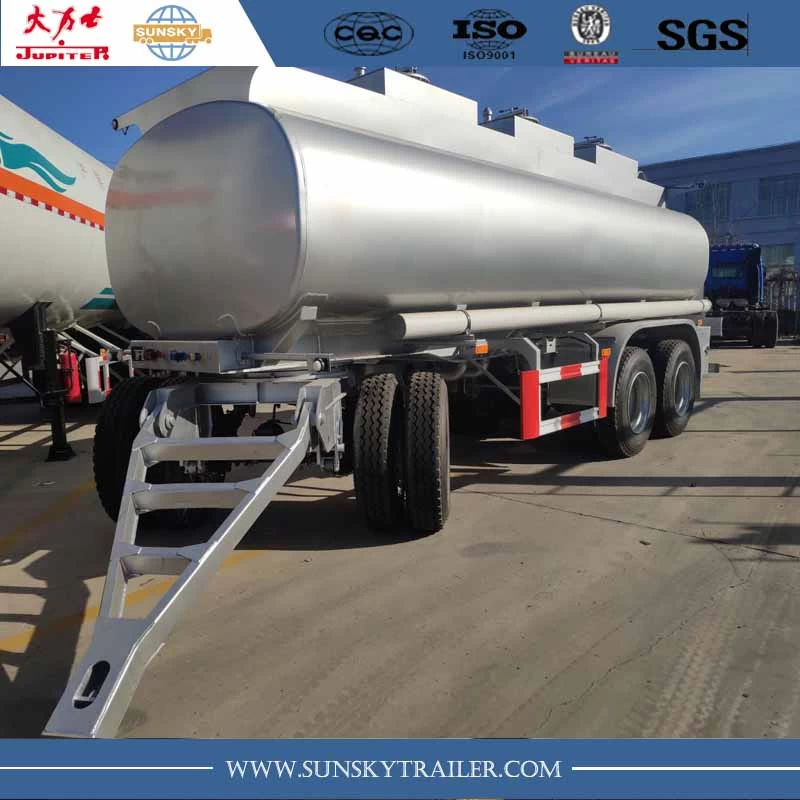

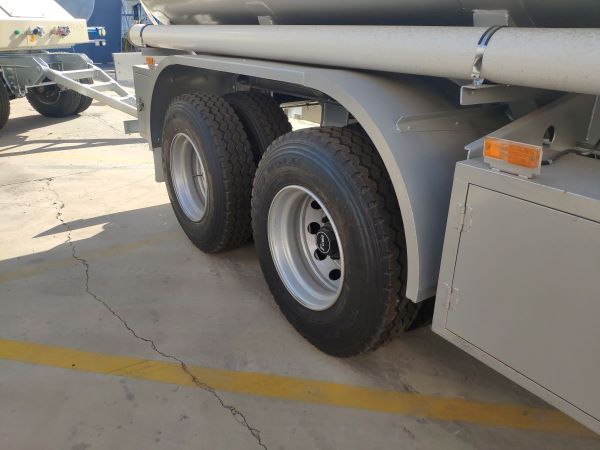

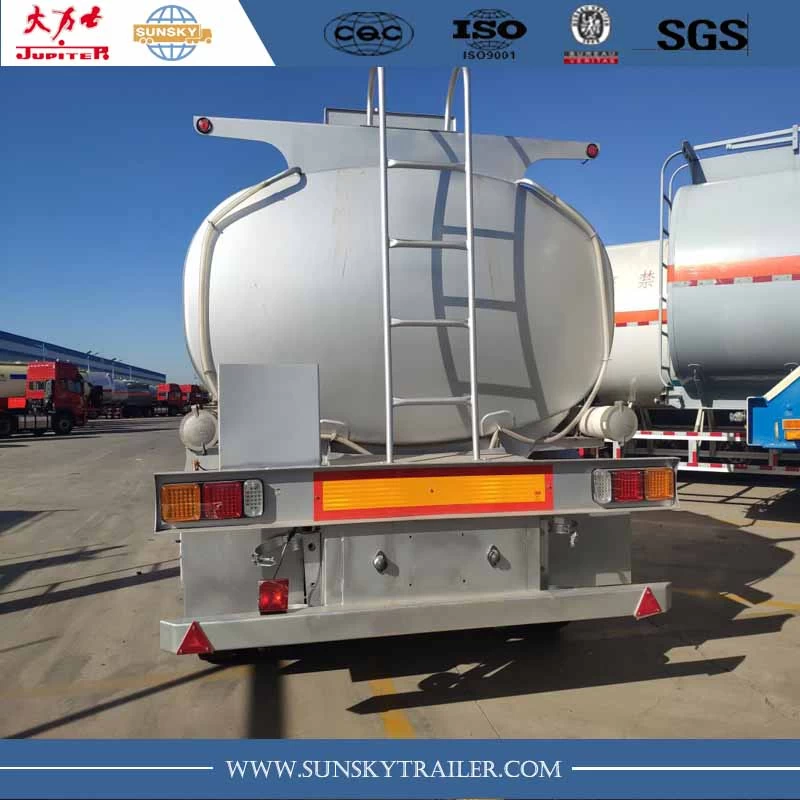

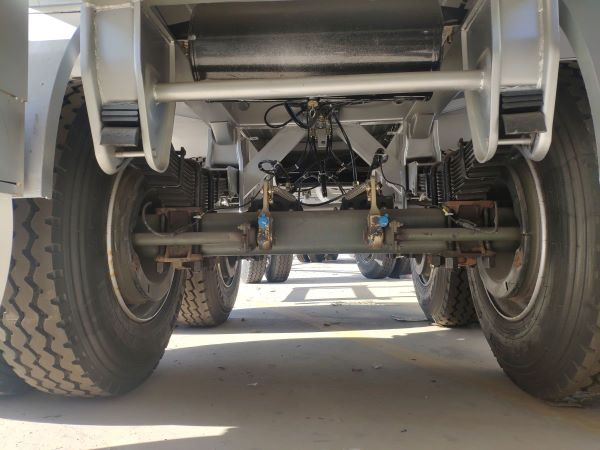

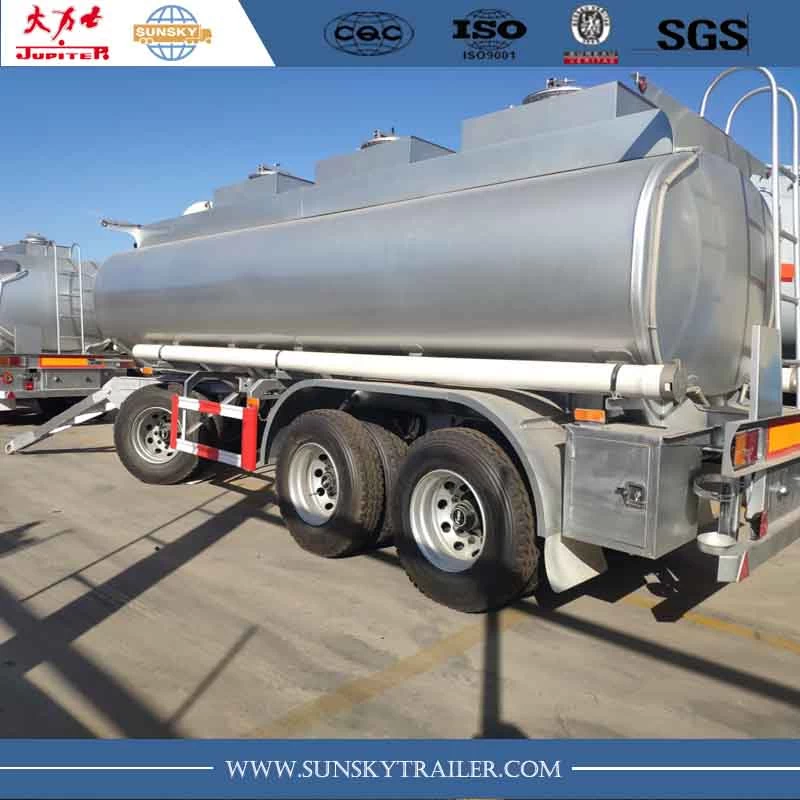

Detailed Photo of tri axle drawbar trailer
Quality guarantee
1. More
than 30 years experiences in trailer and truck industrial, exported to more
than 30 countries in Africa, Southeast Asia.
2. Two
years free warranty terms for the I beam, three to six month free warranty
terms for the Axles, suspension etc.
3. Able
to custom-built design as your requirement, ensure to meet your local road
regulation.
4.
Spare parts support services
